Toyota COROLLA 背门板和背门玻璃 — Figure 6708

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 3 images and 6 PNC and OE references.

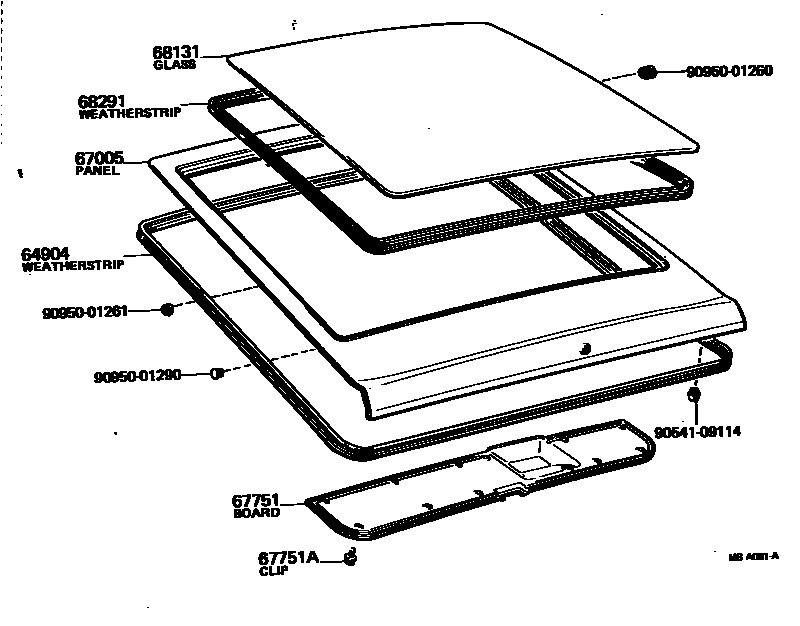

Toyota COROLLA 背门板和背门玻璃 EPC diagram — MBA081A
背门板和背门玻璃 — MBA081A (197908 – 999999)

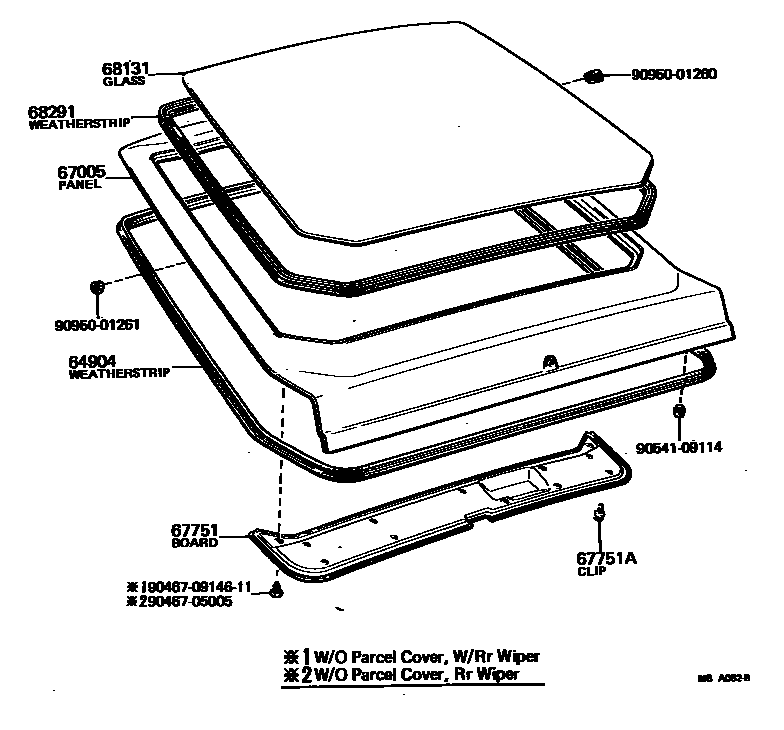

Toyota COROLLA 背门板和背门玻璃 EPC diagram — MBA082B
背门板和背门玻璃 — MBA082B (197908 – 999999)

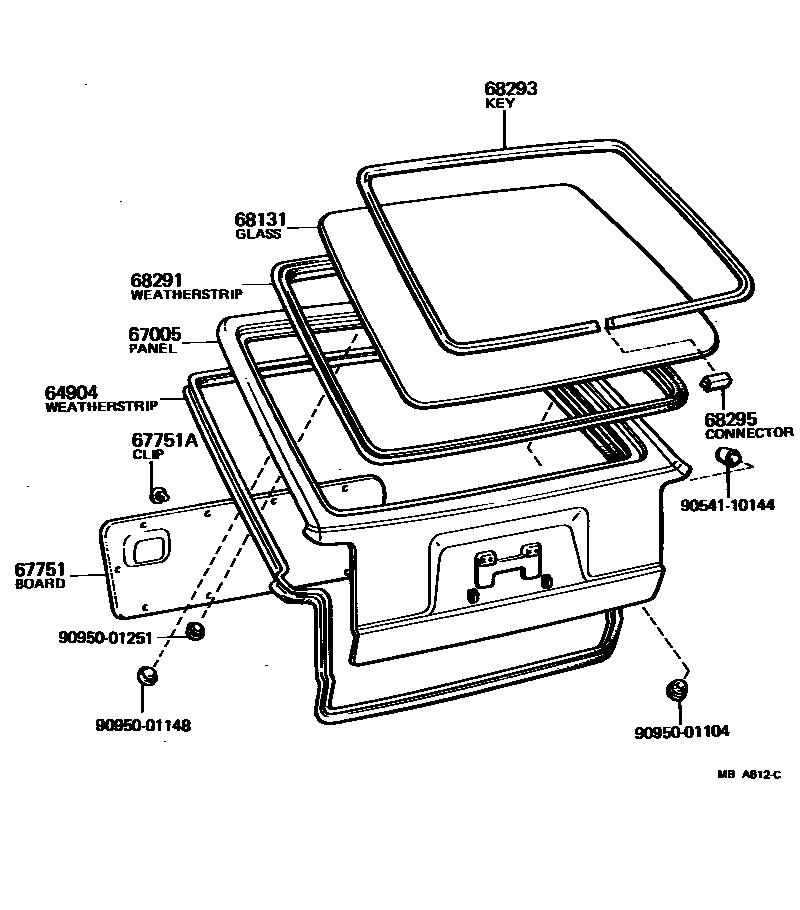

Toyota COROLLA 背门板和背门玻璃 EPC diagram — MBA612C
背门板和背门玻璃 — MBA612C (197908 – 999999)

PNC and OE references

PNCPart nameOE numbers
64904Rear door sealing strip sub-assembly67881-12030 · 67881-12050 · 67881-13050
67005Rear door panel sub-assembly67005-12241 · 67005-12261 · 67005-12291 · 67005-12301 · 67005-12900 · 67005-12901 · 67005-12902 · 67005-12903 · 67005-13360 · 67005-13361 · 67005-13430 · 67005-13431 · 67005-13915 · 67005-13916
68131back door glass68105-12040 · 68105-12050 · 68105-12060 · 68105-12070 · 68105-13020 · 68105-13050 · 68131-12020 · 68131-12070 · 68131-13080
68291Rear door glass seal strip68291-12030 · 68291-12040 · 68291-12050 · 68291-13090
68293Rear window sealing strip key68293-13040
68295Rear door seal wedge connector68295-13011
