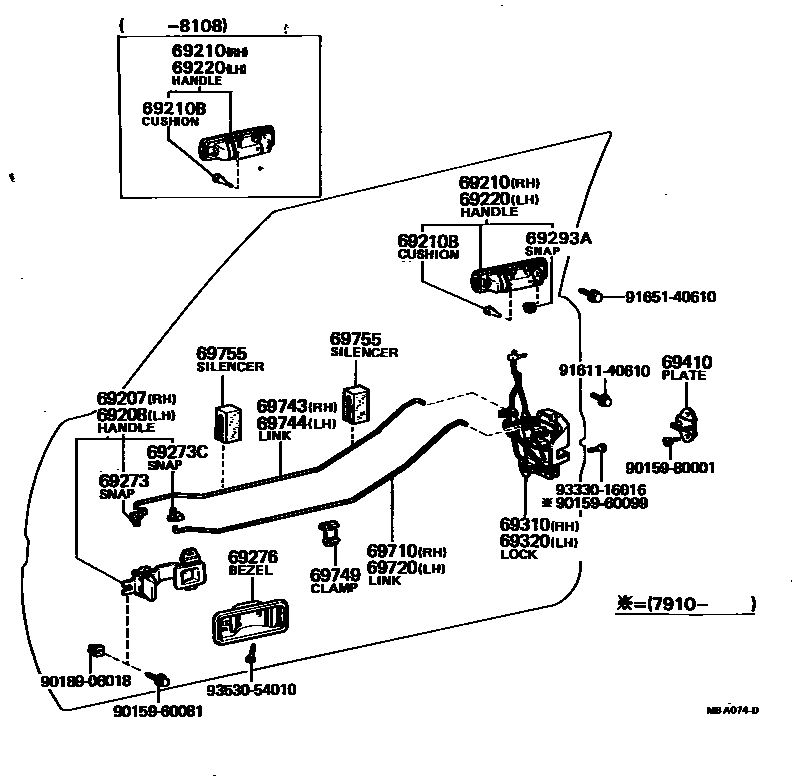

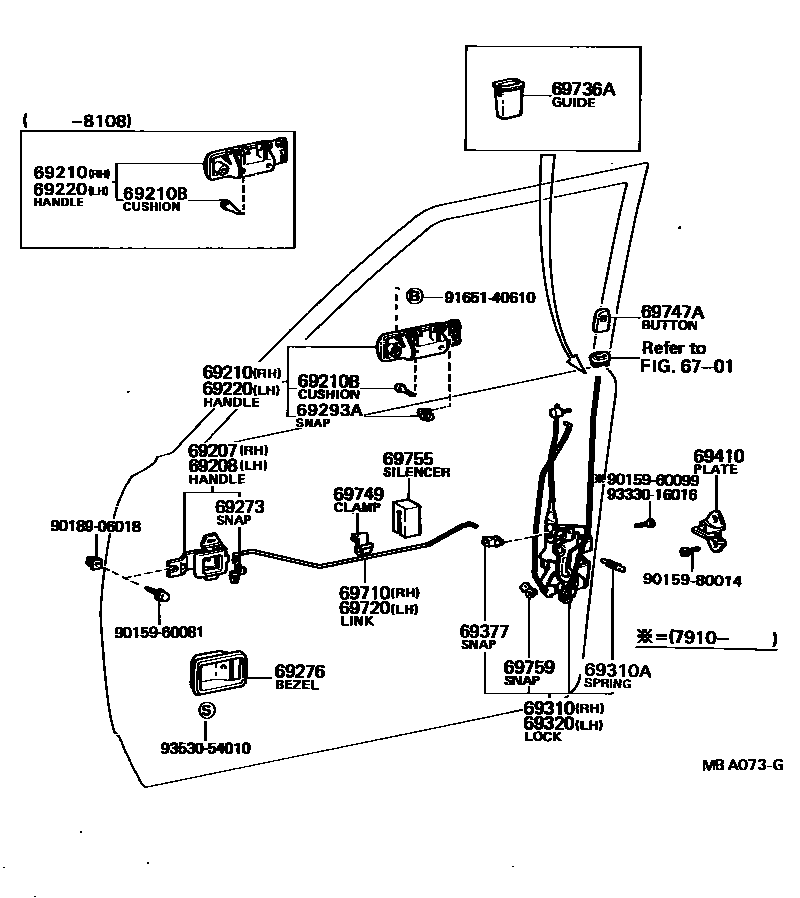

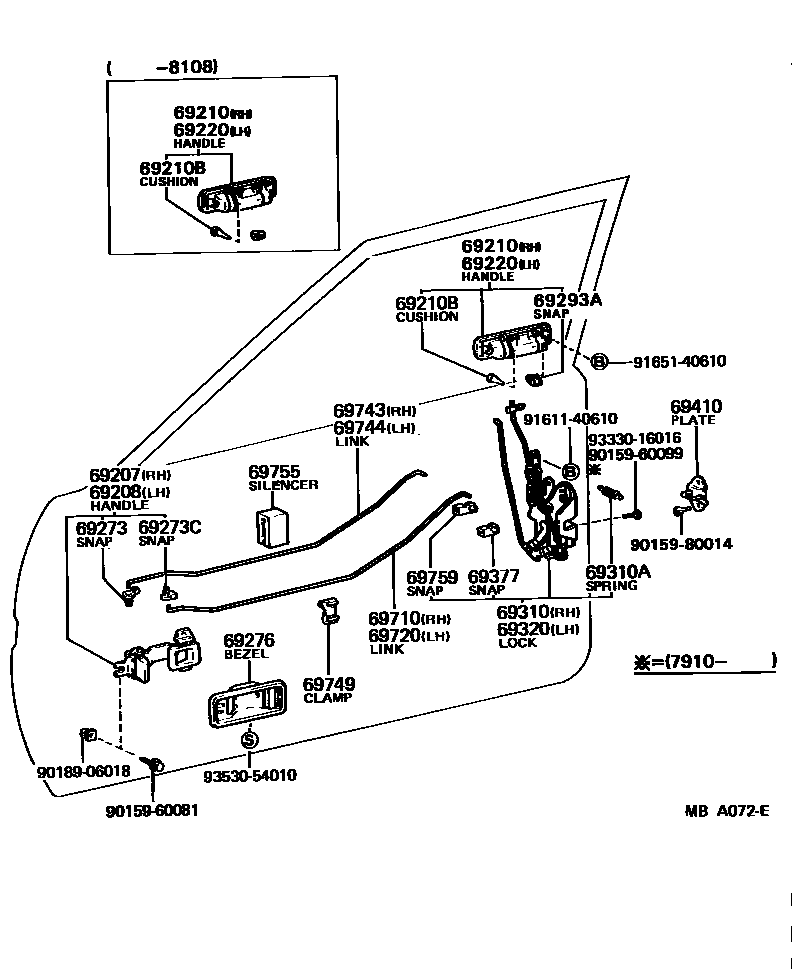

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69210 | Right front door outer handle assembly | 69210-12040 · 69210-12050 · 69210-12070 · 69210-12071 |
| 69210B | Cushion pad (for front door outer handle) | 90541-03021 |
| 69220 | Left front door outer handle assembly | 69220-12040 · 69220-12050 · 69220-12070 · 69220-12071 |
| 69273 | Inner door handle lever buckle | 69273-30020 · 69279-12010 |
| 69273C | Car door inner handle link buckle | 69279-10010 · 69288-10010 |
| 69293A | Front door outer handle buckle | 69293-12010 · 69293-12020 · 69293-22010 · 69293-22020 |
| 69310 | Right front door lock assembly | 69310-12070 · 69310-12080 · 69310-12081 · 69310-12090 |
| 69310A | Spring (for front door lock) | 90506-08031 |
| 69320 | Left front door lock assembly | 69320-12070 · 69320-12080 · 69320-12081 · 69320-12090 |
| 69377 | Front door lock control link buckle | 69377-30020 |
| 69410 | Front door lock plate assembly | 69410-12040 |
| 69710 | Right front door opening control linkage assembly | 69711-12040 · 69711-12050 · 69711-12060 |
| 69720 | Left front door opening control linkage assembly | 69712-12040 · 69712-12050 · 69712-12060 |
| 69736A | Front door lock link guide block | 69736-22020 · 69736-22021 |
| 69743 | Right front door lock control link No. 1 | 69733-12030 · 69733-12040 |
| 69744 | Left front door No. 1 locking control link | 69734-12030 · 69734-12040 |
| 69749 | Front door lock link clip | 69749-12010 · 69749-12030 · 69749-30020 |
| 69755 | Front door lock link silencer | 69759-12011 · 69759-30021 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-12030 |
