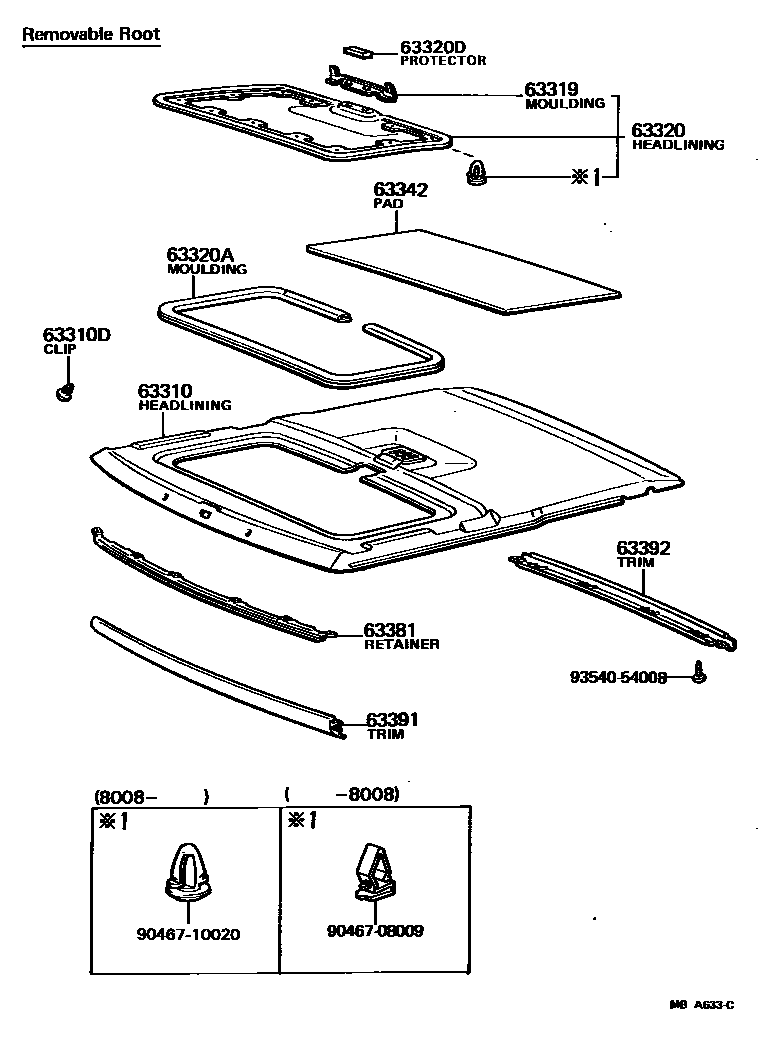

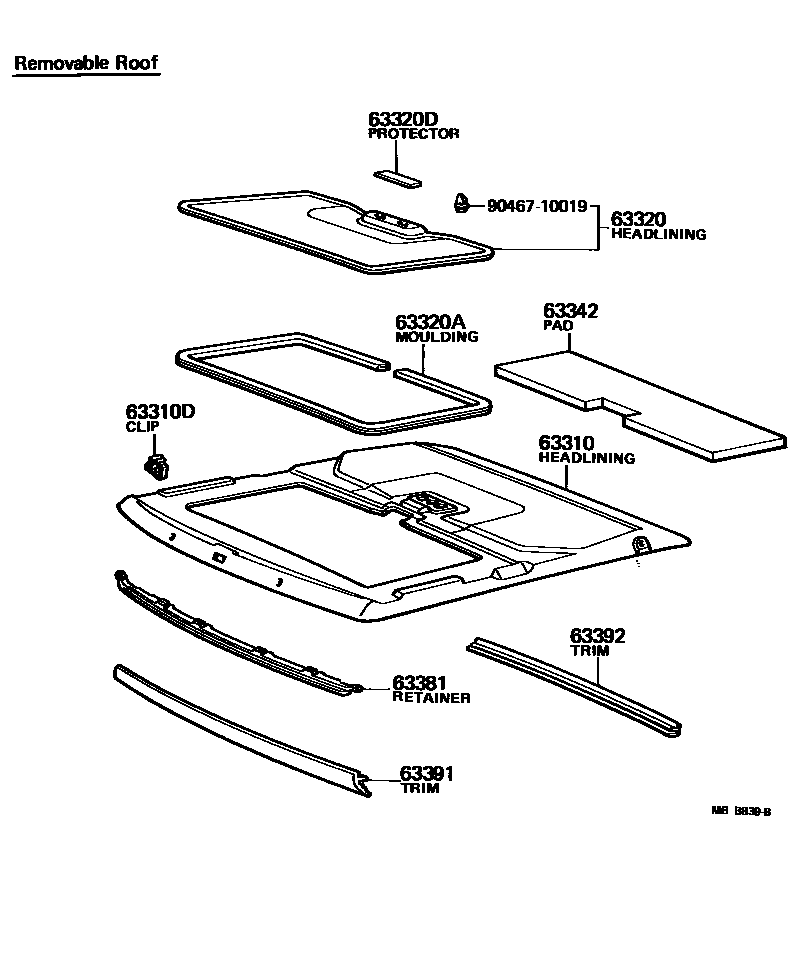

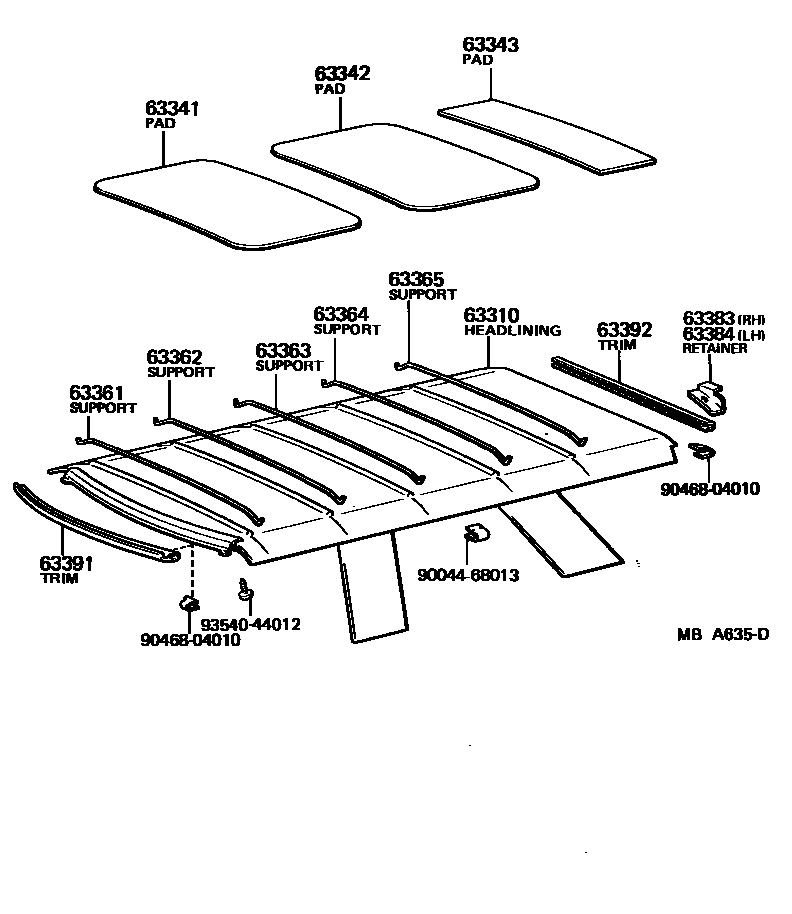

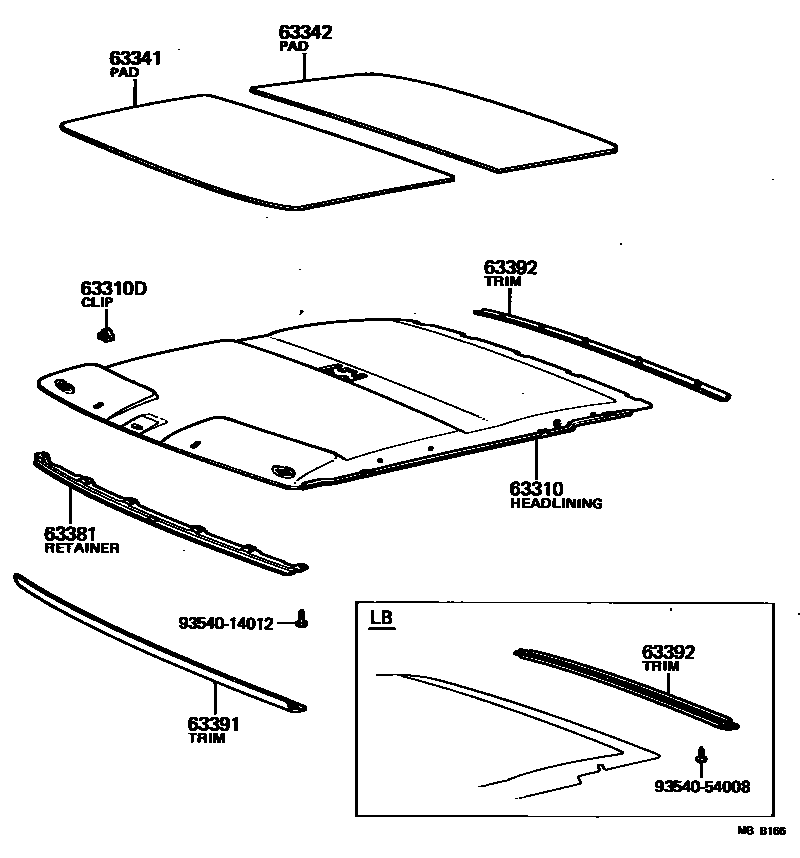

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63310D | headliner clip | 63376-20010 · 63395-12020 |
| 63319 | Rear roof inner panel fixed protective strip | 63372-12050 |
| 63320 | Solar skylight or removable skylight lining assembly | 63320-12010 · 63320-12011 · 63320-12020 |
| 63320A | Sunroof or removable skylight opening trim | 63318-12010 |
| 63320D | Sunshade decorative panel protective parts | 63333-12010 |
| 63341 | No. 1 roof silencer mat | 63341-12070 · 63342-12030 |
| 63342 | No. 2 roof muffler pad | 63341-12070 · 63342-12030 · 63342-13070 · 63343-12020 · 63343-12030 · 63343-12040 |
| 63343 | No. 3 roof muffler pad | 63343-13020 |
| 63361 | Headlining bracket No. 1 | 63361-13020 |
| 63362 | Headlining bracket No. 2 | 63361-13020 |
| 63363 | No. 3 roof lining bracket | 63361-13020 |
| 63364 | No. 4 roof lining bracket | 63361-13020 |
| 63365 | No. 5 headliner bracket | 63361-13020 |
| 63381 | Front lining fastener | 63381-12030 · 63381-12040 |
| 63383 | Right rear headliner fixing | 63383-13030 |
| 63384 | Left rear headliner fixing | 63384-13020 |
