Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

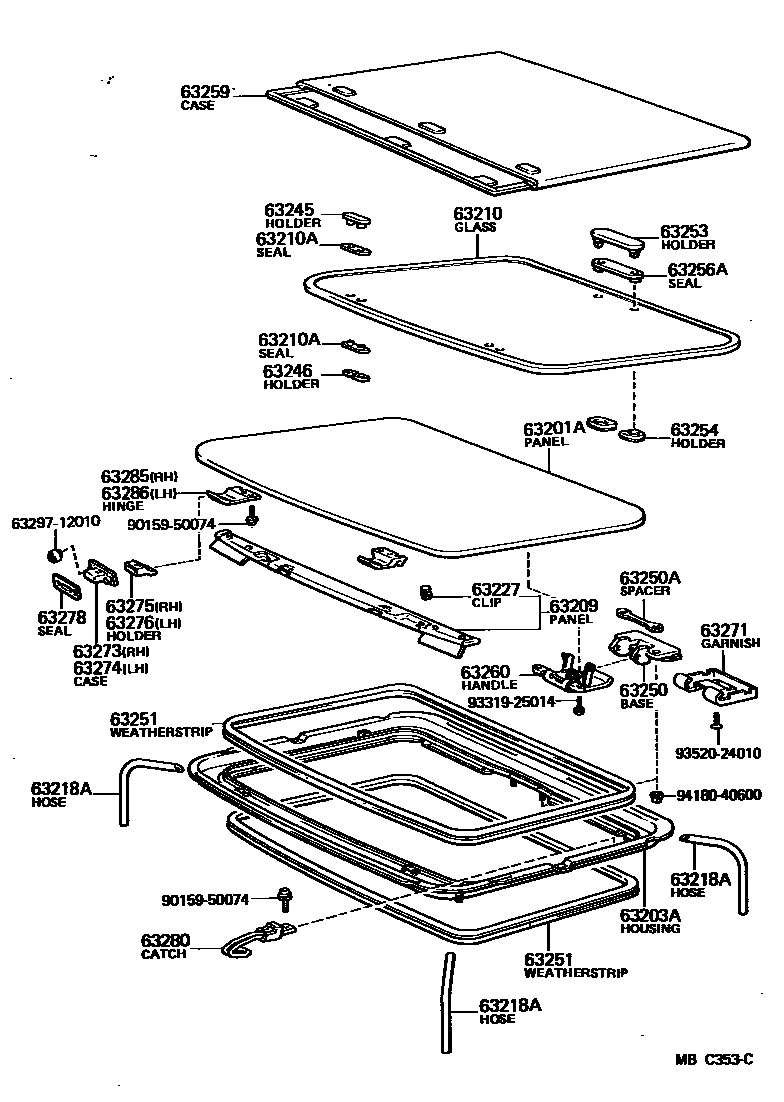

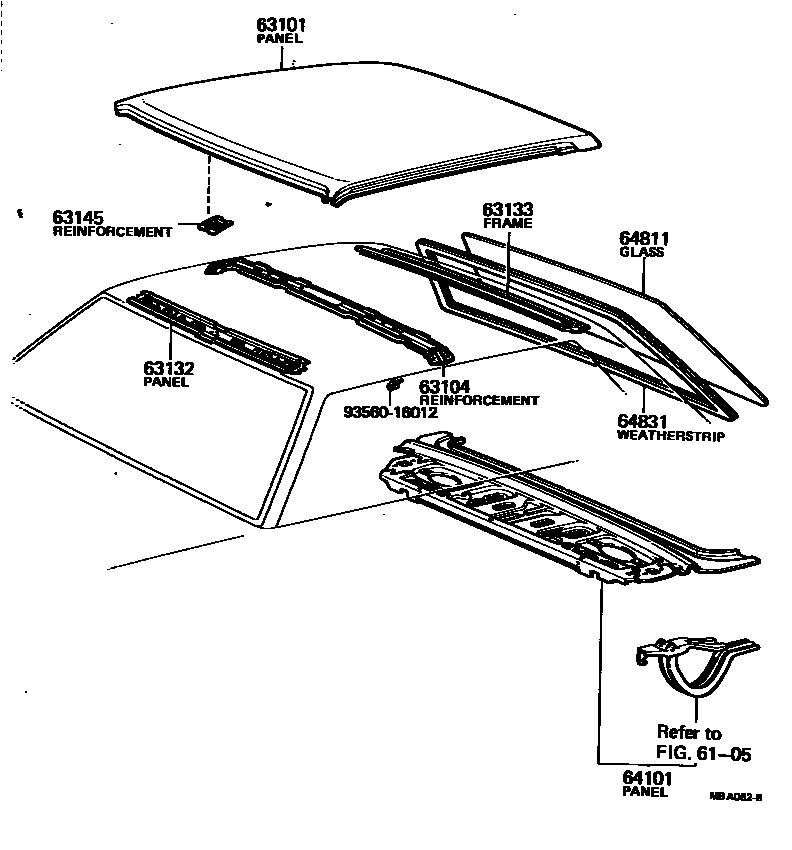

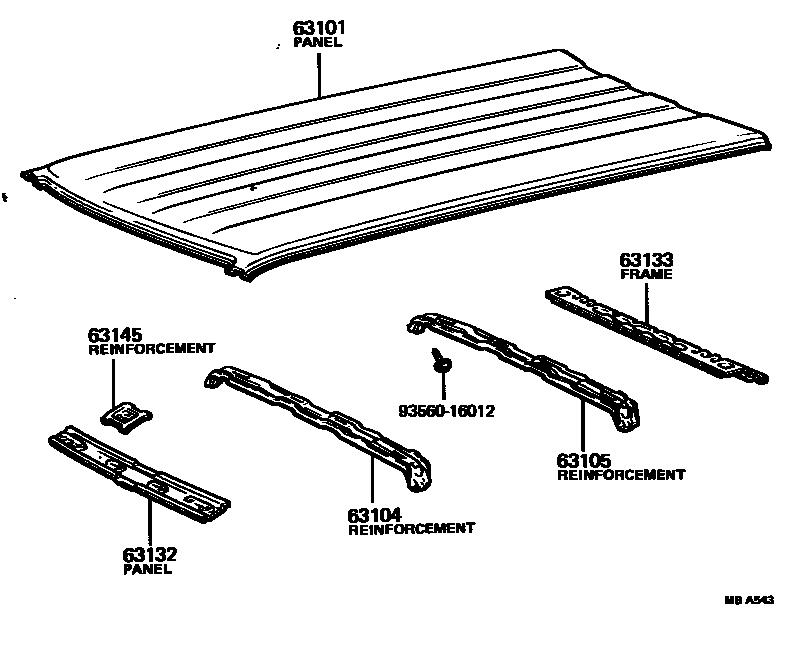

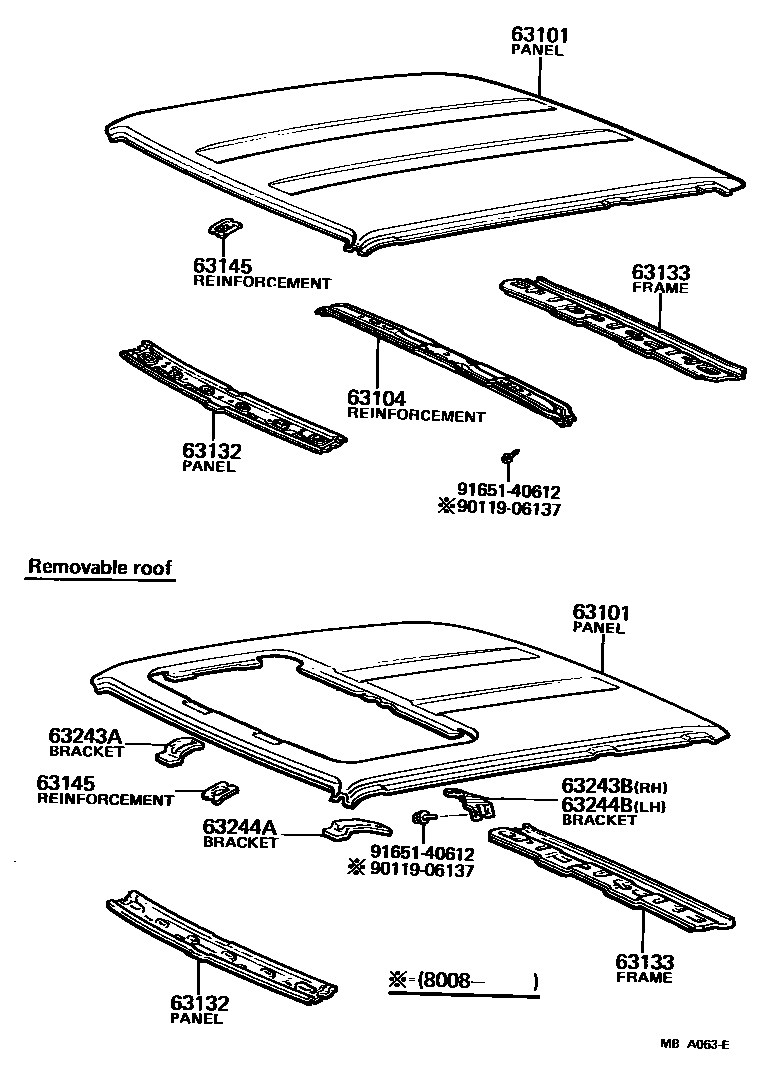

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 4 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63101 | Roof panel sub-assembly | 63111-12120 · 63111-12130 · 63111-12150 · 63111-12160 · 63111-12170 · 63111-12180 · 63111-13050 |
| 63104 | Center roof panel reinforcement sub-assembly | 63141-12060 · 63141-12070 · 63141-12080 · 63141-13030 |
| 63105 | Rear roof panel reinforcement sub-assembly | 63142-13030 |
| 63132 | Windshield inner roof panel | 63132-12080 · 63132-12090 |
| 63133 | Opening frame on back window | 63105-12010 · 63105-12020 · 63105-12030 · 63105-12050 · 63105-12060 · 63105-12070 · 63105-13010 · 63133-12100 · 63133-12110 |
| 63145 | Windshield inner roof reinforcement | 63145-12020 · 63145-12030 |
| 63201A | Sliding sunroof or removable sunroof panel sub-assembly | 63201-12040 · 63201-12041 |
| 63203A | Sliding sunroof or removable sunroof frame sub-assembly | 63203-12020 |
| 63209 | Roof deflector sub-assembly | 63209-12010 |
| 63210 | Sliding sunroof or removable sunroof glass sub-assembly | 63201-12020 |
| 63210A | Removable sunroof glass outer seal | 63257-12010 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 90445-14050 · 90445-14051 |
| 63227 | Roof deflector clip | 63227-12010 · 63227-12011 |
| 63243A | Removable sunroof frame right front mounting bracket | 63241-12010 |
| 63243B | Removable sunroof frame right side mounting bracket | 63243-12010 · 63243-12020 |
| 63244A | Removable sunroof frame left front mounting bracket | 63242-12010 |
| 63244B | Removable sunroof frame left mounting bracket | 63244-12010 · 63244-12020 |
| 63245 | Removable sunroof glass outer front fixing bracket | 63245-12010 |
| 63246 | Removable sunroof glass inner front fixing bracket | 63246-12010 |
| 63250 | Detachable sunroof lock base assembly | 63250-12010 |
| 63250A | Removable sunroof lock base spacer | 63277-12010 |
| 63251 | Sliding skylight panels or removable skylight seals | 63251-12010 · 63251-12020 · 63252-12010 |
| 63253 | Removable sunroof glass outer rear fixing bracket | 63253-12010 |
| 63254 | Removable sunroof glass inner rear fixing bracket | 63254-12010 |
| 63256A | Removable sunroof glass seal | 63255-12010 |
| 63259 | Removable sunroof shell | 63259-12020 |
| 63260 | Detachable sunroof lock handle assembly | 63260-12020 |
| 63271 | Removable sunroof lock trim | 63271-12010 |
| 63273 | Removable sunroof right hinge shell | 63273-12010 |
| 63274 | Removable sunroof left hinge shell | 63274-12010 |
| 63275 | Removable sunroof right hinge fixing bracket | 63275-12010 |
| 63276 | Removable sunroof left hinge fixing bracket | 63276-12010 |
| 63278 | Removable sunroof hinge housing seal | 63278-12010 |
| 63280 | Removable sunroof left auxiliary hook assembly | 63280-12010 |
| 63285 | Removable sunroof hinge, right | 63285-12010 |
| 63286 | Removable sunroof hinge, left | 63286-12010 |
| 64101 | Upper back panel sub-assembly | 64101-12160 · 64101-12170 · 64101-12210 · 64101-12220 |
| 64811 | back window glass | 64801-12210 · 64801-12220 · 64801-12230 · 64801-12270 · 64801-12280 · 64801-12290 · 64811-12450 · 64811-12460 · 64811-12490 |
| 64831 | Back window glass seal strip | 64812-12210 · 64812-12220 · 64812-12230 |
