Toyota COROLLA 车侧通风装置 — Figure 6102
Toyota COROLLA EPC diagram 6102, 车侧通风装置, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

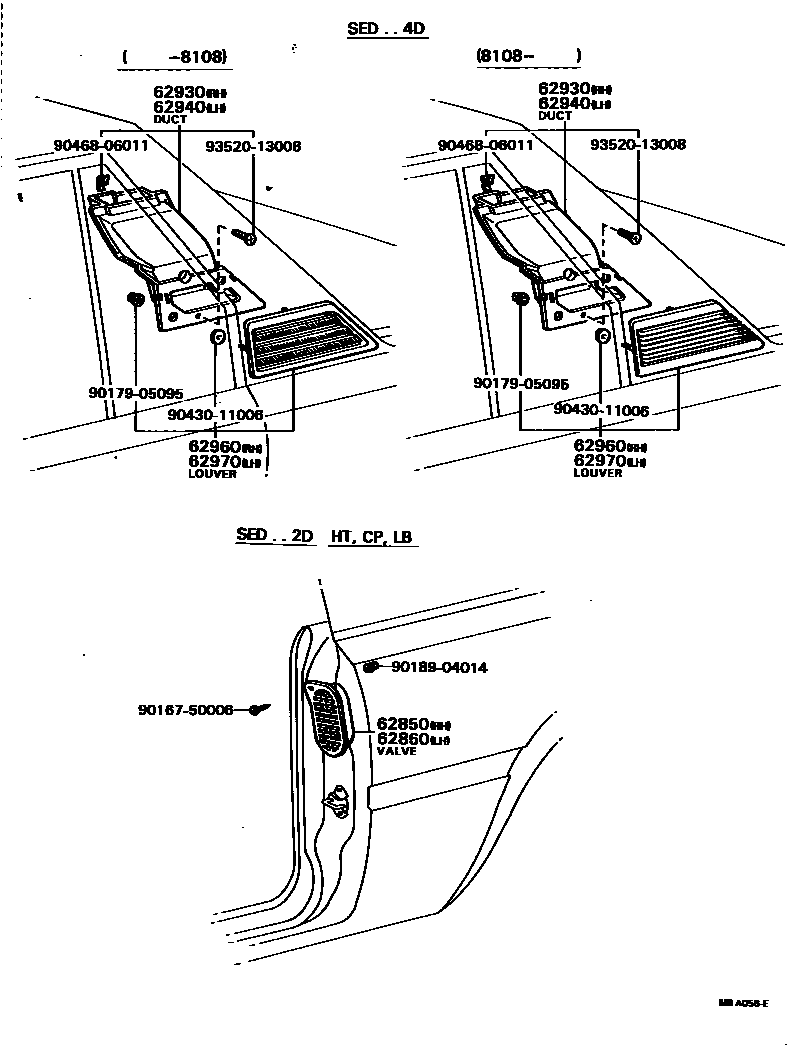

| 62850 | Right compartment pressure reducing valve assembly | 62850-12010 · 62850-12020 · 62850-12030 |
| 62860 | Left compartment pressure reducing valve assembly | 62860-12010 · 62860-12020 · 62860-12030 |
| 62930 | Ventilation duct assembly on the right side of the roof | 62930-12050 |
| 62940 | Roof left ventilation duct assembly | 62940-12050 |

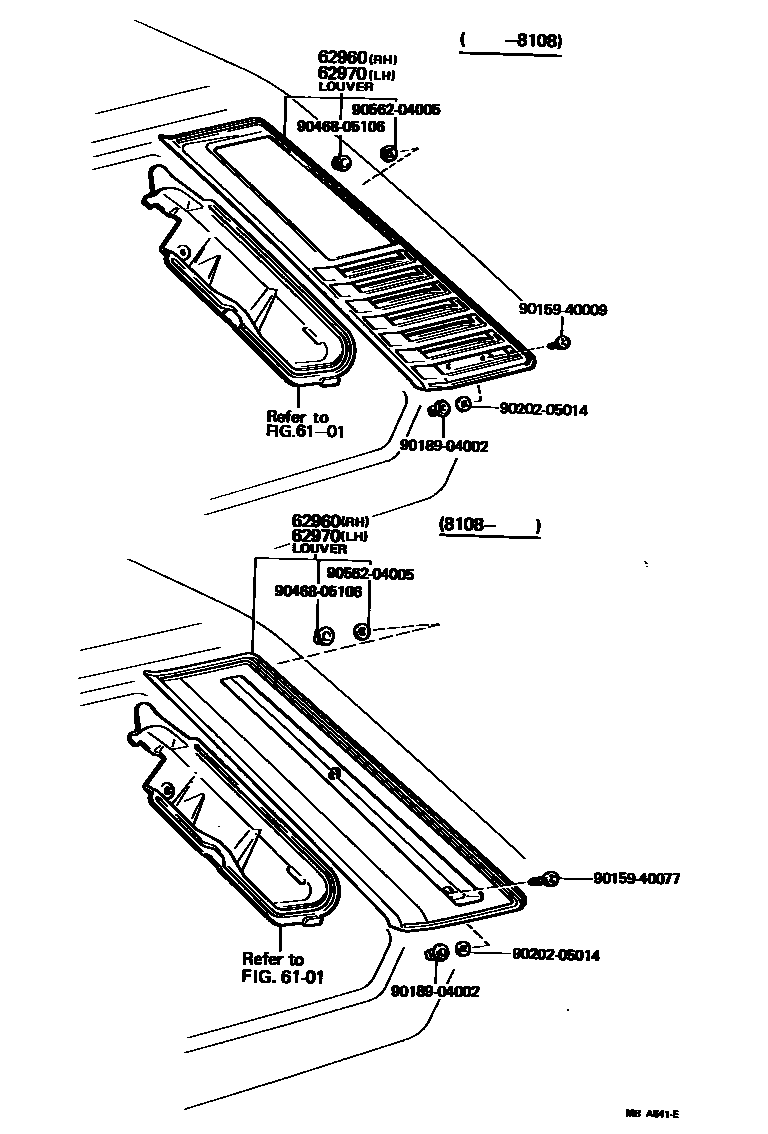

| 62960 | Roof right ventilation grille assembly | 62905-19205 · 62905-19235 · 62905-19236 · 62905-19295 |
| 62970 | Roof left ventilation grille assembly | 62906-19185 · 62906-19215 · 62906-19216 · 62906-19275 |
