Toyota COROLLA 侧梁 — Figure 6101

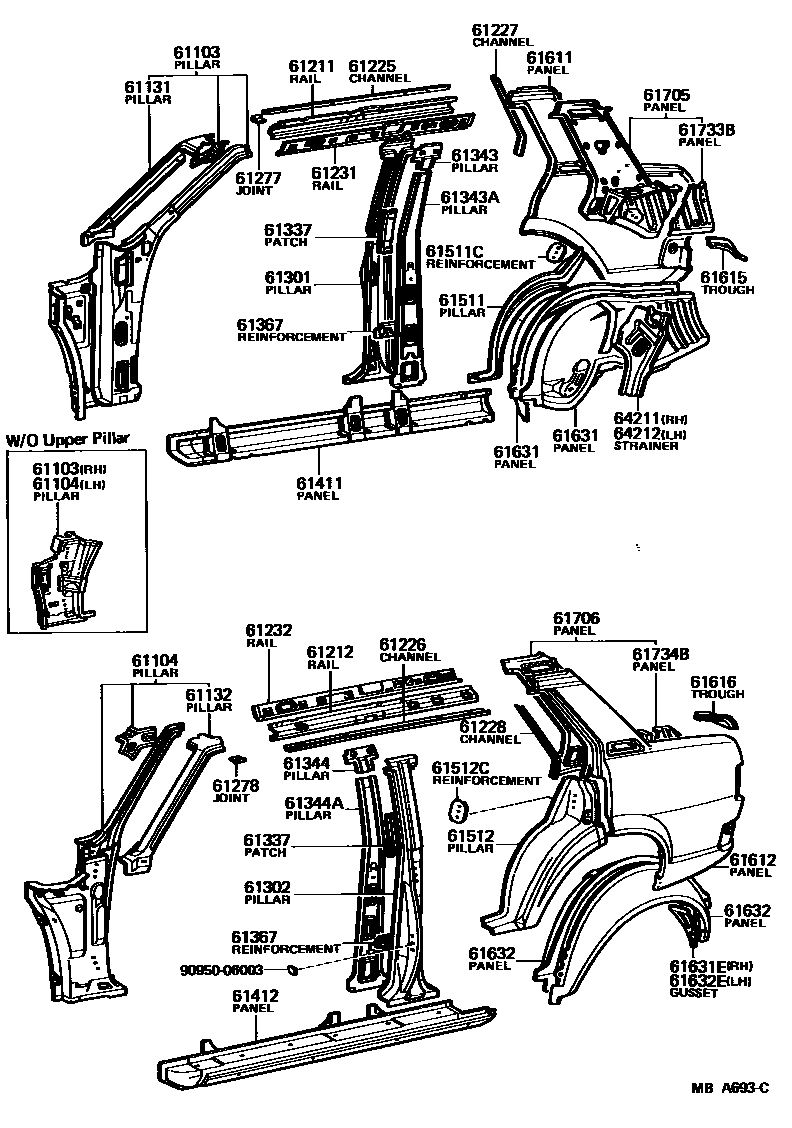

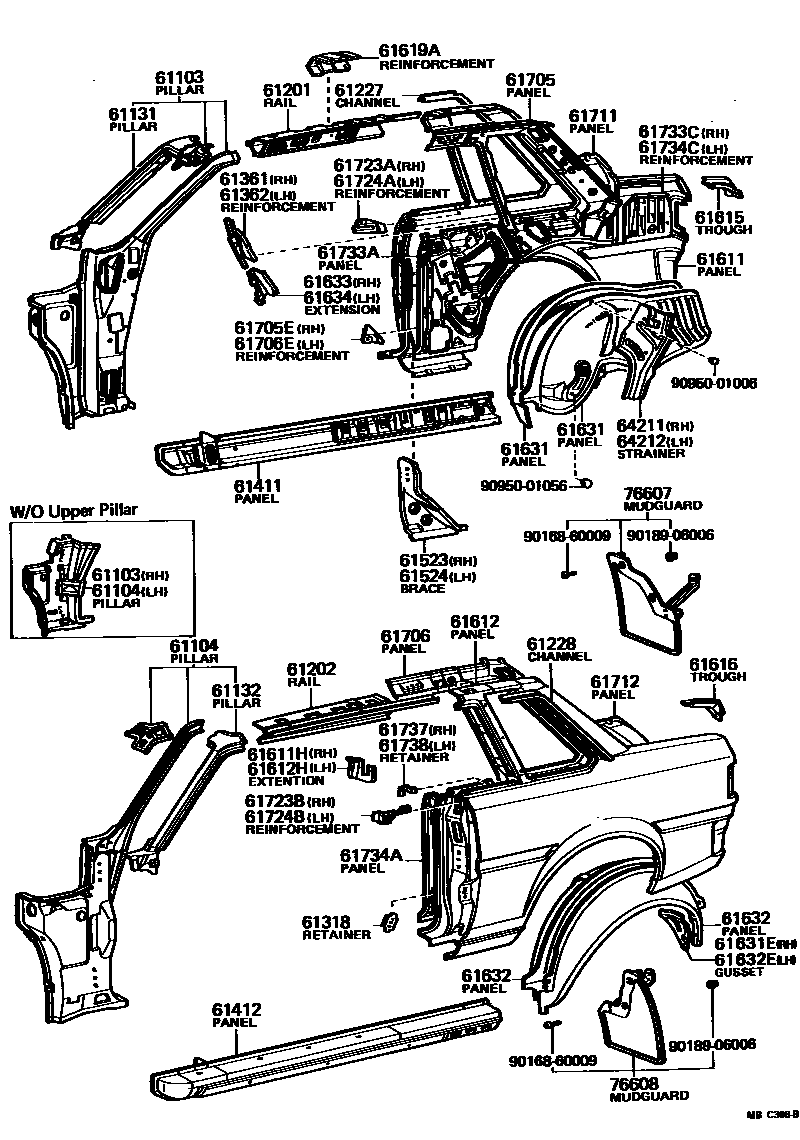

Toyota COROLLA EPC diagram 6101, 侧梁, with 6 images and 109 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61103 | Right body front pillar sub-assembly | 61021-12190 · 61021-12191 · 61021-12220 · 61021-12221 · 61021-12270 · 61021-12903 · 61021-12904 · 61021-12906 |
| 61104 | Left body front pillar sub-assembly | 61022-12280 · 61022-12281 · 61022-12310 · 61022-12311 · 61022-12360 · 61022-12361 · 61022-12903 · 61022-12904 · 61022-12906 · 61022-12908 |
| 61131 | Right body outer front upper pillar | 61131-12140 · 61131-12150 |
| 61132 | Left body outer front upper pillar | 61132-12140 · 61132-12160 |
| 61201 | Roof right side longitudinal beam sub-assembly | 61201-12030 · 61201-12040 · 61201-12060 · 61201-12070 · 61201-12071 |
| 61202 | Roof left side longitudinal beam sub-assembly | 61202-12040 · 61202-12050 · 61202-12060 · 61202-12061 · 61202-12070 |
| 61211 | Roof right outer longitudinal beam | 61211-12140 · 61211-13030 |
| 61212 | Roof left outer longitudinal beam | 61212-12140 · 61212-13030 |
| 61225 | Drainage channel in the middle section on the right side of the roof | 61265-12020 · 61265-13010 |
| 61226 | Drainage channel in the middle section of the left side of the roof | 61266-12020 · 61266-13010 |
| 61227 | Roof right rear gutter | 61267-12010 · 61267-12020 · 61267-12030 · 61267-12060 · 61267-13020 |
| 61228 | Roof left rear gutter | 61268-12010 · 61268-12020 · 61268-12030 · 61268-12060 · 61268-13020 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-12200 · 61231-13040 |
| 61232 | Roof left inner longitudinal beam | 61232-12160 · 61232-13030 |
| 61275 | Roof rear drain channel connector | 61277-12010 |
| 61277 | Roof right front drain channel connector | 61277-12010 |
| 61278 | Roof left front drain gutter connector | 61277-12010 |
| 61301 | Right body center pillar sub-assembly | 61301-12907 · 61301-12909 · 61301-12912 |
| 61302 | Left body center pillar sub-assembly | 61302-12909 · 61302-12911 · 61302-12914 |
| 61315 | Door latch plate fixing parts | 61309-12040 · 61309-20010 |
| 61318 | Door opening switch assembly fixing parts | 61623-20020 |
| 61332 | Body inner center pillar reinforcement | 61337-12080 · 61338-12020 |
| 61337 | Body center pillar lining | 61337-12060 · 61338-12010 |
| 61343 | Right inner middle pillar | 61341-12050 |
| 61343A | Right body inner center pillar | 61343-12040 |
| 61344 | Left side inner center pillar | 61342-12050 |
| 61344A | Left body inner center pillar | 61344-12040 |
| 61361 | Right side body partition pillar lower reinforcement | 61305-12060 · 61361-12010 |
| 61362 | Left side body partition pillar lower reinforcement | 61306-12060 · 61362-12010 |
| 61363 | Right partition column central reinforcement | 61363-12020 |
| 61364 | Left side partition column central reinforcement | 61364-12020 |
| 61365 | Seat belt anchor to center pillar reinforcement | 61365-12020 · 61365-12030 · 61366-12010 · 61366-12020 |
| 61367 | Seat belt anchors to center pillar lower reinforcement | 61367-12020 · 61367-14010 · 61368-12020 |
| 61397 | Right body inner center pillar lining | 61397-12010 |
| 61398 | Left body inner center pillar lining | 61398-12010 |
| 61411 | Right door outer sill panel | 61401-12010 · 61401-12030 · 61401-12110 · 61401-12150 · 61401-12160 |
| 61412 | Left door outer sill panel | 61402-12010 · 61402-12030 · 61402-12110 · 61402-12150 · 61402-12160 |
| 61418A | Right side door sill panel reinforcement | 61413-12030 |
| 61419A | Left side rocker panel reinforcement | 61414-12040 |
| 61505 | Right front door latch reinforcement sub-assembly | 61505-12010 |
| 61506 | Left front door latch reinforcement sub-assembly | 61506-12010 |
| 61511 | Right side locking post | 61511-12070 |
| 61511C | Right side locking column reinforcement | 61503-20030 |
| 61512 | Left side locking post | 61512-12080 |
| 61512C | Left side locking column reinforcement | 61503-20030 |
| 61523 | Right side locking pillar to door sill panel bracket | 61051-12010 · 61051-12020 |
| 61524 | Left side locking pillar to door sill panel bracket | 61052-12010 · 61052-12020 |
| 61611 | Right side hoarding | 61611-12915 · 61611-12916 · 61611-12917 · 61611-12918 · 61611-12919 · 61611-12920 · 61611-13902 · 61611-13908 |
| 61611H | Right front side panel extension | 61623-12030 |
| 61612 | left side panel | 61612-12560 · 61612-12650 · 61612-12770 · 61612-12905 · 61612-12906 · 61612-13160 · 61612-13161 |
| 61612H | Left front side panel extension | 61624-12030 |
| 61613A | Right rear side panel extension | 61625-12020 · 61625-13040 |
| 61614A | Left rear side panel extension | 61626-12020 · 61626-13040 |
| 61615 | Luggage right opening slot | 61621-12150 · 61621-12160 |
| 61615A | Back door right opening slot | 61621-12190 |
| 61616 | Luggage trunk left opening slot | 61622-12150 · 61622-12160 |
| 61616A | Rear door left opening slot | 61622-12190 |
| 61619A | Side panel reinforcement | 61619-12010 · 61629-12010 |
| 61627 | Side panel lower fixings | 61647-14010 |
| 61631 | Right wheel cover panel | 61603-12903 · 61603-12904 · 61603-13901 · 61631-12903 · 61631-12904 · 61631-13030 |
| 61631D | Right wheel cover reinforcement | 61671-13010 |
| 61631E | Right rear side wheel housing corner panel | 61645-12040 · 61645-12050 · 61645-13050 |
| 61632 | Left side wheel cover panel | 61604-12903 · 61604-12904 · 61604-13901 · 61632-12120 · 61632-12130 |
| 61632D | Left side wheel cover reinforcement | 61672-13010 |
| 61632E | Left rear side wheel housing corner panel | 61646-12040 · 61646-12050 · 61646-13050 |
| 61633 | Right wheel housing extension | 61795-12010 |
| 61634 | left wheel arch extension | 61796-12010 |
| 61635A | Right wheel cover bracket | 61635-13060 |
| 61636A | Left side wheel cover bracket | 61636-13060 |
| 61705 | Roof right inner panel sub-assembly | 61705-12430 · 61705-12930 · 61705-12931 · 61705-12935 · 61705-12936 · 61705-12937 · 61705-12938 · 61705-13906 |
| 61705E | Right seat belt anchor to roof inner reinforcement | 61756-12010 |
| 61705N | Rear right seat backrest assembly fastener | 61693-12030 · 61693-12050 |
| 61706 | Roof left inner panel sub-assembly | 61706-12440 · 61706-12930 · 61706-12935 · 61706-12936 · 61706-12937 · 61706-12938 · 61706-12939 · 61706-12940 · 61706-13906 |
| 61706E | Left-hand seat belt anchor to roof inner reinforcement | 61767-12050 |
| 61706N | Rear left seat back assembly fastener | 61694-12030 · 61694-12050 |
| 61707C | Jack bracket bracket reinforcement | 58708-12010 · 61739-12080 |
| 61707D | jack bracket | 58709-12010 · 58709-12020 · 58709-12030 · 58709-12040 |
| 61711 | Roof right side outer panel | 61711-12240 · 61711-12260 |
| 61712 | Roof left outer panel | 61712-12270 · 61712-12290 |
| 61723 | Right rear corner window opening fixing | 61723-12080 · 61723-12090 |
| 61723A | No. 1 right corner window opening fixing piece | 61723-12100 |
| 61723B | No. 2 right corner window opening fixing piece | 61728-12010 |
| 61724 | Left rear corner window opening fixing | 61724-12080 · 61724-12090 |
| 61724A | No. 1 left corner window opening fixing piece | 61724-12100 |
| 61724B | No. 2 left corner window opening fixing piece | 61729-12010 |
| 61733A | Right front roof inner panel | 61733-12070 · 61733-12080 · 61733-12090 |
| 61733B | Right rear roof inner panel | 61735-12090 · 61735-12110 · 61735-12120 · 61735-13020 |
| 61733C | Roof right inner reinforcement | 61737-12060 |
| 61734A | Left front roof inner panel | 61734-12070 · 61734-12080 · 61734-12090 |
| 61734B | Left rear roof inner panel | 61736-12090 · 61736-12110 · 61736-12111 · 61736-12120 · 61736-12121 · 61736-13020 |
| 61734C | Roof left inner reinforcement | 61738-12070 |
| 61737 | Fixing parts for right side panel | 61751-12070 |
| 61738 | Fixings on the left side panel | 61751-12070 |
| 61740 | Roof inner reinforcement | 61737-12040 · 61738-12050 |
| 61740A | Rear seat belt anchors to roof inner reinforcement | 61768-12040 · 61768-12041 · 61768-12050 · 61768-12051 · 61769-12030 · 61769-12031 |
| 61740B | Seat belt anchors to roof inner reinforcement | 61766-12060 |
| 61741A | Rear door opening upper right reinforcement | 61741-13040 |
| 61742A | Rear door opening upper left reinforcement | 61742-13040 |
| 61745A | Back door opening lower right reinforcement | 61745-12020 · 61745-12030 · 61745-13050 |
| 61746A | Rear door opening lower left reinforcement | 61746-12020 · 61746-12030 · 61746-13050 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-12020 · 61747-12030 · 61748-12020 · 61748-12021 · 61748-12030 |
| 61750 | Decoration fixings for lower side of floor panel | 61757-12010 · 61757-12020 |
| 61769 | Side panel lower fixings | 61753-12050 · 61753-13020 · 61754-12050 |
| 62903 | Right side ventilation duct sub-assembly | 62903-13030 |
| 62904 | Left side ventilation duct sub-assembly | 62904-13040 |
| 64211 | Glove box to floor right filter | 64211-12020 · 64211-12030 · 64211-12040 |
| 64212 | Glove box to floor left filter | 64212-12020 · 64212-12030 · 64212-12040 |
| 67812A | Side panel sound absorbing pads | 67812-13010 |
| 68955 | Rear door support rod bracket | 68955-12030 · 68955-12050 · 68956-12010 |
