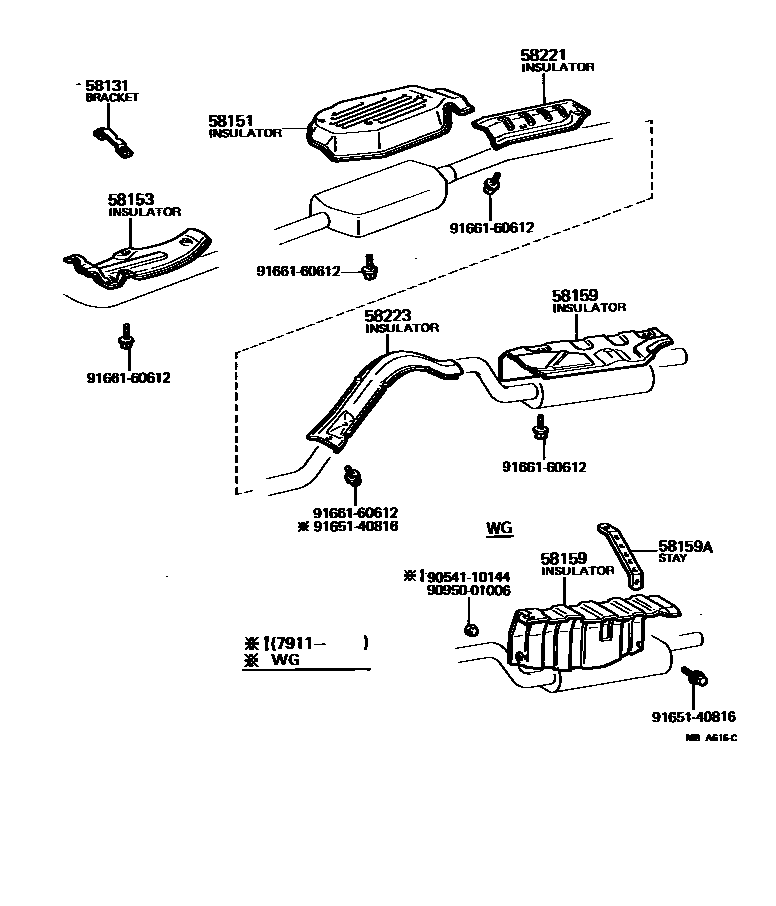

Toyota COROLLA 地板隔热垫 — Figure 5802
Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58131 | Front floor insulation pad bracket No. 1 | 58131-12030 |
| 58151 | Front floor insulation mat No. 1 | 58041-12090 |
| 58153 | Front floor insulation mat No. 2 | 58153-12050 · 58153-12060 |
| 58159 | Main muffler heat insulation pad | 58031-13020 · 58031-13021 · 58327-12050 |
| 58159A | Main muffler insulation pad bracket | 58345-13020 · 58345-13021 |
| 58221 | Central Floor Insulating Mat No. 1 | 58221-12070 |
| 58223 | Central Floor Insulating Mat No. 2 | 58223-12040 · 58223-13020 |
