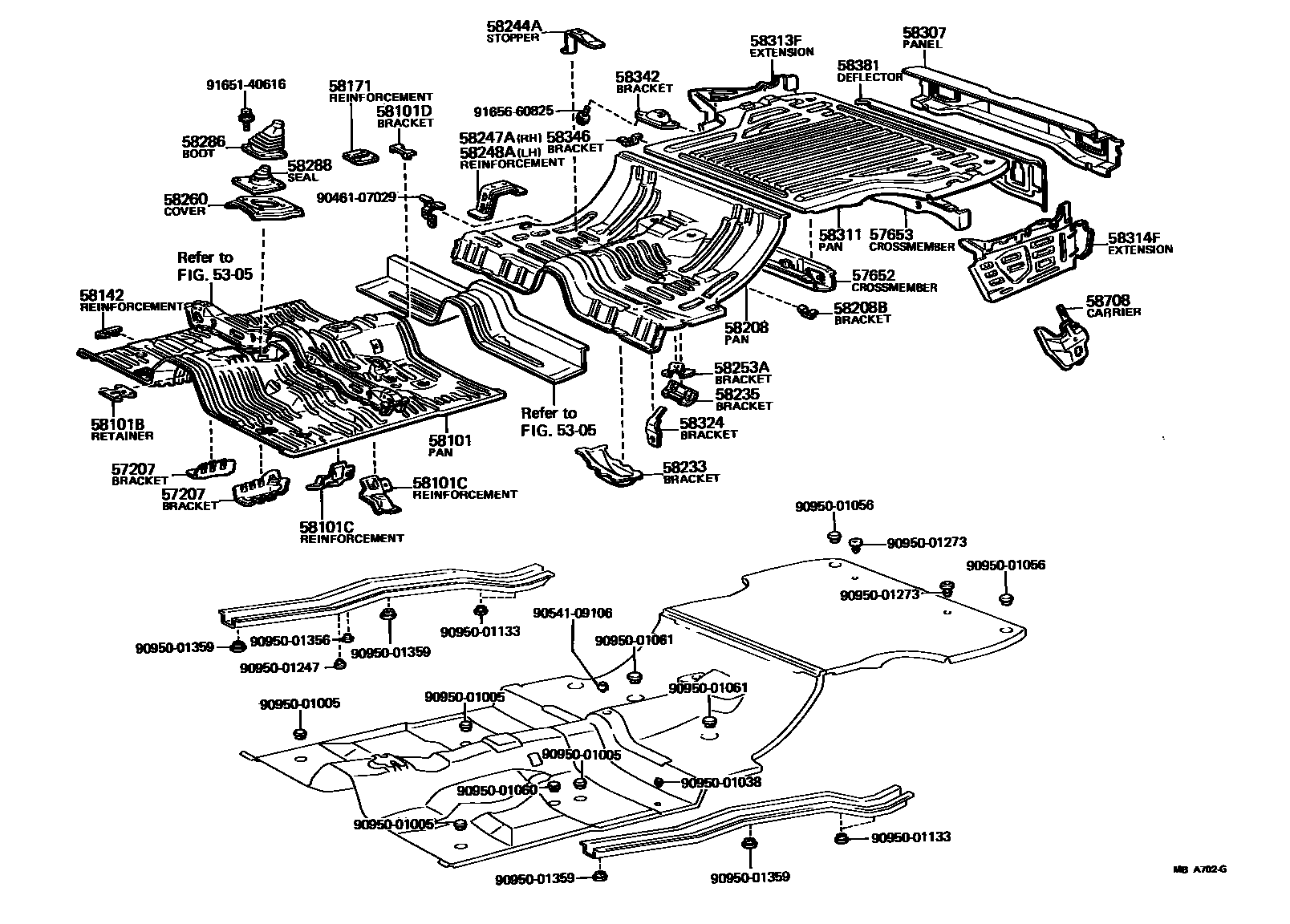

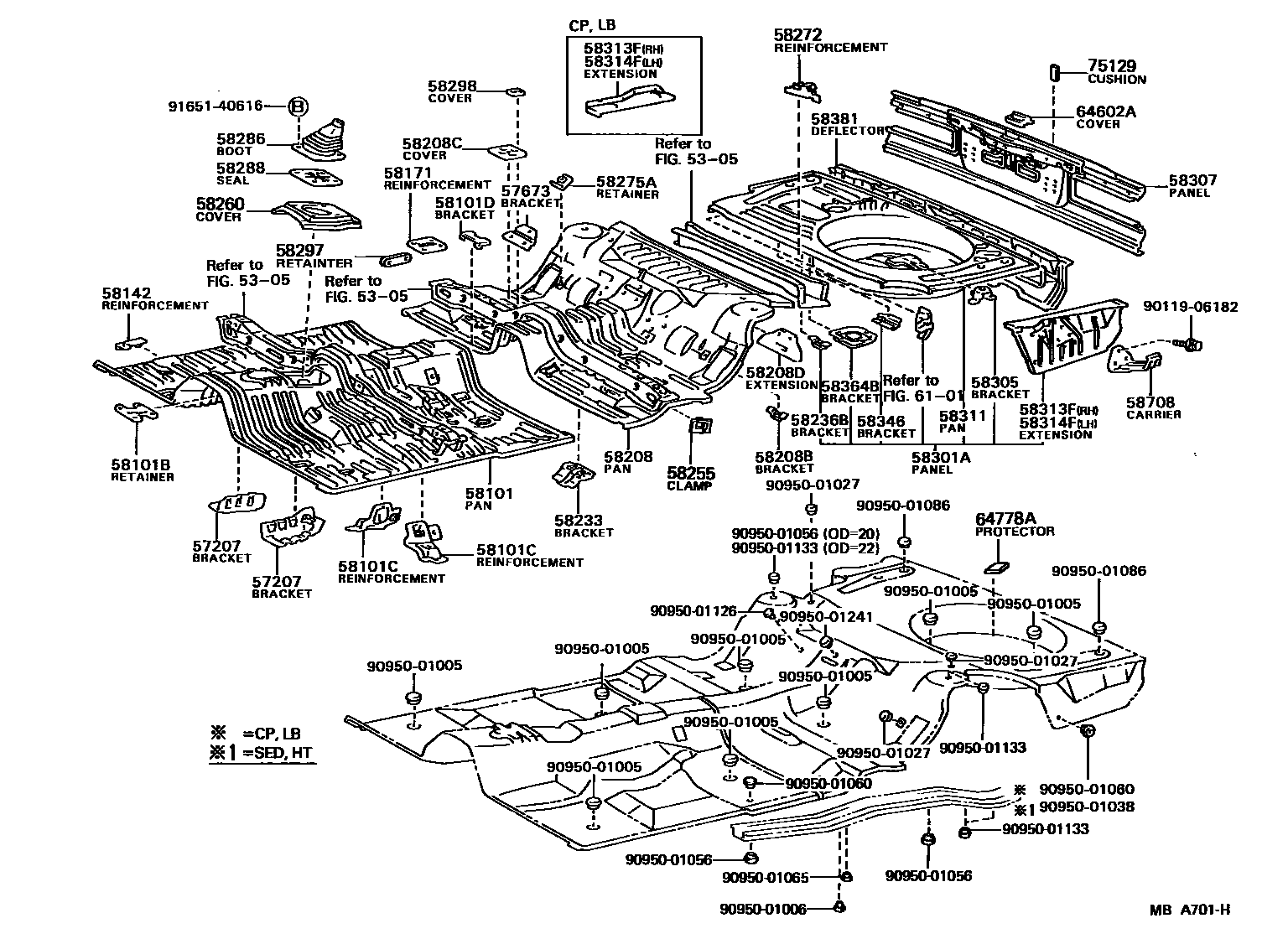

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57207 | Engine rear suspension beam bracket sub-assembly | 57207-12030 · 57207-12050 · 57208-12040 · 57208-12060 |
| 57652 | Rear floor cross member No. 2 | 57606-13040 · 57606-13041 |
| 57653 | Rear floor beam No. 3 | 57606-15010 |
| 57673 | Rear seat back hinge mounting bracket | 57673-12020 |
| 58101 | Front floor sub-assembly | 58111-12140 |
| 58101B | Armrest box installation fixing bracket | 58164-12010 |
| 58101C | Drive shaft bracket reinforcement sub-assembly | 58205-12020 · 58206-12020 |
| 58101D | Parking brake cable guide bracket | 58264-12020 |
| 58142 | Floor stringers to floor base reinforcements | 58141-16010 |
| 58171 | Parking brake base reinforcement | 58171-12040 |
| 58208 | central floor base | 58211-12090 · 58211-12130 · 58211-13060 |
| 58208B | Central floor insulation pad bracket | 58236-14010 |
| 58208C | Center floor hole cover | 58285-12010 |
| 58208D | Center floor to bracket extension | 64227-12040 |
| 58233 | Exhaust pipe mounting bracket | 58233-12010 · 58233-13020 |
| 58235 | Differential case buffer block mounting bracket | 58235-96440 |
| 58236B | Central floor insulation pad bracket | 58236-14010 |
| 58244A | Rear seat cushion bracket block | 58244-13020 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-13020 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-13020 |
| 58253A | Parking cable clamp bracket | 58253-13020 · 58254-13020 |
| 58255 | Parking brake No. 1 cable clip | 58207-12040 · 58208-12040 |
| 58260 | Transmission front cover assembly | 58281-12010 · 58281-12020 |
| 58272 | Seat belt anchor to floor pan reinforcement | 58271-12030 · 58272-12030 |
| 58275A | Rear seat back to center floor fixing | 58275-12010 |
| 58286 | No. 1 shift lever dust cover | 58280-12070 · 58280-12090 |
| 58288 | Gear shifter boot seal | 58288-12050 |
| 58297 | Seat belt retractor to central floor fixing | 58297-12010 |
| 58298 | Center floor hole cover No. 2 | 58298-12010 |
| 58301A | Rear floor sub-assembly | 58301-12100 · 58301-12110 · 58301-12150 · 58301-12160 |
| 58305 | Spare tire clamp bracket sub-assembly | 58305-10011 |
| 58307 | Body lower back panel sub-assembly | 58307-12530 · 58307-12550 · 58307-12580 · 58307-12610 · 58307-13070 |
| 58311 | rear floor pan | 58311-12150 · 58311-13060 |
| 58313F | Rear floor pan to right side apron extension | 58313-12080 · 58313-12090 · 58313-12130 · 58313-13070 · 58313-13071 |
| 58314F | Rear floor pan to left side apron extension | 58303-12030 · 58303-12040 · 58314-12090 · 58314-13070 |
| 58324 | Flexible hose bracket | 58326-13020 |
| 58342 | Rear shock absorber mounting bracket | 58341-13010 · 58342-13010 |
| 58346 | Rear floor insulation pad bracket | 58236-14010 · 58345-14010 |
| 58364B | fuel tank bracket | 58364-12010 |
| 58381 | Rear bumper stone guard | 58308-12050 · 58308-12080 · 58308-13050 |
| 58708 | Jack bracket sub-assembly | 58709-13020 · 58791-12050 |
| 64602A | Trunk door latch cover | 64749-12010 |
| 64778A | Spare tire protection device | 64778-12010 |
| 75129 | rear license plate cushion | 75129-22010 |
