Toyota COROLLA 仪表板和手套箱 — Figure 5501

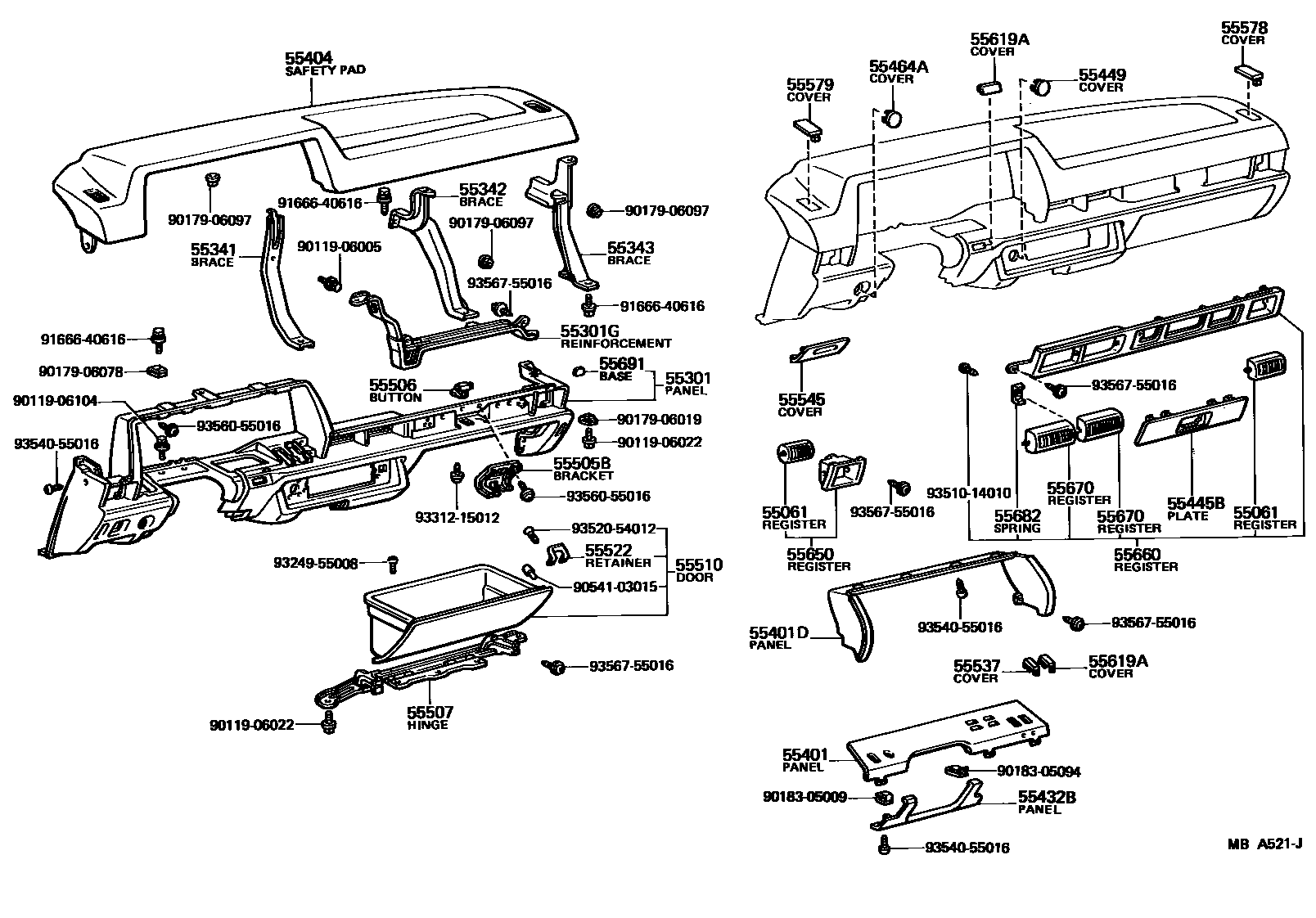

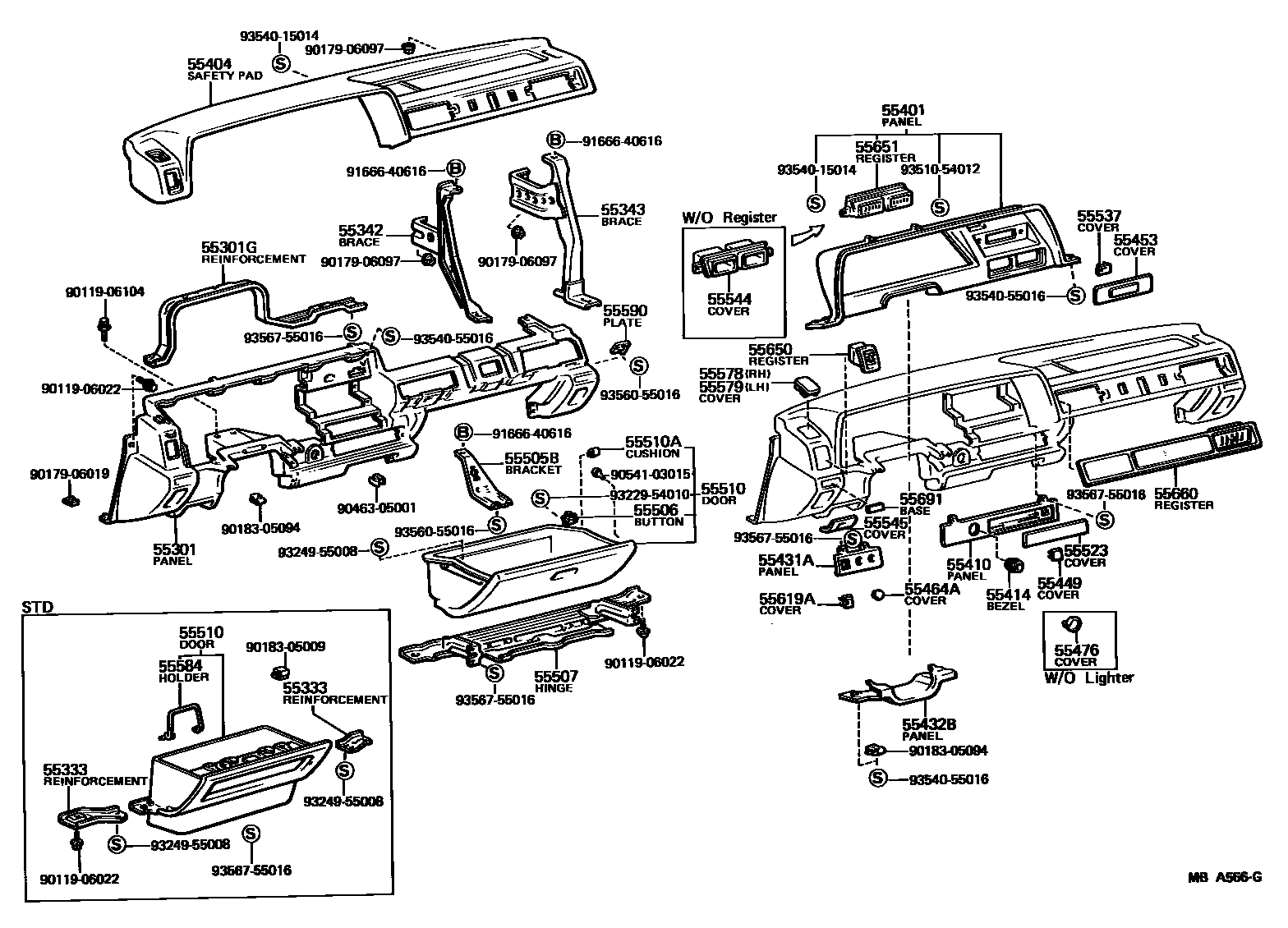

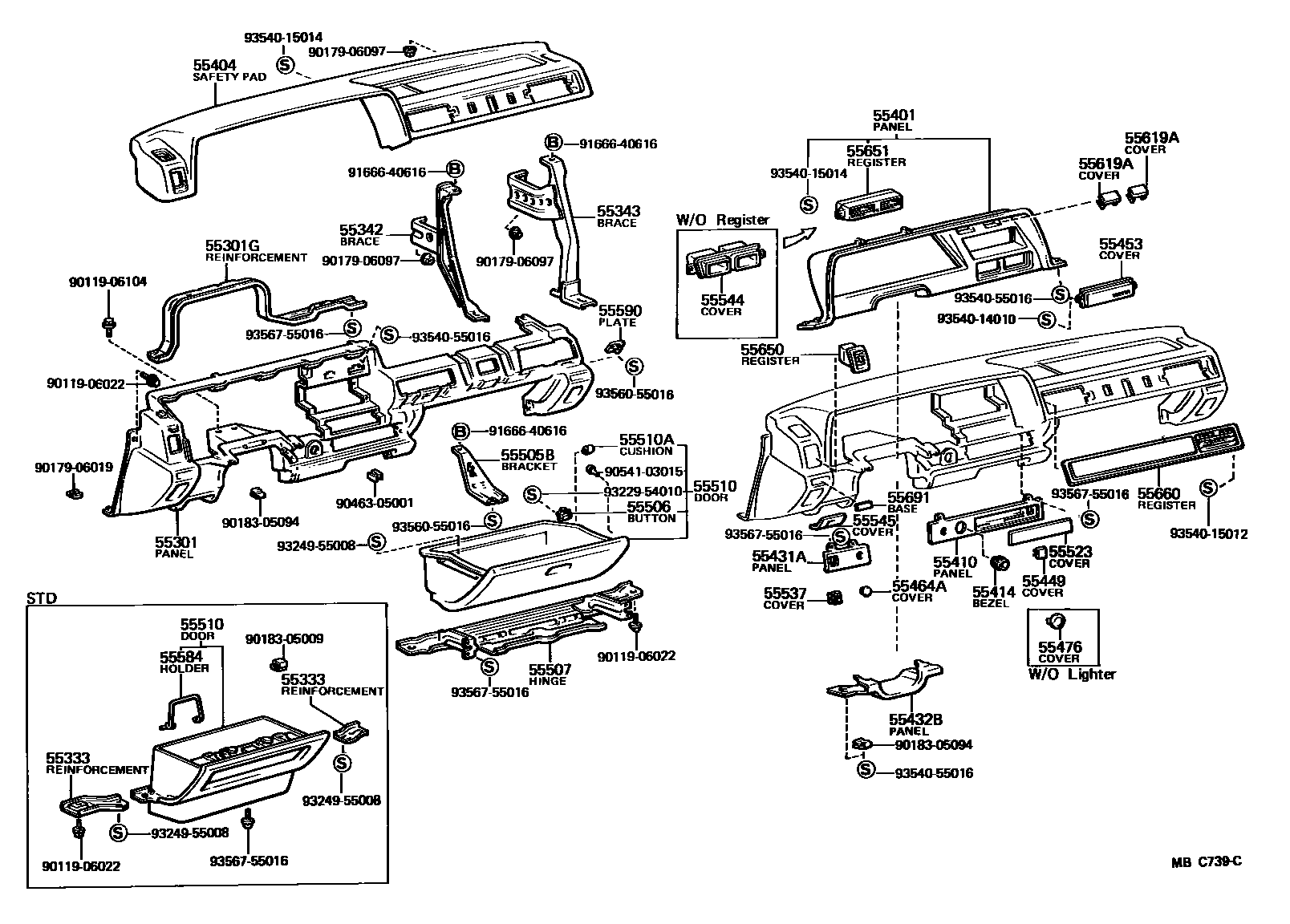

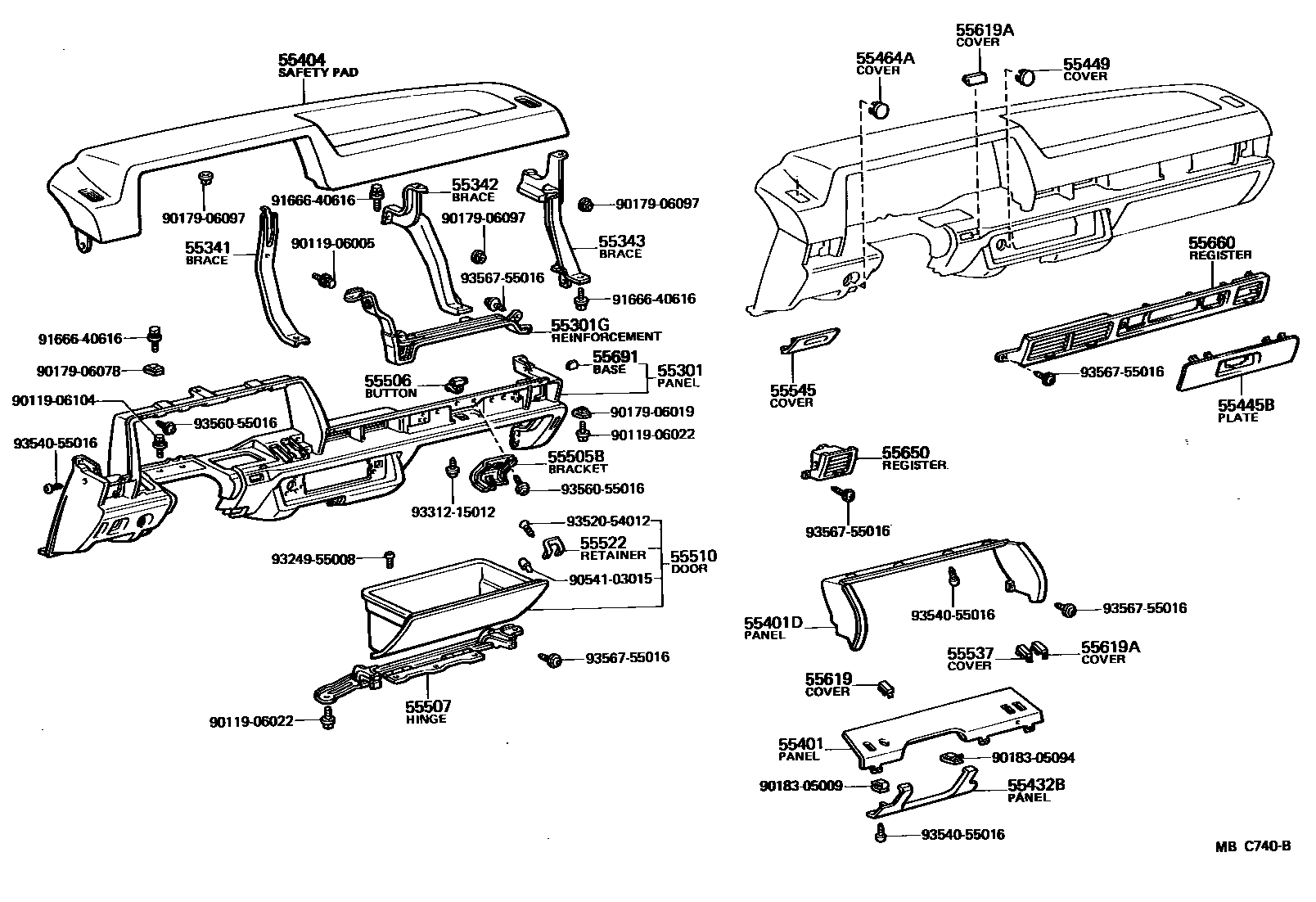

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 4 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55061 | No. 1 air register sub-assembly on the instrument panel | 55061-12050 · 55061-12060 |
| 55301G | Instrument panel reinforcement sub-assembly | 55305-12070 · 55305-12071 · 55305-12080 |
| 55333 | Instrument panel No. 3 reinforcement | 55333-12080 · 55334-12030 |
| 55341 | Instrument panel bracket No. 1 | 55341-12120 |
| 55342 | Instrument panel bracket No. 2 | 55307-12050 · 55307-12060 · 55307-12061 |
| 55343 | Dashboard No. 3 Bracket | 55308-12120 · 55308-12130 · 55308-12131 |
| 55401 | Instrument cluster decorative panel sub-assembly | 55410-12620 · 55410-12730 · 55410-12740 · 55410-12741 · 55410-12750 · 55410-12751 · 55410-12771 · 55410-12850 · 55410-12860 |
| 55401D | Decorative panel on instrument cluster | 55421-12110 |
| 55410 | Instrument cluster No. 2 decorative panel assembly | 55413-12310 · 55413-12320 · 55413-12330 · 55413-12340 |
| 55414 | Cigarette lighter hole frame | 55477-12050 |
| 55431A | Dashboard decorative panel | 55431-12140 · 55431-12150 · 55431-12350 · 55431-12360 |
| 55445B | Dashboard decorative panel | 55445-12050 |
| 55449 | Cooler switch hole cover | 55538-12030 · 55538-12050 · 55538-12070 · 55538-16010 |
| 55453 | Radio tuner opening cover | 55522-12060 · 55522-12100 |
| 55476 | Cigarette lighter hole cover | 55548-12010 |
| 55505B | Glovebox lid lock mounting bracket | 55378-12060 · 55378-12070 |
| 55506 | Glove box lid lock button sub-assembly | 55560-12040 |
| 55507 | Glove box cover hinge sub-assembly | 55505-12050 · 55505-12060 |
| 55510A | Cushion (for glovebox lid) | 55557-16010 |
| 55522 | Glovebox plug-in fasteners | 55561-12030 |
| 55523 | Heater control opening cover | 55523-12050 |
| 55537 | Rear window defogger switch hole cover | 55538-14010 · 55539-12020 |
| 55544 | Dashboard air register hole cover | 55526-12030 · 55526-12040 |
| 55584 | map holder | 55584-12020 |
| 55590 | Glove box cover lock plate assembly | 55590-12010 |
| 55619 | switch hole cover | 55539-12040 |
| 55619A | No. 2 switch hole cover | 55539-12020 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-12070 · 55650-12090 · 55650-12091 |
| 55651 | Dashboard air register No. 1 | 55670-12020 · 55670-12060 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-12110 · 55660-12140 · 55660-12141 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-12050 · 55670-14020 |
| 55682 | Dashboard air register bracket spring | 58914-20010 |
| 55691 | Dashboard nameplate base | 55512-12080 · 55691-12040 |
