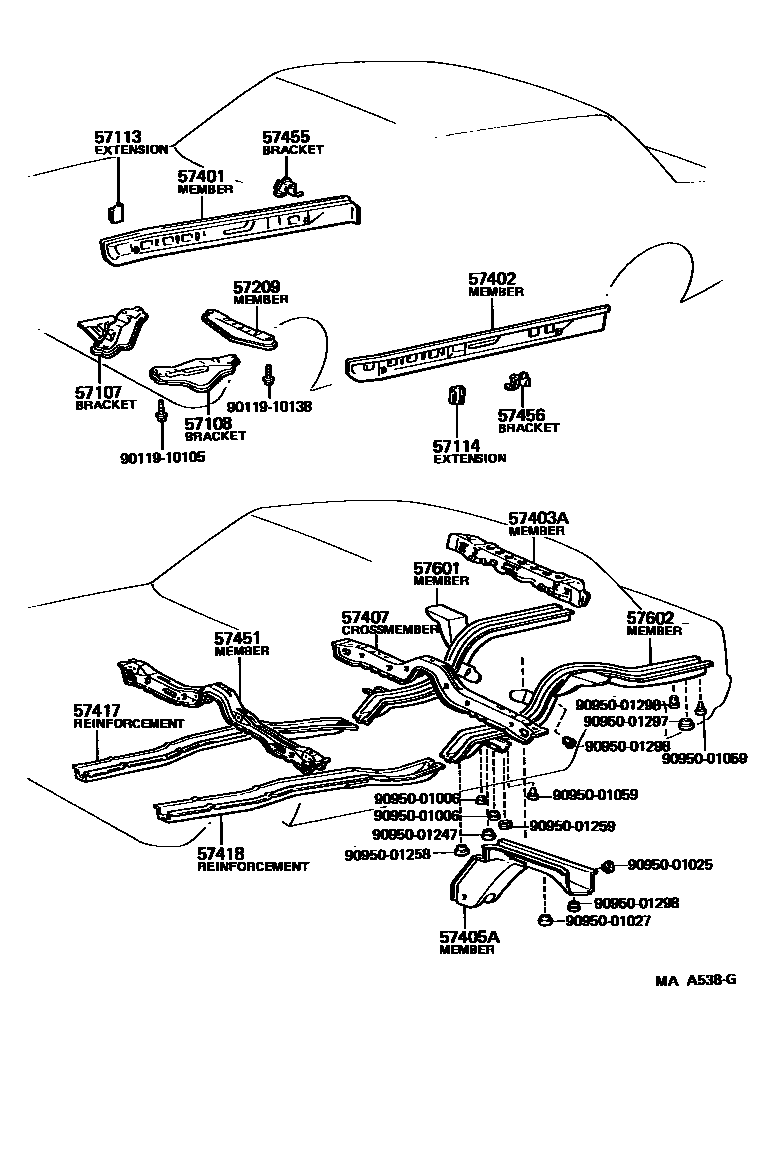

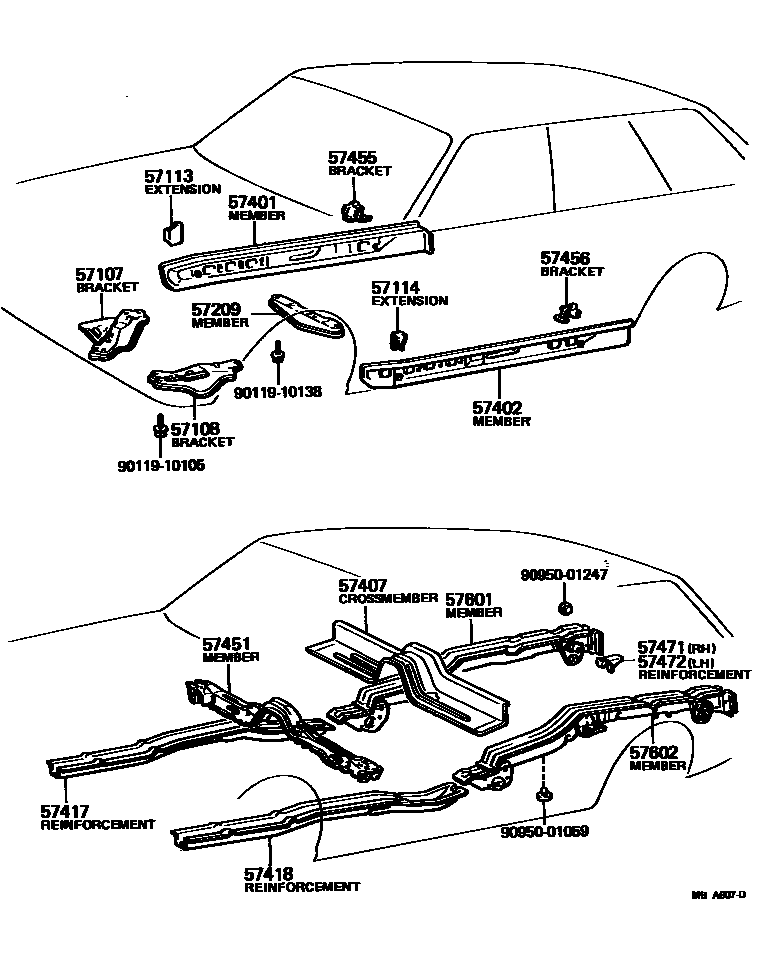

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57107 | Right support rod bracket sub-assembly | 57107-12020 · 57107-12030 |
| 57108 | Left support rod bracket sub-assembly | 57108-12020 · 57108-12030 |
| 57113 | Right front longitudinal beam extension | 57113-12020 · 57113-12040 |
| 57114 | Left front longitudinal beam extension | 57114-12020 · 57114-12040 |
| 57209 | Engine rear support beam sub-assembly | 57209-12140 · 57209-12150 · 57209-12151 · 57209-12210 · 57209-12250 · 57209-12260 · 57209-12270 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-12120 · 57401-12140 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-12120 · 57402-12140 |
| 57403A | Center floor No. 3 beam sub-assembly | 57403-12020 |
| 57405A | Center floor No. 2 beam sub-assembly | 57405-12900 |
| 57407 | Center floor No. 1 beam sub-assembly | 57407-12010 · 57407-13050 |
| 57417 | Front floor lower right reinforcement | 57505-12020 |
| 57418 | Front floor lower left reinforcement | 57506-12040 |
| 57451 | front floor cross member | 57408-12020 · 57451-12050 |
| 57455 | Front right seat outer mounting bracket | 57455-12020 |
| 57456 | Front left seat outer mounting bracket | 57456-12020 |
| 57471 | Right seat belt anchor to floor support reinforcement | 57471-13010 |
| 57472 | Left-hand seat belt anchor to floor support reinforcement | 57471-13010 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-12901 · 57601-12905 · 57601-13080 · 57601-13081 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-12901 · 57602-12905 · 57602-13070 |
