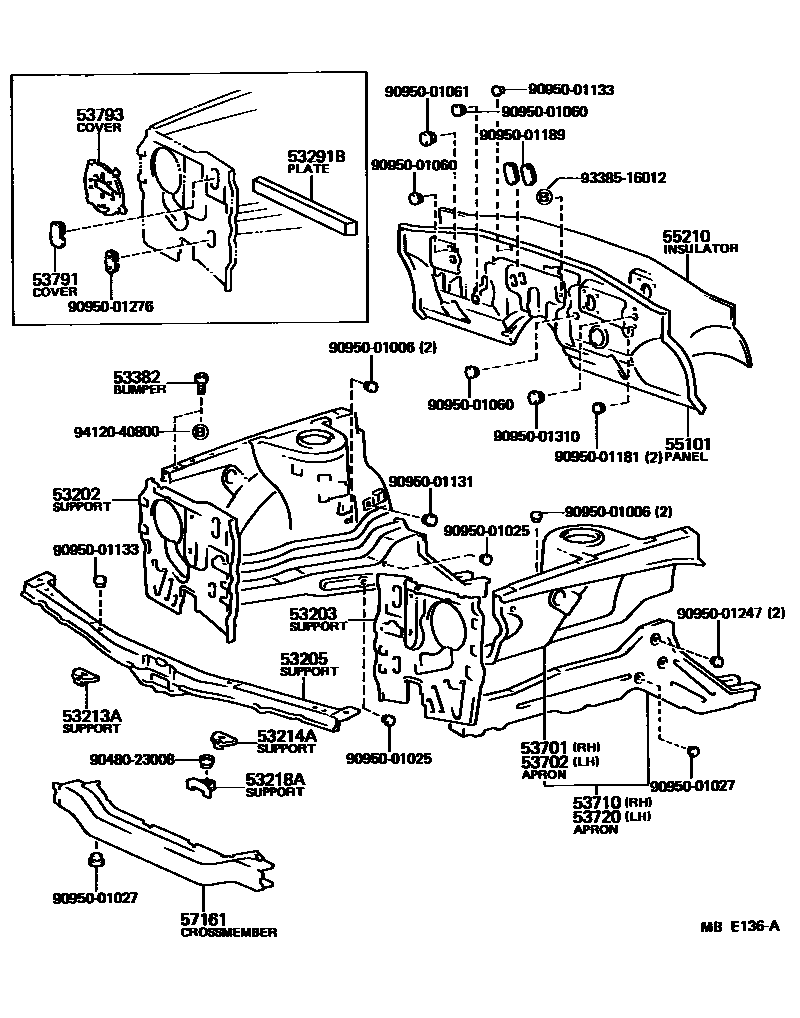

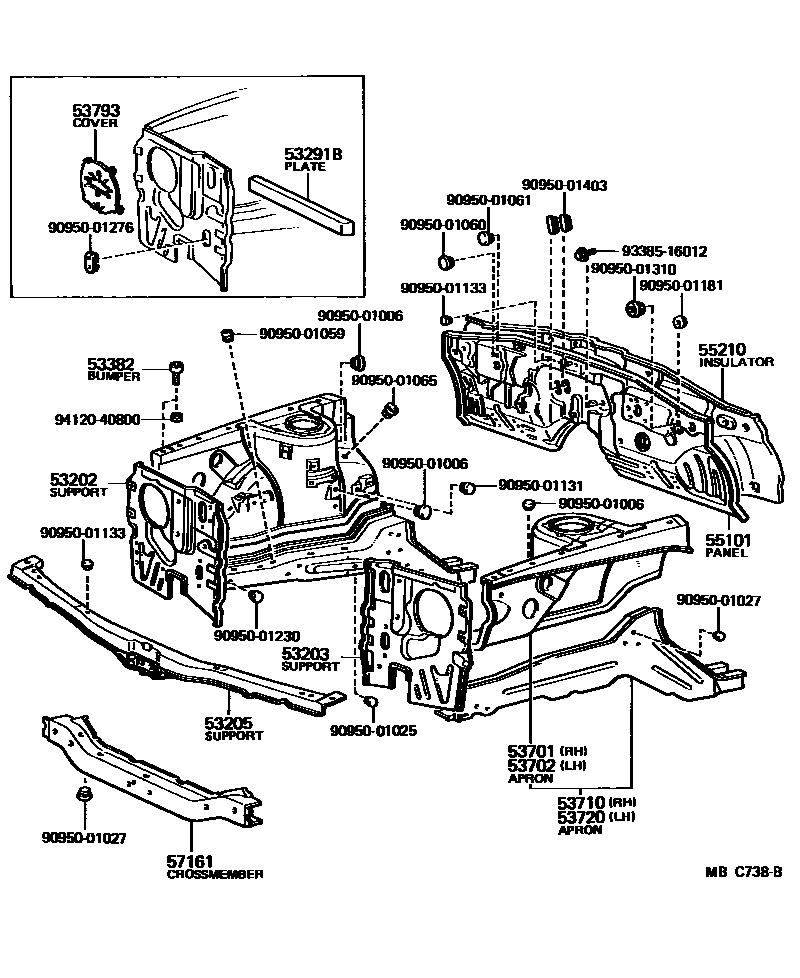

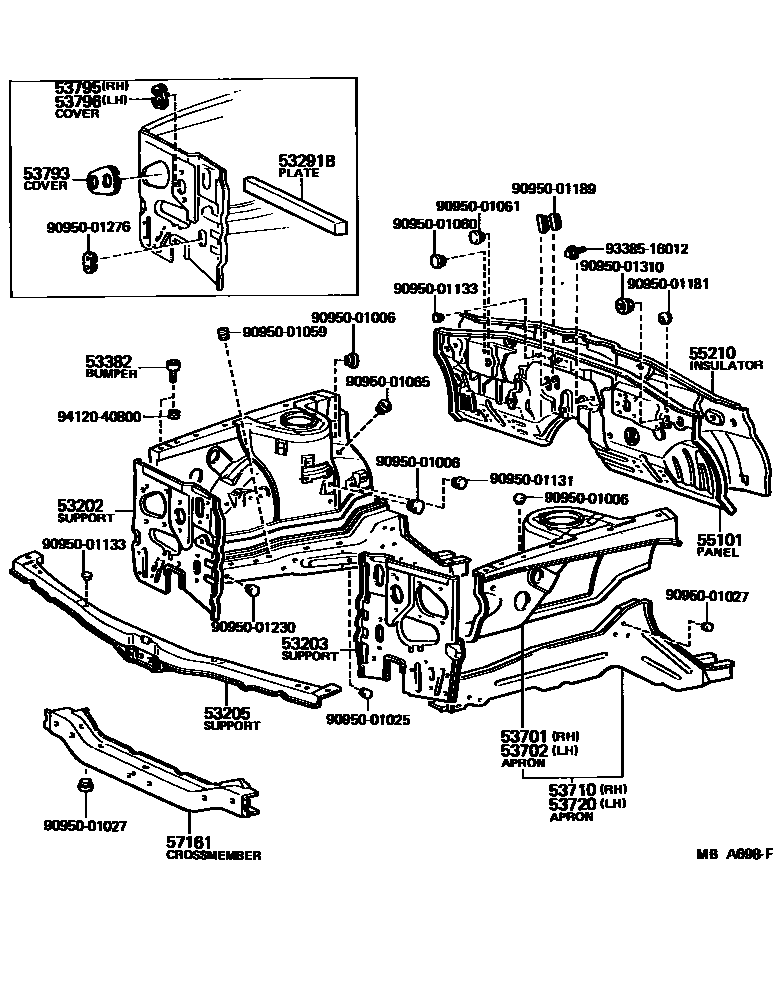

Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53202 | Radiator right side bracket sub-assembly | 53202-12160 · 53202-12200 · 53202-12210 · 53211-12120 |
| 53203 | Radiator left bracket sub-assembly | 53203-12130 · 53203-12160 · 53203-12170 · 53212-12110 |
| 53205 | Radiator upper bracket sub-assembly | 53216-12901 · 53216-12902 |
| 53213A | Radiator upper right bracket | 53213-12090 |
| 53214A | Radiator upper left bracket | 53214-12070 |
| 53218A | Radiator lower support | 53218-12020 |
| 53291B | Radiator cover | 53291-12050 · 53291-12060 |
| 53382 | Engine cover front buffer block | 53382-12040 · 53382-20011 |
| 53701 | Right front fender fender sub-assembly | 53701-12904 · 53701-12907 |
| 53702 | Left front fender fender sub-assembly | 53702-12907 · 53702-12908 · 53702-12912 · 53702-12913 |
| 53710 | Right fender assembly with front longitudinal beam | 53701-12400 · 53701-12401 · 53701-12590 |
| 53720 | Left fender assembly with front longitudinal beam | 53702-12350 · 53702-12351 · 53702-12380 · 53702-12381 · 53702-12600 |
| 53791 | Air conditioner air inlet cover | 53791-12020 |
| 53793 | No. 1 headlight wiring harness hole cover | 53793-12010 · 53793-12020 |
| 53795 | Right headlight wiring harness hole cover | 53795-12010 |
| 53796 | Left headlight wiring harness hole cover | 53795-12010 |
| 55101 | Front apron sub-assembly | 55101-12460 · 55101-12530 |
| 55210 | Front wall insulation pad assembly | 55210-12150 · 55210-12160 · 55210-12180 · 55210-12190 |
| 57161 | front cross member | 57161-12903 |
