Toyota COROLLA 发动机盖和前翼子板 — Figure 5302

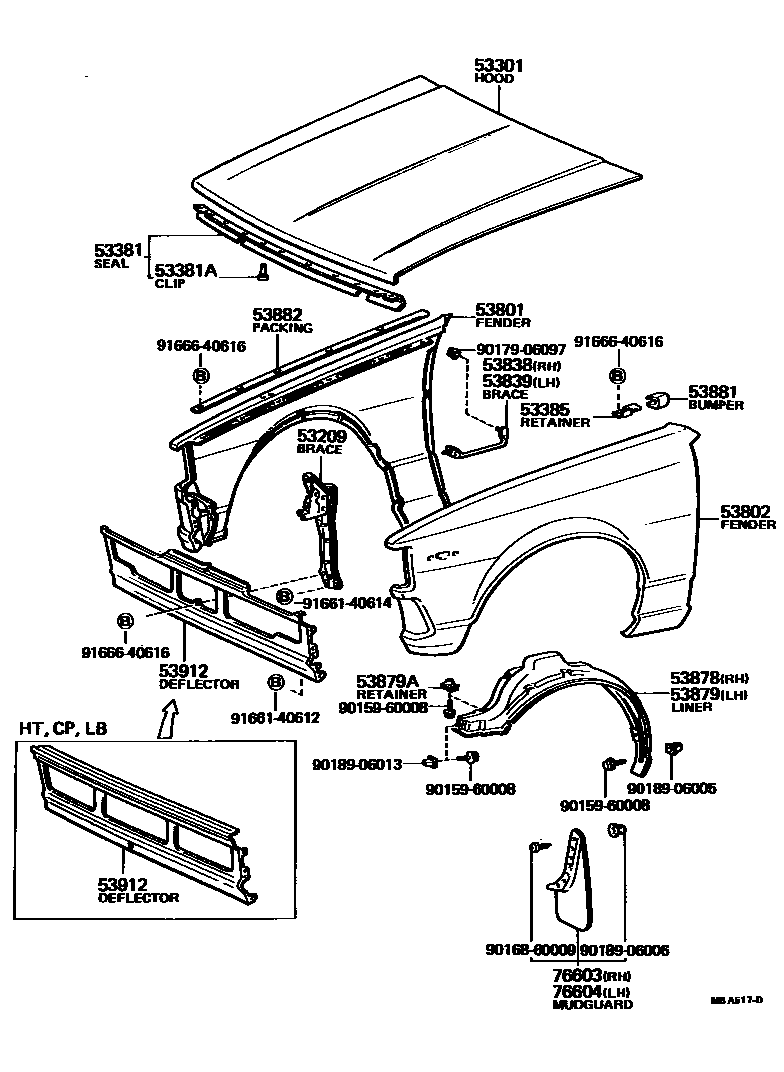

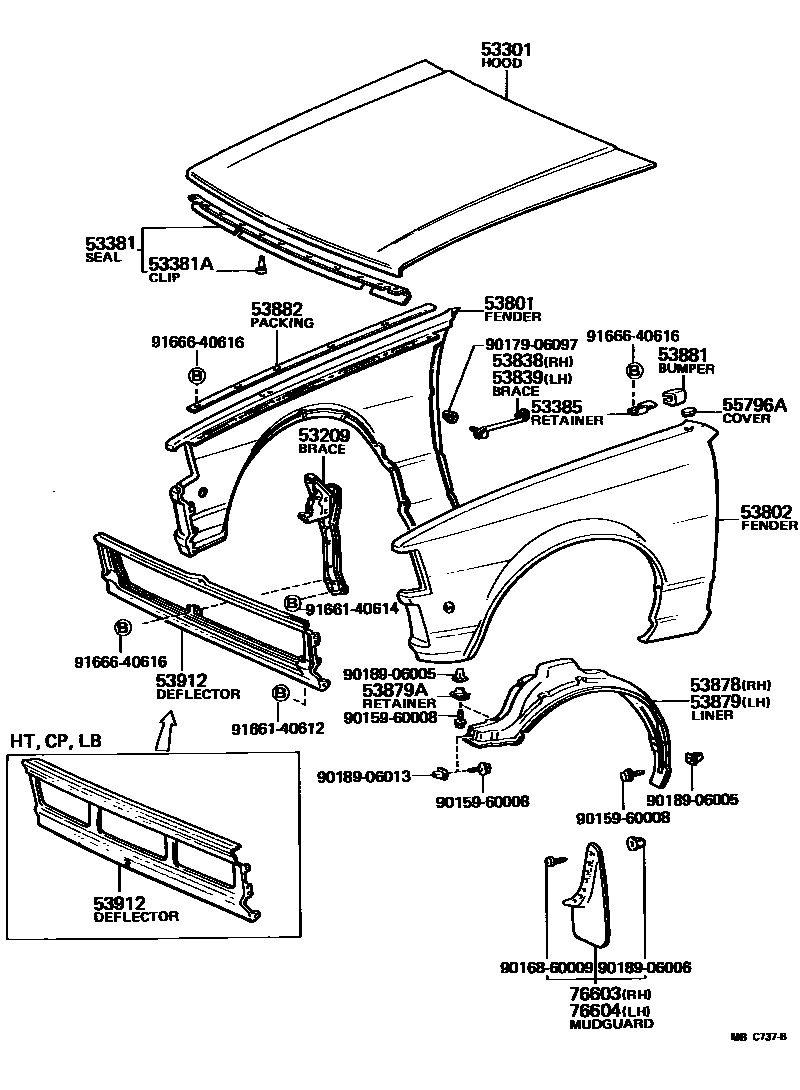

Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53209 | Engine cover lock bracket sub-assembly | 53208-12120 · 53208-12130 · 53208-12160 · 53208-12190 |
| 53301 | Engine cover sub-assembly | 53301-12240 · 53301-12250 · 53301-12300 · 53301-12320 |
| 53381 | Engine cover to radiator bracket seal | 53381-12110 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08008 · 90467-08011 |
| 53385 | Engine cover buffer block fixing | 53385-14010 · 53386-14010 |
| 53801 | Right front fender sub-assembly | 53801-1A120 · 53801-1A210 · 53801-1A211 · 53801-1A430 |
| 53802 | Left front fender sub-assembly | 53802-1A130 · 53802-1A180 · 53802-1A190 · 53802-1A240 · 53802-1A241 · 53802-1A450 |
| 53838 | Right front fender stay | 53851-12010 · 53851-12020 · 53851-12040 |
| 53839 | Left front fender stay | 53852-12010 · 53852-12020 · 53852-12040 |
| 53878 | Right front fender lining | 53875-12040 · 53875-12050 |
| 53879 | Left front fender lining | 53876-12040 · 53876-12050 |
| 53879A | Front fender lining fixing parts | 53879-22010 |
| 53881 | fender to engine cover buffer block | 53384-14010 · 53384-16010 |
| 53882 | Front fender main seal | 53882-12040 |
| 53912 | Front bumper stone guard | 53901-12070 · 53911-12190 · 53911-12191 · 53911-12200 |
| 55796A | radio antenna hole cover | 55796-12020 · 55796-12040 |
