Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 7 PNC and OE references.

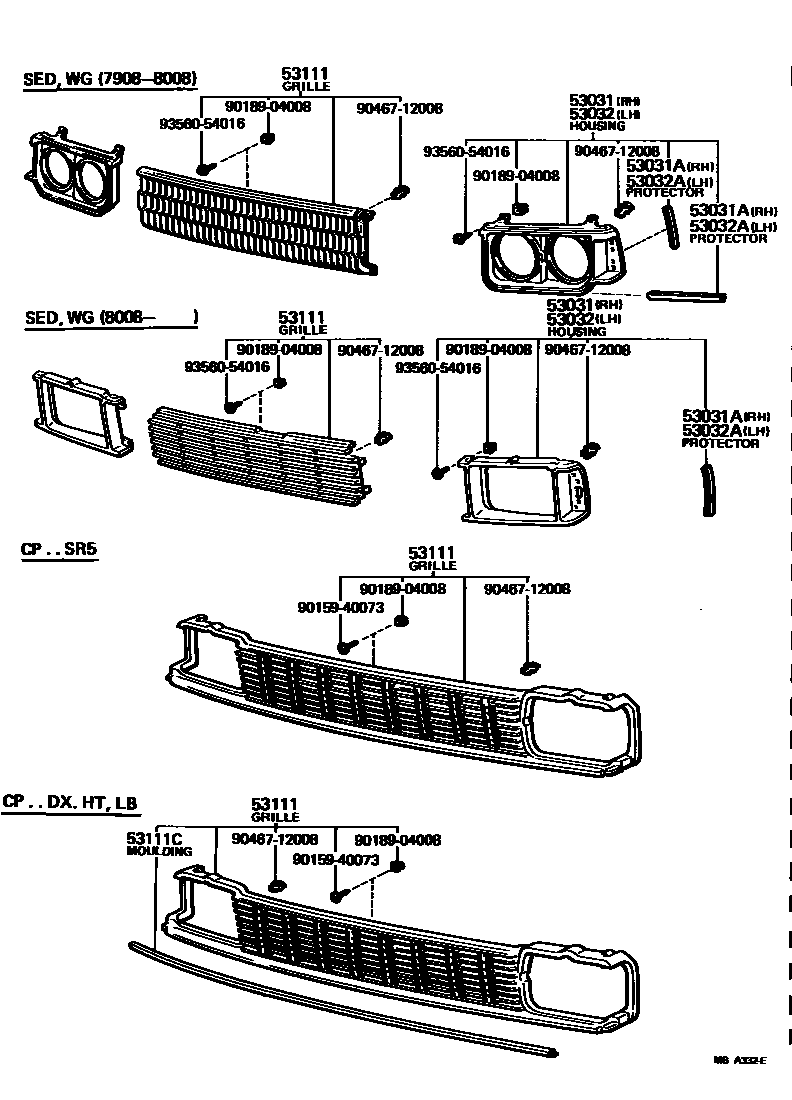

Toyota COROLLA radiator grille EPC diagram — MBA332E
radiator grille — MBA332E (197908 – 198108)

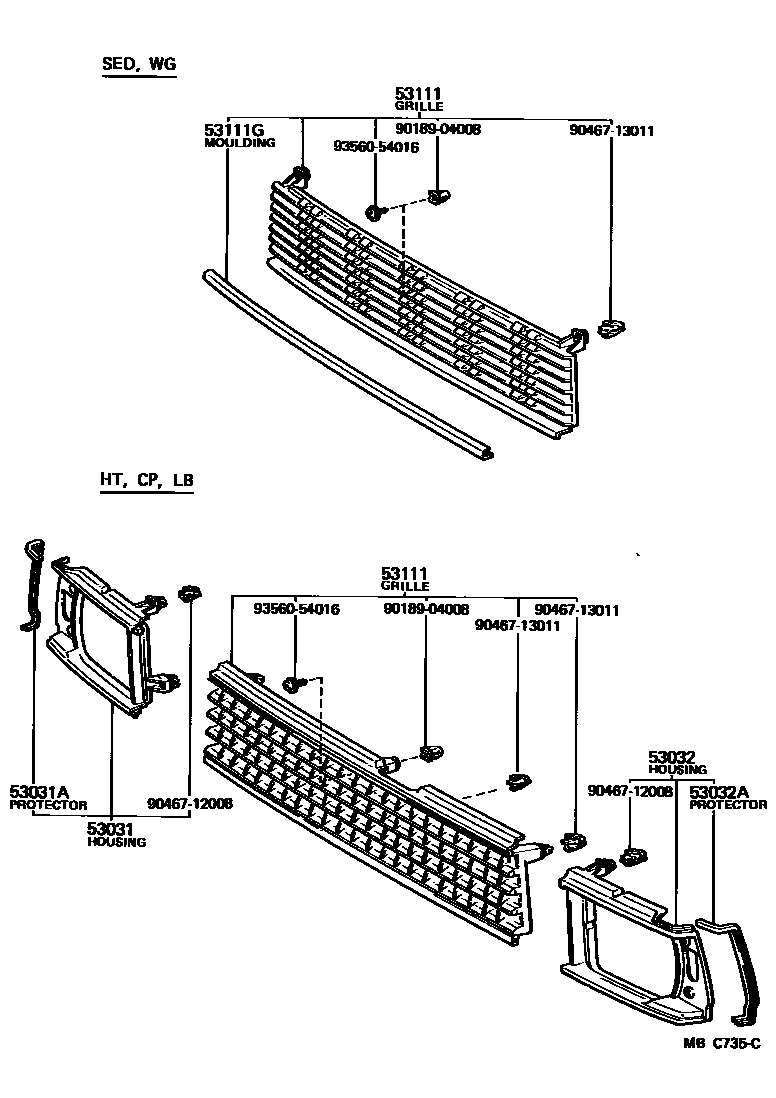

Toyota COROLLA radiator grille EPC diagram — MBC735C
radiator grille — MBC735C (198108 – 999999)

PNC and OE references

PNCPart nameOE numbers
53031Right headlight housing53131-12250 · 53131-12300 · 53131-12310
53031ARight headlight guard53138-12030 · 53139-12060 · 53169-12010
53032Left headlight housing53132-12160 · 53132-12210 · 53132-12220
53032ALeft headlight guard53139-12060 · 53139-12100 · 53169-12010
53111radiator grille53100-12150 · 53101-12440 · 53101-12450 · 53111-12400 · 53111-12450 · 53111-12480
53111CProtective strips on radiator grille75512-12090
53111GRadiator grille lower protective strip53121-12130
