Toyota COROLLA 后保险杠及附件 — Figure 5202

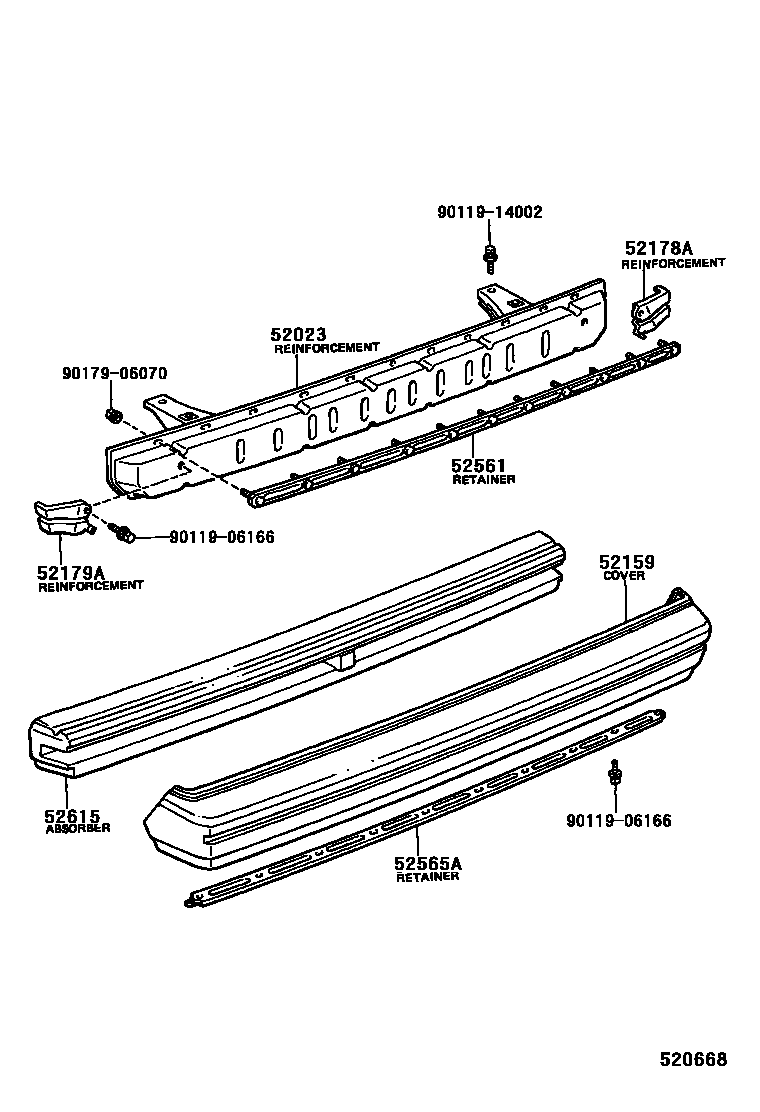

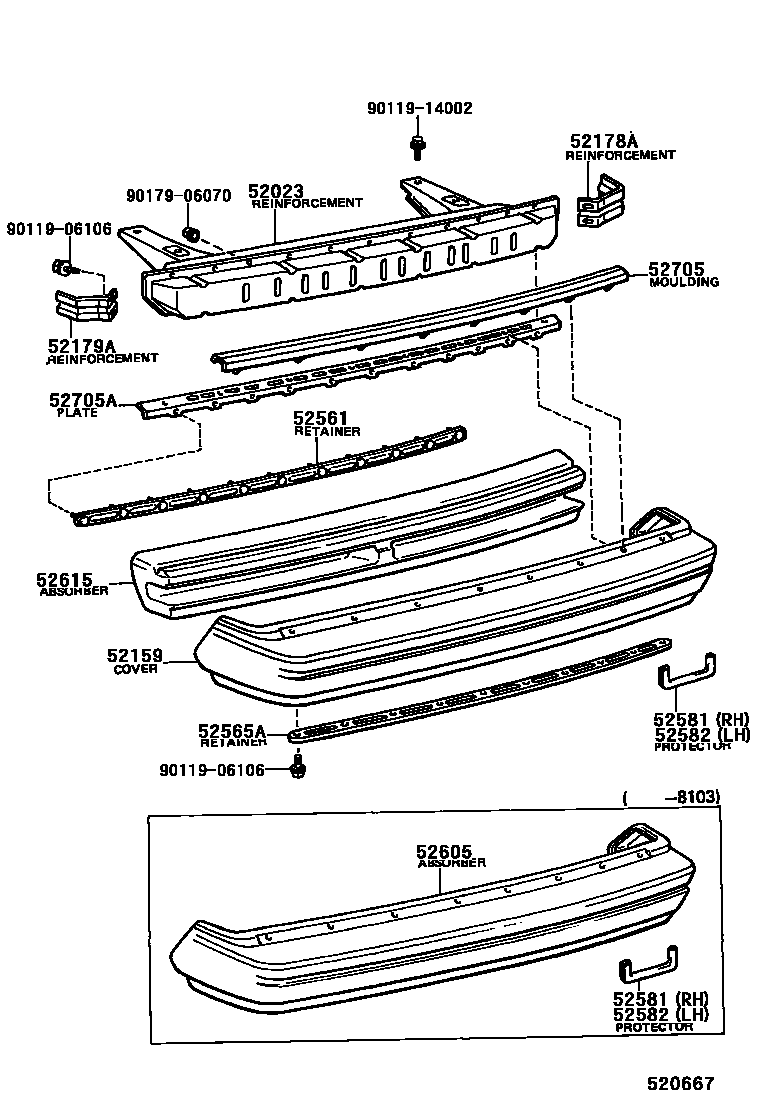

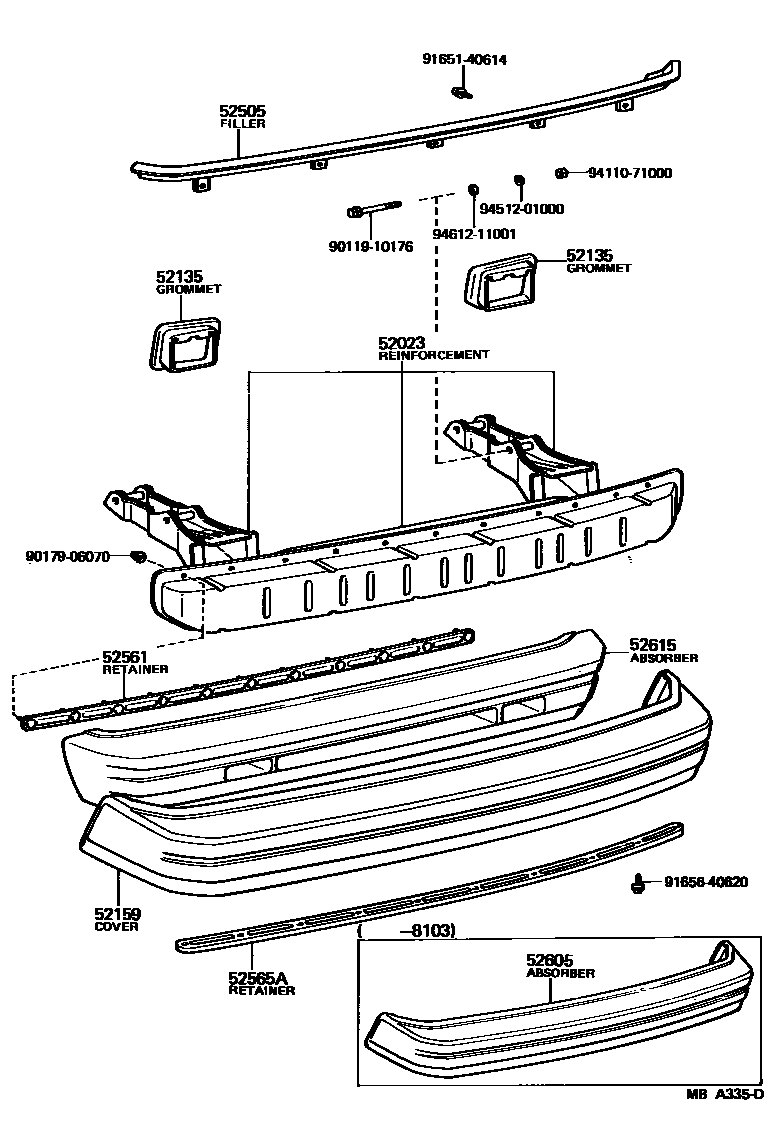

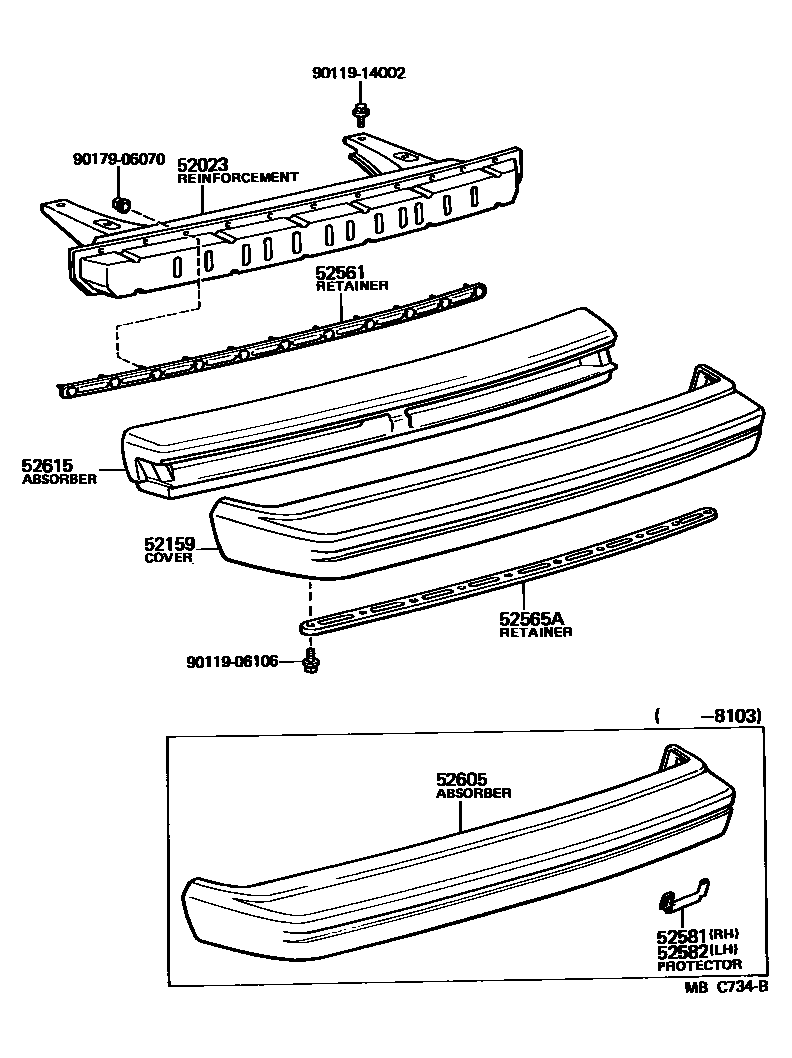

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-12040 · 52023-13010 |
| 52135 | Rear bumper stay gasket | 52191-13080 · 52192-13070 |
| 52159 | rear bumper cover | 52159-12011 · 52159-12040 · 52159-12050 · 52159-13010 |
| 52178A | Rear bumper right corner reinforcement | 52178-12010 |
| 52179A | Rear bumper left corner reinforcement | 52179-12010 |
| 52505 | Rear bumper arc filler sub-assembly | 52505-13010 |
| 52561 | Rear bumper upper center fixing bracket | 52561-12010 |
| 52565A | Rear bumper lower fixing bracket | 52565-12010 |
| 52581 | Rear bumper right side protector | 52581-12050 |
| 52582 | Rear bumper left protector | 52581-12050 |
| 52605 | Rear bumper energy absorber sub-assembly | 52605-12021 · 52605-12050 · 52605-13010 |
| 52615 | Rear bumper energy absorber | 52615-12010 · 52615-12040 · 52615-13010 |
| 52705 | Rear bumper protection strip sub-assembly | 52705-12010 |
| 52705A | Rear bumper protection strip mounting plate | 52198-12010 |
