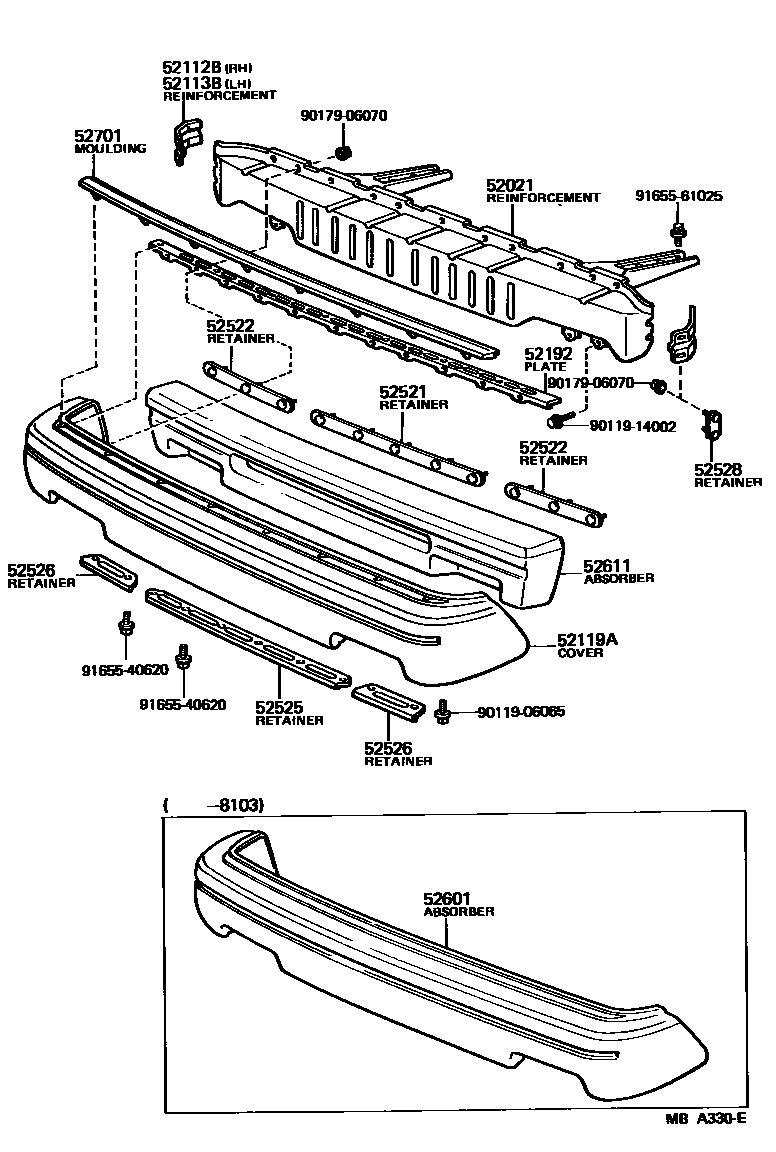

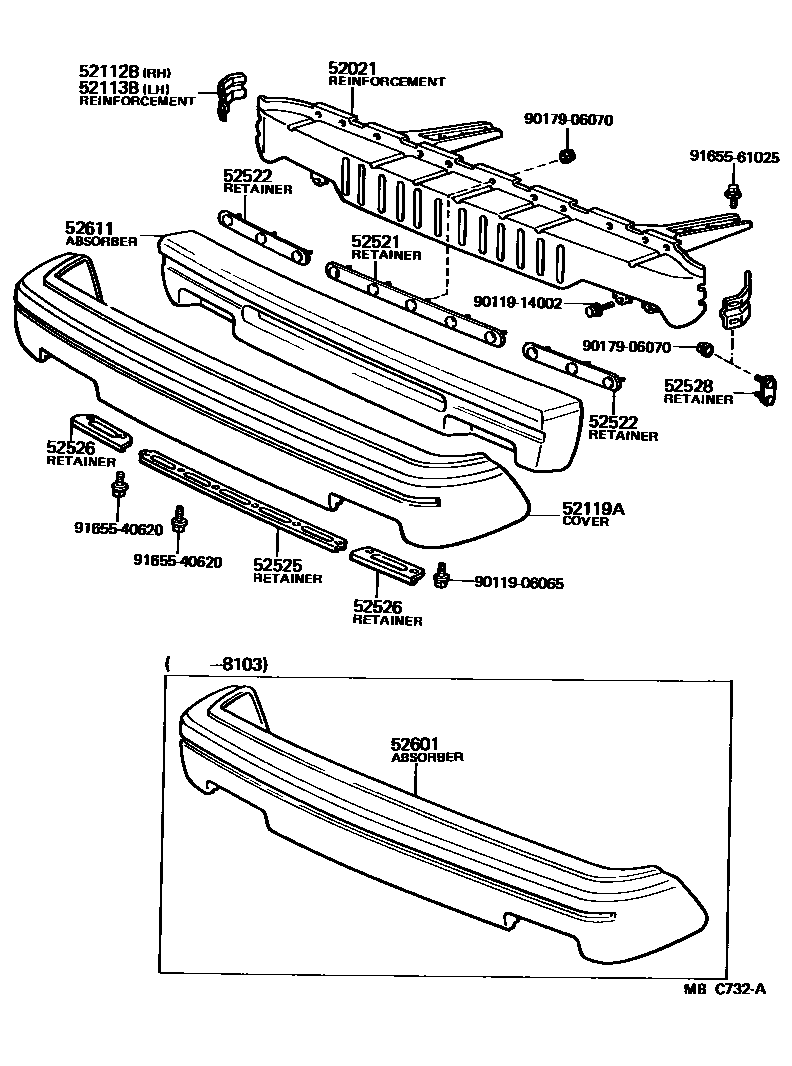

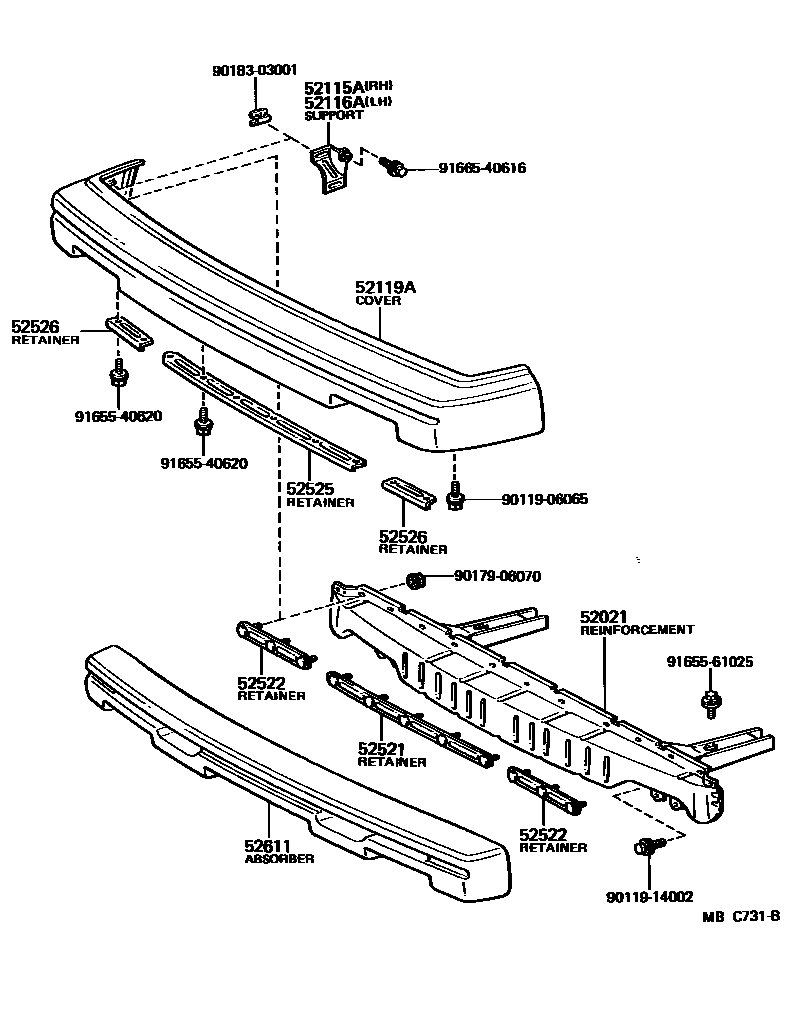

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-12050 · 52021-12060 |
| 52112B | Front bumper right side stay reinforcement | 52137-12020 |
| 52113B | Front bumper left stay reinforcement | 52138-12020 |
| 52115A | Front bumper right side bracket | 52115-12100 |
| 52116A | Front bumper left bracket | 52116-12070 |
| 52119A | front bumper cover | 52119-12011 · 52119-12041 · 52119-12060 |
| 52192 | Front bumper protection strip mounting plate | 52193-12010 |
| 52521 | Front bumper upper center fixing bracket | 52521-14020 |
| 52522 | Front bumper upper side fixing bracket | 52522-14010 |
| 52525 | Front bumper lower center fixing bracket | 52525-12010 |
| 52526 | Front bumper lower side fixing bracket | 52526-12010 |
| 52528 | Front bumper lower corner fixing parts | 52528-12010 |
| 52601 | Front bumper energy absorber sub-assembly | 52601-12021 · 52601-12051 |
| 52611 | front bumper energy absorber | 52611-12010 · 52611-12040 · 52611-12060 |
| 52701 | Front bumper protection strip sub-assembly | 52701-12010 |
