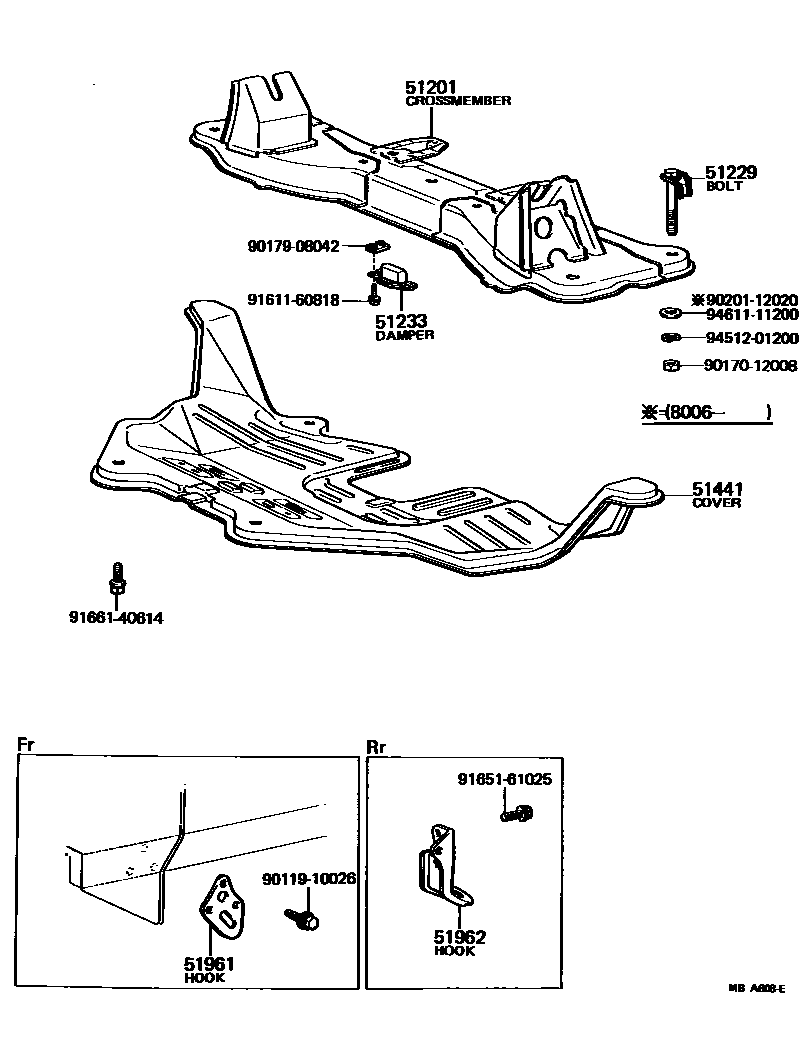

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12130 · 51201-12190 |
| 51229 | Suspension cross member fixing bolts | 51296-12011 |
| 51233 | Front suspension cross member shock absorber | 51204-12010 |
| 51441 | No. 1 engine bottom cover | 51405-12030 · 51405-12050 |
| 51961 | No. 1 hook | 51963-12050 |
| 51962 | Hook No. 2 | 51967-12020 · 51968-12010 |
