Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

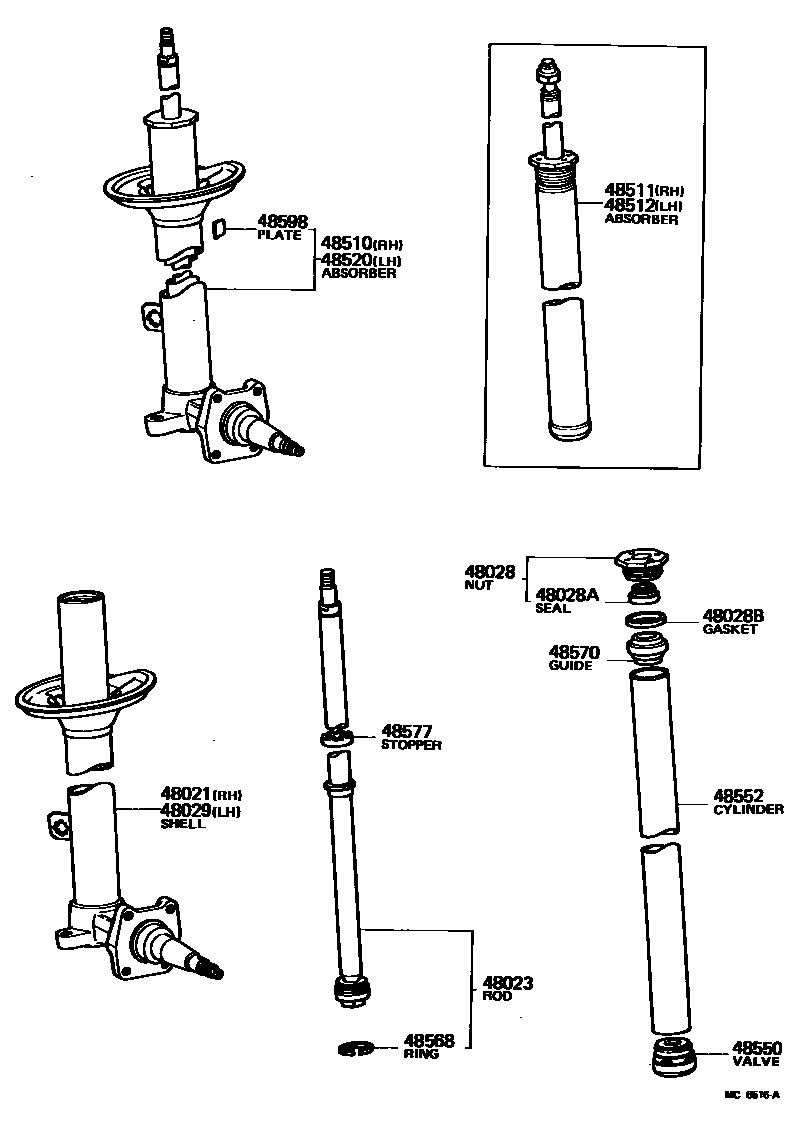

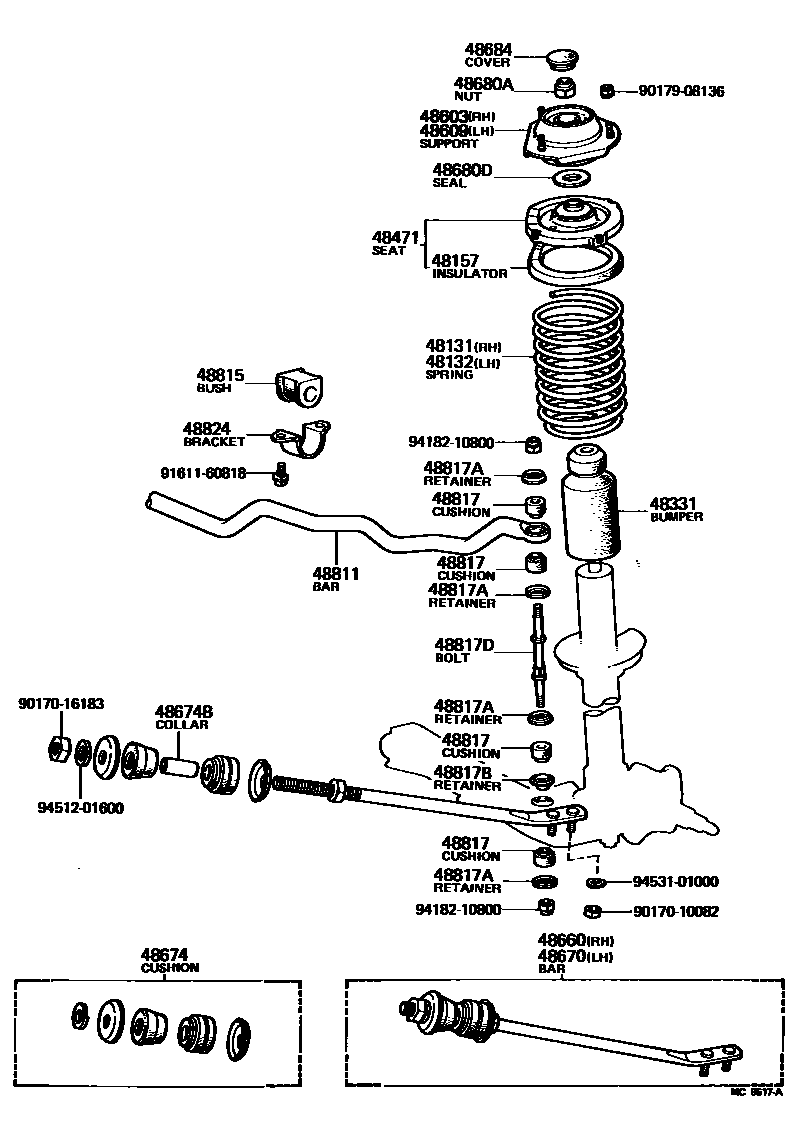

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48021 | Right side housing sub-assembly with steering knuckle | 48021-12140 · 48021-12160 |
| 48023 | Front shock absorber piston rod sub-assembly | 48023-12151 · 48023-12200 · 48023-12210 |
| 48028 | Shock absorber ring nut sub-assembly | 48028-14011 |
| 48028A | Oil seal (for shock absorber ring nut) | 90316-22001 |
| 48028B | Gasket (for shock absorber ring nut) | 90430-43206 |
| 48029 | Left side shell sub-assembly with steering knuckle | 48029-12020 · 48029-12040 |
| 48131 | Right front coil spring | 48131-12640 · 48131-12710 · 48131-13080 · 48131-13100 · 48131-1A070 · 48131-1A080 · 48131-1A100 · 48131-1A110 · 48131-1A120 · 48131-1A260 |
| 48132 | Left front coil spring | 48131-12690 · 48131-12710 · 48131-12730 · 48131-1A070 · 48131-1A080 · 48131-1A110 · 48131-1A120 · 48131-1A130 · 48131-1A140 |
| 48157 | Front coil spring upper vibration isolation pad | 48157-12020 · 48157-12040 |
| 48331 | No. 1 front spring buffer block | 48331-12080 |
| 48471 | Front spring seat | 48045-12030 · 48045-12040 |
| 48510 | Right front shock absorber assembly | 48510-12181 · 48510-12230 · 48510-12250 |
| 48511 | Right front shock absorber (for adhesive cartridge type) | 48511-12110 |
| 48512 | Left front shock absorber (for adhesive cartridge type) | 48511-12110 |
| 48520 | Left front shock absorber assembly | 48520-12061 · 48520-12110 · 48520-12130 |
| 48550 | Shock absorber bottom valve assembly | 48550-12150 · 48550-12170 · 48550-12210 |
| 48552 | front shock absorber cylinder | 48552-12030 |
| 48568 | Shock absorber piston ring | 48568-22020 · 48568-22021 |
| 48570 | Damper rod guide assembly | 48022-14010 |
| 48577 | Shock absorber rebound limiter | 48579-14011 |
| 48598 | Shock absorber nameplate | 48598-12251 · 48598-12261 · 48598-12350 · 48598-12360 · 48598-12390 · 48598-12400 |
| 48603 | Right front suspension bearing sub-assembly | 48603-12040 · 48609-16020 |
| 48609 | Left front suspension bearing sub-assembly | 48609-12130 · 48609-16020 |
| 48660 | Right support rod assembly | 48660-19105 · 48660-19115 · 48660-19155 |
| 48670 | Left support rod assembly | 48670-19095 · 48670-19105 · 48670-19145 |
| 48674 | Support rod cushion | 48674-19058 · 48674-19085 · 48674-19095 |
| 48674B | Collar (for support rod cushion) | 90387-16108 |
| 48680A | Nut (for front mount to front shock absorber) | 94182-11400 |
| 48680D | Dust seal (for front suspension mount) | 90303-22049 |
| 48684 | Bearing dust cover | 48684-12030 |
| 48811 | front stabilizer bar | 48811-12220 · 48811-12230 · 48811-12270 · 48811-12280 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-14020 · 48815-20060 · 48815-30050 |
| 48817 | Front stabilizer bar cushion | 48817-12010 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02024 |
| 48817B | Crash pad block No. 2 (for front stabilizer bar) | 90948-02025 |
| 48817D | Bolt (for front stabilizer bar) | 48819-12010 |
| 48824 | front stabilizer bar bracket | 48824-12040 |
