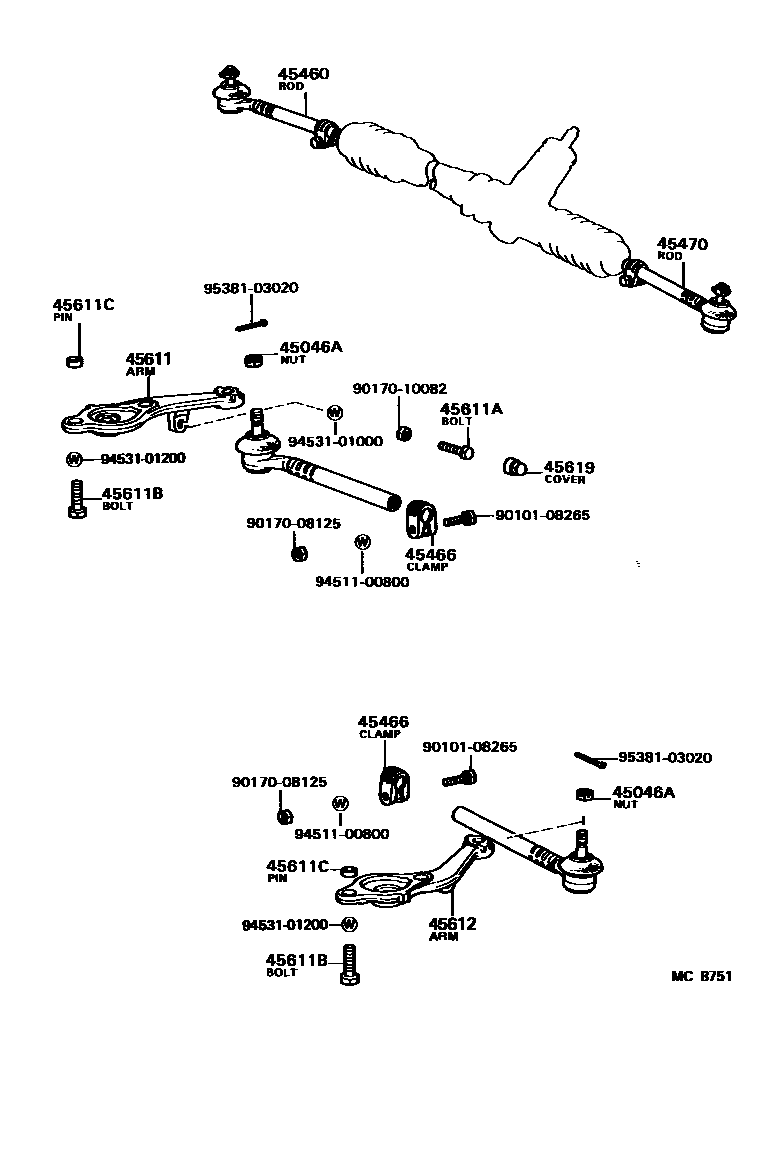

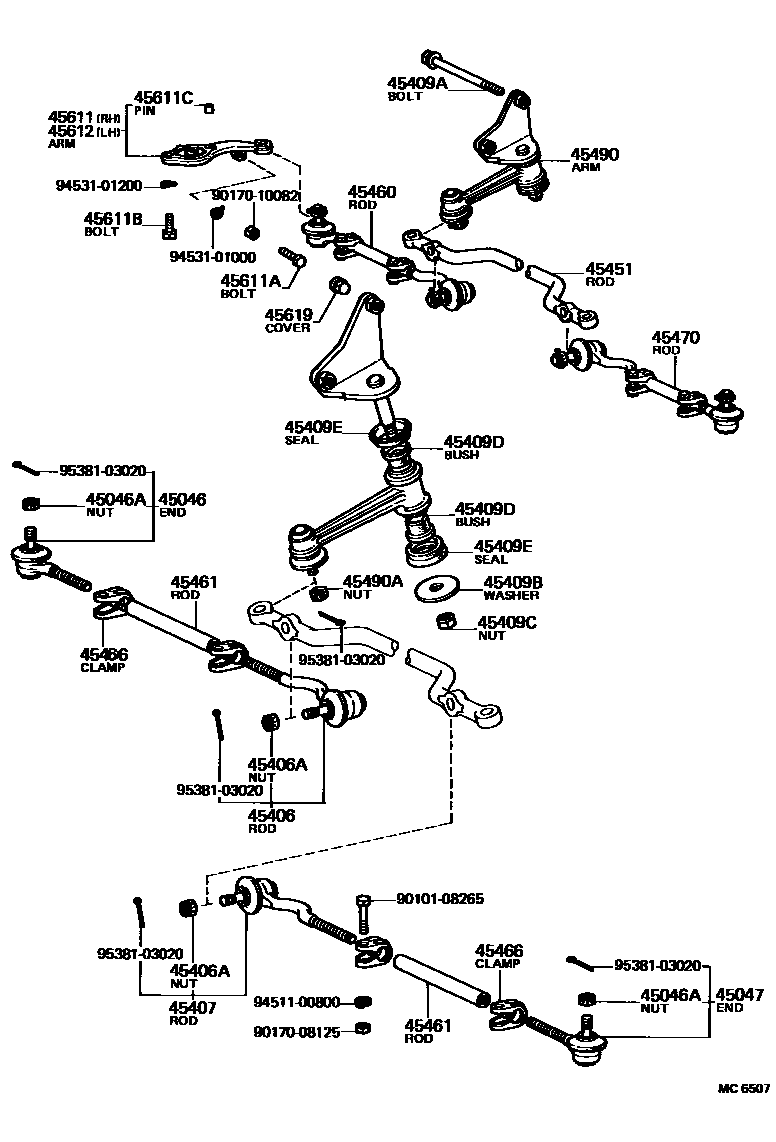

Toyota COROLLA 前转向齿轮和连杆 — Figure 4505
Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 122 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44101D | Flat washer (for steering worm) | 90201-30003 |
| 44101E | O-ring (for steering worm) | 90301-44001 |
| 44101H | Thrust needle roller bearing (for steering worm) | 90374-30003 |
| 44101J | Ring (for steering worm) | 90562-47001 · 90562-47002 |
| 44105 | Valve housing sub-assembly | 44105-22040 |
| 44105A | O-ring (for valve housing) | 90301-32002 |
| 44105B | Ring (for valve housing) | 90562-30002 |
| 44105C | Connector seat (for valve body shell) | 90410-06030 |
| 44107 | Power steering housing sub-assembly | 44107-12020 |
| 44107A | Needle roller bearings (for power steering housing) | 90364-30002 |
| 44107B | O-ring (for power steering housing) | 90301-32001 · 90301-62002 · 96710-01010 · 96711-19010 |
| 44107C | Ring (for power steering housing) | 90562-29001 · 90562-30001 |
| 44107D | Hole snap ring (for power steering housing) | 90521-41001 |
| 44107E | Oil seal (for power steering housing) | 90312-30001 |
| 44108 | Side cover sub-assembly | 44108-12020 |
| 44108A | O-ring (for side cover) | 90301-58001 |
| 44110 | Power steering gear assembly | 44110-12020 · 44110-12021 |
| 44111 | horizontal axis | 44111-22030 |
| 44111A | Hexagonal nut (used to fix the transverse shaft to the steering rocker arm) | 90170-20147 |
| 44114A | Ring (for power piston nut) | 90562-58001 |
| 44114B | O-ring (for power piston nut) | 90301-53001 |
| 44114C | Ball (for power piston nut) | 90360-06021 |
| 44115 | Steel ball catheter | 44115-14010 |
| 44116 | Steel ball conduit clamp | 44116-14010 |
| 44141 | regulator plug | 44104-22011 |
| 44141A | O-ring (for adjuster plug) | 90301-51001 |
| 44141B | Oil seal (for regulator plug) | 90311-19002 |
| 44141C | Bearing (for adjuster plug) | 90369-22001 |
| 44142 | lock nut | 44142-22010 |
| 44142A | No. 1 lock nut | 44142-22020 |
| 44201 | Power steering control valve sub-assembly | 44201-12020 |
| 44201C | Ring (for power steering control valve) | 90562-33001 |
| 44204 | Power steering rack sub-assembly | 44204-12020 |
| 44204A | Ring (for steering rack piston) | 90562-34002 |
| 44210 | Power steering control valve assembly | 44120-12020 · 44120-12021 · 44210-12020 |
| 44210B | Connector seat (for power steering control valve) | 90410-07003 |
| 44222A | Dust cover (for power steering gear) | 45222-16020 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-12020 |
| 44251 | Steering rocker arm | 45401-19205 |
| 44251A | Castle nut (for steering rocker arm) | 90171-12028 |
| 44253 | Power steering rack housing | 44203-12020 |
| 44253A | Oil seal (for power steering rack housing) | 90310-24003 |
| 44253C | Pin (for power steering rack housing) | 90256-04002 |
| 44257 | Horizontal axis adjustment screw | 45357-22010 |
| 44257A | Seal washer (for cross-axis adjustment screw) | 90210-10001 |
| 44418A | Right steering pressure oil pipe | 44418-12020 |
| 44418C | O-ring (for steering pressure oil pipe) | 90301-05005 |
| 44419A | Left steering pressure oil pipe | 44419-12020 |
| 44503E | Steering rack end sub-assembly (for power steering) | 45503-19025 |
| 44503F | Claw washer (for power steering rack end) | 90214-14002 |
| 44523G | Rack guide block (for power steering) | 45523-16040 |
| 44523H | Spring (for power steering rack guide) | 90501-20045 |
| 44524A | Rack guide spring cover (for power steering) | 45524-16030 |
| 44524B | Nut (for power steering rack guide cover) | 90179-36002 |
| 44535B | No. 1 steering rack dust boot (for power steering) | 45535-16020 |
| 44535C | Clamp (for power steering rack dust boot) | 90949-01027 |
| 44535D | Catch (for power steering rack dust boot) | 90467-18003 |
| 44536B | No. 2 steering rack dust boot (for power steering) | 45535-16020 |
| 45046 | Right tie rod end sub-assembly | 45046-19135 · 45046-29075 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-19135 · 45046-29075 |
| 45222 | Steering gear dust cover | 45222-10030 |
| 45240 | Steering worm assembly | 45240-12050 |
| 45240A | Bearings (for steering worm) | 90369-40037 |
| 45240B | Oil seal (for steering worm) | 90311-17092 |
| 45242 | Worm bearing adjustment screw | 45242-12041 |
| 45242A | O-ring (for worm bearing adjustment screw) | 90301-53181 |
| 45243 | Worm bearing adjustment screw lock nut | 45243-22020 |
| 45301 | Steering housing sub-assembly | 45301-12210 · 45301-12211 |
| 45301B | Oil seal (for sector gear shaft) | 90310-34003 |
| 45310 | Steering housing assembly | 45310-12200 · 45310-12201 |
| 45331 | Sector gear shaft end cover | 45304-12030 · 45304-12032 · 45304-12040 · 45304-12050 |
| 45332 | Sector gear shaft end cover gasket | 45332-12040 · 45332-12041 |
| 45351A | Hexagonal nut (used to fix the sector gear shaft to the steering rocker arm) | 90170-20147 |
| 45352 | Sector gear shaft thrust washer | 45352-12010 · 45352-12020 · 45352-12030 · 45352-12040 · 45352-12050 · 45352-12060 |
| 45357 | Sector gear shaft adjustment screw | 45357-12010 |
| 45372 | Steering case oil plug | 90930-03027 |
| 45401 | Steering rocker arm sub-assembly | 45401-19195 · 45401-19205 |
| 45401A | Castle nut (for steering rocker arm) | 90171-12028 |
| 45406 | Right tie rod sub-assembly | 45406-19055 · 45406-19065 |
| 45406A | Castle nuts (for tie rods) | 90171-12028 |
| 45407 | Left tie rod sub-assembly | 45406-19055 · 45406-19065 |
| 45409A | Hexagonal bolts (used to secure the follower arm bracket) | 90119-10118 |
| 45409B | Flat Washer (for follower arm rubber bushing) | 90201-14519 |
| 45409C | Nut (for follower arm bracket) | 94182-11400 |
| 45409D | Bushing (for follower arm) | 90385-18068 |
| 45409E | Dust seal (for follower arm bracket) | 90304-31012 |
| 45451 | Steering intermediate tie rod | 45451-12040 · 45451-12050 · 45451-13020 |
| 45460 | Right tie rod assembly | 45460-19095 · 45460-19125 · 45460-19135 |
| 45461 | steering tie rod | 45465-12020 |
| 45466 | Tie rod end clamp | 45466-22010 |
| 45470 | Left tie rod assembly | 45460-19095 · 45460-19125 · 45460-19135 |
| 45490 | Steering follower arm assembly | 45490-19225 · 45490-19245 |
| 45490A | Castle nut (for follower arm) | 90171-12028 |
| 45501 | Steering rack housing sub-assembly | 45501-12080 |
| 45501A | T-type oil seal (for steering rack housing) | 90311-15001 |
| 45503 | Steering rack end sub-assembly | 45503-19015 |
| 45510 | Steering gear assembly | 45510-12030 |
| 45514 | No. 1 steering rack housing bracket | 45514-12020 |
| 45515 | No. 2 steering rack housing bracket | 45515-12030 · 45515-12040 |
| 45516 | No. 1 steering rack housing seal | 45516-12020 |
| 45517 | No. 2 steering rack housing seal | 45517-12020 · 45517-12040 |
| 45521 | steering rack | 45521-12060 |
| 45522 | steering rack bushing | 45522-10030 |
| 45523 | Rack guide block (for steering gear) | 45523-10010 |
| 45523A | Spring (for steering gear rack guide block) | 90501-23007 |
| 45524 | Steering rack guide block spring cover | 45524-16010 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-36001 |
| 45535 | No. 1 steering rack dust cover | 45535-12011 |
| 45535A | Clamp (for steering rack dust boot) | 90461-10273 |
| 45535B | Clamp (for steering rack dust boot) | 90467-18003 |
| 45536 | No. 2 steering rack dust cover | 45536-12011 |
| 45537A | Claw washer (for steering rack end lock) | 90214-14002 |
| 45541 | steering pinion | 45541-12021 |
| 45545 | Pinion Bearing Adjustment Screw | 45545-10010 |
| 45545A | Nut (for pinion bearing adjustment screw) | 90179-38001 |
| 45611 | Right steering knuckle arm | 45611-12080 · 45611-12110 · 45611-12150 |
| 45611A | Steering knuckle limit bolt | 90106-10032 |
| 45611B | Hexagonal bolt (for steering knuckle to shock absorber) | 90101-12295 |
| 45611C | Direct sales (for steering knuckle to shock absorber) | 90253-15016 |
| 45612 | Left steering knuckle arm | 45612-12080 · 45612-12110 · 45612-12150 |
| 45619 | Steering knuckle stop cover | 45619-14020 |
