Toyota COROLLA 叶片泵和储油罐(动力转向) — Figure 4502

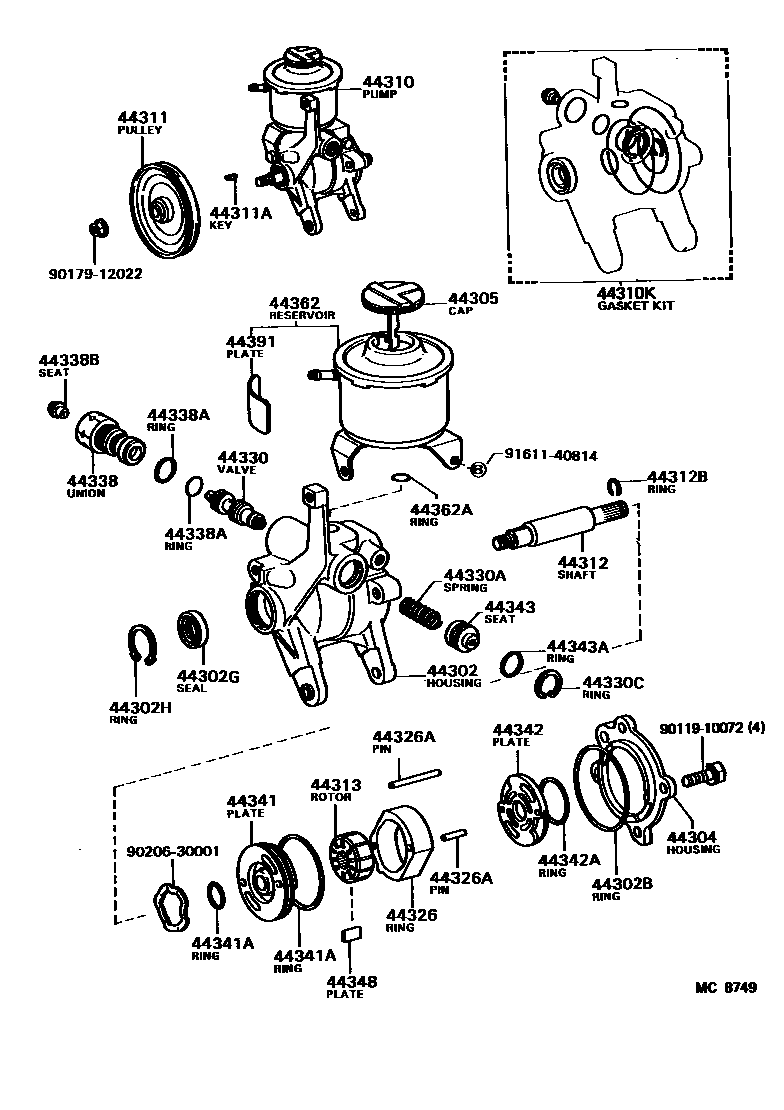

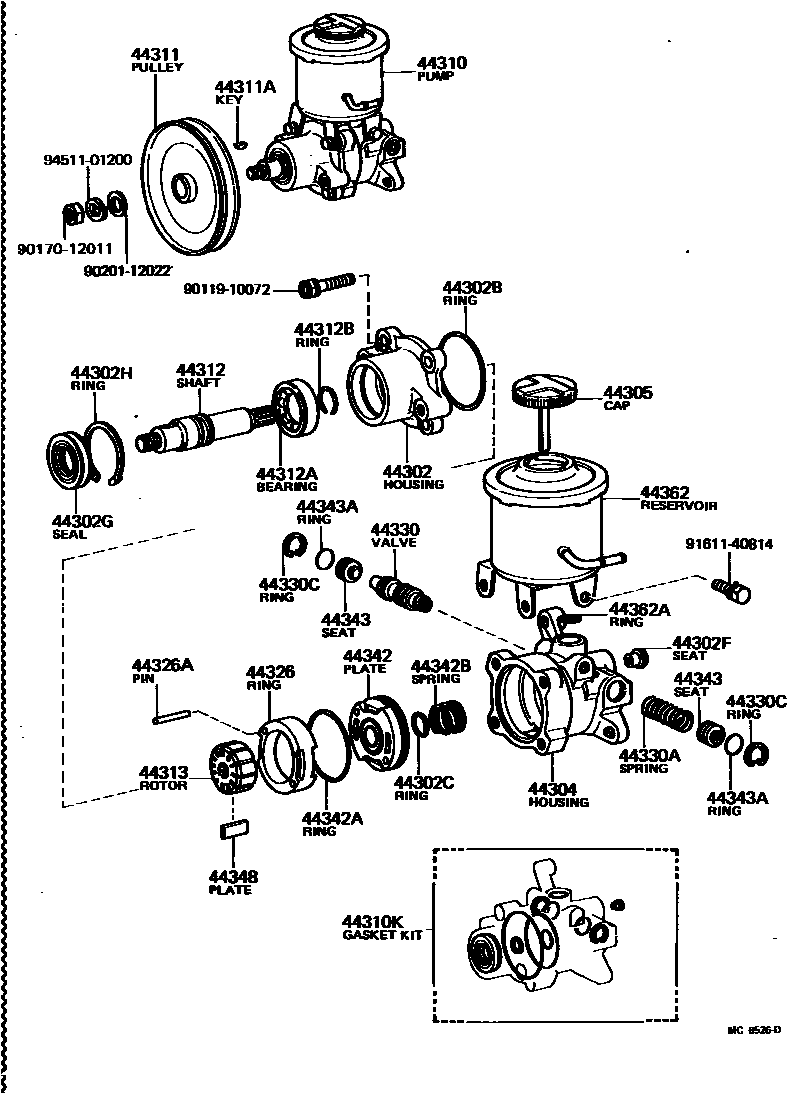

Toyota COROLLA EPC diagram 4502, 叶片泵和储油罐(动力转向), with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44302 | Front vane pump housing sub-assembly | 44302-12010 · 44302-12030 · 44302-12031 |
| 44302B | No. 1 O-ring (for vane pump housing) | 90301-60001 · 90301-63002 |
| 44302C | No. 2 O-ring (for vane pump housing) | 96710-01016 · 96711-19016 |
| 44302F | Joint seat (for vane pump housing) | 90410-06030 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90311-18003 · 90311-18008 · 90311-24001 |
| 44302H | No. 1 snap ring (for vane pump housing) | 90521-32001 · 90521-44002 |
| 44304 | Vane pump rear housing sub-assembly | 44304-12010 · 44324-12020 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-30020 |
| 44310 | Vane pump assembly | 44320-12010 · 44320-12011 · 44320-12012 · 44320-12040 · 44320-12041 · 44320-12042 |
| 44310K | Power steering pump gasket assembly | 04446-12010 · 04446-12011 · 04446-16010 |
| 44311 | vane pump pulley | 44311-12010 · 44311-12020 |
| 44311A | Vane pump pulley key | 90280-05008 |
| 44312 | vane pump shaft | 44312-12010 · 44312-12020 |
| 44312A | Bearings (for vane pump shafts) | 90363-17004 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90520-10003 · 90520-15001 |
| 44313 | vane pump rotor | 44313-12010 · 44313-12020 · 44313-12030 · 44313-12040 · 44313-12050 |
| 44326 | Cam ring (for vane pumps) | 44325-12010 · 44325-12020 · 44325-12030 · 44325-12040 · 44325-12050 · 44325-12060 · 44325-12070 · 44325-12080 · 44325-12090 · 44325-12100 |
| 44326A | Direct sales (for vane pump cam rings) | 90250-05008 · 90250-05017 |
| 44330 | Flow control valve assembly | 44330-12010 · 44330-12020 · 44330-12030 · 44330-12040 · 44330-12050 · 44330-12060 · 44330-12130 · 44330-12140 · 44330-12150 · 44330-12160 · 44330-12170 · 44330-12180 |
| 44330A | Compression spring (for flow control valve) | 90501-12447 |
| 44330C | Snap ring (for flow control valve) | 96151-01700 · 96151-02200 |
| 44338 | Pressure port connector | 44308-12010 |
| 44338A | O-ring (for pressure port connector) | 90301-22001 · 96711-19014 |
| 44338B | Connector holder (for pressure hole connector) | 90410-06004 |
| 44341 | Vane pump front cover | 44341-12020 |
| 44341A | O-ring (for vane pump front cover) | 90301-21001 · 90301-56002 |
| 44342 | Vane pump rear end cover | 44341-12010 · 44342-12010 |
| 44342A | O-ring (for vane pump rear end cover) | 90301-37002 · 90301-53002 |
| 44342B | Compression spring (for vane pump rear end cover) | 90501-23014 |
| 44343 | Flow control spring seat | 44343-12010 · 44343-12030 |
| 44343A | O-ring (for flow control spring seat) | 96710-01014 · 96711-19014 · 96711-19019 |
| 44348 | vane pump disc | 44345-12010 · 44345-12020 · 44345-12030 · 44345-12040 · 44345-12050 |
| 44362 | Oil storage tank (for vane pump) | 44306-12010 · 44306-12011 · 44306-12020 |
| 44362A | O-ring (for vane pump oil storage tank) | 96710-01013 · 96711-19013 |
| 44391 | Power steering oil tank warning nameplate | 44391-30020 |
