Toyota COROLLA Steering Column & Shaft — Figure 4501

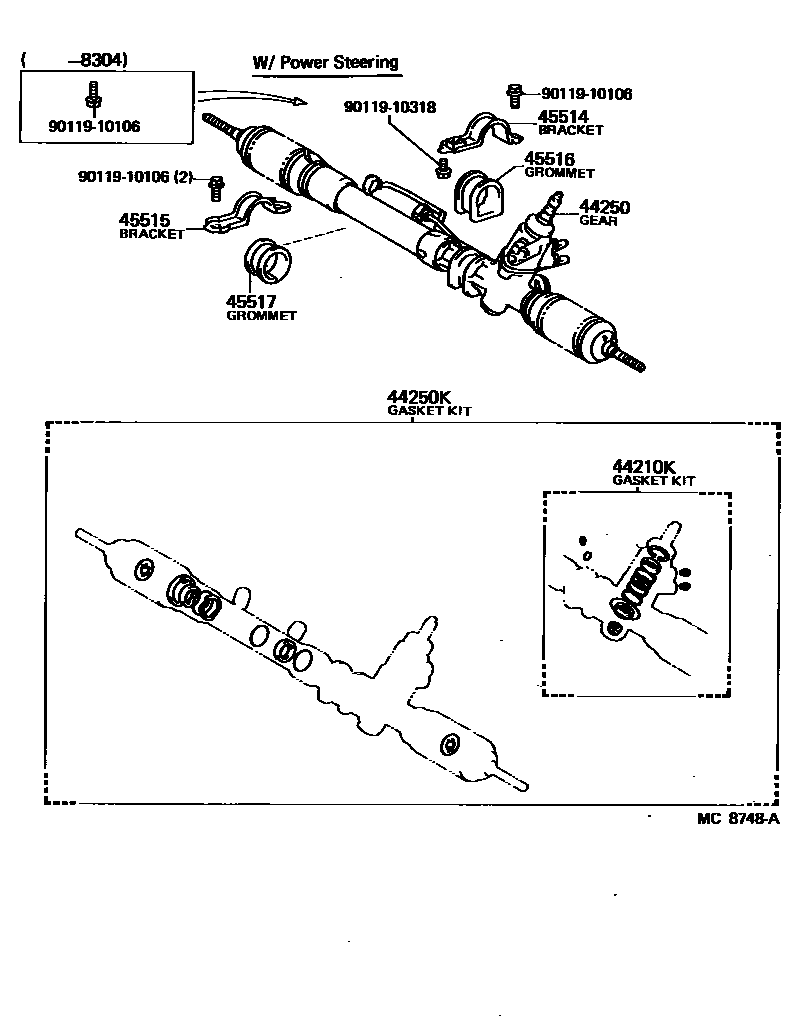

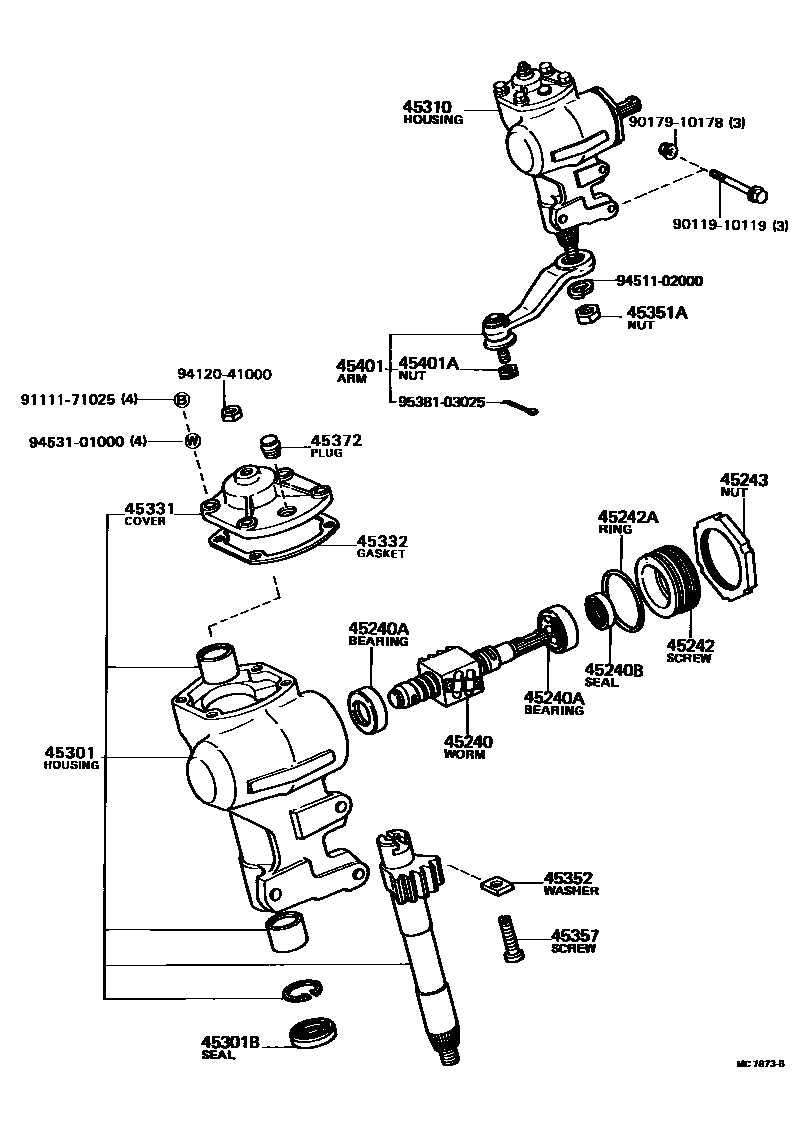

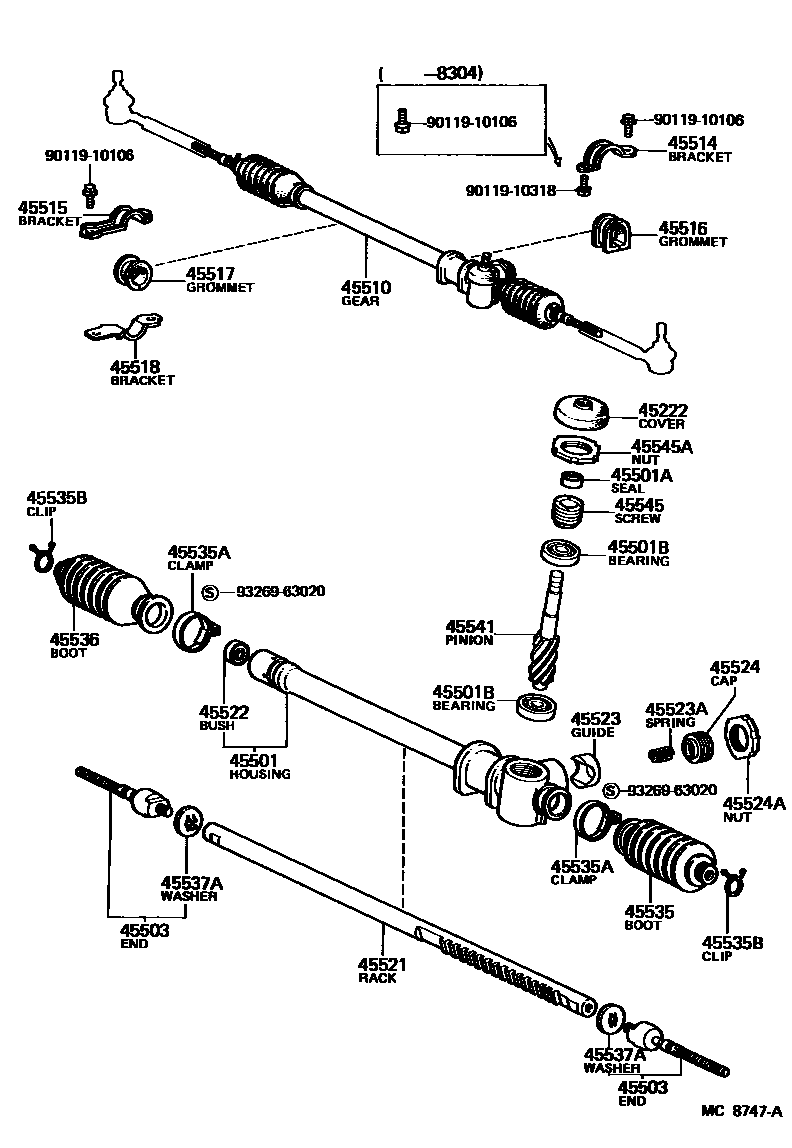

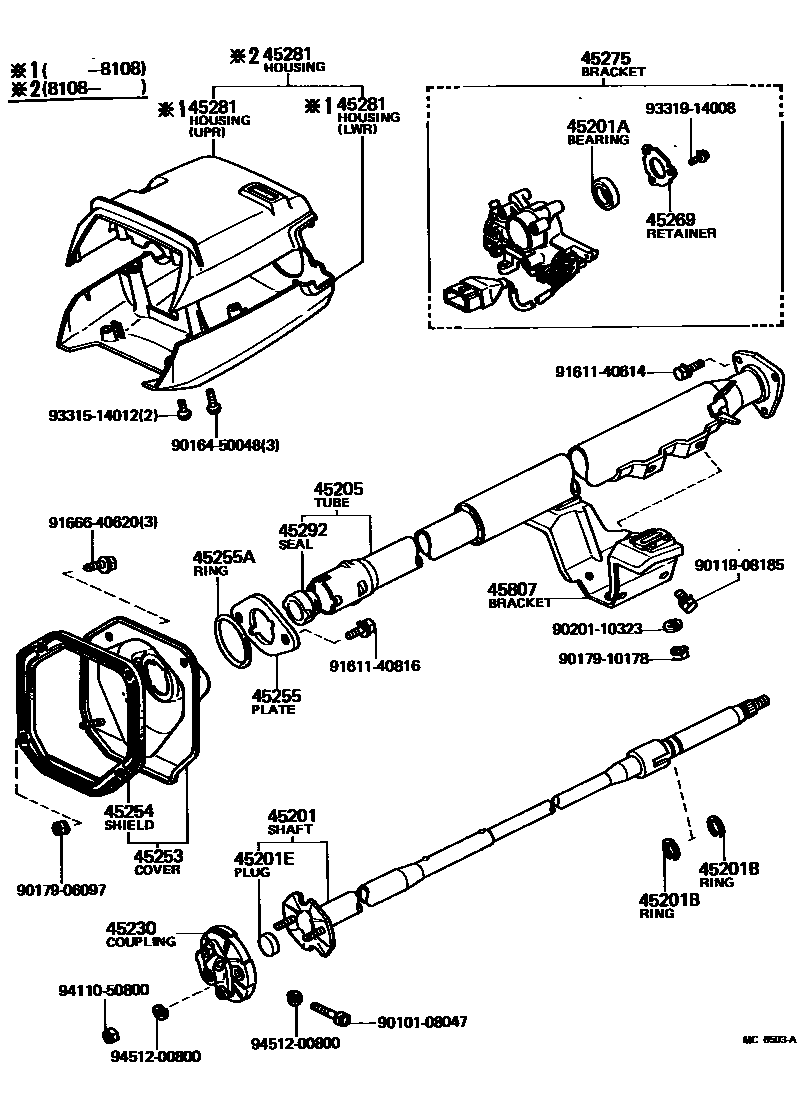

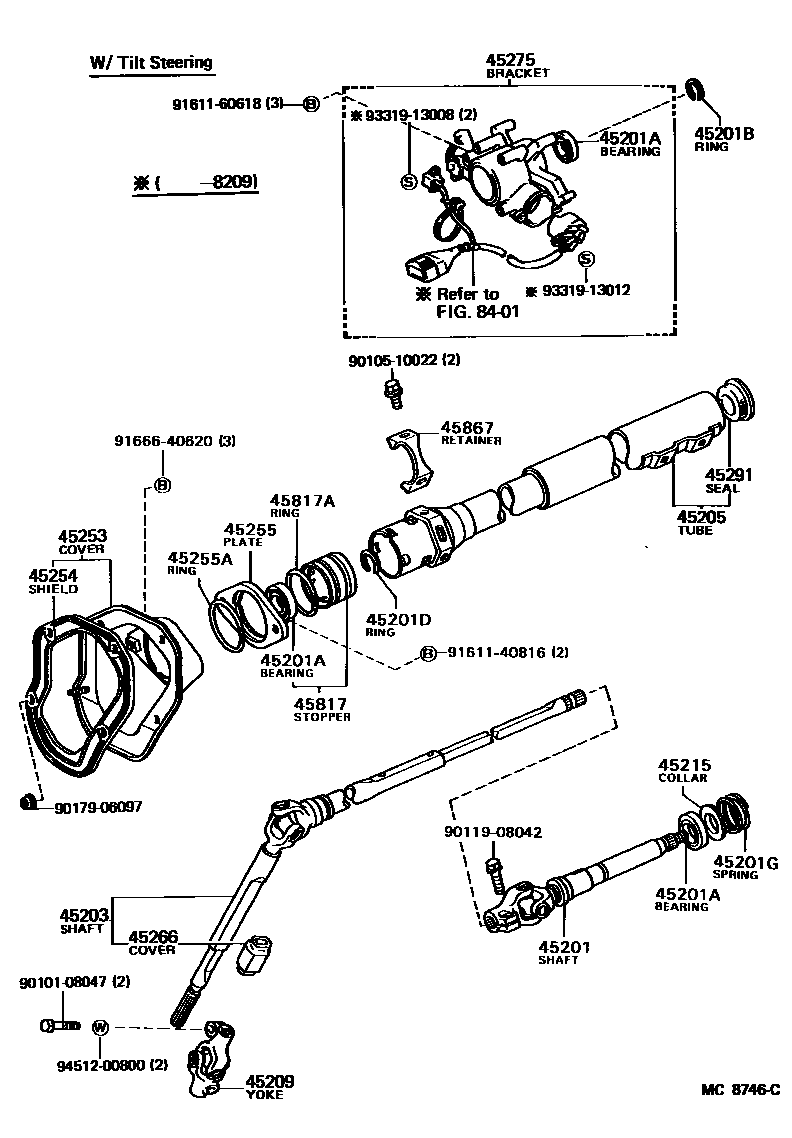

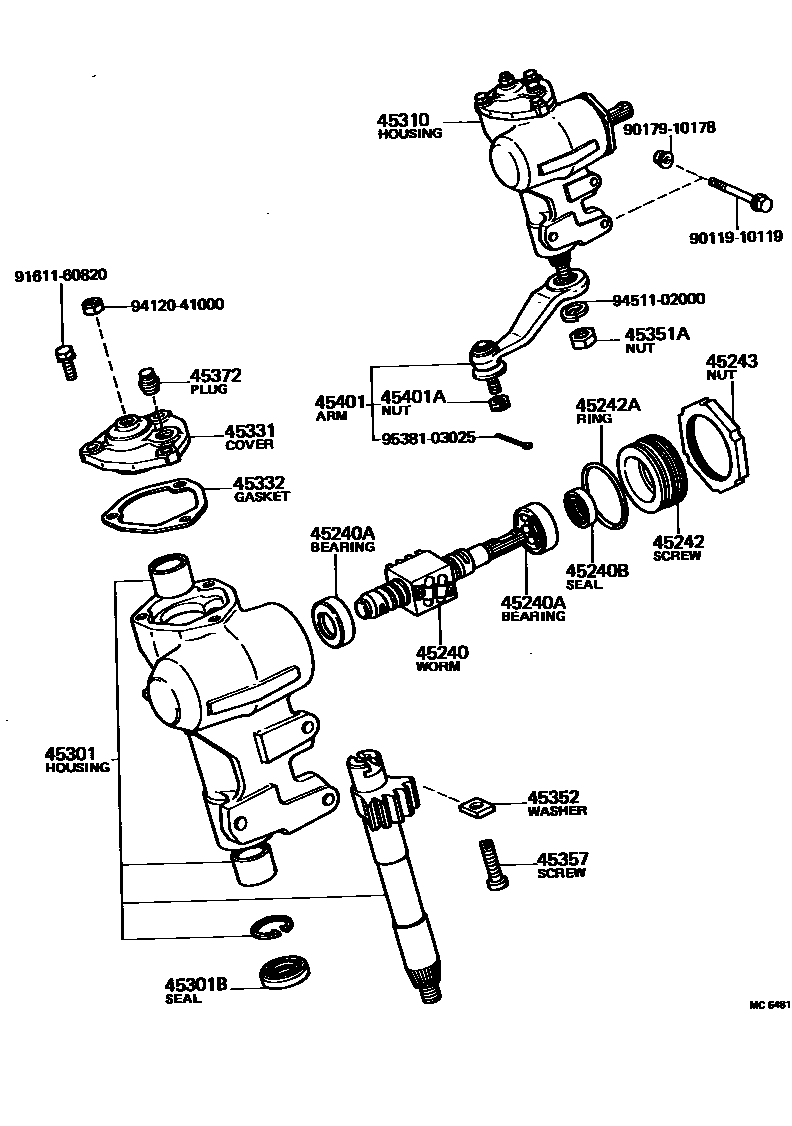

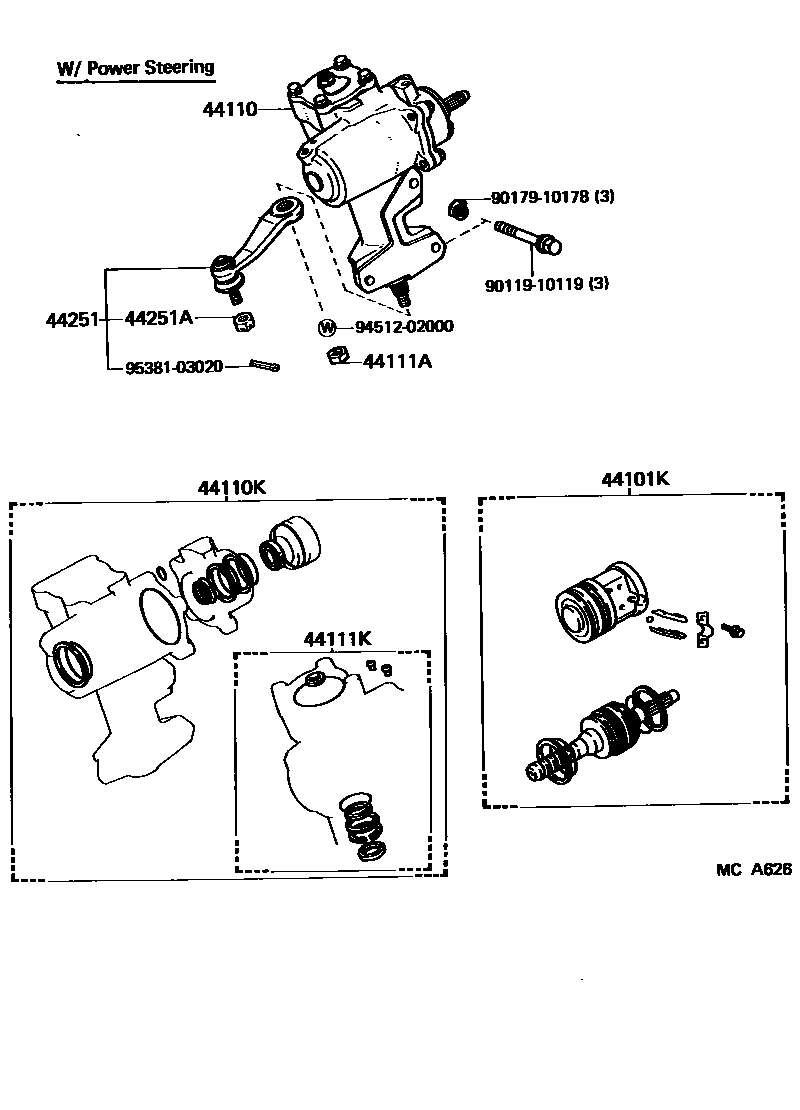

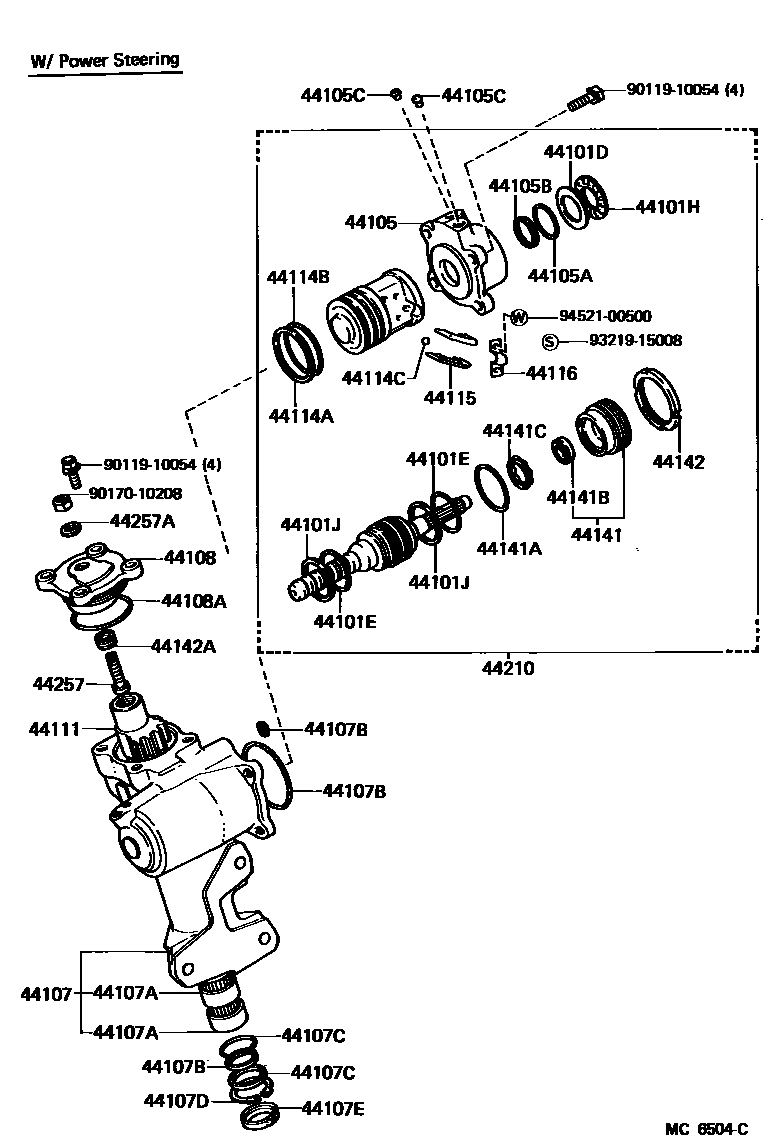

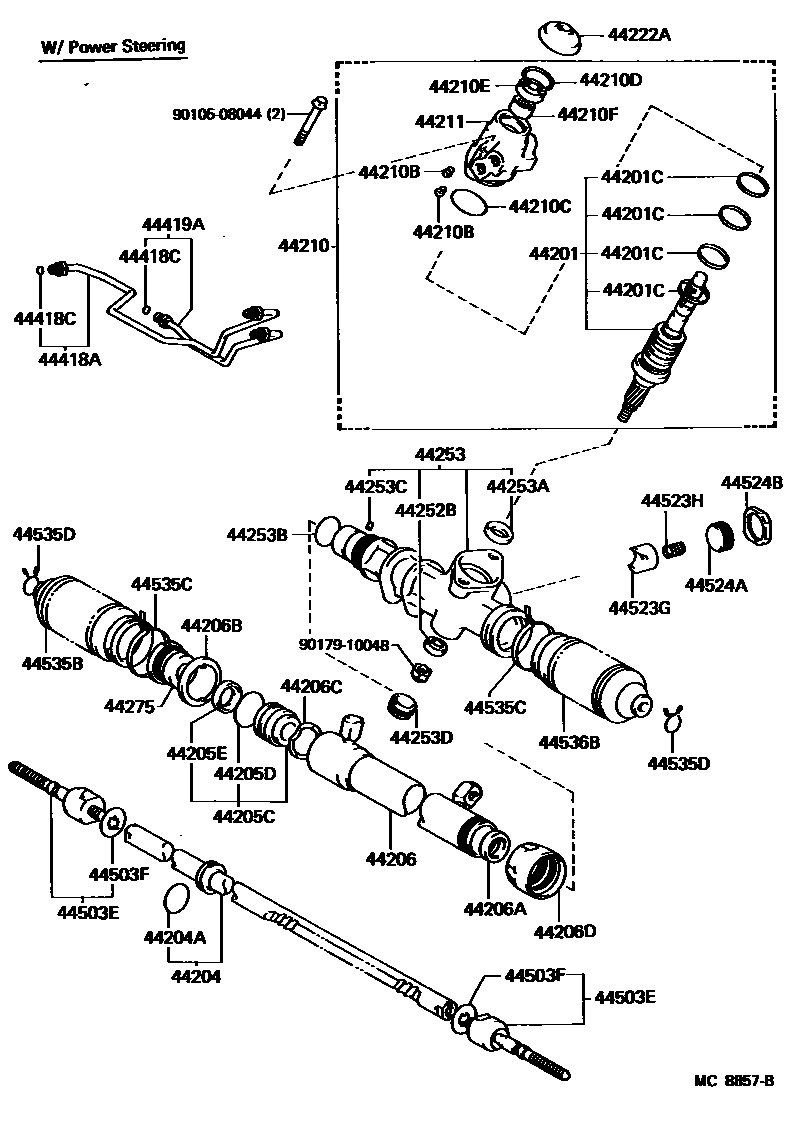

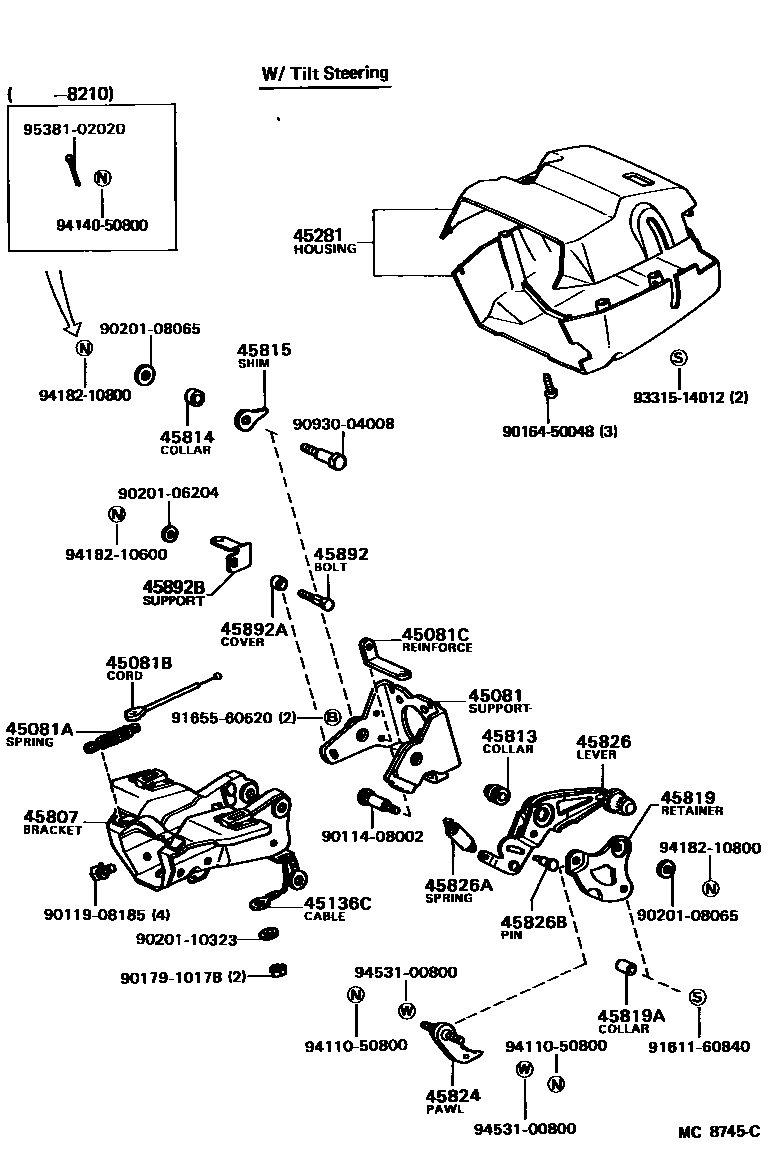

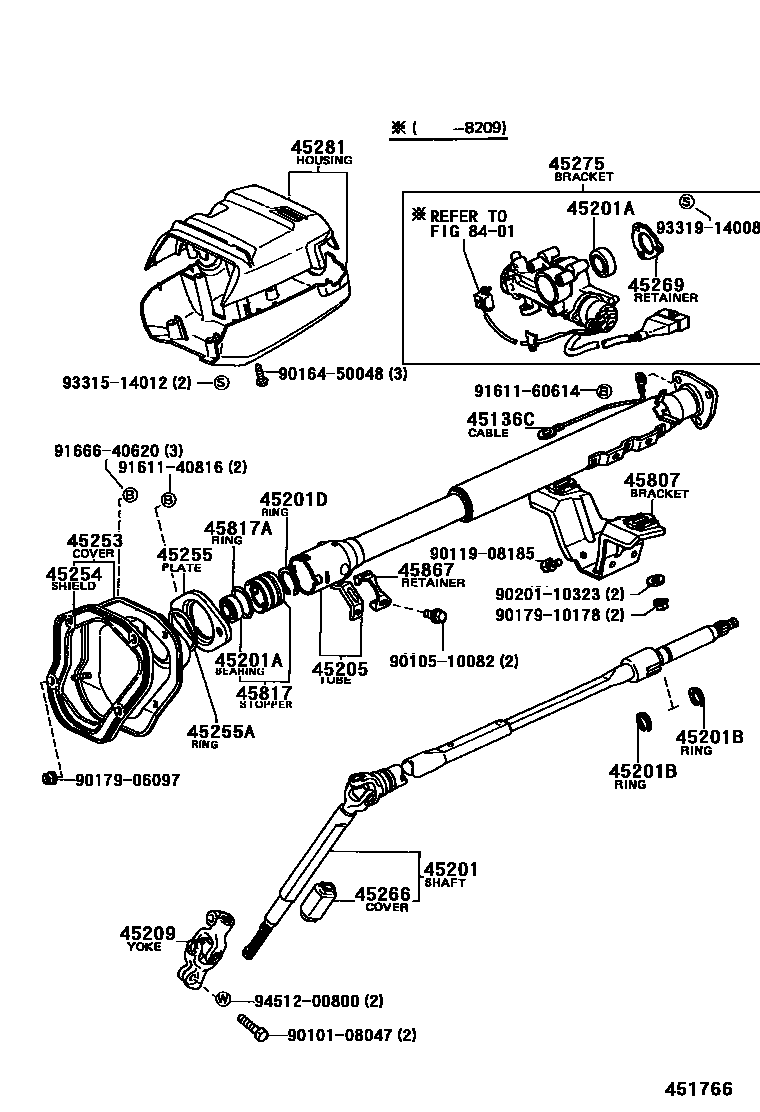

Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 11 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44101K | Power steering worm assembly | 04044-12030 · 04044-12040 |
| 44110K | Power steering gear gasket assembly | 04445-22050 |
| 44111K | Power Steering Cross Shaft Overhaul Pad Assembly | 04455-22010 |
| 44205C | Power steering rack bushing sub-assembly | 44205-12020 |
| 44205D | O-ring (for power steering rack bushing) | 90301-39001 |
| 44205E | Oil seal (for power steering rack bushing) | 90311-24005 |
| 44206 | Power steering cylinder barrel sub-assembly | 44206-12010 |
| 44206A | Oil seal (for power steering cylinder) | 90311-24002 |
| 44206B | Jaw washer (for power steering cylinder) | 90214-47001 |
| 44206C | Wave Washer (for power steering cylinder) | 90206-39001 |
| 44206D | Nut (for power steering cylinder assembly) | 90179-45001 |
| 44210C | O-ring (for power steering control valve) | 90301-42001 |
| 44210D | Bore snap ring (for power steering control valve) | 96151-03200 |
| 44210E | Oil seal (for power steering control valve) | 90311-19005 |
| 44210F | Bearings (for power steering control valve) | 90364-19005 |
| 44210K | Power steering control valve overhaul gasket assembly | 04455-16010 |
| 44211 | control valve housing | 44211-12020 |
| 44250K | Power steering gear gasket assembly (for rack and pinion) | 04445-16010 |
| 44252B | Bearings (for power steering pinion) | 90363-12006 |
| 44253B | O-ring (for power steering rack housing) | 90301-33004 |
| 44253D | Power steering rack housing cover | 44283-16010 |
| 44275 | Cylinder end stop | 44275-16010 |
| 45081 | Tilt-adjustable steering bracket sub-assembly | 45081-22020 |
| 45081A | Tension spring (for tilt-adjustable steering column) | 90506-23009 |
| 45081B | Wire (for tilt-adjustable steering column) | 90945-02034 |
| 45081C | Tilt-adjustable steering bracket reinforcement | 45821-22010 |
| 45136C | Connecting cable (for speaker ground) | 90980-07129 · 90980-07195 |
| 45201 | Steering spindle sub-assembly | 45210-12070 · 45210-12090 · 45210-12150 · 45210-12190 · 45210-22050 |
| 45201A | Bearings (for steering spindle) | 90363-18001 · 90363-18038 · 90363-28001 · 90363-30007 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17196 |
| 45201D | Ring (for steering spindle) | 96152-00300 |
| 45201E | Plate screw plug (for steering spindle) | 90333-21008 |
| 45201G | Compression spring (for steering spindle) | 90501-45011 |
| 45203 | No. 2 steering intermediate shaft sub-assembly | 45220-12090 · 45220-12100 |
| 45205 | Steering column tube sub-assembly | 45870-12070 · 45870-12080 · 45870-12090 · 45870-12120 |
| 45209 | Steering slip fork sub-assembly | 45209-14020 · 45209-14030 |
| 45215 | Spindle bearing thrust collar | 45215-22011 |
| 45230 | Flexible coupling assembly | 45230-12030 · 45230-14020 |
| 45253 | Steering column hole cover | 45025-12070 · 45025-12080 · 45025-12100 · 45025-12110 |
| 45254 | steering column escutcheon | 45254-12040 · 45254-12060 |
| 45255 | Steering column hole cover | 45255-12020 · 45255-12030 |
| 45255A | Seal or O-ring (for steering column clamp) | 90301-45202 · 90301-60122 |
| 45266 | Steering intermediate shaft dust cover | 45266-12020 |
| 45269 | Spindle bearing retainer | 45269-10010 · 45269-35010 |
| 45275 | Steering column upper bracket | 45020-12150 · 45020-12160 · 45280-12031 · 45280-12080 |
| 45291 | Dust-proof sealing ring on spindle | 45282-22010 |
| 45292 | Dust-proof sealing ring under spindle | 45292-22050 |
| 45501B | Radial ball bearing (for steering rack housing) | 90363-13001 · 90363-15003 |
| 45518 | No. 3 steering rack housing bracket | 45518-12010 |
| 45807 | Steering column upper bracket sub-assembly | 45082-12010 · 45807-12080 · 45807-12120 |
| 45813 | No. 1 tilt-adjustable steering bracket collar | 45813-22010 · 45813-22020 · 45813-22030 · 45813-22040 · 45813-22050 |
| 45814 | No. 2 tilt-adjustable steering bracket collar | 45814-22010 · 45814-22020 |
| 45815 | Tilt-adjustable steering rack spacer | 45815-22060 · 45815-22070 · 45815-22080 · 45815-22090 · 45815-22100 |
| 45817 | Steering shaft thrust stop | 45808-12020 |
| 45817A | O-ring (for steering shaft thrust stop) | 96711-24053 |
| 45819 | Tilt adjustment lever retaining ring | 45819-22011 |
| 45819A | Collar (for tilt adjustment lever retaining ring) | 90387-08002 |
| 45824 | Tilt-adjustable steering pawl | 45890-22050 |
| 45826 | Steering tilt adjustment lever | 45804-22010 |
| 45826A | Tension spring (for steering tilt adjustment lever) | 90507-14001 |
| 45826B | Pin (for steering tilt adjustment lever) | 72538-12010 |
| 45867 | Steering spindle limit ring | 45867-12010 |
| 45892 | Tilt-adjustable steering bracket limit bolt | 45898-22010 |
| 45892A | Tilt-adjustable steering rack stop cover | 45899-22020 |
| 45892B | Tilt-adjustable steering column cover bracket | 45289-12020 |
