Toyota COROLLA 后桥半轴和后桥轮毂 — Figure 4102

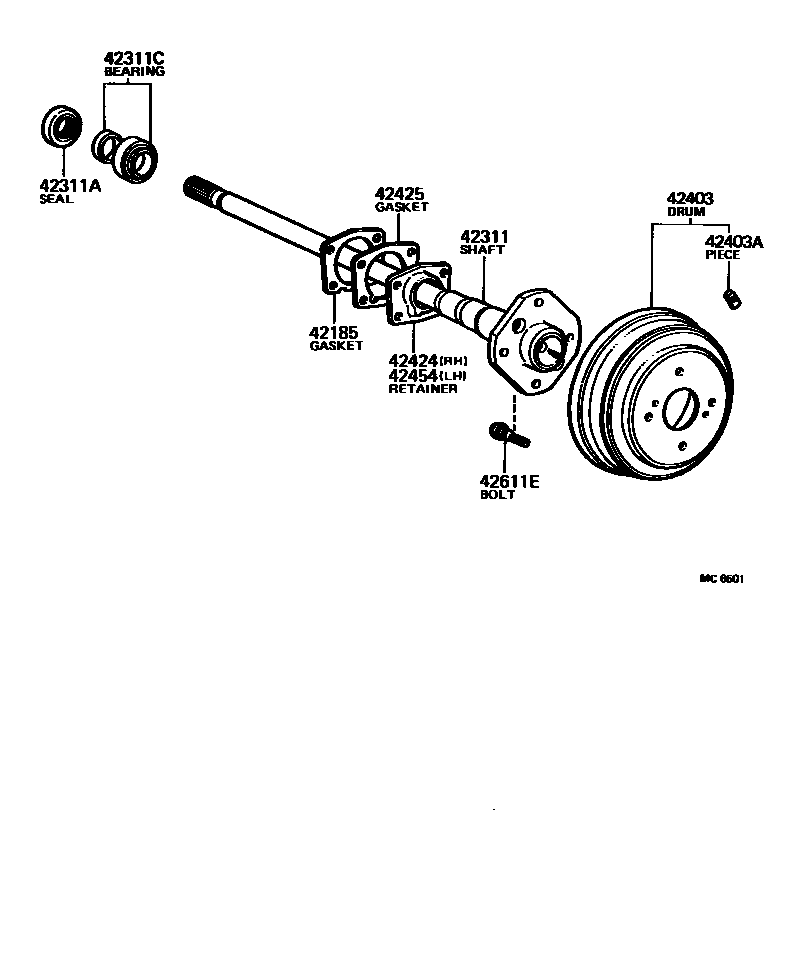

Toyota COROLLA EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42185 | Rear axle housing end gasket | 42185-12010 · 42185-13010 |
| 42311 | Rear axle half shaft | 42311-12080 |
| 42311A | Oil seal (for rear axle half shaft) | 90311-42055 |
| 42311C | Bearings (for rear axle half shaft) | 04421-12010 · 04421-13010 |
| 42403 | Rear brake drum sub-assembly | 42431-12060 · 42431-12081 |
| 42403A | Balance weight (for rear brake drum) | 90937-01020 · 90937-01021 · 90937-01023 · 90937-01032 · 90937-01033 · 90937-01034 · 90937-01117 · 90937-01118 · 90937-01119 · 90937-01195 · 90937-01196 · 90937-01197 |
| 42424 | Rear axle right bearing outer retainer | 42424-20010 |
| 42425 | Rear axle bearing retainer gasket | 42425-13010 · 42425-20010 |
| 42454 | Rear axle left bearing outer retainer | 42454-20010 |
| 42611E | Hub bolts (for rear axle) | 90942-02035 · 90942-02047 |
