Toyota COROLLA 后桥壳和差速器 — Figure 4101

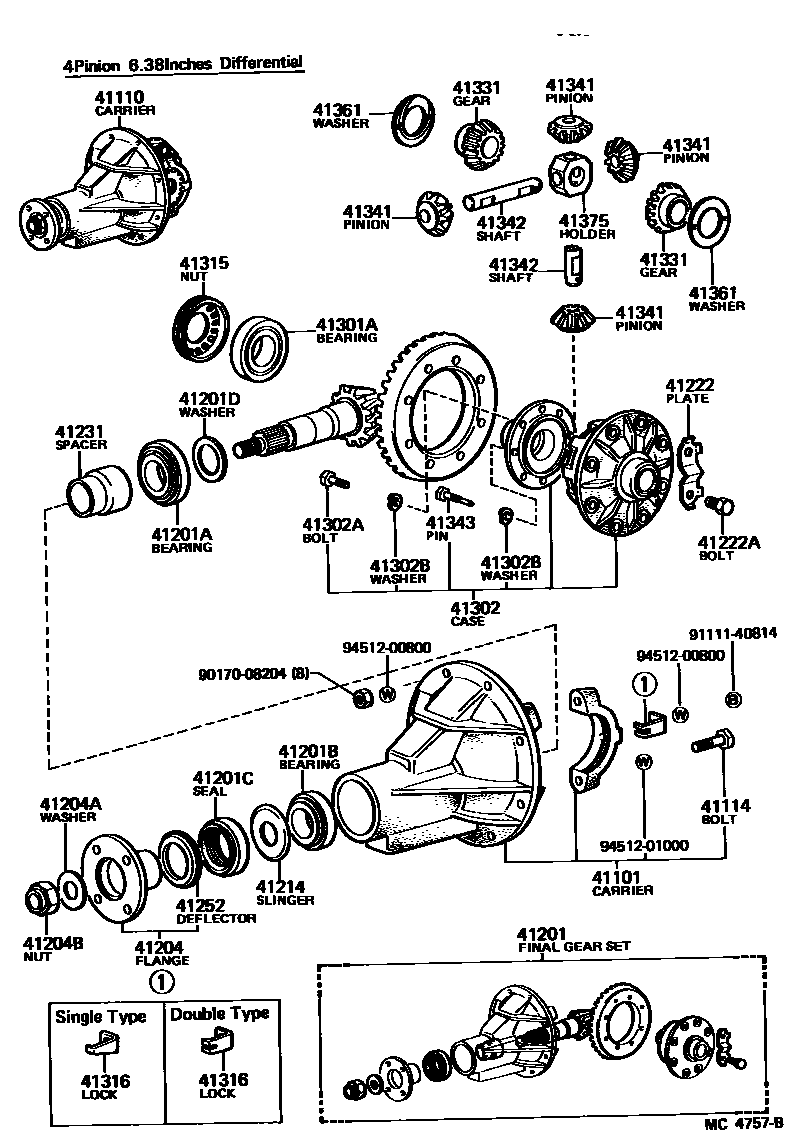

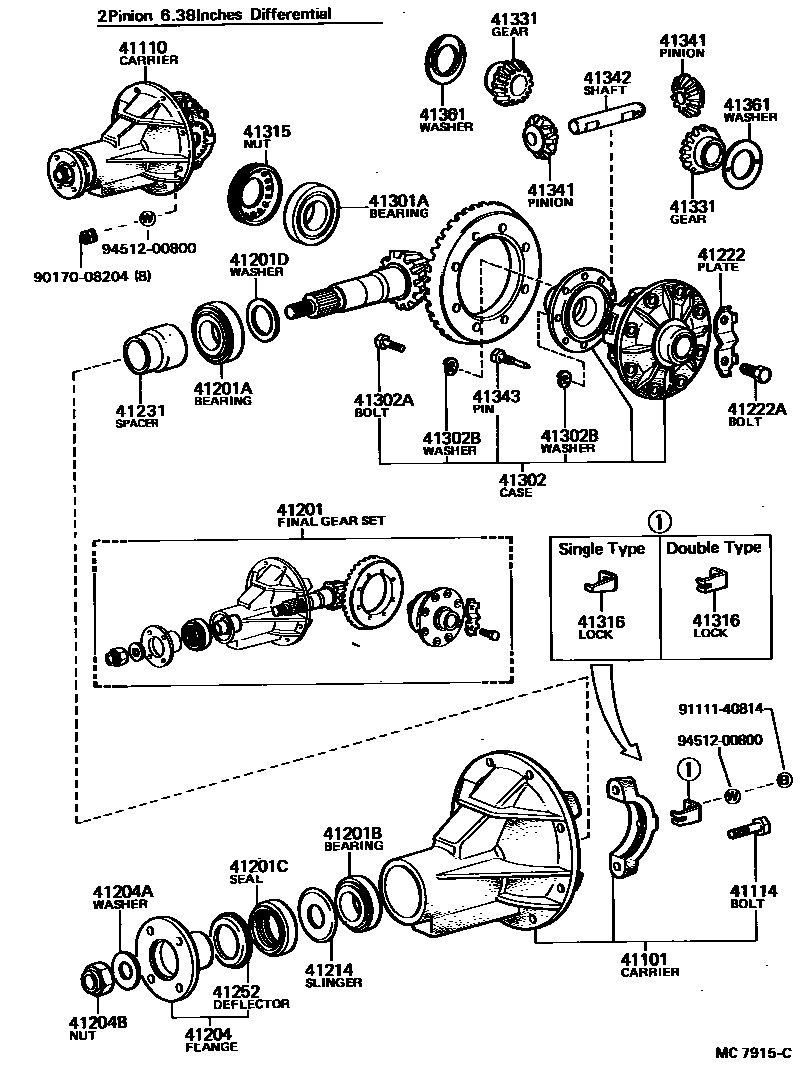

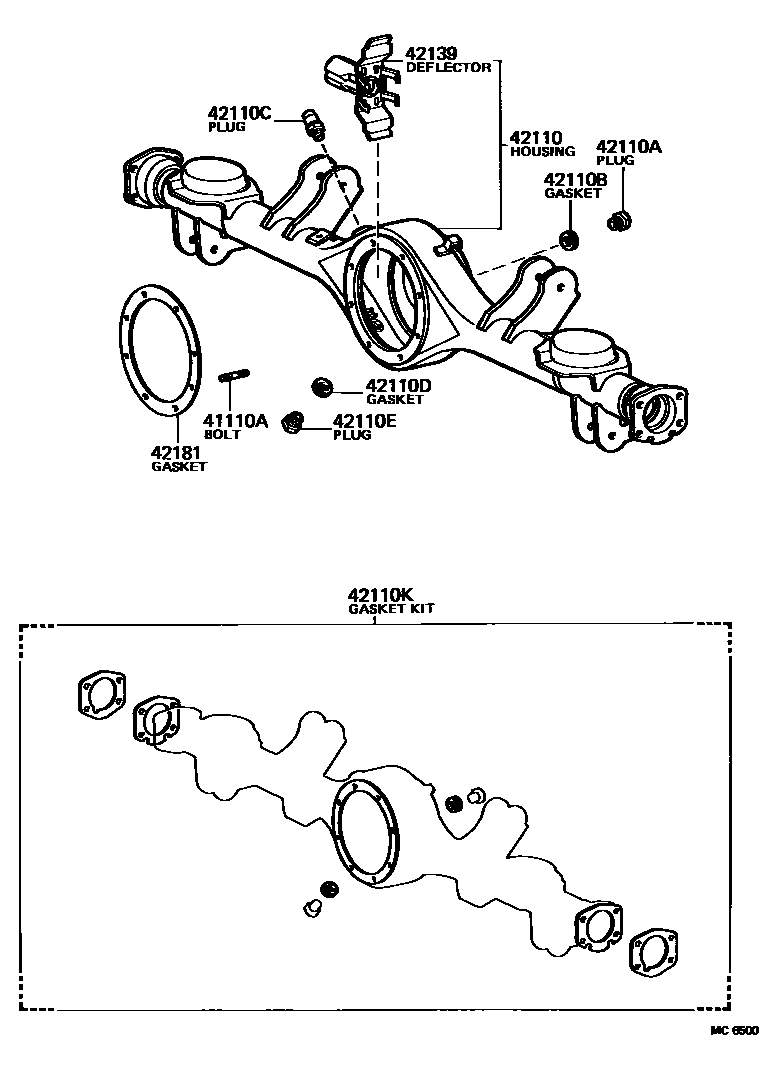

Toyota COROLLA EPC diagram 4101, 后桥壳和差速器, with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41101 | Rear differential bracket sub-assembly | 41101-20010 · 41101-20011 |
| 41110 | Rear differential bracket assembly | 41110-12031 · 41110-12110 · 41110-12120 · 41110-12130 · 41110-12150 · 41110-12160 |
| 41110A | Bolt No. 1 (for rear differential case assembly) | 90116-08235 · 90116-08236 |
| 41114 | Rear differential bearing cap bolts | 90101-10128 · 90105-10008 |
| 41201 | Rear differential final drive gear assembly | 41201-19186 · 41201-19187 · 41201-19188 · 41201-19345 · 41201-19346 · 41201-19347 · 41201-19385 · 41201-19386 · 41201-29345 · 41201-29346 · 41201-29347 |
| 41201A | Rear tapered bearing (for rear driving pinion) | 90368-33021 |
| 41201B | Front roller tapered bearing (for rear drive pinion) | 90368-30002 |
| 41201C | Oil seal (for rear differential case) | 90311-38057 |
| 41201D | Flat washer (for rear differential drive pinion) | 90209-33038 · 90209-33039 · 90209-33040 · 90209-33041 · 90209-33042 · 90209-33043 · 90209-33044 · 90209-33045 · 90209-33046 |
| 41204 | Rear driving pinion rear coupling flange sub-assembly | 41204-20012 |
| 41204A | Flat washer (for rear drive pinion) | 90201-18485 |
| 41204B | Nut (for rear driving pinion) | 90179-18001 |
| 41214 | Rear differential drive pinion oil retaining ring | 41214-20020 |
| 41222 | Rear differential ring gear fixing bolt locking plate | 41222-20020 · 41222-20021 |
| 41222A | Bolt (for rear differential ring gear assembly) | 90109-10015 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-20020 |
| 41252 | Dust cover (for rear differential) | 37341-20010 |
| 41301A | Bearings (for rear differential housing) | 90368-34020 |
| 41302 | Rear differential housing sub-assembly | 41301-22013 · 41301-22020 · 41301-22021 · 41301-22022 |
| 41302A | Bolt (for rear differential case) | 90101-08241 |
| 41302B | Spring washer (for rear differential case) | 90204-08024 |
| 41315 | Rear differential bearing adjusting nut | 41315-20010 · 41315-20011 |
| 41316 | Rear differential bearing adjustment nut locking piece | 41316-20010 · 41316-20020 |
| 41331 | rear differential side gear | 41331-22011 |
| 41341 | rear differential pinion | 41341-22010 · 41341-22011 |
| 41342 | Rear differential planetary gear shaft | 41342-20010 · 41342-20020 |
| 41343 | Rear differential planetary gear pin | 41343-22010 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-12070 · 41361-12080 · 41361-12090 · 41361-12100 · 41361-12110 · 41361-12120 |
| 41375 | Rear differential planetary gear shaft support | 41375-20010 |
| 42110 | Rear axle housing assembly | 42110-12090 · 42110-12110 · 42110-13050 |
| 42110A | Screw plug (for rear axle housing oil filling port) | 90341-18049 |
| 42110B | Gasket (for rear axle housing oil filling plug) | 12157-10010 |
| 42110C | Breather plug (for rear axle housing) | 90930-03031 |
| 42110D | Gasket (for rear axle housing drain plug) | 12157-10010 |
| 42110E | Screw plug (for rear axle housing oil drain port) | 90341-18057 |
| 42110K | Differential case gasket assembly | 04412-13010 · 04412-22010 |
| 42139 | Rear axle housing oil baffle | 42108-12020 |
| 42181 | Rear differential case gasket | 42181-20010 |
