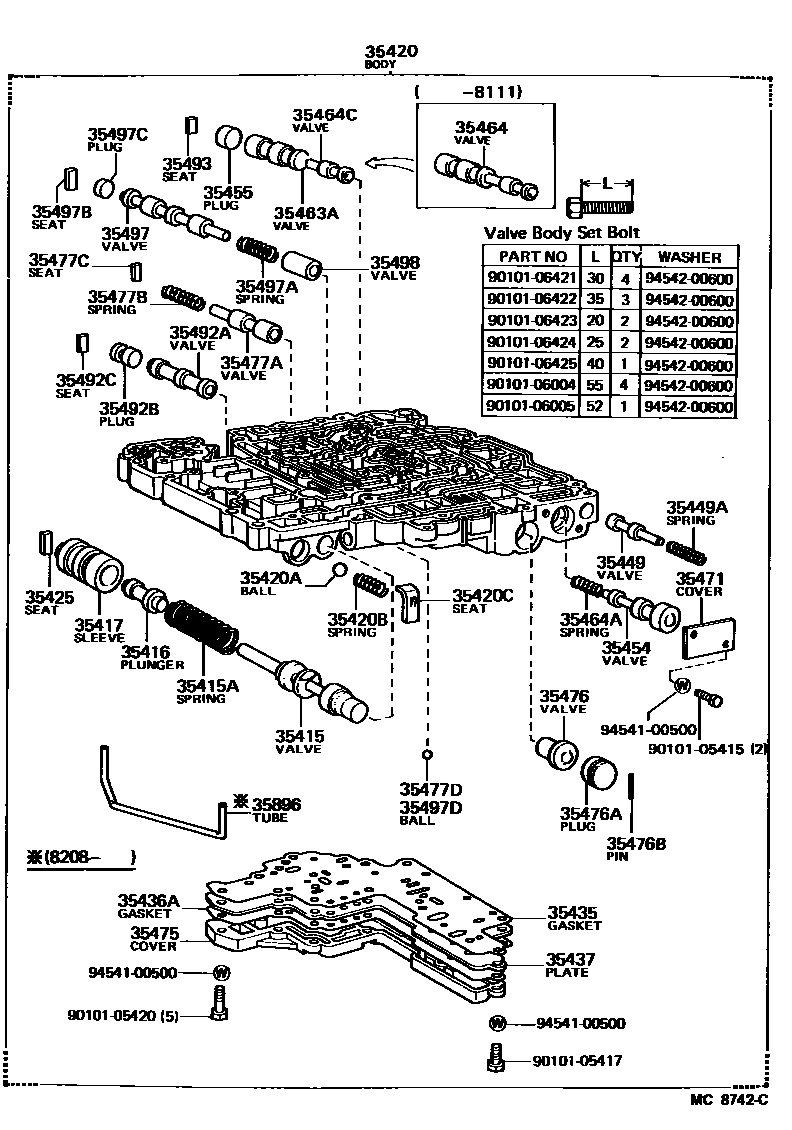

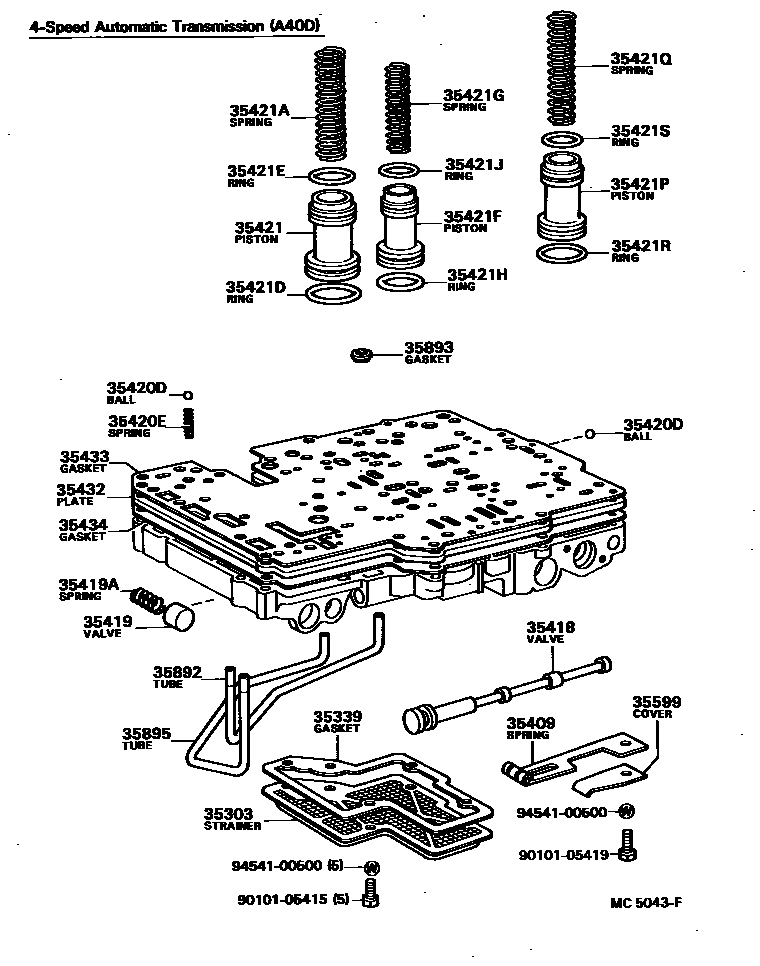

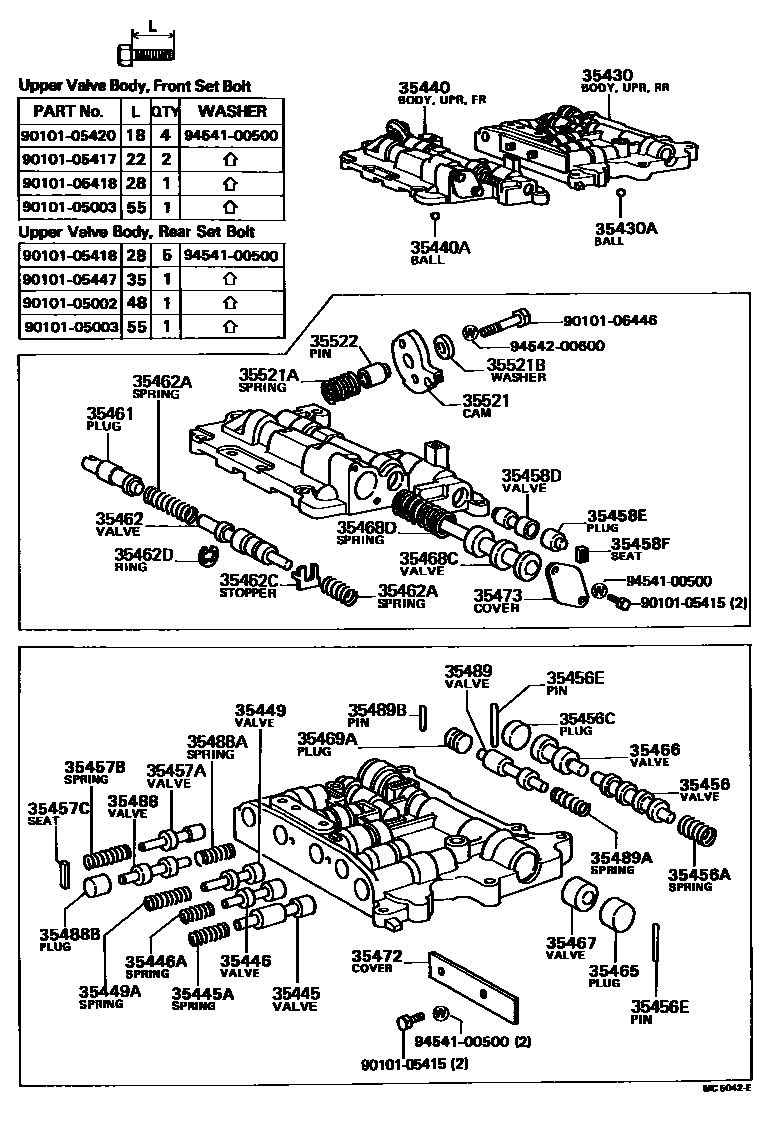

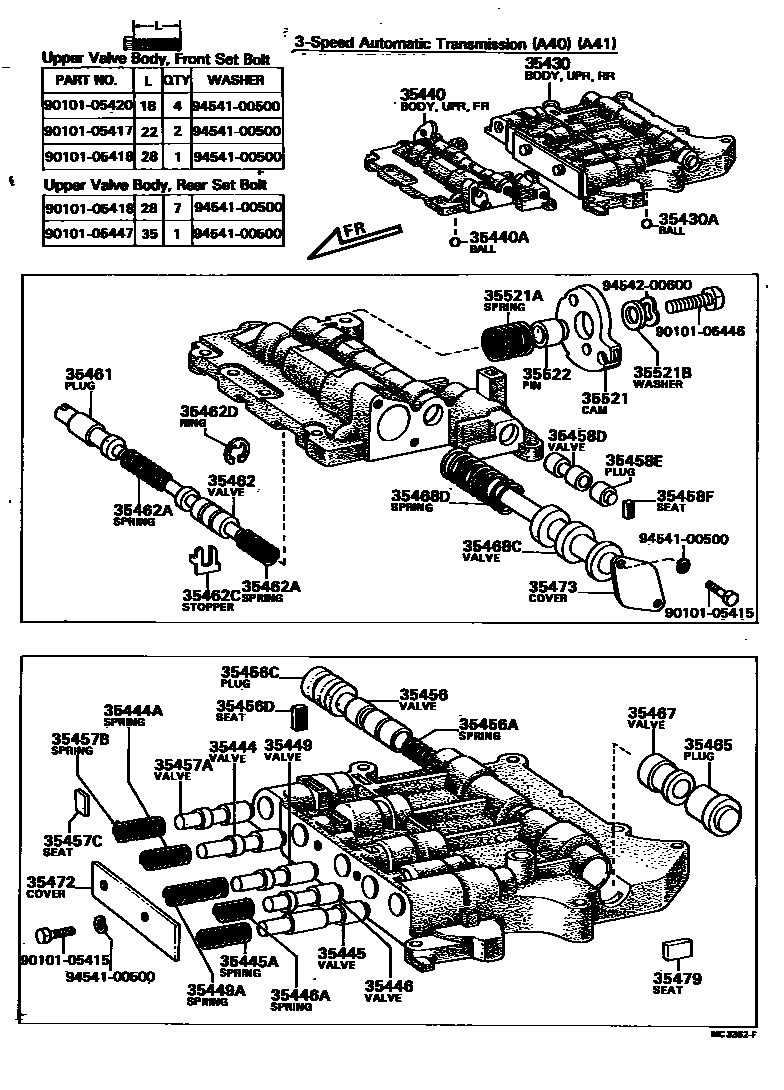

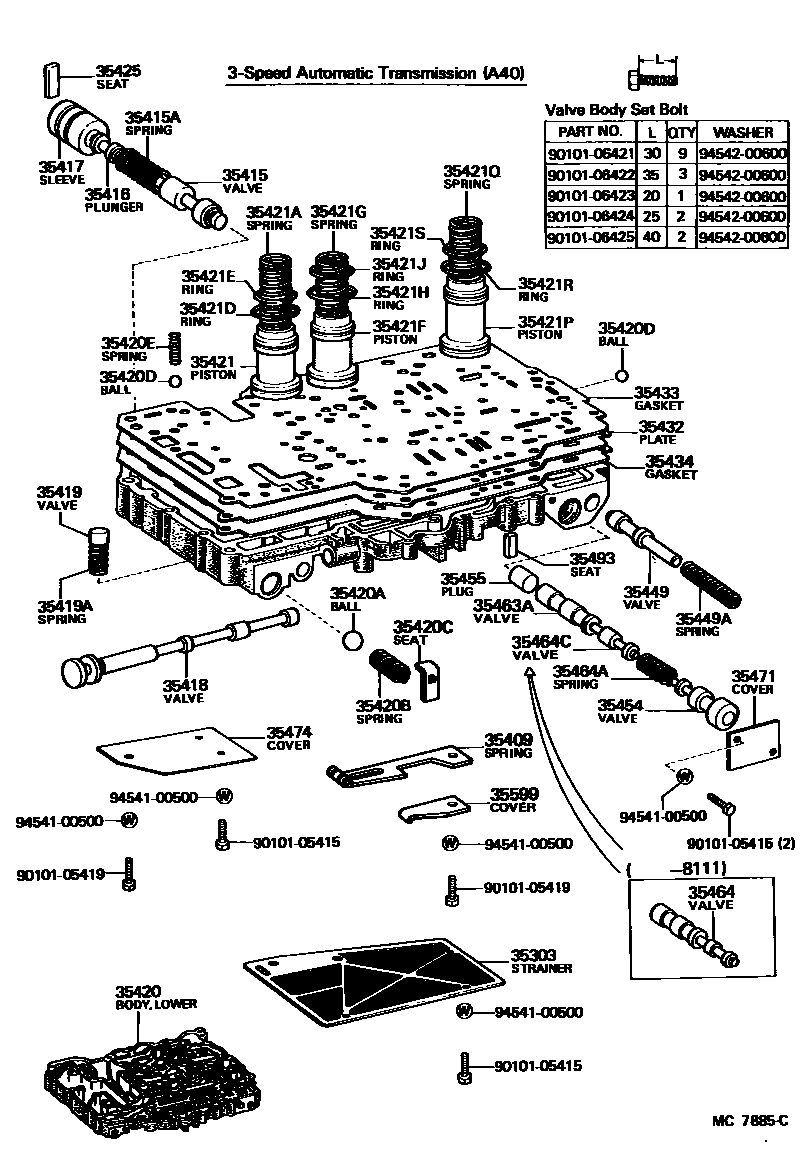

Toyota COROLLA 阀体和滤油网(ATM) — Figure 3512
Toyota COROLLA EPC diagram 3512, 阀体和滤油网(ATM), with 5 images and 113 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35303 | Oil filter sub-assembly | 35303-22021 · 35303-22022 · 35303-30031 |
| 35339 | Oil filter gasket | 35339-30030 |
| 35409 | Manual lock spring sub-assembly | 35409-22010 · 35409-30010 |
| 35415 | pressure regulator valve | 35415-22020 |
| 35415A | Compression spring (for pressure regulator valve) | 90501-16682 · 90501-18039 |
| 35416 | No. 1 main regulator valve plunger | 35416-22010 |
| 35417 | pressure regulator valve sleeve | 35417-22020 · 35417-22040 |
| 35418 | Manual valve | 35418-22010 · 35418-30050 |
| 35419 | No. 1 one-way valve | 35419-22010 |
| 35419A | Compression spring (for one-way valve) | 90501-13003 · 90501-13674 |
| 35420 | Lower valve body assembly | 35420-12010 · 35420-22020 · 35420-22101 |
| 35420A | Ball (for pressure reducing valve) | 90360-13024 |
| 35420B | Spring (for pressure reducing valve) | 90501-18677 |
| 35420C | Seat (for pressure reducing valve) | 35427-22011 |
| 35420D | Ball (for lower valve body) | 35495-22010 · 35496-22010 |
| 35420E | Spring (for lower valve body) | 90501-04727 |
| 35421 | No. 1 accumulator piston | 35421-22010 |
| 35421A | Compression spring (for accumulator piston No. 1) | 90501-26776 · 90501-26789 · 90501-28002 |
| 35421D | Ring (for accumulator piston No. 1) | 90301-29187 |
| 35421E | Ring (for accumulator piston No. 1) | 90301-23194 |
| 35421F | No. 2 accumulator piston | 35421-22020 · 35441-30010 |
| 35421G | Compression spring (for accumulator piston No. 2) | 90501-20676 · 90501-25002 |
| 35421H | Ring (for accumulator piston No. 2) | 90301-26190 |
| 35421J | Ring (for accumulator piston No. 2) | 90301-18186 |
| 35421P | No. 3 accumulator piston | 35421-22030 |
| 35421Q | Compression spring (for No. 3 accumulator piston) | 90501-20675 |
| 35421R | Ring (for No. 3 accumulator piston) | 90301-26190 |
| 35421S | Ring (for No. 3 accumulator piston) | 90301-22185 |
| 35425 | Pressure regulator valve sleeve seat | 35425-14010 · 35425-22010 |
| 35430 | Rear upper valve body assembly | 35430-12010 · 35430-22060 · 35430-22072 |
| 35430A | Ball (for rear upper valve body) | 35495-22010 · 90360-06023 |
| 35432 | No. 1 valve body plate | 35432-14011 · 35432-14050 · 35432-22020 |
| 35433 | No. 1 valve body gasket | 35433-22020 · 35433-30030 |
| 35434 | No. 2 valve body gasket | 35434-22020 · 35434-30030 |
| 35435 | No. 3 valve body plate gasket | 35435-14020 |
| 35436A | No. 4 valve body plate gasket | 35436-14020 |
| 35437 | 3rd-4th gear shift valve separation plate | 35437-30011 |
| 35440 | Front upper valve body assembly | 35440-22030 · 35440-22031 · 35440-22041 |
| 35440A | Ball (for front upper valve body) | 35495-22010 |
| 35444 | intermediate regulator valve | 35444-22010 |
| 35444A | Compression spring (for intermediate regulator valve) | 90501-11001 |
| 35445 | Low speed regulator valve | 35445-22010 |
| 35445A | Compression spring (for low speed regulator valve) | 90501-08725 |
| 35446 | governor regulator valve | 35446-22010 |
| 35446A | Compression spring (for governor regulator valve) | 90501-07688 |
| 35449 | sequence valve | 35447-22010 · 35449-22010 |
| 35449A | Compression spring (for sequence valve) | 90501-12726 |
| 35454 | Low gear coast shift valve | 35454-22010 · 35454-30010 |
| 35455 | 1-2 gear low gear shift valve plunger | 35455-22010 |
| 35456 | 2nd-3rd gear shift valve | 35456-22010 · 35456-30040 |
| 35456A | Compression spring (for 2-3 gear shift valve) | 90501-08013 · 90501-08724 |
| 35456C | Plunger (for 2-3 gear shift valve) | 35452-22010 · 35452-30020 |
| 35456D | Seat (for 2-3 gear shift valve) | 35493-22020 |
| 35456E | Direct sales (for 2-3 gear shift valve) | 90250-02004 |
| 35457A | lock regulator valve | 35457-22010 |
| 35457B | Compression spring (for locking regulator valve) | 90501-09739 |
| 35457C | Seat (for locking regulator valve) | 35438-22020 |
| 35458D | reverse valve | 35458-22010 |
| 35458E | Plunger (for reverse valve) | 35459-22010 |
| 35458F | Seat (for reverse valve) | 35493-22010 |
| 35461 | Downshift plug | 35408-22020 |
| 35462 | throttle valve | 35462-22011 |
| 35462A | Compression spring (for throttle valve) | 90501-07680 · 90501-12011 |
| 35462C | Valve damping stop | 35422-22010 |
| 35462D | E-ring (for throttle valve) | 90523-06023 |
| 35463A | 1-2 gear lower shift valve | 35463-22010 |
| 35464 | 1-2 gear shift valve | 35464-22010 |
| 35464A | Compression spring (for 1-2 gear shift valve) | 90501-06684 |
| 35464C | 1-2 gear upper shift valve | 35464-22020 |
| 35465 | Intermediate shift valve plunger | 35465-22010 · 35465-30010 |
| 35466 | Lower 2-3 gear shift valve | 35466-30011 |
| 35467 | Intermediate shift valve | 35467-22010 · 35467-30020 |
| 35468C | Secondary regulator valve | 35468-22010 |
| 35468D | Compression spring (for secondary regulator valve) | 90501-16683 · 90501-19001 |
| 35469A | 3-2 gear downshift throttle control valve plunger | 35469-30020 |
| 35471 | No. 1 valve body cover | 35471-22010 |
| 35472 | No. 2 valve body cover | 35472-22010 |
| 35473 | Transmission valve body cover | 35473-22010 |
| 35474 | No. 4 valve body cover | 35474-22010 |
| 35475 | No. 5 valve body cover | 35475-14020 |
| 35476 | Third gear slide shift valve | 35476-30010 |
| 35476A | Straight screw plug (for third-speed coaster shift valve) | 90334-12001 |
| 35476B | Locating pin (for third-speed coaster shift valve) | 90250-02012 |
| 35477A | Overdrive clutch exhaust valve | 35477-30030 |
| 35477B | Compression spring (for overdrive clutch bleeder valve) | 90501-08020 |
| 35477C | Valve seat (for overdrive clutch exhaust valve) | 35493-30020 |
| 35477D | Check ball (for overdrive clutch bleeder valve) | 35495-22010 |
| 35479 | Intermediate shift valve seat | 35479-22010 |
| 35488 | 2nd-3rd gear shift timing valve | 35488-30010 |
| 35488A | Compression spring (for 2-3 gear shift timing valve) | 90501-09013 |
| 35488B | Straight screw plug (for 2-3 gear shift timing valve) | 90334-10001 |
| 35489 | 3-2 gear forced downshift throttle control valve | 35489-22010 · 35489-22020 |
| 35489A | Spring (for 3-2 gear kickdown throttle control valve) | 90501-09015 |
| 35489B | Direct sales (for 3-2 gear kickdown throttle control valve) | 90250-02007 |
| 35492A | Manual downshift timing valve | 35492-30010 |
| 35492B | Plunger (for manual downshift timing valve) | 35494-30010 |
| 35492C | Valve seat (for manual downshift timing valve) | 35493-30040 |
| 35493 | Shift valve spring seat | 35493-22010 |
| 35497 | 3rd-4th gear shift valve | 35497-30020 |
| 35497A | Compression spring (for 3-4 gear shift valve) | 90501-11005 |
| 35497B | Shift valve plunger seat (for 3-4 gear shift valve) | 35493-30010 |
| 35497C | Plunger (for 3-4 gear shift valve) | 90334-11001 |
| 35497D | One-way ball (for 3-4 gear shift valve) | 35495-22010 |
| 35498 | 3rd-4th gear slide shift valve | 35498-30010 |
| 35521 | throttle cam | 35521-22030 |
| 35521A | Spring (for throttle cam return) | 90508-12331 |
| 35521B | Gasket (for throttle cam assembly) | 90201-06472 |
| 35522 | Throttle valve cam pin | 35522-22010 |
| 35599 | Manual locking spring cover | 35599-22010 · 35599-30010 |
| 35892 | overdrive brake pipe | 35892-30010 |
| 35893 | Center stand oil supply gasket | 35893-30010 |
| 35895 | Front clutch oil supply pipe | 35895-30010 · 35895-30011 |
| 35896 | Overdrive switch fuel supply pipe | 35896-30020 |
