Toyota COROLLA Extension shell (ATM) — Figure 3504

Toyota COROLLA EPC diagram 3504, Extension shell (ATM), with 1 images and 6 PNC and OE references.

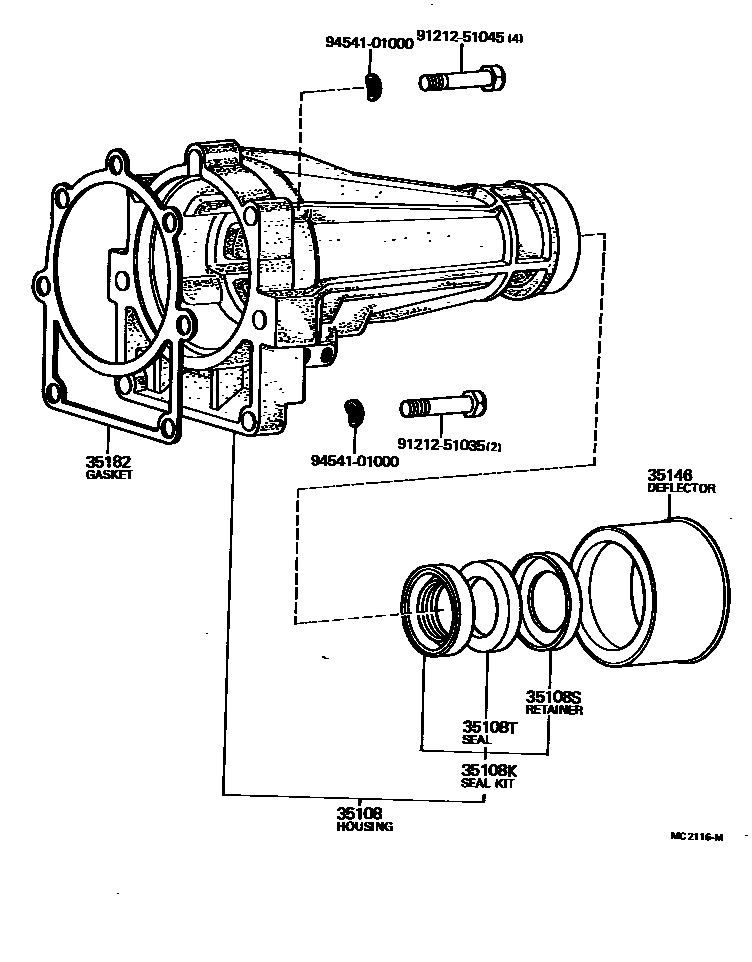

Toyota COROLLA Extension shell (ATM) EPC diagram — MC2116M
Extension shell (ATM) — MC2116M (197908 – 999999)

PNC and OE references

PNCPart nameOE numbers
35108Extended shell sub-assembly (ATM)35108-22032 · 35108-22033
35108KOil seal assembly (for automatic transmission extension housing)04332-30020
35108SExtension housing dust seal (ATM)33145-30010
35108TDust seal (for automatic transmission extension housing)90303-38010
35146Extension case dust cover (ATM)33146-30010
35182Extension shell liner (ATM)35182-22010
