Toyota COROLLA 变矩器、前油泵和链条(ATM) — Figure 3502

Toyota COROLLA EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 2 images and 15 PNC and OE references.

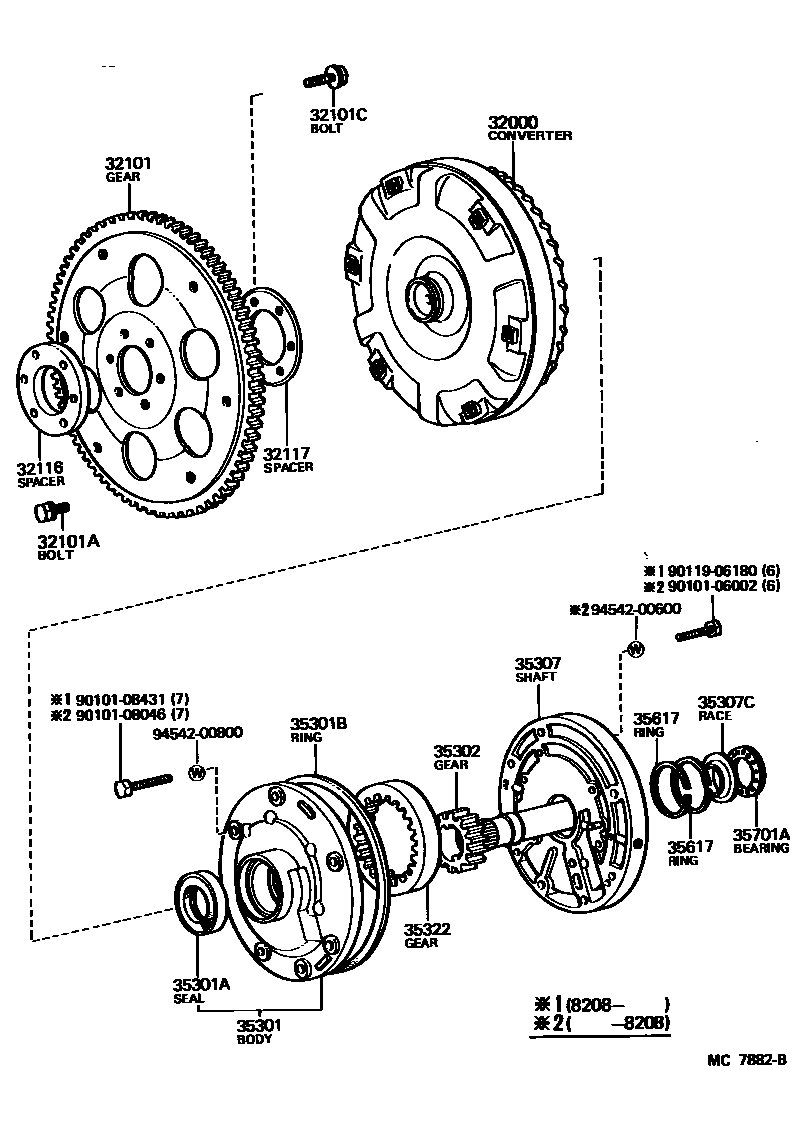

Toyota COROLLA 变矩器、前油泵和链条(ATM) EPC diagram — MC7882B
变矩器、前油泵和链条(ATM) — MC7882B (198108 – 999999)

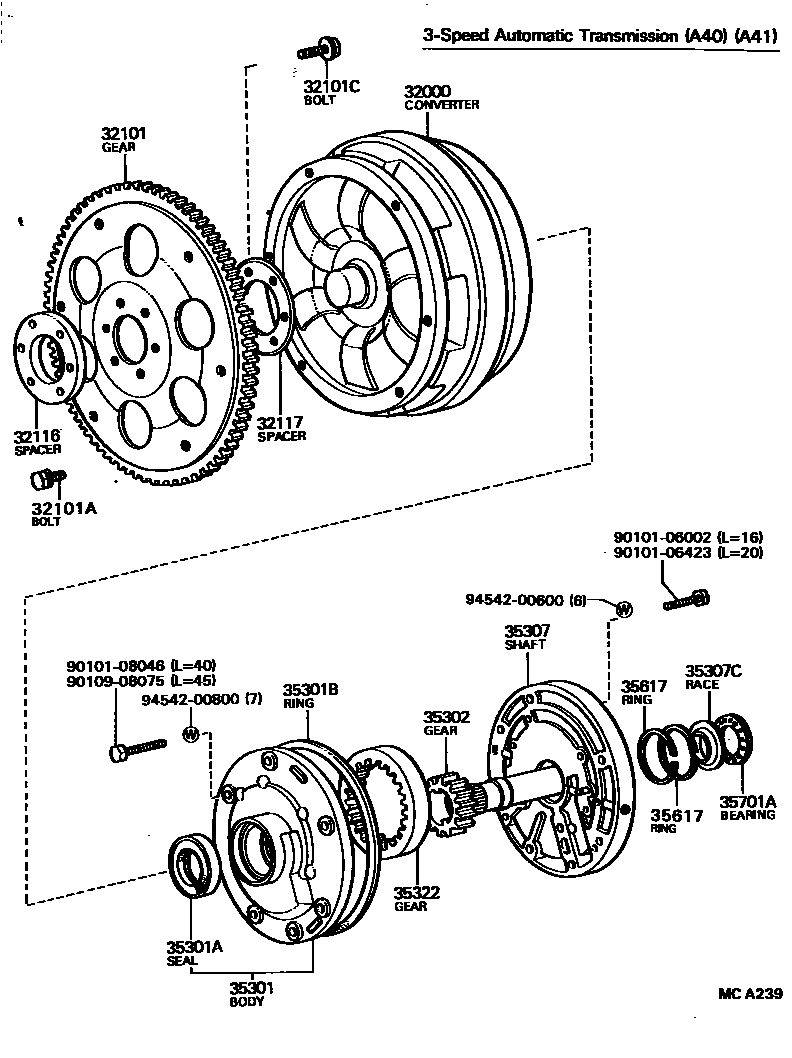

Toyota COROLLA 变矩器、前油泵和链条(ATM) EPC diagram — MCA239
变矩器、前油泵和链条(ATM) — MCA239 (197908 – 198208)

PNC and OE references

PNCPart nameOE numbers
32000Torque converter assembly32000-12030 · 32000-12060 · 32000-14080
32101Transmission plate and ring gear sub-assembly32101-12030 · 32101-14030
32101ABolts (for securing transmission plate and torque converter)90109-08090 · 90119-08223
32101CHexagonal bolts (used to fix the transmission plate)90105-10006 · 90105-10046 · 90105-10048
32116Front transmission plate spacer32116-12010 · 32116-14011
32117Rear transmission plate spacer32117-12010 · 32117-14011
35301Front oil pump body sub-assembly35301-22011 · 35301-22012 · 35301-30030
35301AOil seal (for front oil pump)90311-38129
35301BO-ring (for front oil pump body)35147-22010 · 90301-99010
35302Front oil pump driving gear sub-assembly35321-22010
35307Stator shaft sub-assembly35307-22011 · 35370-12020 · 35370-22011 · 35370-22030
35307CThrust bearing race (for stator shaft)35789-22010
35322Front oil pump driven gear35322-22010
35617Clutch drum oil ring35617-16010 · 35617-22010 · 35617-22011
35701AFront thrust bearing (for input shaft)90374-23012
