Toyota COROLLA Shift Lever & Retainer — Figure 3312

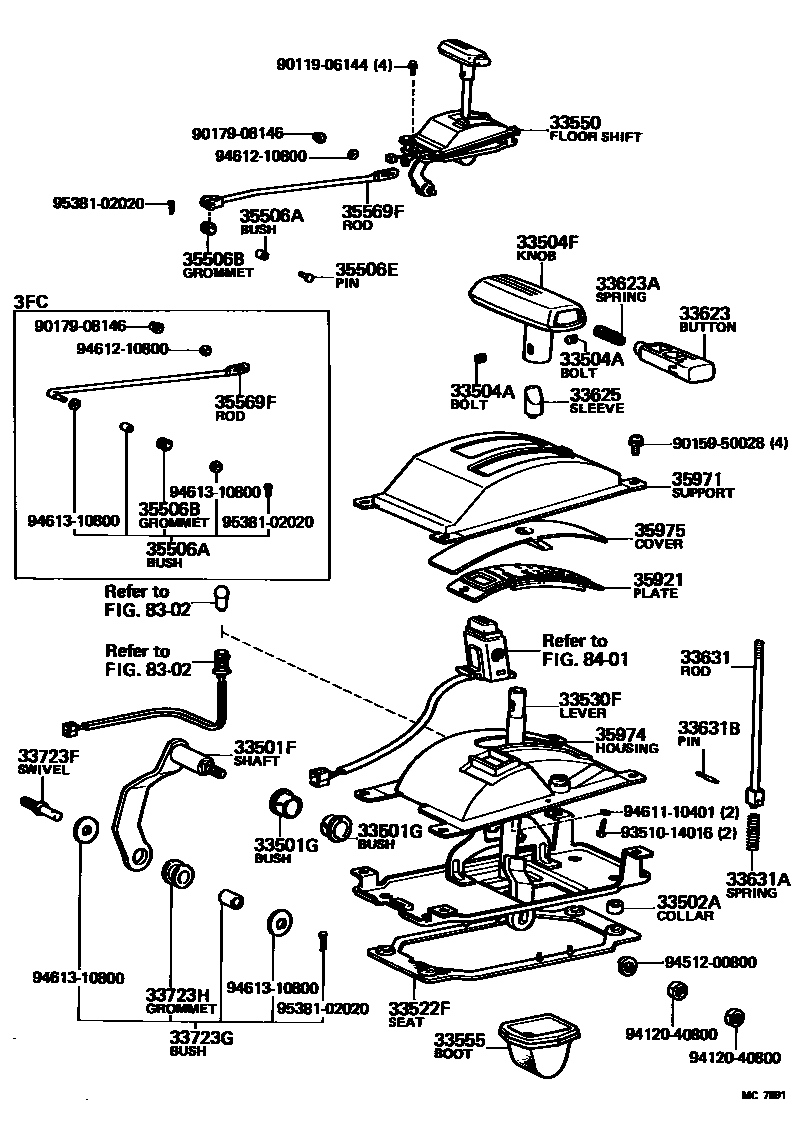

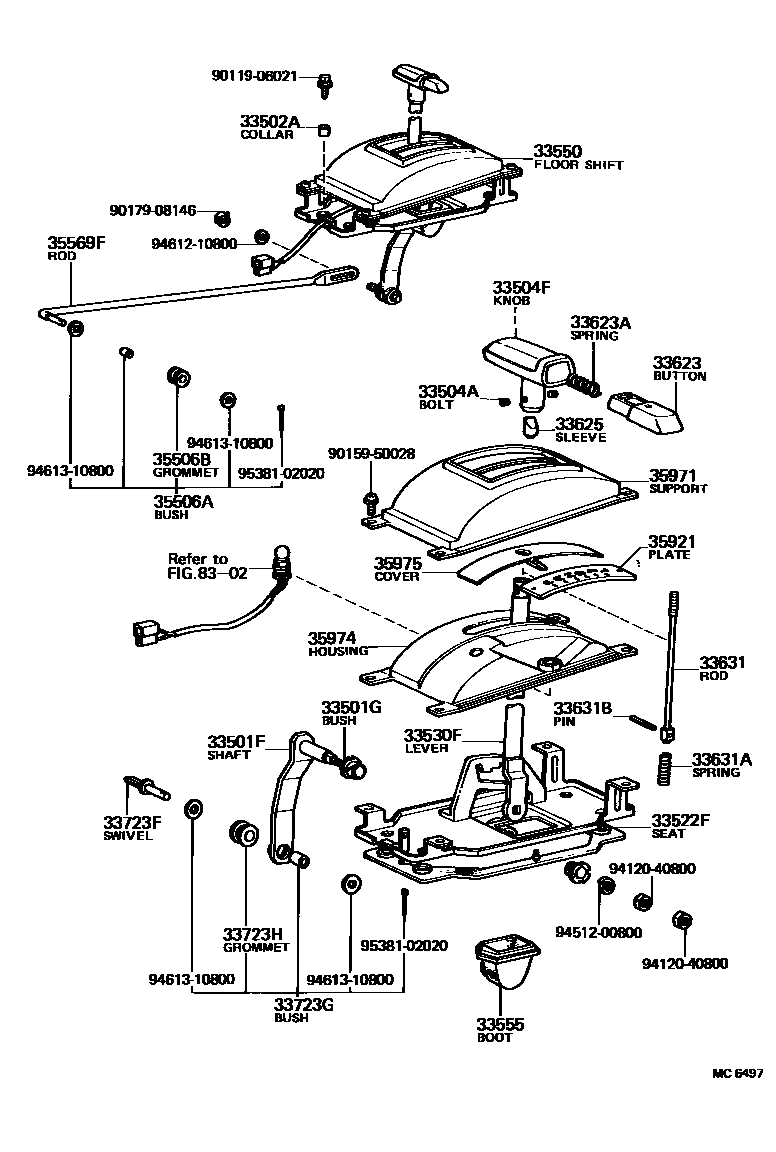

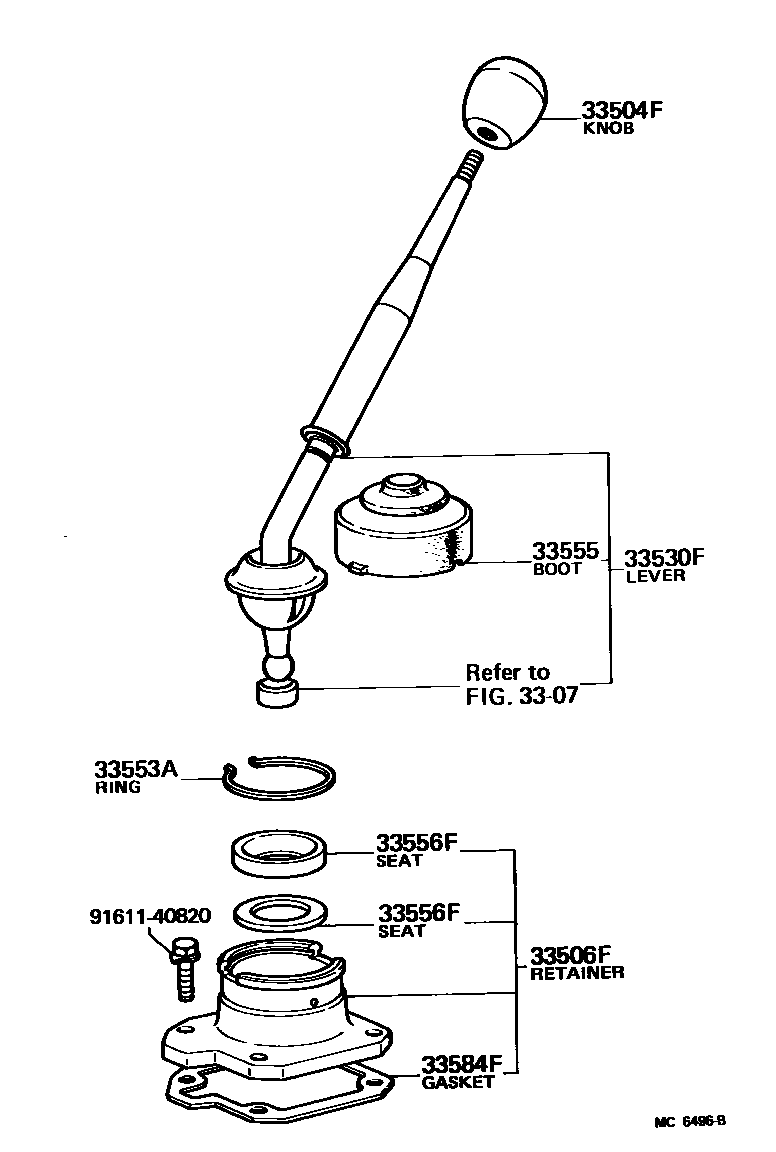

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 3 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33501F | Control shaft sub-assembly (for floor shift) | 33501-12100 · 33501-12130 |
| 33501G | Bushing (for floor mounted shift control shaft) | 90385-16045 |
| 33502A | Collar (for securing floor shift) | 90387-06005 |
| 33504A | Bolt or pin (to secure the shifter knob) | 90113-05034 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33570-14021 |
| 33522F | Shift lever base plate holder (for floor shift) | 33522-12050 · 33522-12051 |
| 33530F | Shift lever assembly (for floor shift) | 33503-12140 · 33503-12141 · 33530-12241 |
| 33553A | Snap ring (for shift lever spring seat) | 90521-49003 |
| 33555 | Gear shift lever dust cover | 33555-12080 · 33555-12090 |
| 33556F | Transmission shift lever ball seat | 33556-14010 · 33556-14020 |
| 33584F | Shift lever stop pad (for floor shift) | 33584-20010 |
| 33623 | Shift lever handle button | 33623-12031 · 33623-22060 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07009 · 90501-09009 |
| 33625 | Shift lever handle sleeve | 33625-22020 |
| 33631 | Locking lever | 33631-12050 · 33631-12051 |
| 33631A | Compression spring (for locking lever) | 90501-07005 |
| 33631B | Slotted spring pin (for locking lever) | 90254-04017 · 90256-04001 |
| 33723F | Connecting rod swivel joint (for floor shifting) | 33723-22010 |
| 33723G | Bushing (for floor mounted shift control shaft) | 90999-99017 |
| 33723H | Retaining ring (for floor mounted shift control shaft) | 90480-17177 |
| 35506A | Bushing (for manual valve stem shaft) | 90387-08022 · 90999-99017 |
| 35506B | Retaining ring (for manual valve stem shaft) | 90480-17177 |
| 35506E | Pin with hole (for manual valve stem) | 90240-08043 |
| 35569F | Transmission first gear lever (for floor shift) | 33675-12030 · 33675-12090 · 33702-12020 · 33702-12021 |
| 35921 | control position indicator board | 35921-12130 · 35921-12131 · 35921-12132 · 35921-12170 |
| 35974 | Position indicator light lower shell | 35974-12050 · 35974-12070 |
| 35975 | Slide cover (for position indicator light) | 35975-12070 · 35975-12071 |
