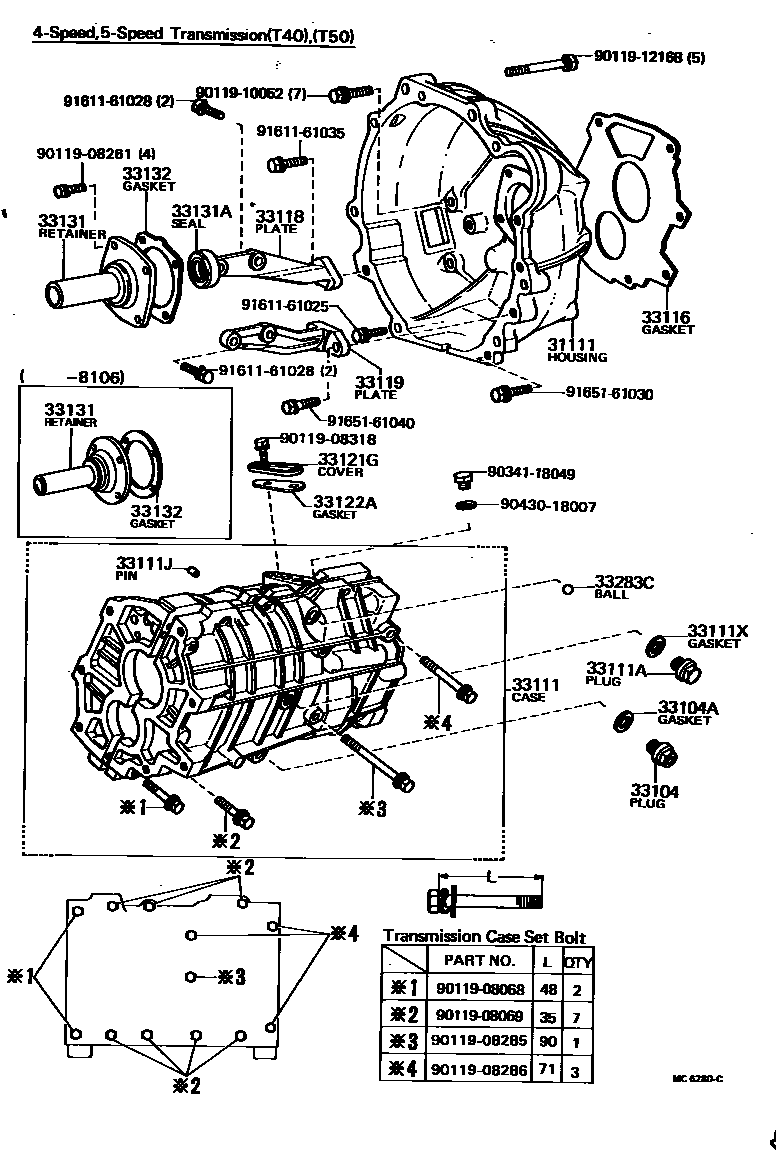

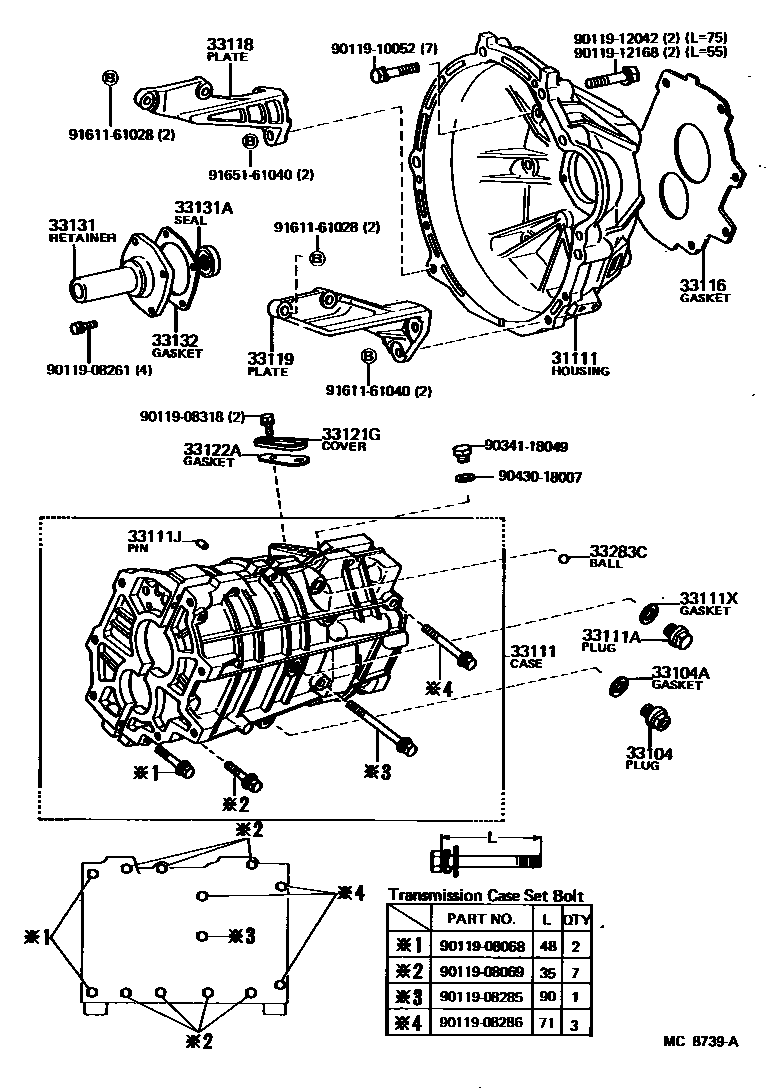

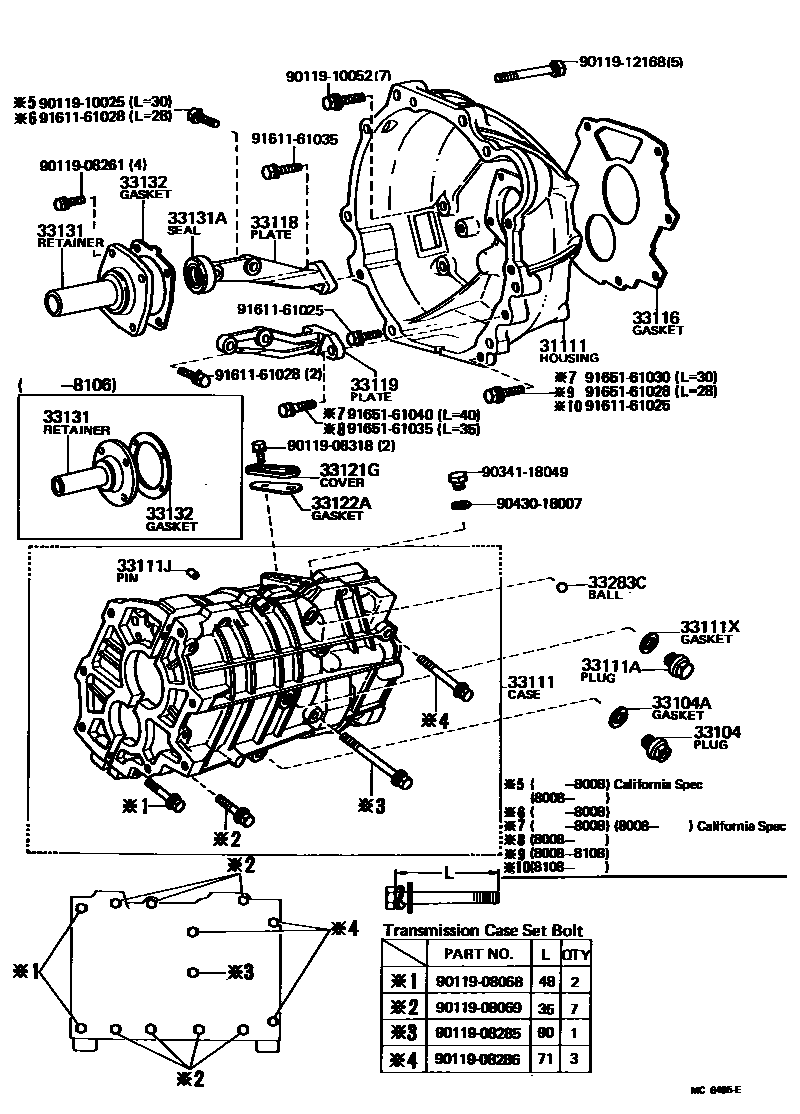

Toyota COROLLA 离合器壳和变速器壳(MTM) — Figure 3302
Toyota COROLLA EPC diagram 3302, 离合器壳和变速器壳(MTM), with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31111 | clutch housing | 31111-12040 · 31111-14050 · 31111-14070 · 31111-20180 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18081 |
| 33104A | Drain plug gasket (MTM) | 12157-10010 · 90430-18007 |
| 33111 | Manual transmission housing | 33101-14030 · 33101-14040 |
| 33111A | Manual transmission plug | 90341-18002 · 90341-18006 |
| 33111J | Direct sales (for manual transmission) | 90250-08030 |
| 33111X | Gearbox plug gasket | 12157-10010 · 90430-18007 |
| 33116 | manual transmission gasket | 33116-14010 · 33116-14020 |
| 33118 | Right reinforcement plate (MTM) | 33118-12020 · 33118-14040 |
| 33119 | Left reinforcement plate (MTM) | 33119-12011 · 33119-12080 · 33119-12081 |
| 33121G | manual gearbox cover | 33121-14010 |
| 33122A | Manual transmission cover gasket | 33122-14010 |
| 33131 | Front bearing retainer (MTM) | 33131-14010 · 33131-14020 |
| 33131A | Oil seal (for transmission front bearing retainer) | 90311-25003 |
| 33132 | Front bearing retainer pad (MTM) | 33132-14010 · 33132-14020 |
| 33283C | Reverse gear positioning steel ball | 90360-10003 |
