Toyota COROLLA 离合器和分离叉 — Figure 3101

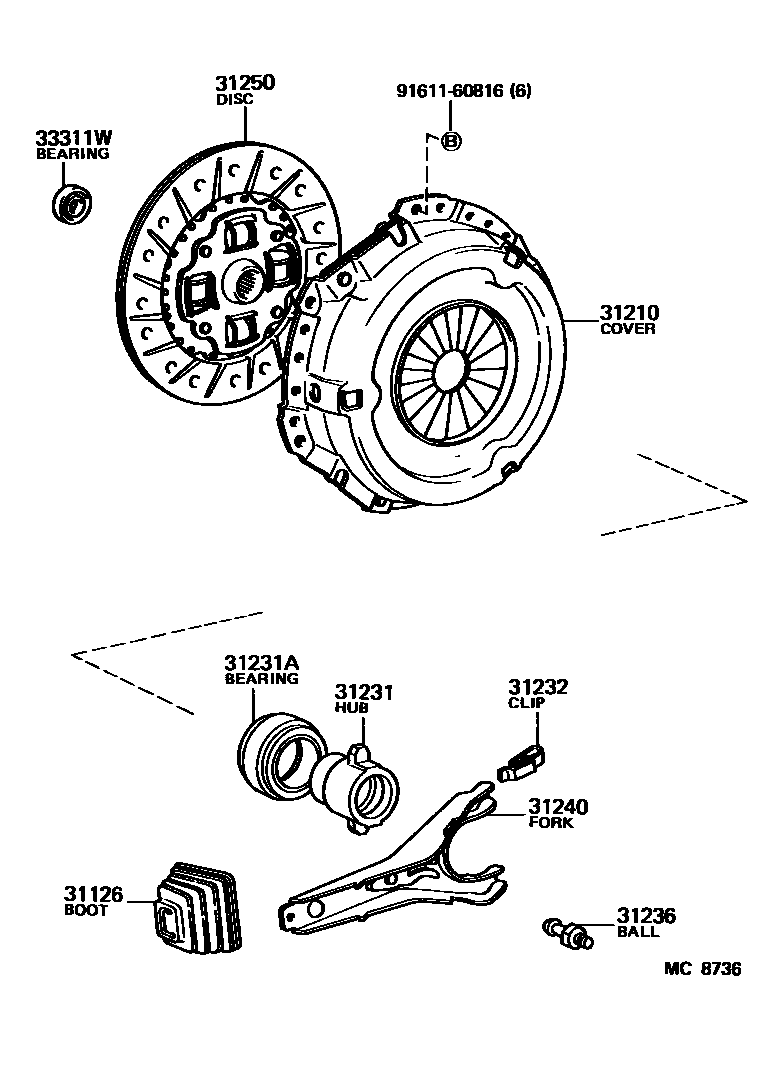

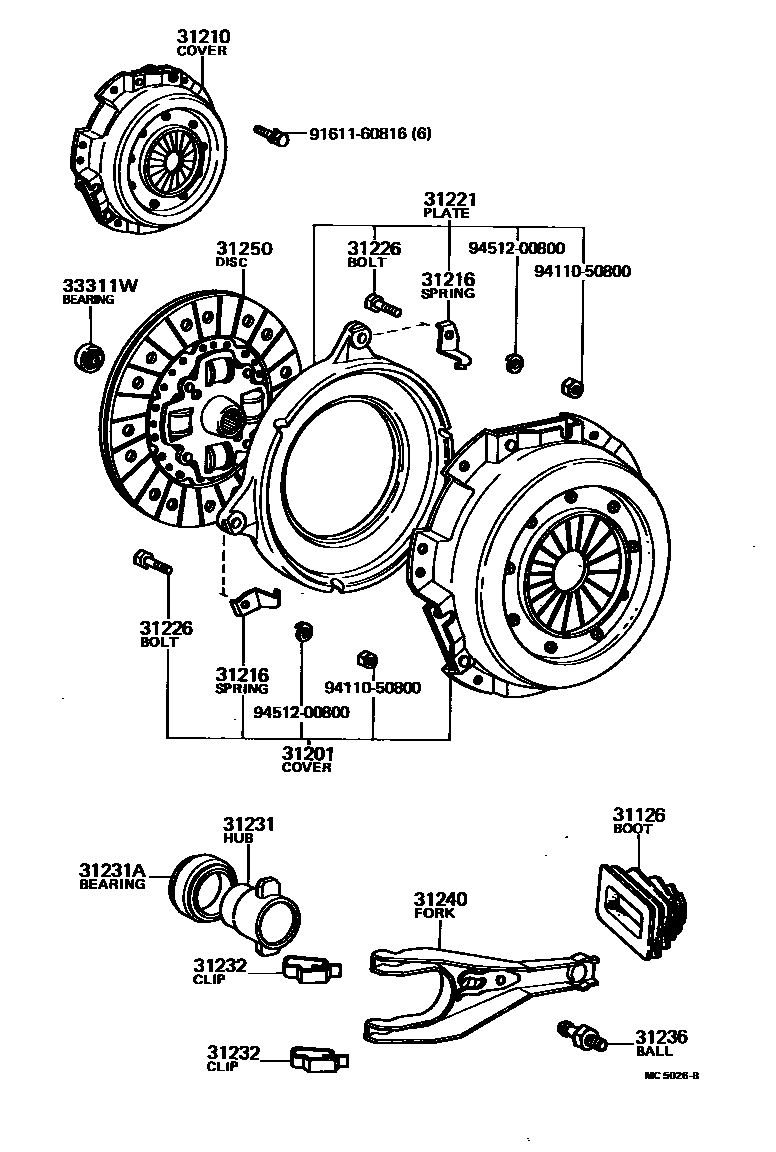

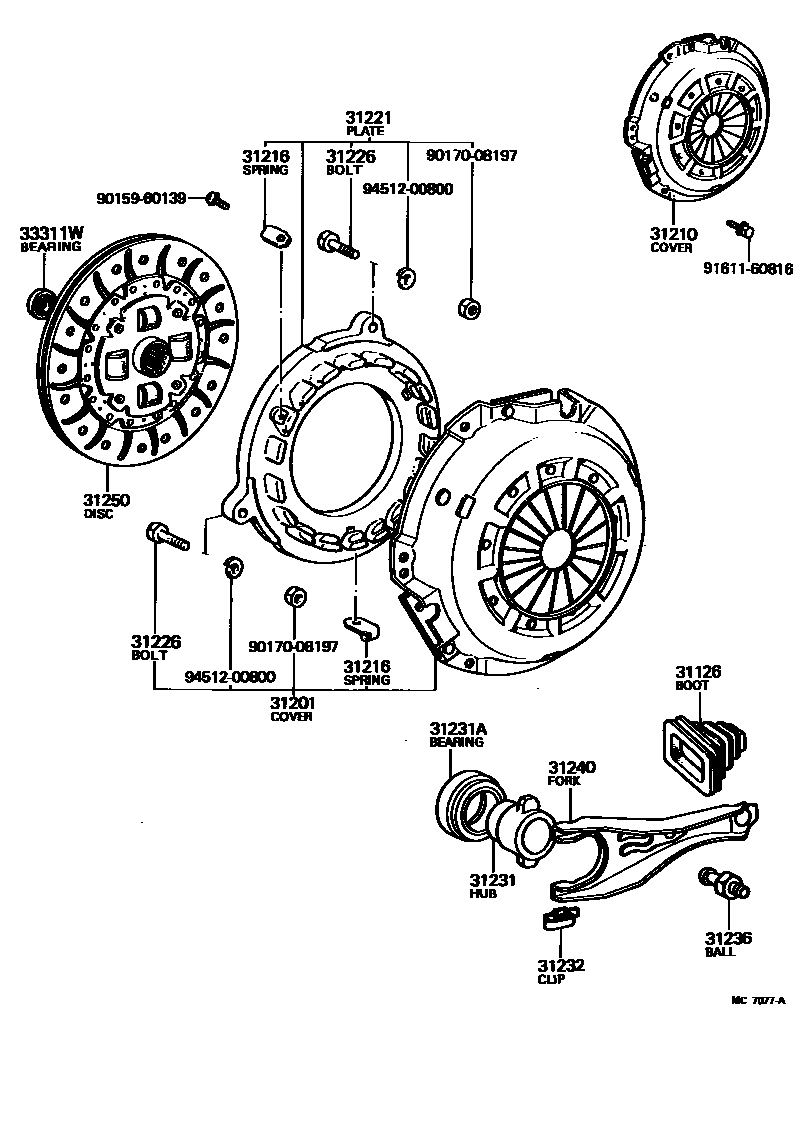

Toyota COROLLA EPC diagram 3101, 离合器和分离叉, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-20070 · 31126-22040 |
| 31201 | Clutch cover sub-assembly | 31201-19048 · 31201-19075 · 31201-39047 |
| 31210 | Clutch cover assembly | 31210-12070 · 31210-12071 · 31210-23011 · 31210-23012 · 31210-35042 |
| 31216 | clutch return spring | 31216-20020 · 31216-30010 |
| 31221 | clutch pressure plate | 31221-19025 · 31221-39045 |
| 31226 | Clutch pressure plate bolt | 90101-08022 · 90101-08350 |
| 31231 | Clutch release bearing hub | 31231-12050 · 31231-14031 · 31231-14032 · 31231-20081 |
| 31231A | Ball bearing (for clutch release hub) | 90363-40001 · 90363-40008 · 90363-40015 · 90363-40022 |
| 31232 | Release bearing hub clip or spring | 31232-22010 |
| 31236 | Breakaway fork steel ball | 31236-20020 · 31236-30060 |
| 31240 | Clutch release fork assembly | 31204-20080 · 31204-22030 |
| 31250 | Clutch disc assembly | 31250-12080 · 31250-12081 · 31250-12090 · 31250-12110 · 31250-14100 · 31250-14101 |
| 33311W | Bearings (for input shaft) | 90363-12003 · 97123-06001 |
