Toyota COROLLA 废气再循环系统 — Figure 2501

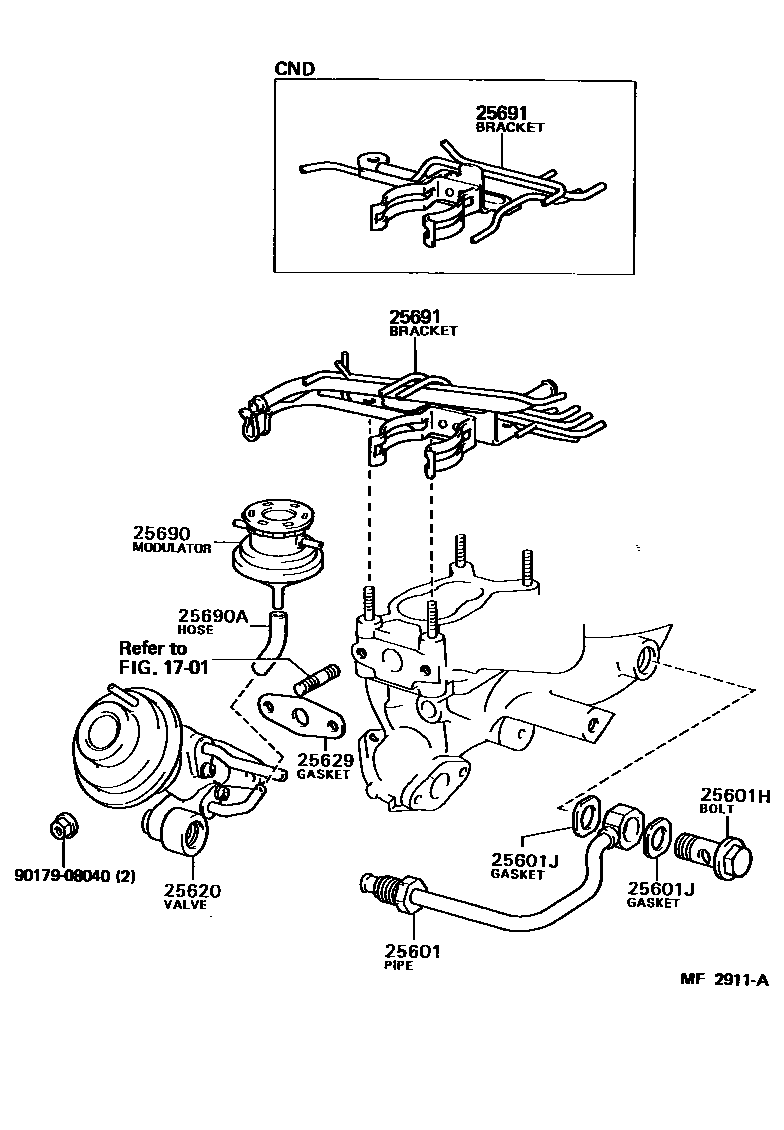

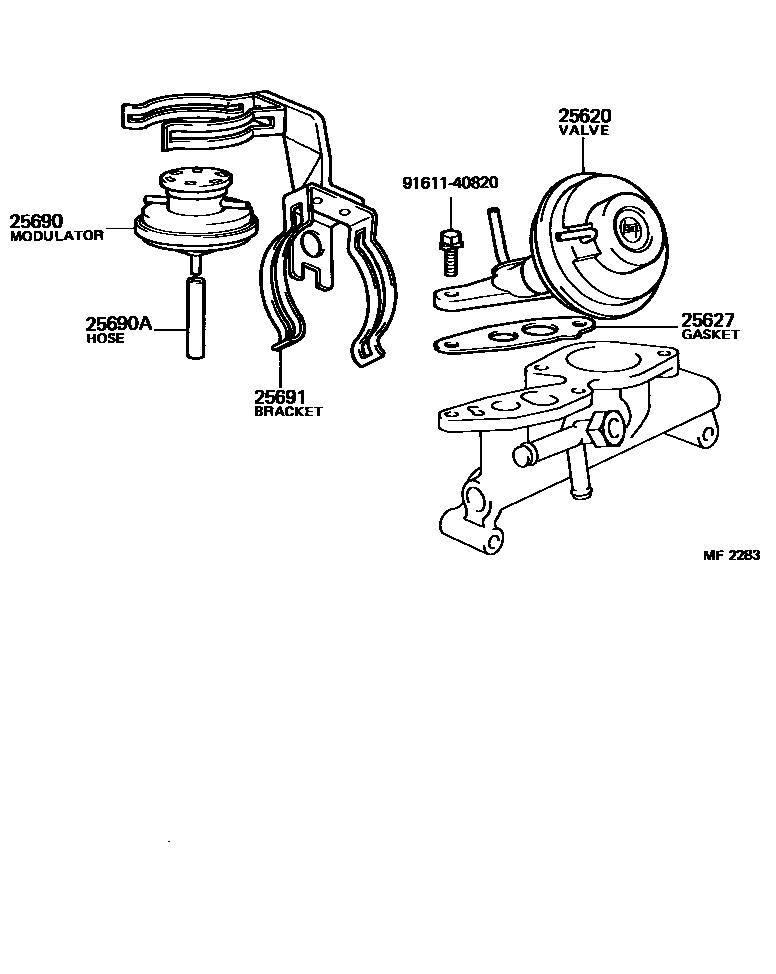

Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-15020 |
| 25601H | Joint bolt (for No. 1 EGR tube) | 90401-20003 |
| 25601J | Gasket (for No. 1 EGR tube) | 90430-20005 |
| 25620 | EGR valve assembly | 25620-15040 · 25620-15050 · 25620-15090 · 25620-15210 · 25620-28040 · 25620-28050 · 25620-28051 · 25620-28060 · 25620-28070 |
| 25627 | EGR valve gasket | 25627-26011 |
| 25629 | EGR valve adapter gasket | 25629-15011 |
| 25690 | EGR vacuum regulator assembly | 25690-15020 · 25690-15030 · 25690-15050 · 25690-18010 · 25690-28010 · 25690-28020 · 25690-28030 · 25870-15110 |
| 25690A | Hoses (for EGR vacuum regulator) | 90445-11013 · 90445-11041 |
| 25691 | EGR vacuum regulator bracket | 25691-15100 · 25691-15110 · 25691-27020 |
