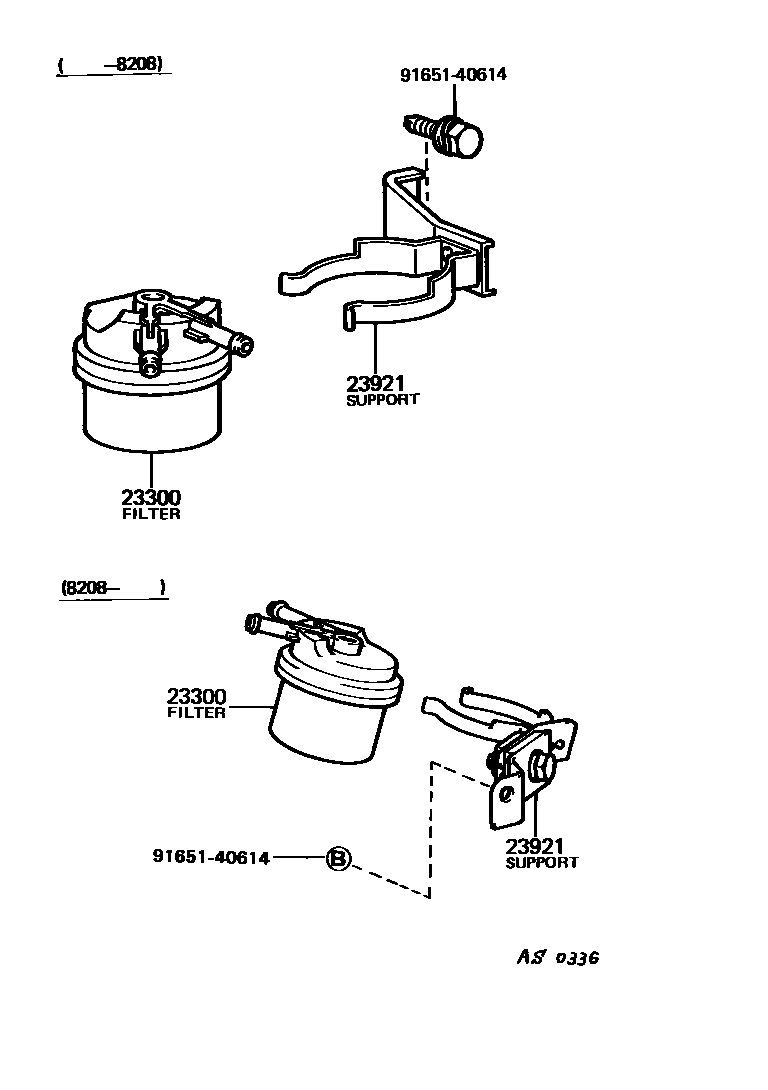

Toyota COROLLA fuel filter — Figure 2302
Toyota COROLLA EPC diagram 2302, fuel filter, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23300 | fuel filter assembly | 23300-15010 · 23300-34100 |
| 23921 | Fuel filter support | 23921-15011 · 23921-28010 |
