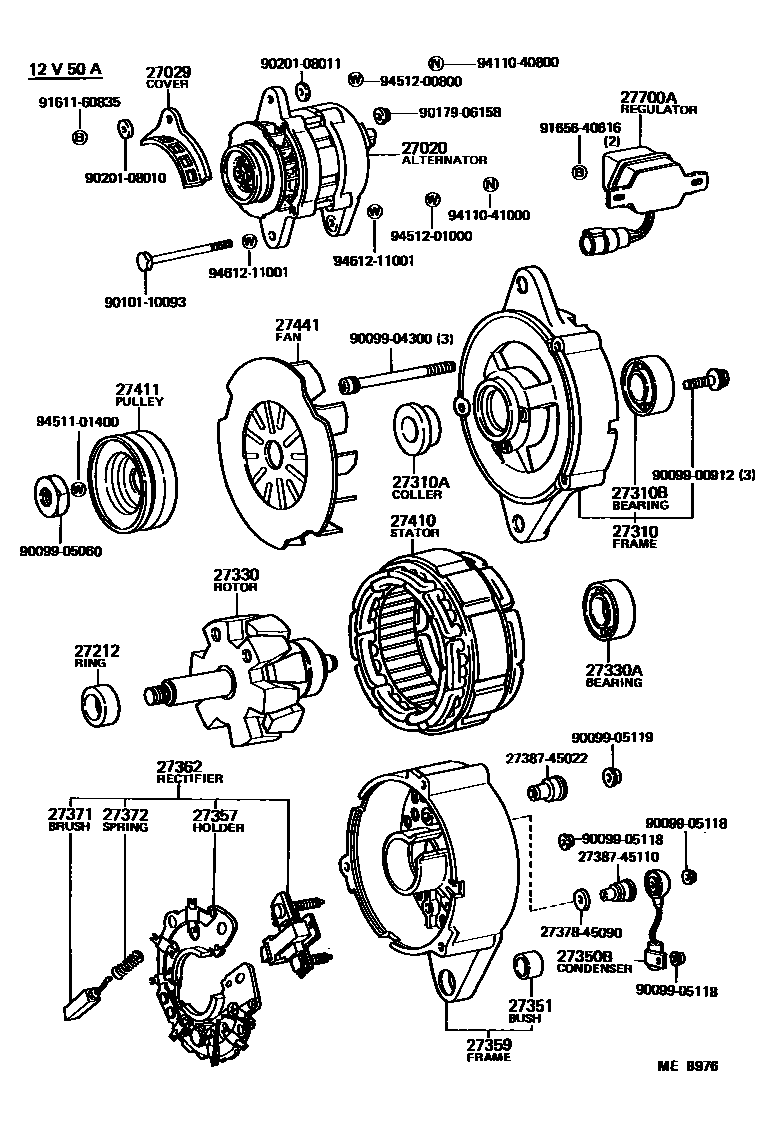

Toyota COROLLA Alternator — Figure 1903
Toyota COROLLA EPC diagram 1903, Alternator, with 6 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27020-15110 · 27020-26101 · 27020-26102 · 27020-28012 · 27020-28020 · 27060-15030 · 27060-28030 |
| 27029 | generator cover | 27029-15012 |
| 27039 | Alternator Rear End Cover | 27039-45110 |
| 27061 | Regulator cover | 27062-45050 |
| 27212 | Spacer ring (for generator rotor) | 27412-45070 |
| 27310 | Alternator Drive End Frame Assembly | 27310-26101 · 27310-38061 · 27310-61070 |
| 27310A | Collar or nut (for generator drive end cover) | 27412-31040 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10114 · 90099-10115 · 90099-10125 · 90099-10126 |
| 27330 | Alternator Rotor Assembly | 27330-15070 · 27330-43040 · 27330-45070 · 27330-45090 |
| 27330A | Bearings (for generator rotor) | 90099-10111 · 90099-10116 |
| 27350 | Rectifier end frame assembly | 27350-26101 |
| 27350B | generator capacitor | 90099-52065 |
| 27351 | Bushing (for generator rectifier end frame) | 27351-38051 |
| 27353 | Generator positive rectifier frame | 27353-15040 · 27353-26101 |
| 27356 | Generator negative rectifier frame | 27356-24100 · 27356-26101 |
| 27357 | Generator rectifier frame | 27357-13110 |
| 27359 | Generator rectifier end frame | 27359-15090 · 27359-15120 · 27359-26100 · 27359-28010 · 27359-28030 · 27359-38050 |
| 27362 | Rectifier assembly with brushes | 27362-15040 · 27362-15041 · 27362-15070 · 27362-15120 · 27362-26101 · 27362-28010 · 27362-28020 · 27362-28021 · 27362-28022 · 27362-70010 |
| 27371 | Generator brushes | 27371-31011 · 27371-44070 |
| 27372 | Generator brush spring | 27372-31011 · 90099-17114 |
| 27410 | Generator stator assembly | 27410-34050 · 27410-41080 · 27410-72040 |
| 27411 | Alternator Pulley | 27411-15110 · 27411-31042 |
| 27412 | Isolator collar (for generator pulley) | 27412-44030 · 27412-44031 |
| 27441 | generator fan | 27441-34030 · 27441-45110 · 27441-63030 |
| 27700A | Generator voltage regulator assembly | 27700-13060 · 27700-13090 · 27700-28020 · 27700-28030 · 27700-38100 · 27700-43010 |
