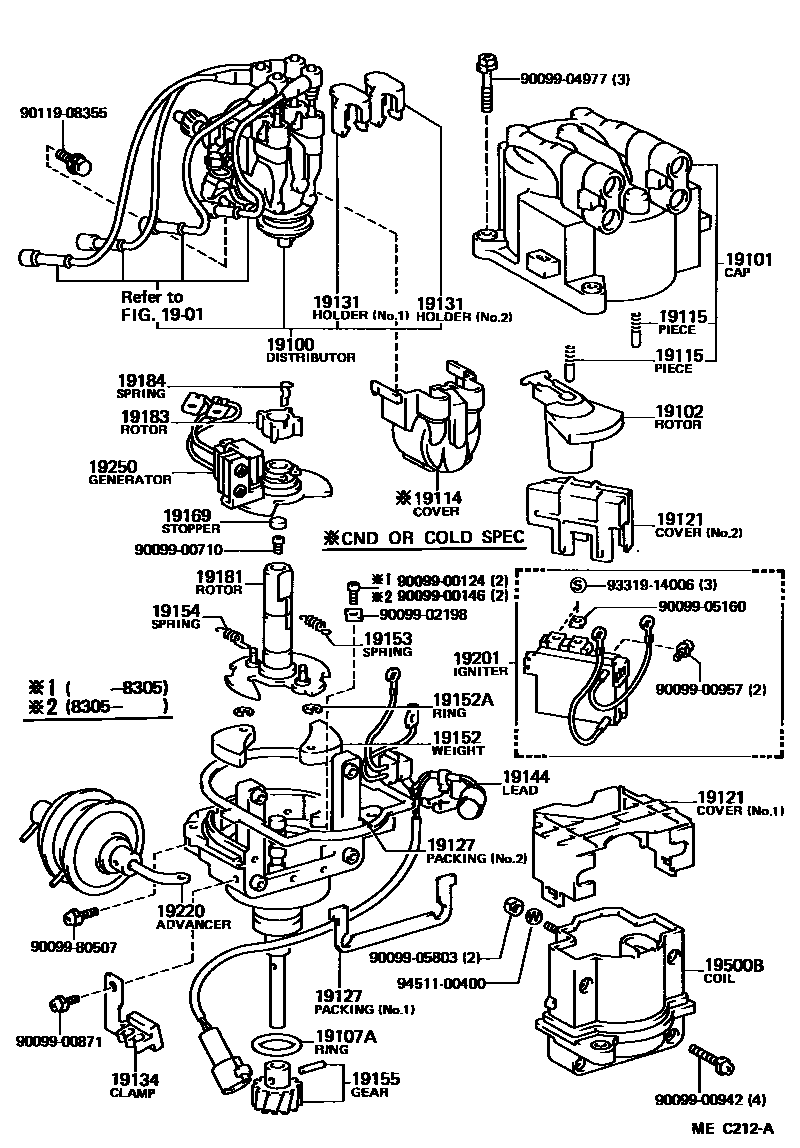

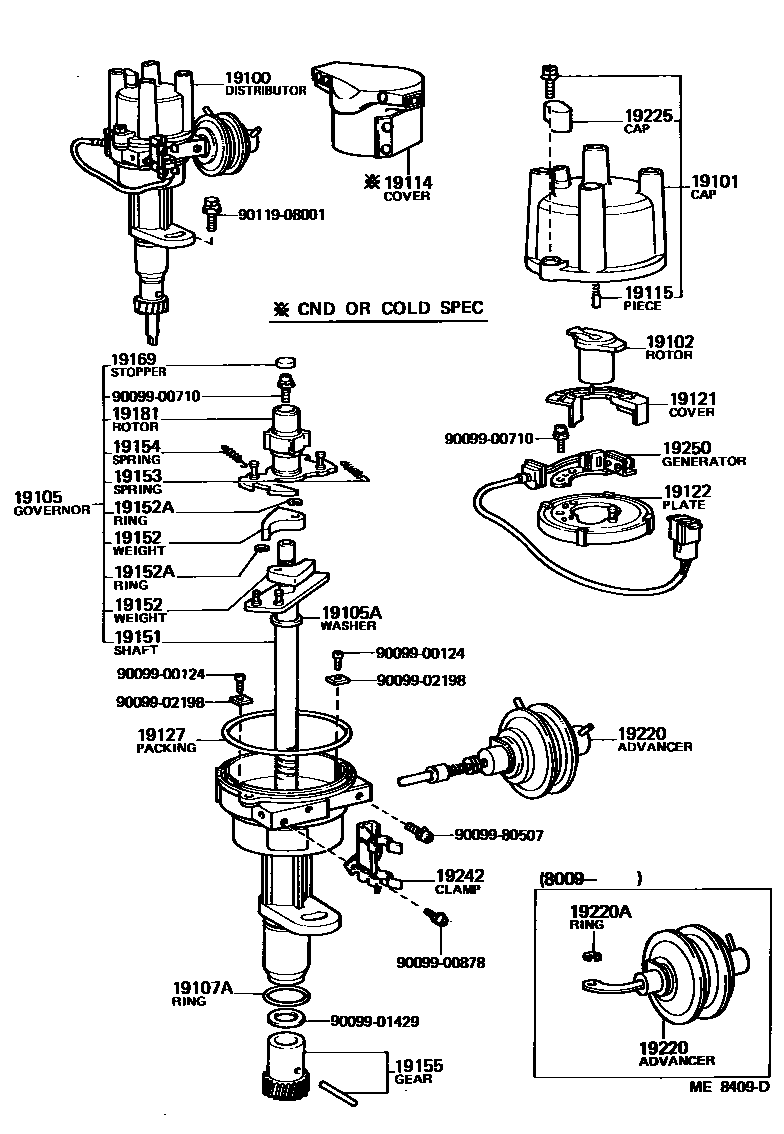

Toyota COROLLA 分电器 — Figure 1902
Toyota COROLLA EPC diagram 1902, 分电器, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100 | Distributor assembly | 19030-16010 · 19030-16020 · 19100-28030 · 19100-28040 · 19100-28050 · 19100-28061 · 19100-28081 · 19100-28100 |
| 19101 | Distributor cover sub-assembly | 19101-15090 · 19101-27050 |
| 19102 | Distributor flame head sub-assembly | 19102-15021 · 19102-38210 · 19102-63010 |
| 19105 | Speed governor sub-assembly | 19105-28030 · 19105-28040 · 19105-28060 · 19105-28080 · 19105-28100 |
| 19105A | Thrust washer (for governor shaft) | 90099-01385 · 90099-01386 · 90099-01387 · 90099-01412 |
| 19107A | Distributor housing O-ring | 90099-14020 · 96710-04030 |
| 19114 | Waterproof cover (for distributor) | 19114-15020 · 19114-28010 |
| 19115 | Distributor cover center piece | 19115-50010 |
| 19121 | dust cover | 19121-15090 · 19121-27020 · 19121-38210 · 19121-63020 · 19121-63040 |
| 19122 | Distributor fixing plate | 19122-45070 · 19122-88262 |
| 19127 | Dust seal | 19127-15021 · 19127-15090 · 19127-63020 |
| 19131 | Wire fasteners | 19131-15010 · 19131-15020 |
| 19134 | Distributor clip assembly | 19134-16010 |
| 19144 | Distributor breaker lead | 19144-16010 |
| 19151 | governor shaft | 19151-27050 |
| 19152 | Speed regulator weight | 19152-15160 · 19152-44170 · 19152-45060 |
| 19152A | Snap ring (for governor weight) | 90099-07104 · 90099-07109 · 90099-07122 |
| 19153 | A governor spring | 19153-16010 · 19153-16020 · 19153-16100 · 19153-16110 · 19153-28030 · 19153-28060 · 19153-28080 |
| 19154 | B governor spring | 19154-16020 · 19154-16100 · 19154-16110 · 19154-28030 · 19154-28040 · 19154-28060 · 19154-28080 · 19154-31170 |
| 19155 | Distributor spiral gear | 19195-15021 · 19195-25011 |
| 19169 | Cam grease stop | 19169-32010 |
| 19181 | Distributor signal distributor | 19181-16010 · 19181-16020 · 19181-27050 · 19181-28040 · 19181-28060 |
| 19183 | Signal splitter | 19183-15010 · 19183-63010 |
| 19184 | Distribution head fixed spring | 19184-63010 |
| 19201 | igniter | 89620-16070 · 89620-16080 |
| 19220 | Distributor vacuum advance device assembly | 19220-16010 · 19220-28030 · 19220-28040 · 19220-28050 · 19220-28051 · 19220-28060 · 19220-28080 · 19220-28100 |
| 19220A | Snap ring (for distributor vacuum advance device) | 90099-07109 |
| 19225 | rubber cap | 19225-38011 · 19225-41140 |
| 19242 | Cable clip | 19242-26231 · 19242-28060 |
| 19250 | Signal generator assembly | 19250-28030 · 19250-28060 · 19251-15090 |
| 19500B | Ignition coil assembly | 90919-02135 · 90919-02139 |
