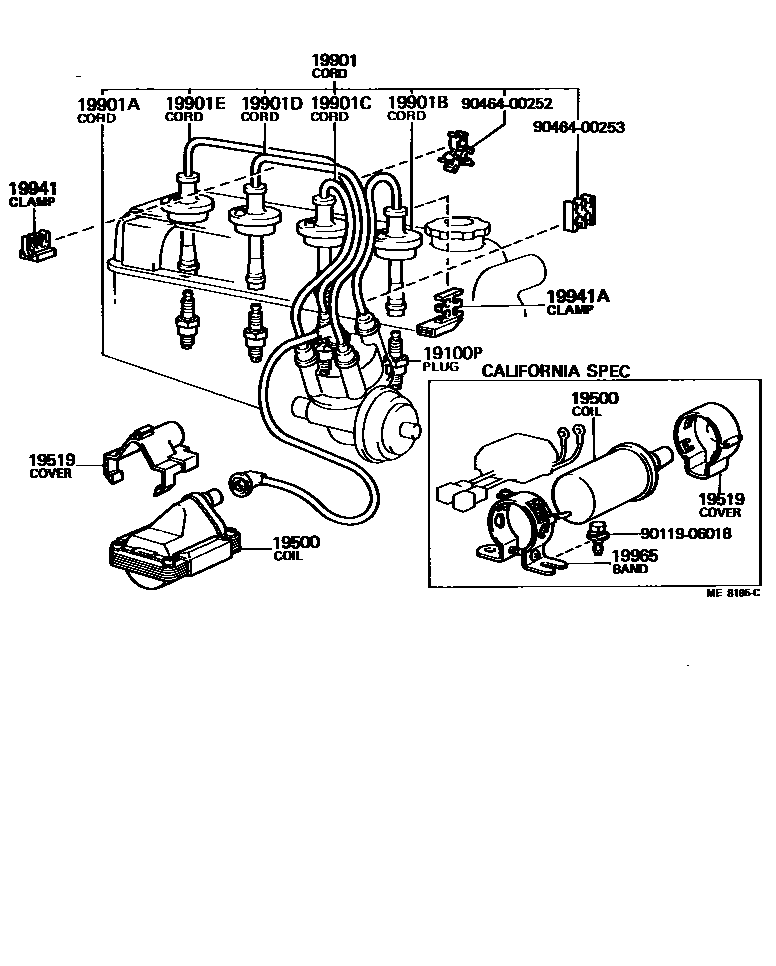

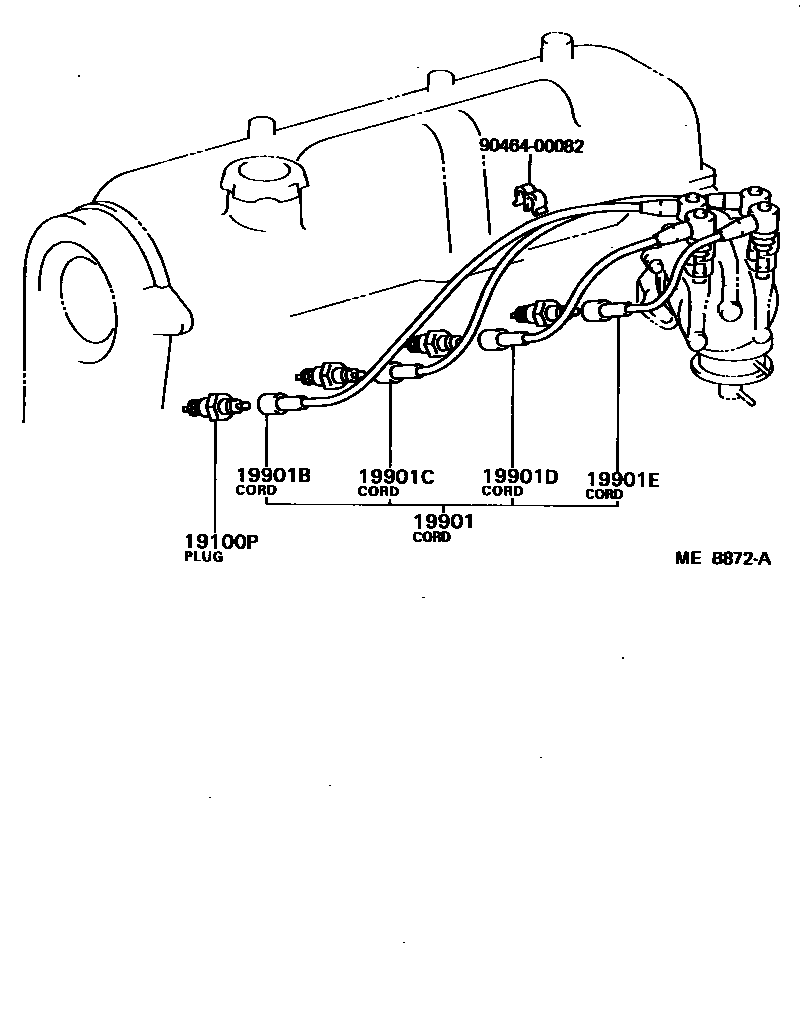

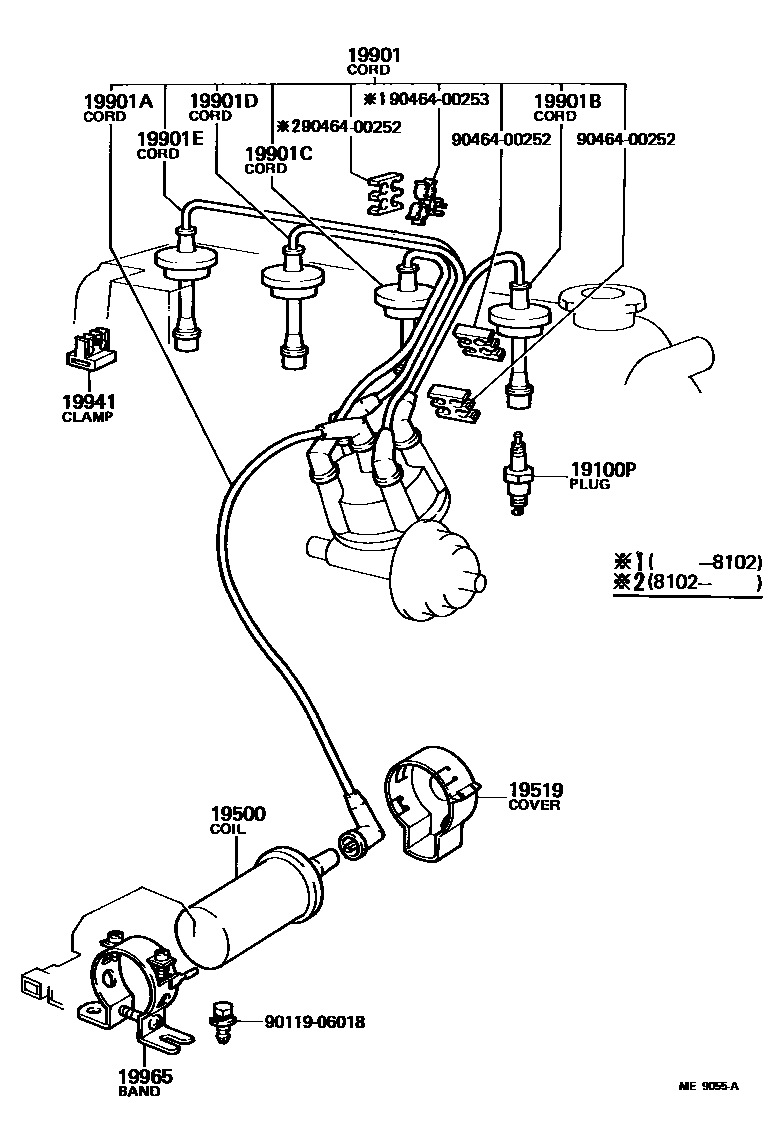

Toyota COROLLA 点火线圈和火花塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01064 · 90919-01091 · 90919-01094 |
| 19500 | Ignition coil assembly | 90919-02106 · 90919-02117 |
| 19519 | Ignition coil cover | 19519-28010 · 19519-28020 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21197 · 90919-21274 · 90919-21275 · 90919-22133 |
| 19901A | coil damping line | 90919-13107 |
| 19901B | No. 1 spark plug damper wire | 90919-12304 · 90919-12362 · 90919-12366 · 90919-12473 |
| 19901C | No. 2 spark plug damper wire | 90919-12305 · 90919-12363 · 90919-12367 · 90919-12474 |
| 19901D | No. 3 spark plug damper wire | 90919-12306 · 90919-12364 · 90919-12368 · 90919-12475 |
| 19901E | No. 4 spark plug damper wire | 90919-12307 · 90919-12365 · 90919-12369 · 90919-12476 |
| 19941 | No. 1 damping wire clip | 90464-00218 |
| 19941A | Clamp (for damping wire) | 90464-00217 |
| 19965 | No. 1 ignition coil band | 90919-03074 |
