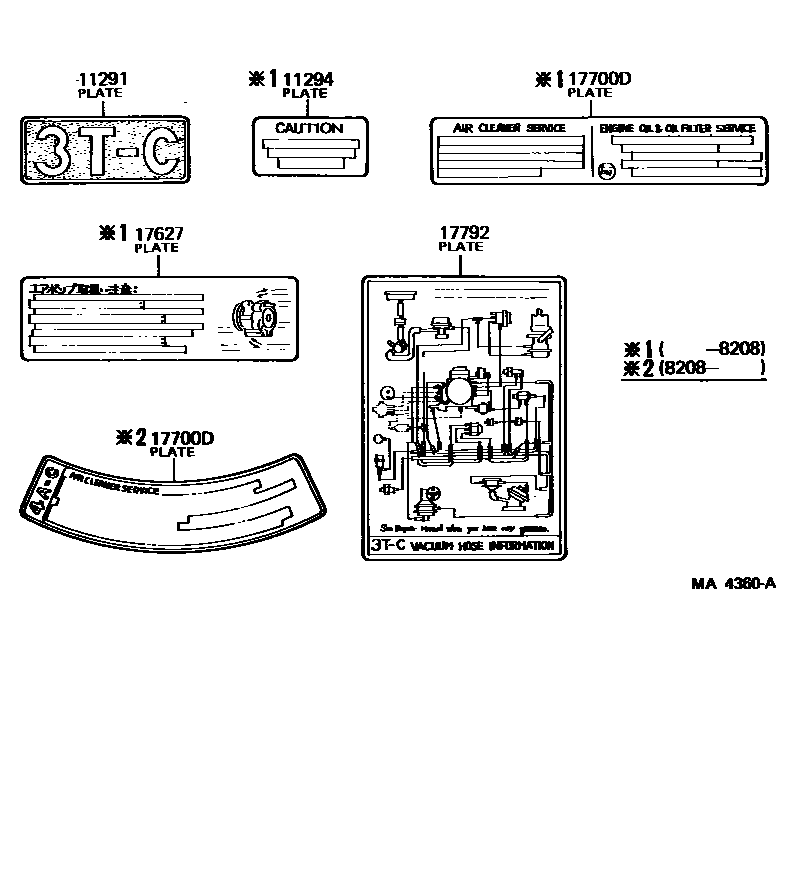

Toyota COROLLA 警示铭牌和名称铭牌(发动机) — Figure 1709
Toyota COROLLA EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11291 | Engine name plate | 11291-16010 · 11291-16020 · 11291-28040 |
| 11294 | Engine No. 2 warning plate | 11294-34020 |
| 17627 | No. 1 air pump warning nameplate | 90917-07066 |
| 17700D | Engine warning plate | 11293-16010 · 11293-28040 |
| 17792 | Engine vacuum hose information plate | 17792-15150 · 17792-15160 · 17792-15170 · 17792-15180 · 17792-15210 · 17792-28020 · 17792-28030 · 17792-28040 · 17792-28041 · 17792-28070 · 17792-28080 · 17792-28090 · 17792-28110 |
