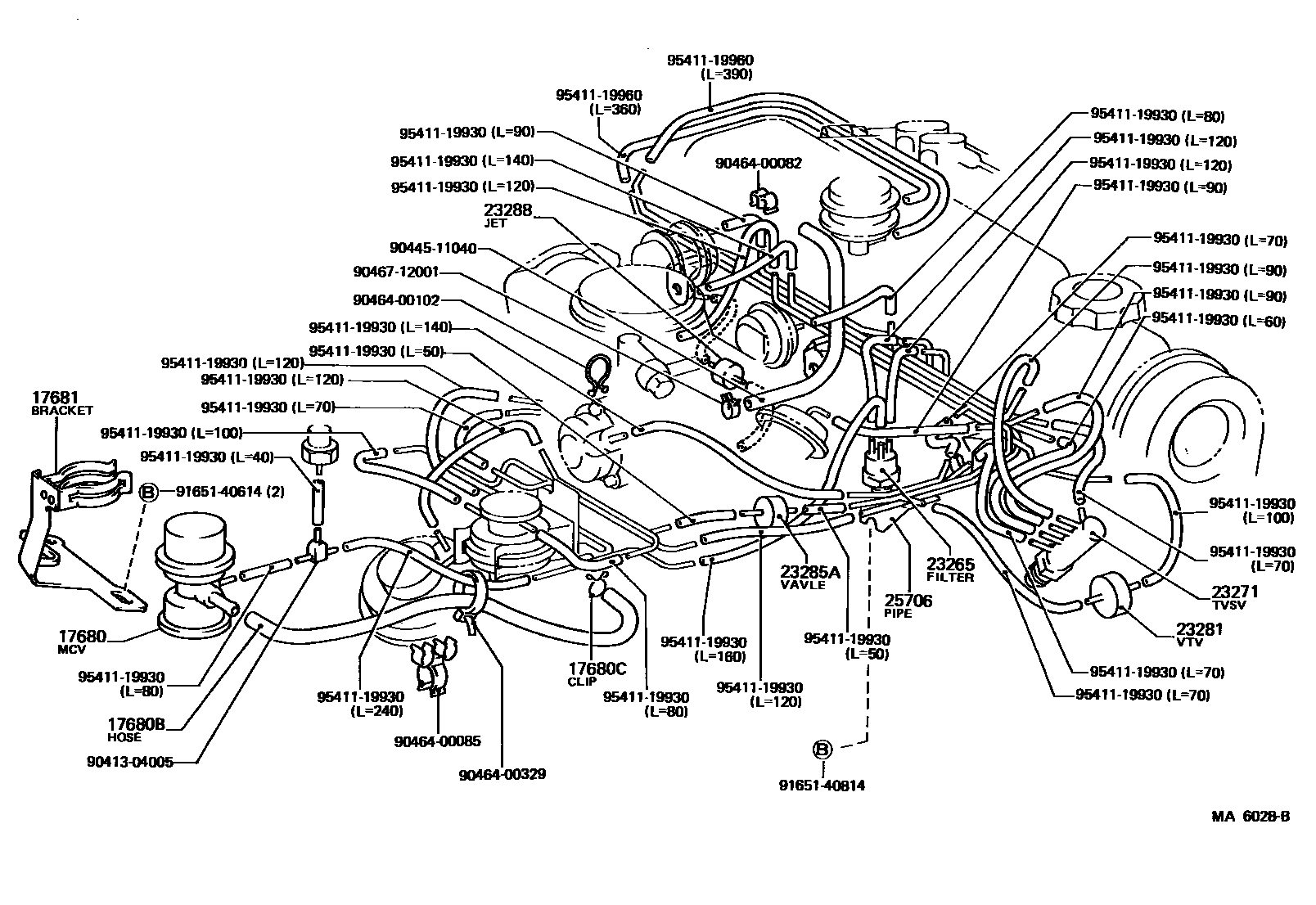

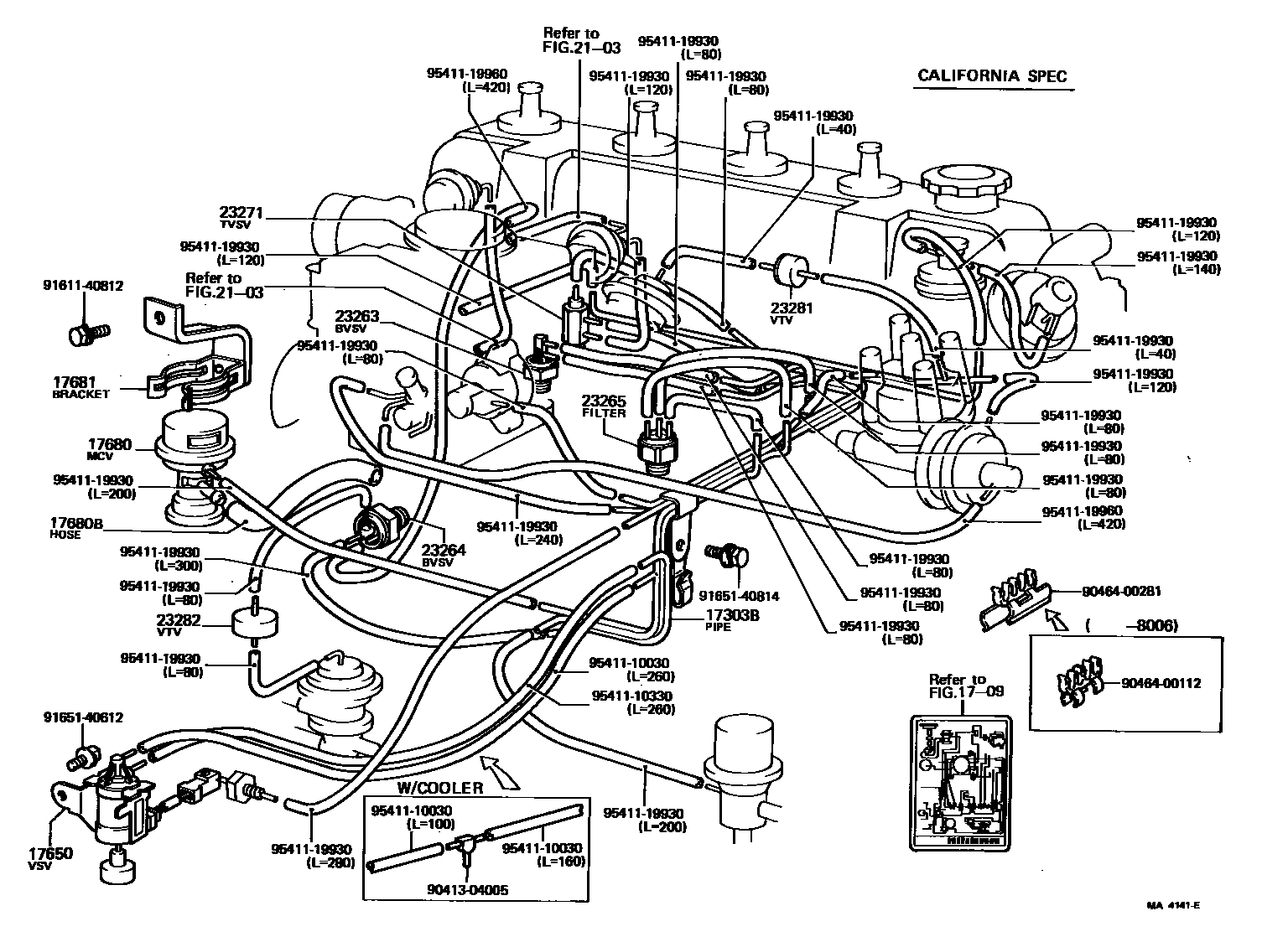

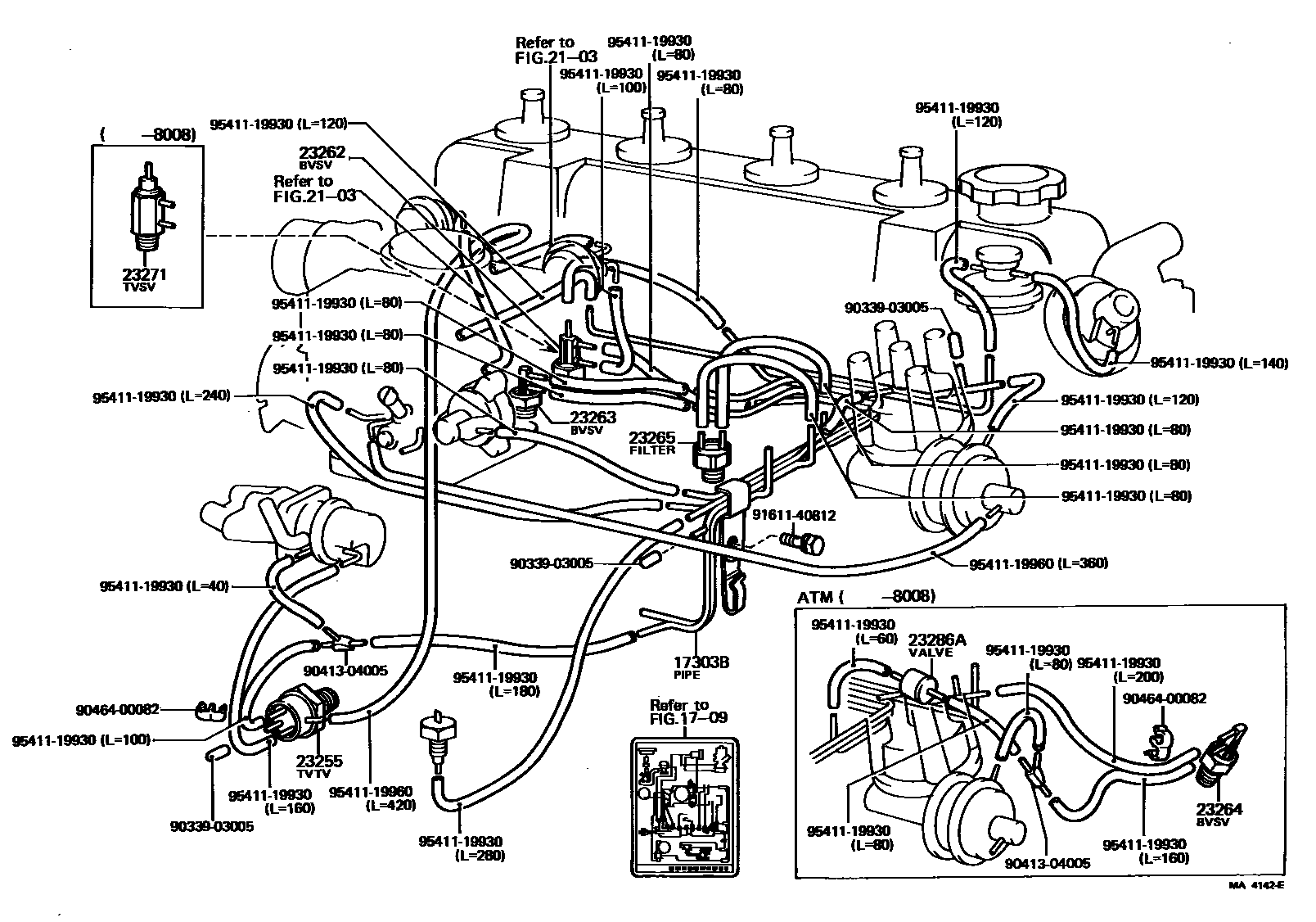

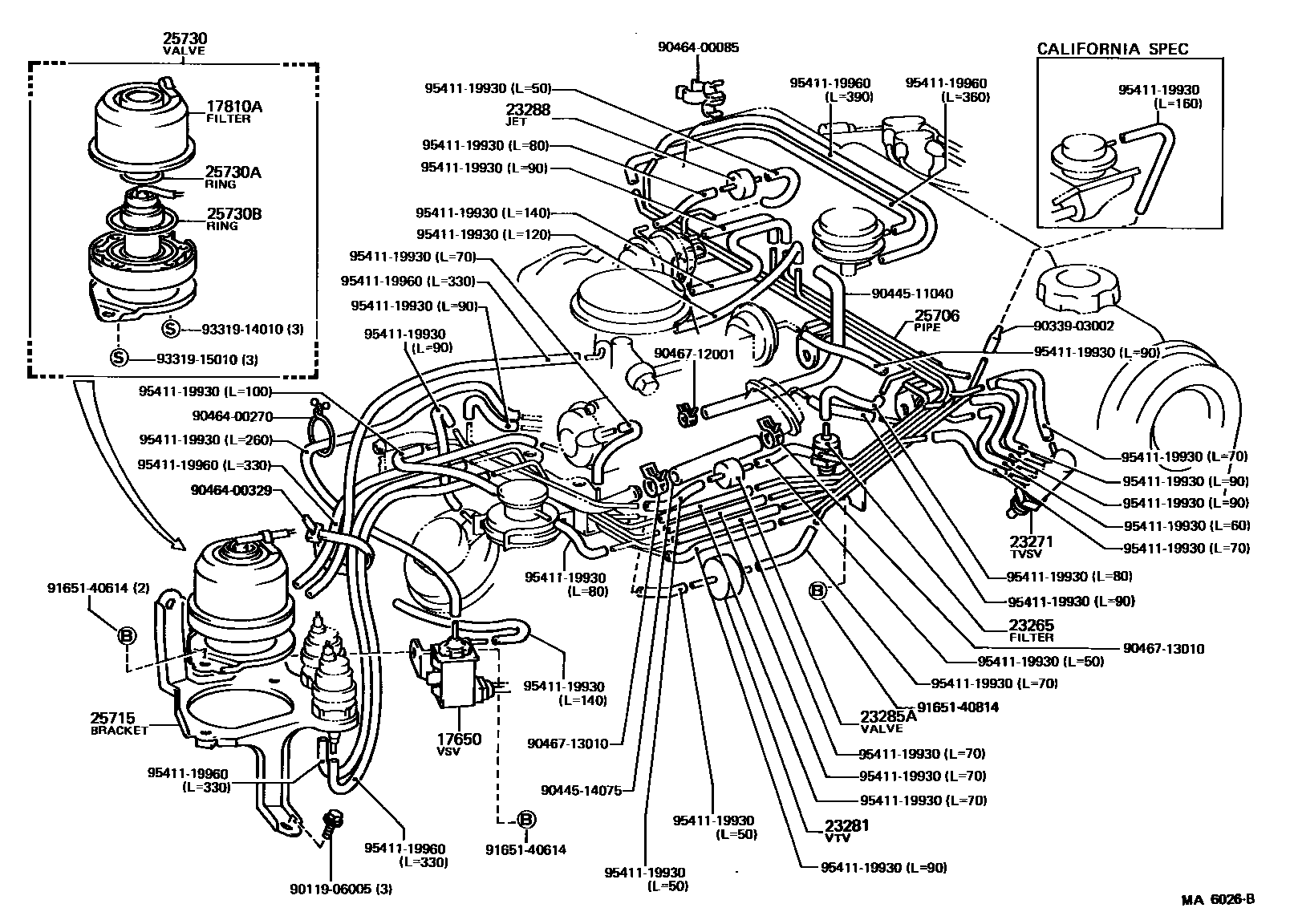

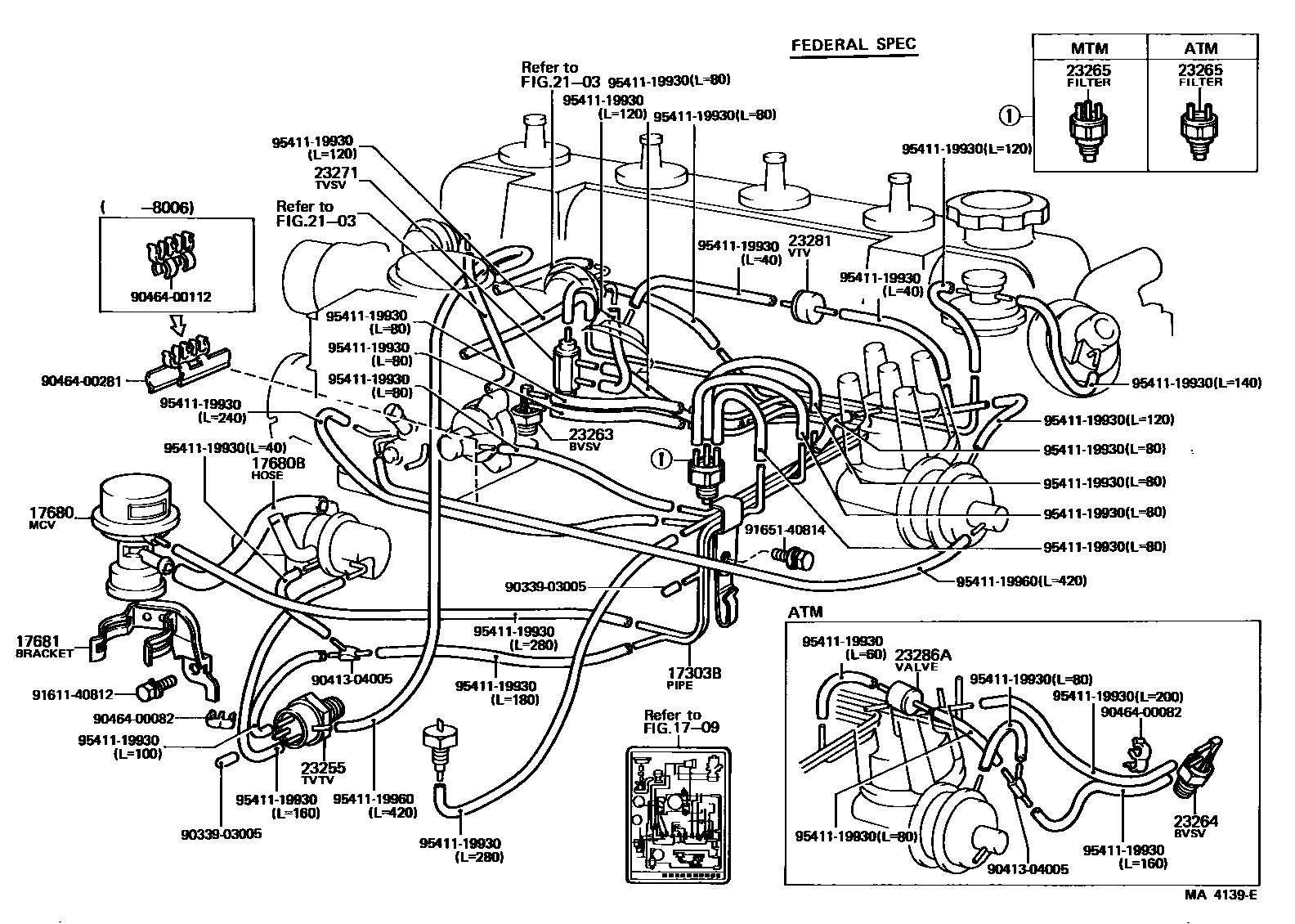

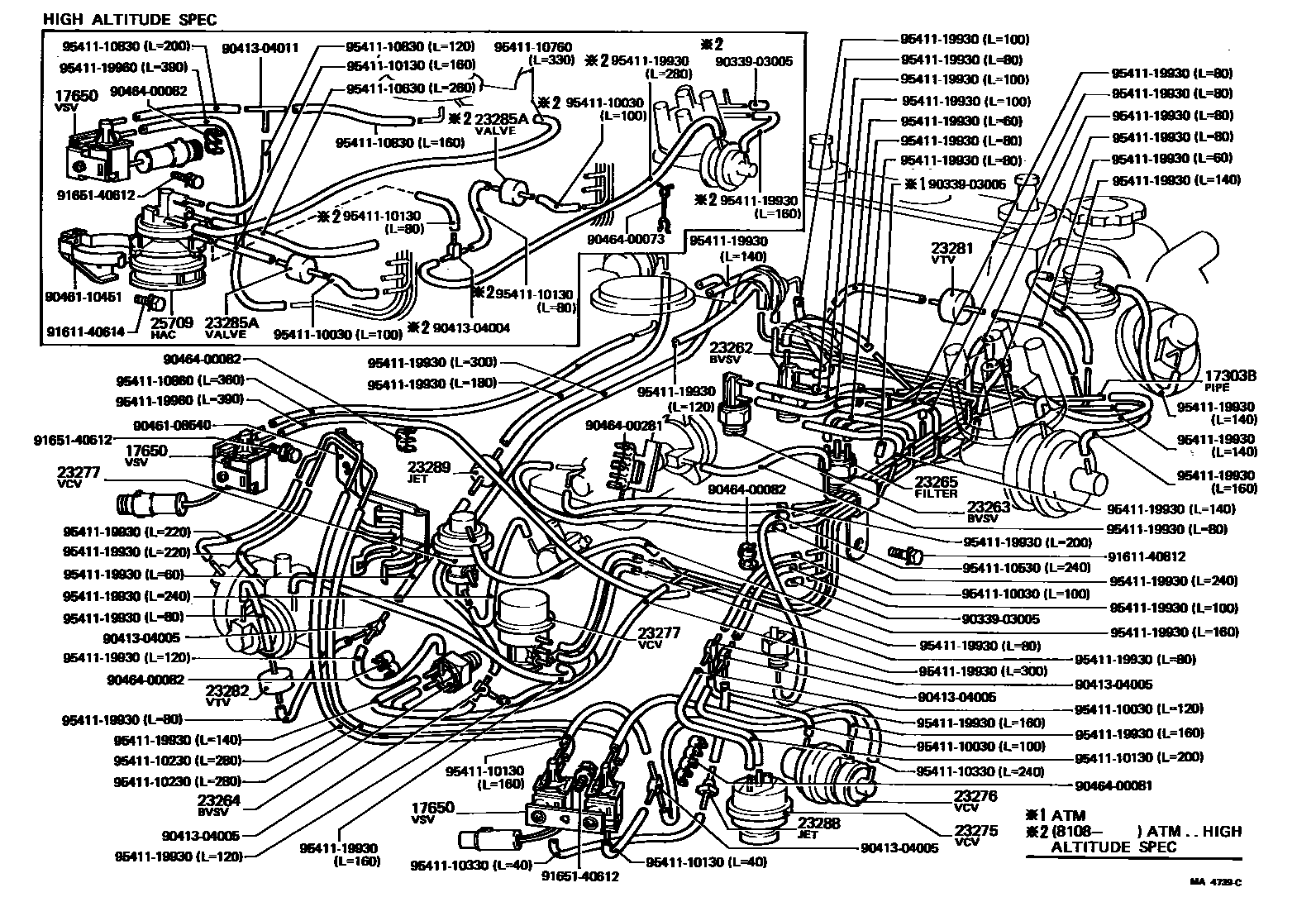

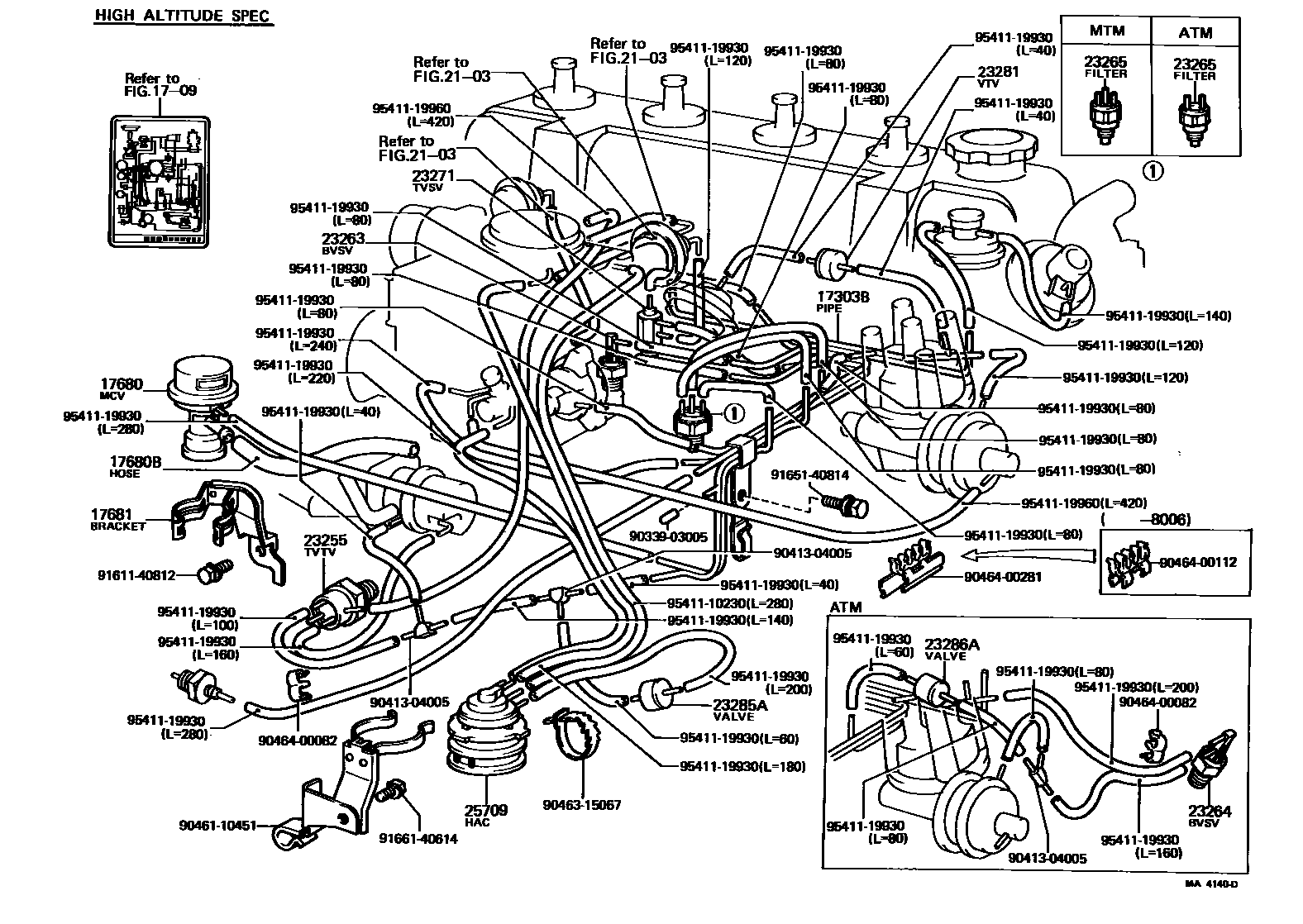

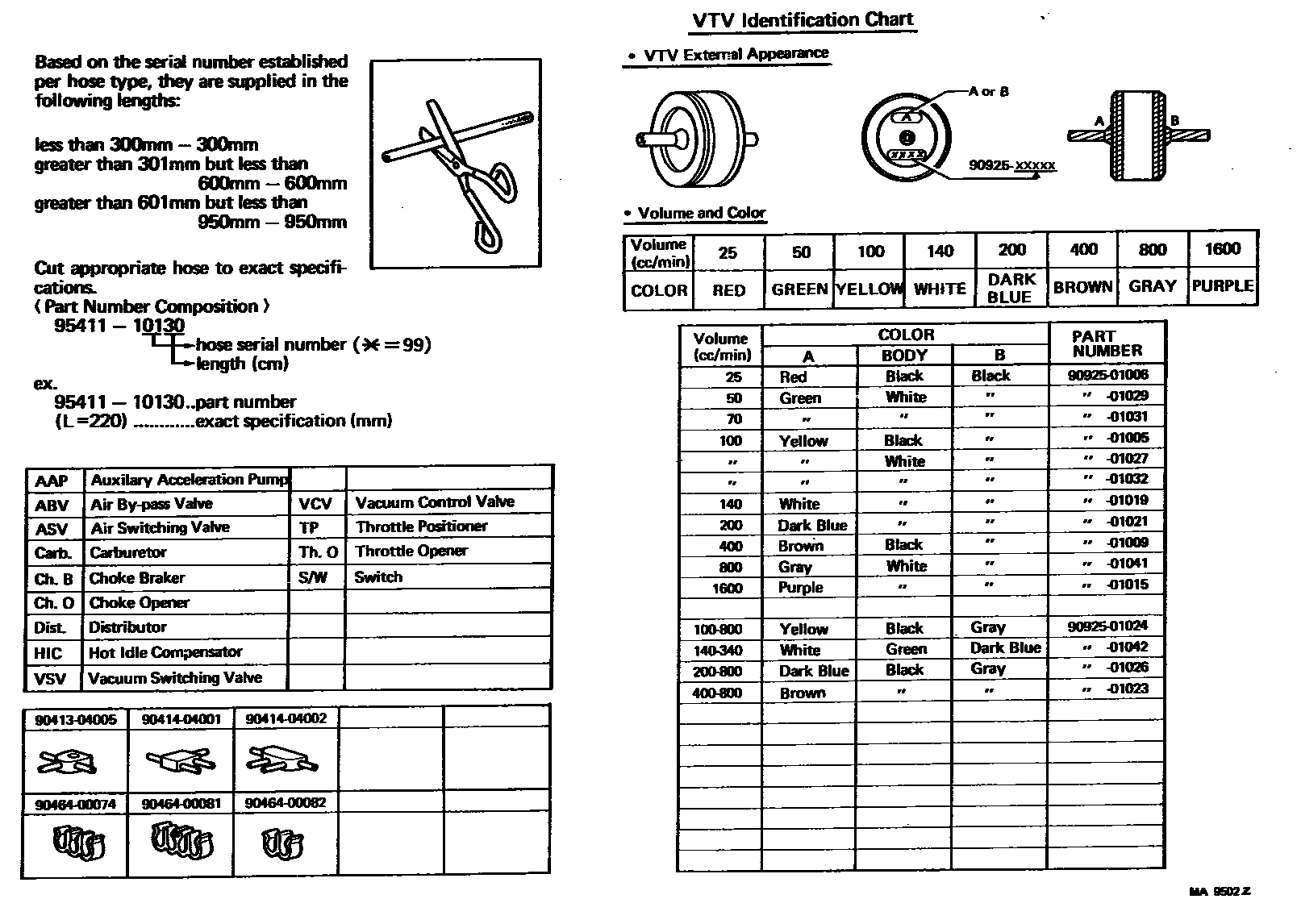

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 11 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-28010 · 17303-28011 · 17303-28020 · 17303-28040 |
| 17650 | Vacuum switch valve assembly | 89570-12130 · 89570-12140 · 89570-12210 · 89570-20160 |
| 17680 | Mixture control valve assembly | 17680-15050 · 17680-28010 · 17680-28020 |
| 17680B | Hoses (for mixture control valve) | 90445-16007 · 90445-16011 · 90910-05145 |
| 17680C | Clip or clip (for mixture control valve hose) | 96132-30400 |
| 17681 | Mixture control valve bracket | 17681-16010 · 17681-18021 · 17681-26011 |
| 17810A | air filter assembly | 17810-15020 |
| 23255 | Thermostatic Vacuum Transfer Valve No. 1 | 90925-01068 |
| 23262 | No. 1 bimetallic vacuum switch valve | 25810-15010 |
| 23263 | No. 2 bimetallic vacuum switch valve | 90925-05017 · 90925-05041 |
| 23264 | No. 3 bimetallic vacuum switch valve | 90925-05035 · 90925-05050 · 90925-05059 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11023 · 90917-11024 · 90917-11027 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02048 · 90925-02076 |
| 23275 | Vacuum control valve No. 1 | 90925-03108 |
| 23276 | Vacuum control valve No. 2 | 90925-03109 · 90925-03110 |
| 23277 | No. 3 vacuum control valve | 90925-03111 · 90925-03112 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01014 · 90925-01041 |
| 23282 | Vacuum Transfer Valve No. 2 | 90925-01066 · 90925-01088 · 90925-01089 |
| 23285A | No. 1 one-way valve | 90917-10038 · 90917-10049 |
| 23286A | No. 2 one-way valve | 90917-10038 |
| 23288 | Nozzle No. 1 | 90925-04003 · 90925-04025 · 90925-04026 |
| 23289 | Nozzle No. 2 | 90925-04012 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-15130 · 25706-15140 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-14010 |

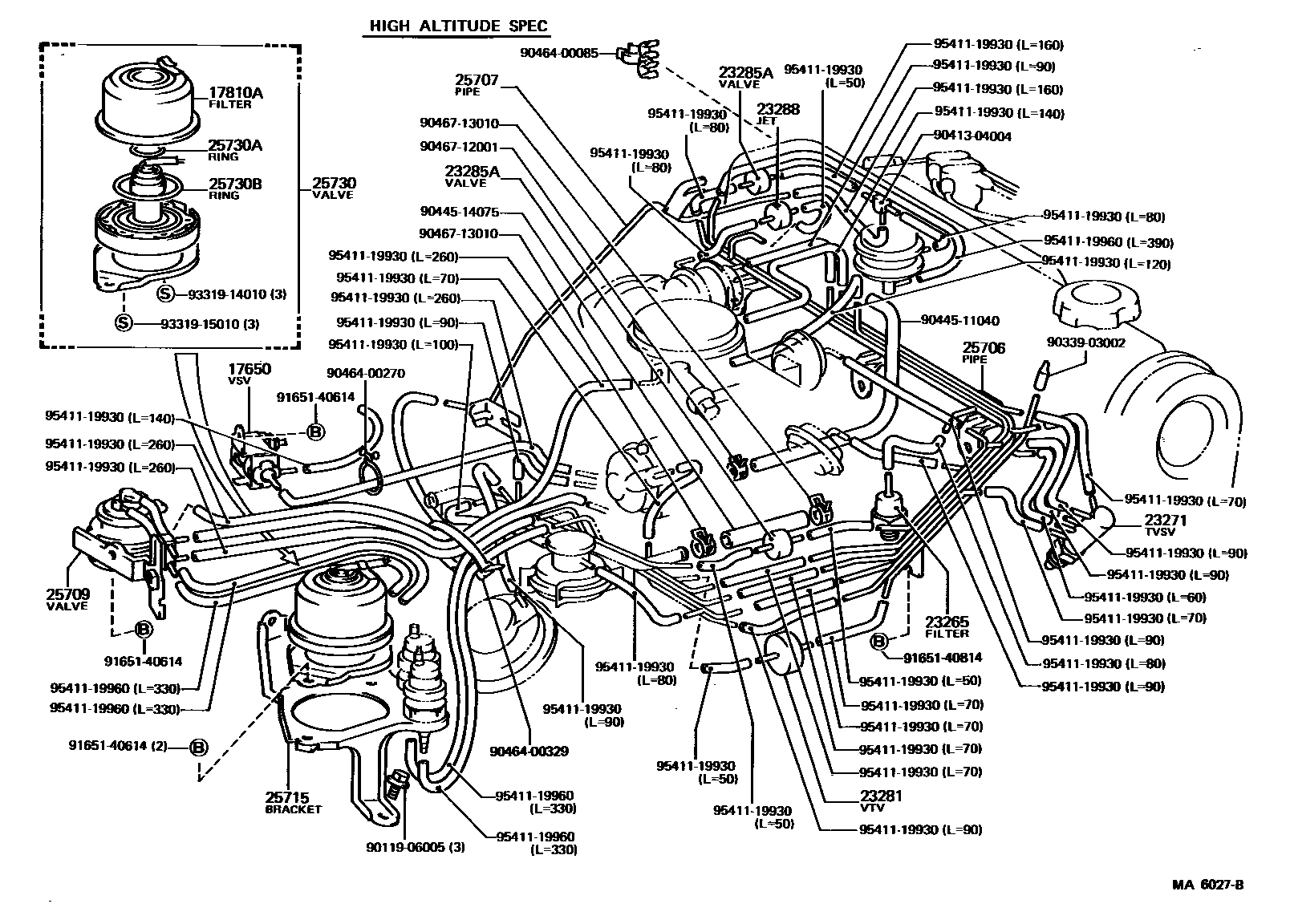

| 25709 | High altitude compensator valve sub-assembly | 25708-16010 · 25709-38010 |

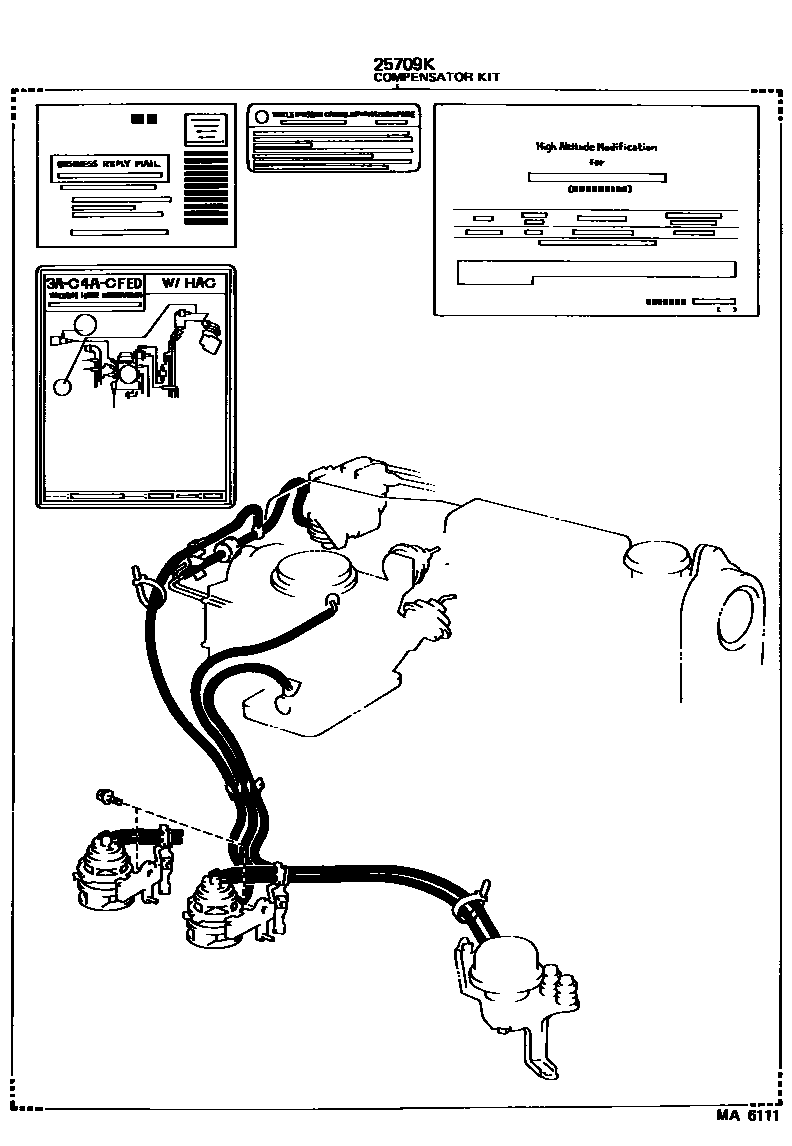

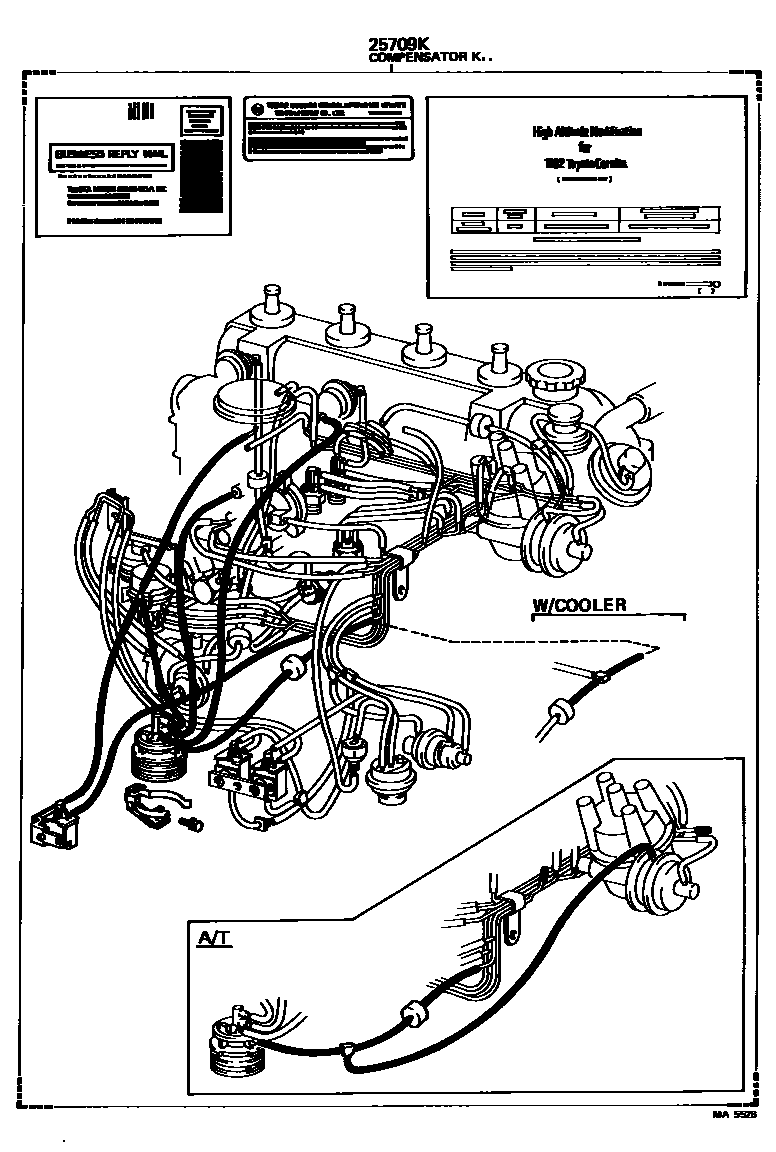

| 25709K | High Altitude Compensator Components | 04215-16010 · 04215-28010 · 04215-28020 · 04215-28030 |
| 25715 | Emission control valve bracket | 25715-16010 |
| 25730 | Electronic exhaust control valve assembly | 25730-15010 |
| 25730A | No. 1 O-ring (for electronic exhaust control valve) | 90096-80002 |
| 25730B | No. 2 O-ring (for electronic exhaust control valve) | 90096-80003 |
