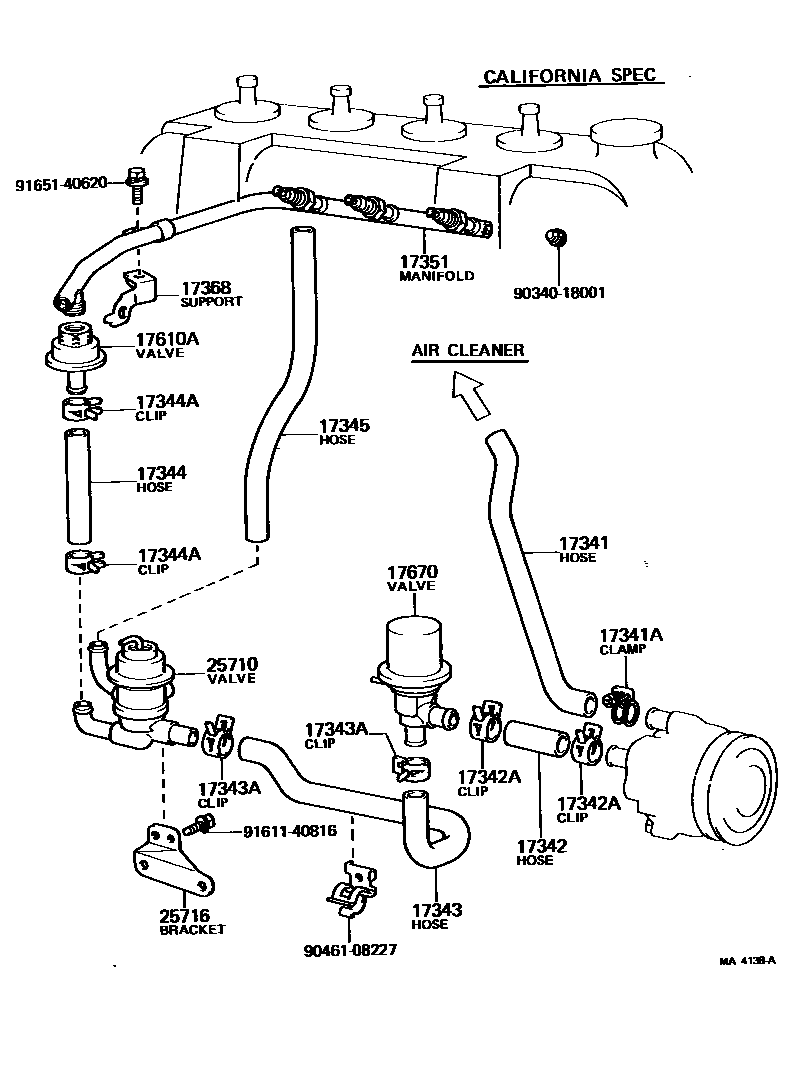

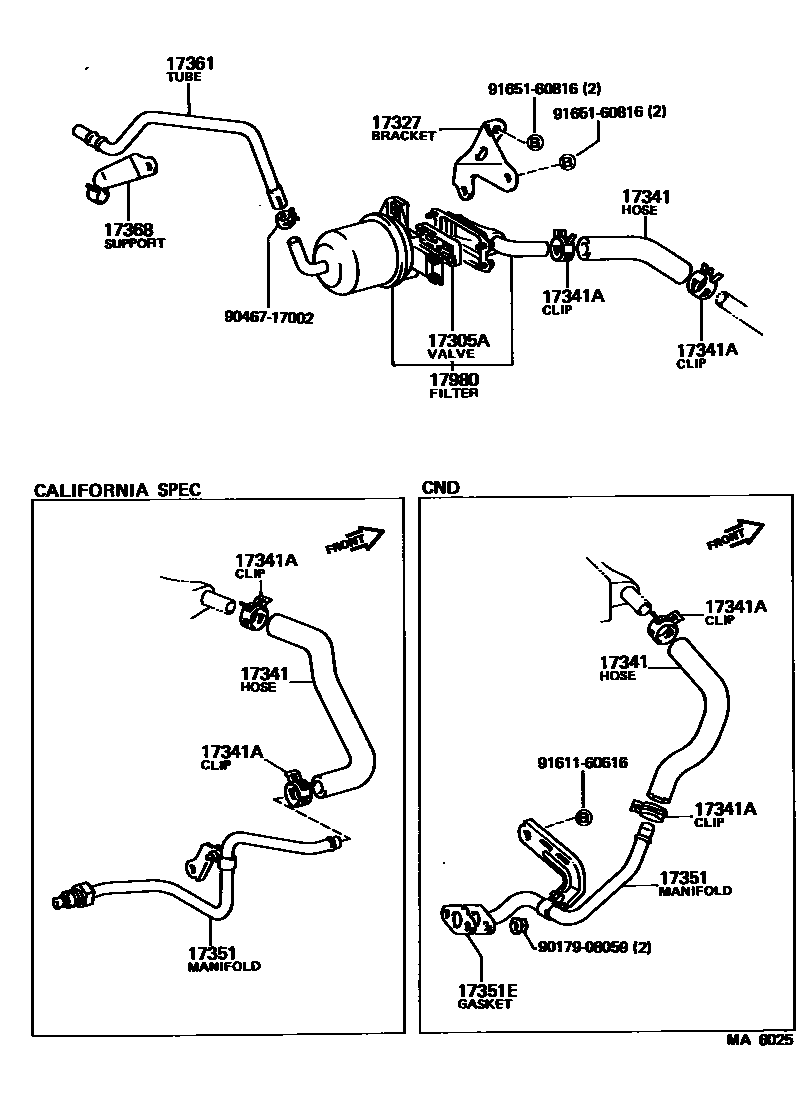

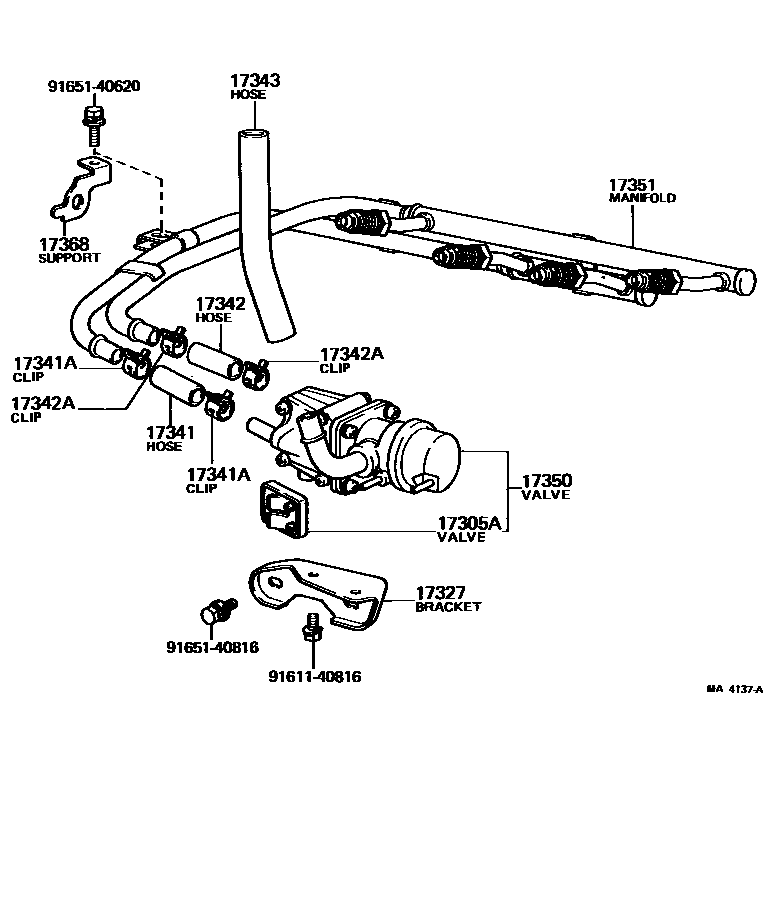

Toyota COROLLA 歧管喷气系统 — Figure 1706
Toyota COROLLA EPC diagram 1706, 歧管喷气系统, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17305A | Reed valve sub-assembly | 17305-15010 · 17305-18010 · 17305-28010 |
| 17327 | Reed valve bracket | 17327-16011 · 17327-18010 |
| 17341 | Hoses No. 1 (for air injection systems) | 17341-15050 · 17341-15100 · 17341-16011 · 17341-26040 · 17341-26050 · 17341-28040 · 17341-28050 · 90445-27011 |
| 17341A | No. 1 clip or clip (for No. 1 air injection system hose) | 90467-21001 · 90467-23003 · 90467-28003 · 96111-10300 |
| 17342 | Hoses No. 2 (for air injection systems) | 17342-28040 · 17342-28050 · 90445-27011 · 90445-31008 |
| 17342A | No. 2 clip or clip (for No. 2 air injection system hose) | 90467-21001 · 90467-26001 · 90467-28003 |
| 17343 | No. 3 hose (for air injection system) | 17342-26031 · 17342-26042 · 90445-31012 · 90445-31015 |
| 17343A | No. 3 clip or clip (for No. 3 air injection system hose) | 90467-26001 · 90467-28003 |
| 17344 | No. 4 hose (for air injection system) | 90445-27005 · 90445-29005 |
| 17344A | No. 4 clamp or clip (for No. 4 air injection system hose) | 90467-23001 |
| 17345 | No. 5 hose (for air injection system) | 90445-27013 |
| 17350 | Reed valve assembly | 17350-18010 · 17350-28010 |
| 17351 | jet manifold | 17306-15030 · 17306-15040 · 17351-28020 · 17351-28030 · 17351-28070 |
| 17351E | Gasket (for jet manifold) | 89466-30010 |
| 17361 | air tube | 17361-16010 |
| 17368 | Air tube support | 17368-16010 · 17368-18040 · 17368-26020 |
| 17610A | Check valve (for air injection systems) | 90917-10045 · 90917-10062 |
| 17670 | Air bypass valve assembly | 17670-26030 |
| 17980 | Secondary air suction filter assembly | 17980-16011 |
| 25710 | Air switch valve assembly | 25710-26020 |
| 25716 | Air switch valve bracket | 25716-25010 |
| 25740 | Air control valve assembly | 25740-28010 |
| 25740A | Air control valve bracket | 25716-28010 |
