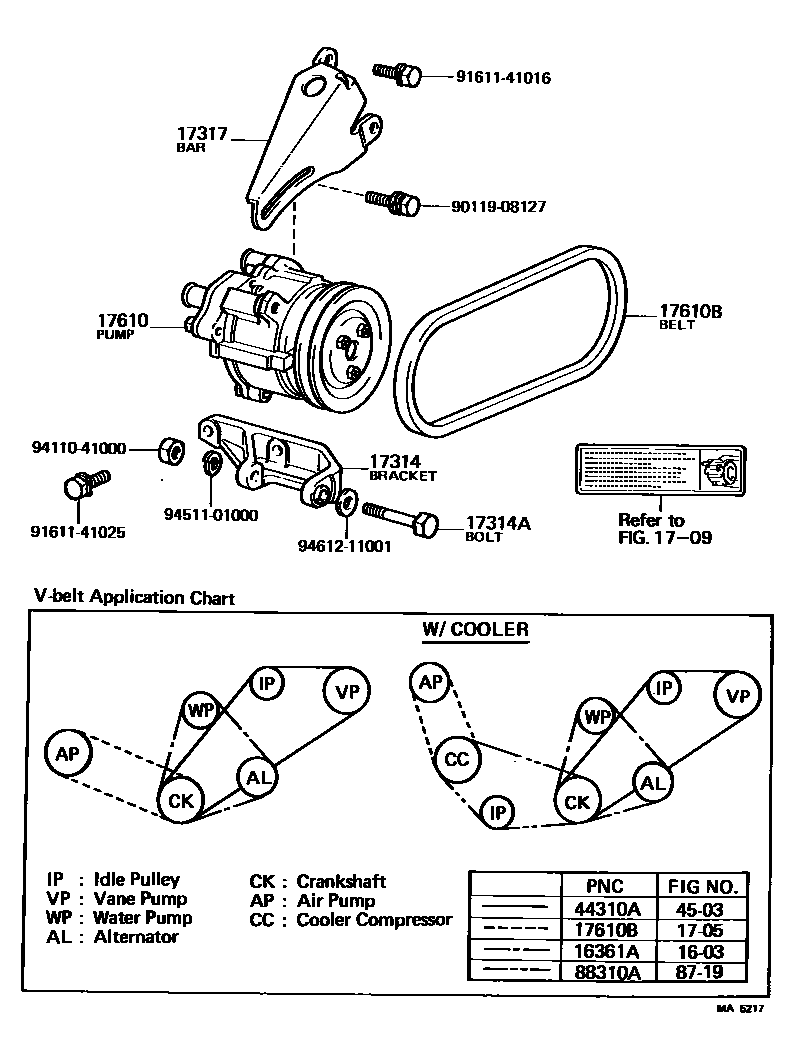

Toyota COROLLA 空气泵 — Figure 1705
Toyota COROLLA EPC diagram 1705, 空气泵, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17314 | air pump bracket | 17314-26022 · 17314-28010 |
| 17314A | Hexagonal bolts (used to secure the air pump bracket) | 90101-10088 · 90101-10402 |
| 17317 | No. 1 air pump adjustment lever | 17317-26021 |
| 17610 | air pump assembly | 17610-26030 · 17610-28010 |
