Toyota COROLLA Air Cleaner — Figure 1703

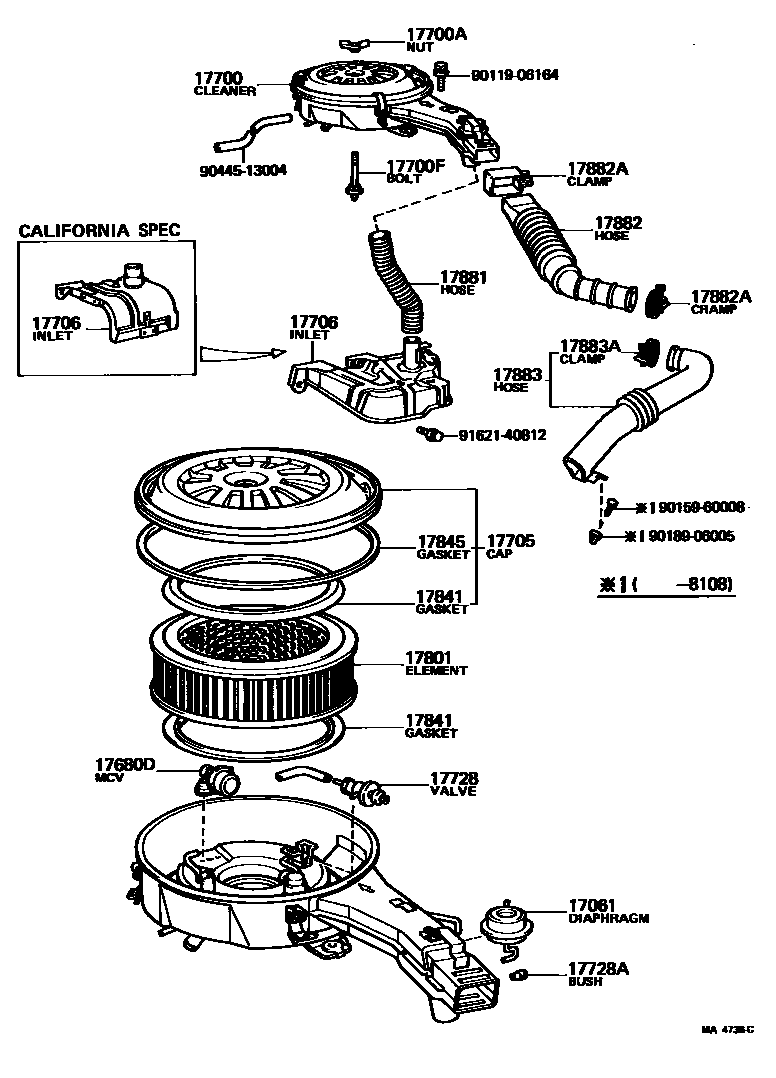

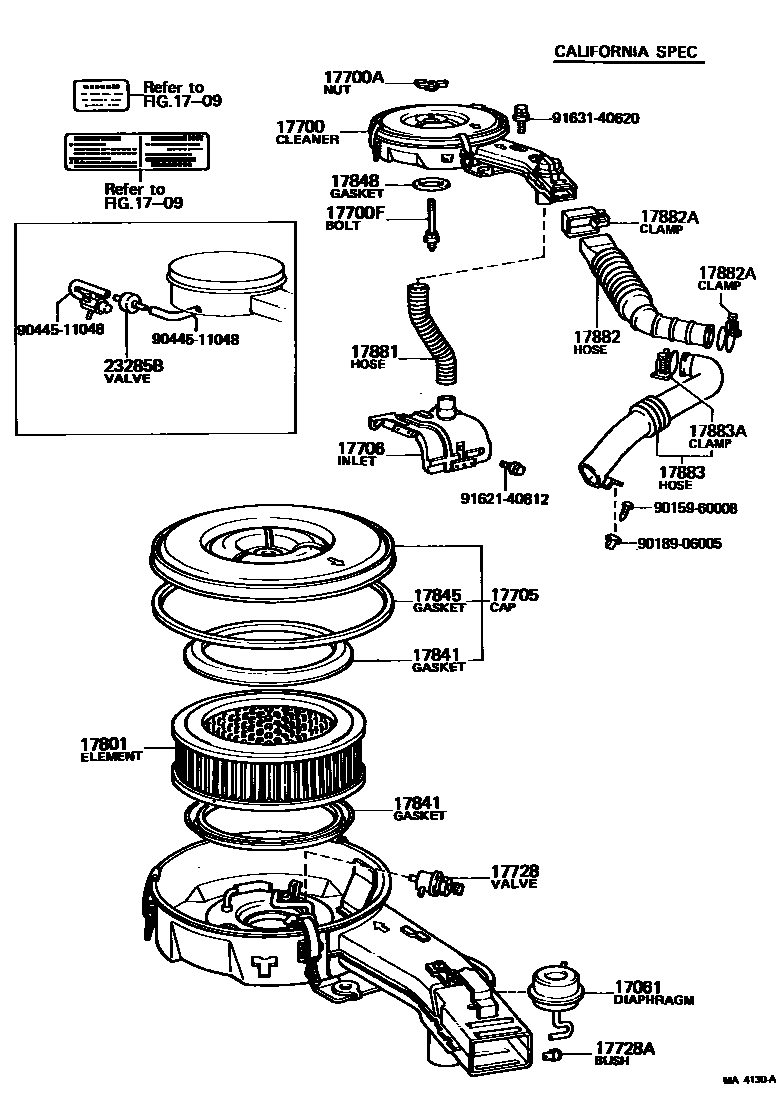

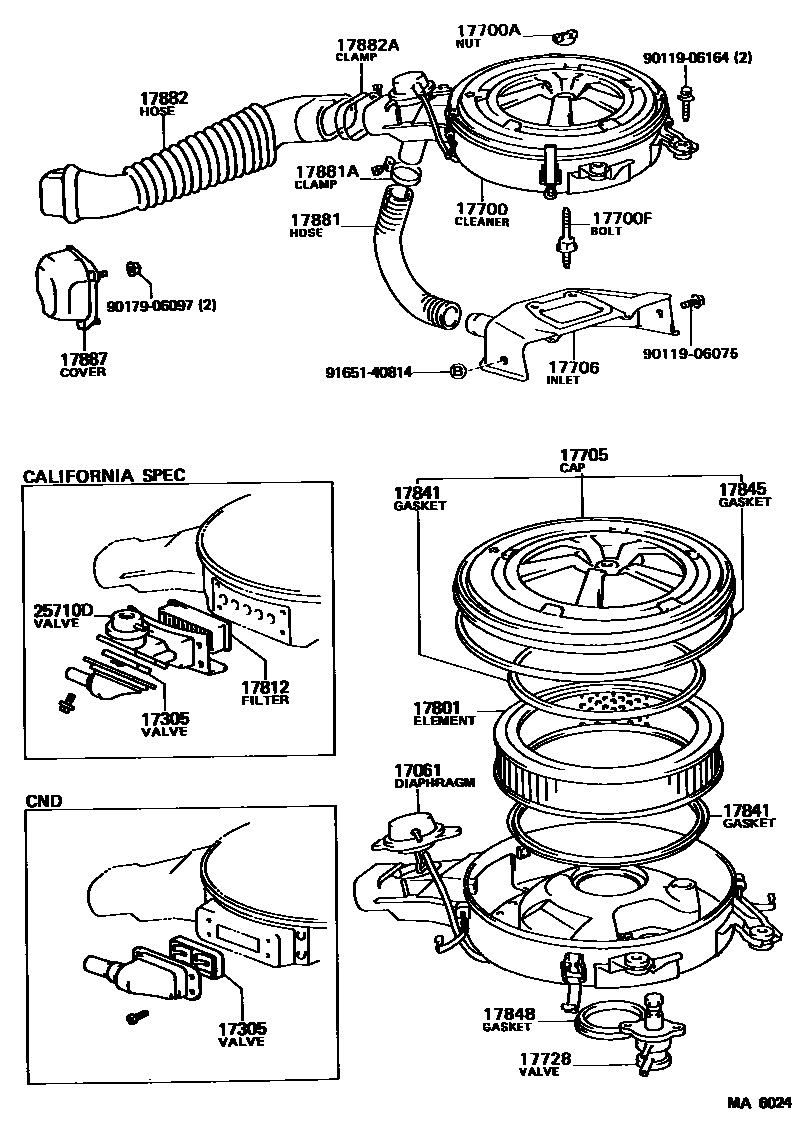

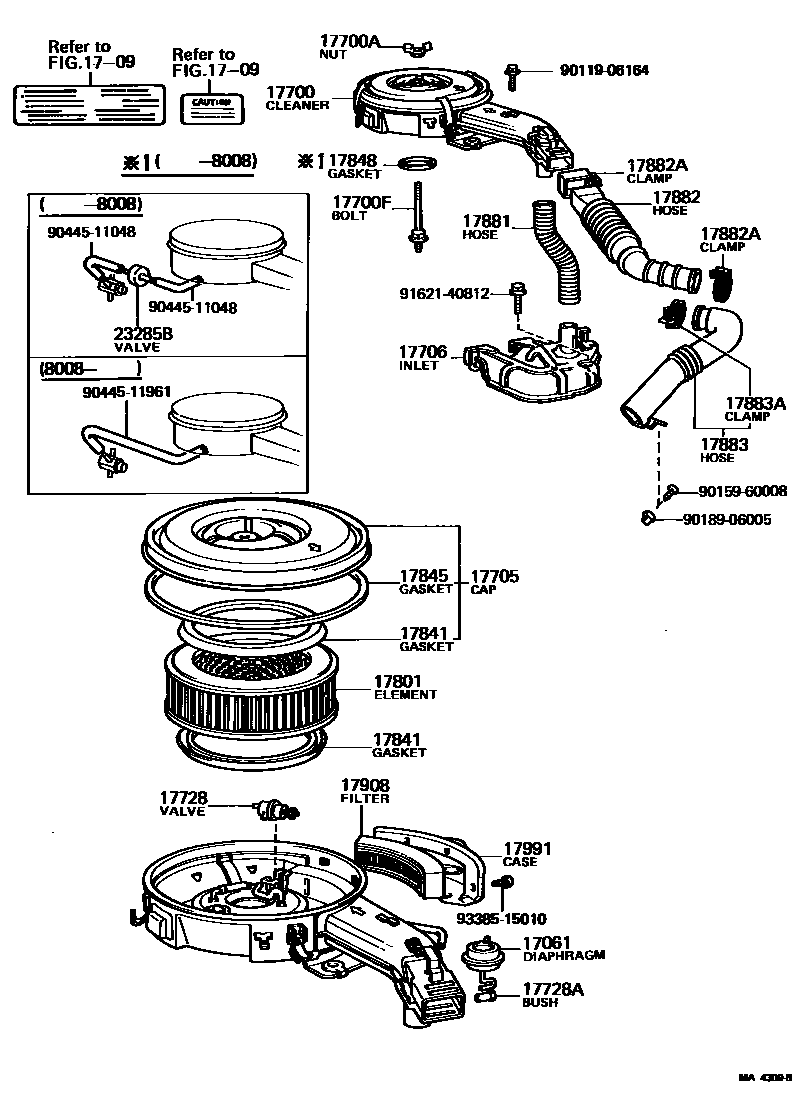

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-26010 |
| 17305 | Reed valve sub-assembly | 17305-15010 · 17305-31010 |
| 17680D | Mixture control valve assembly | 17680-28030 |
| 17700 | air filter assembly | 17700-16010 · 17700-16020 · 17700-16030 · 17700-28020 · 17700-28021 · 17700-28030 · 17700-28050 · 17700-28060 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 |
| 17700F | Stud bolt (for securing air filter) | 90116-06222 · 90116-06230 |
| 17705 | Air filter cover sub-assembly | 17705-15030 · 17705-25012 · 17705-25013 · 17705-28020 · 17705-28030 |
| 17706 | No. 2 air filter air inlet sub-assembly | 17752-26021 · 17901-28010 · 17902-15060 · 17902-27031 · 17902-27032 |
| 17728 | thermostat valve | 17728-15020 · 17728-28010 · 17728-28020 · 17728-28030 |
| 17728A | Bushing | 90386-03001 |
| 17801 | Air filter element sub-assembly | 17801-15010 · 17801-25010 · 17801-34060 |
| 17812 | No. 2 air filter element | 17812-15010 |
| 17841 | filter liner | 17841-15010 · 17841-25010 · 17841-33011 |
| 17845 | air cleaner cover gasket | 17845-15020 · 17845-25010 |
| 17848 | Gasket from air cleaner to carburetor | 90430-63001 · 90430-63187 |
| 17881 | No. 1 air cleaner hose | 17881-26020 · 17881-63010 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10460 |
| 17882 | No. 2 air cleaner hose | 17881-12040 · 17881-28020 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-01003 · 90460-01005 · 96111-10560 |
| 17883 | No. 3 air cleaner hose | 17882-12010 · 17882-13030 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 90460-60001 |
| 17887 | air cleaner hose cover | 17887-15010 |
| 17908 | Secondary air suction filter sub-assembly | 17908-27010 |
| 17991 | Secondary air suction filter housing | 17991-28010 · 17991-28020 |
| 23285B | No. 1 one-way valve | 90917-10053 |
| 25710D | Air switch valve assembly | 25710-15060 |
