Toyota COROLLA Exhaust Pipe — Figure 1702

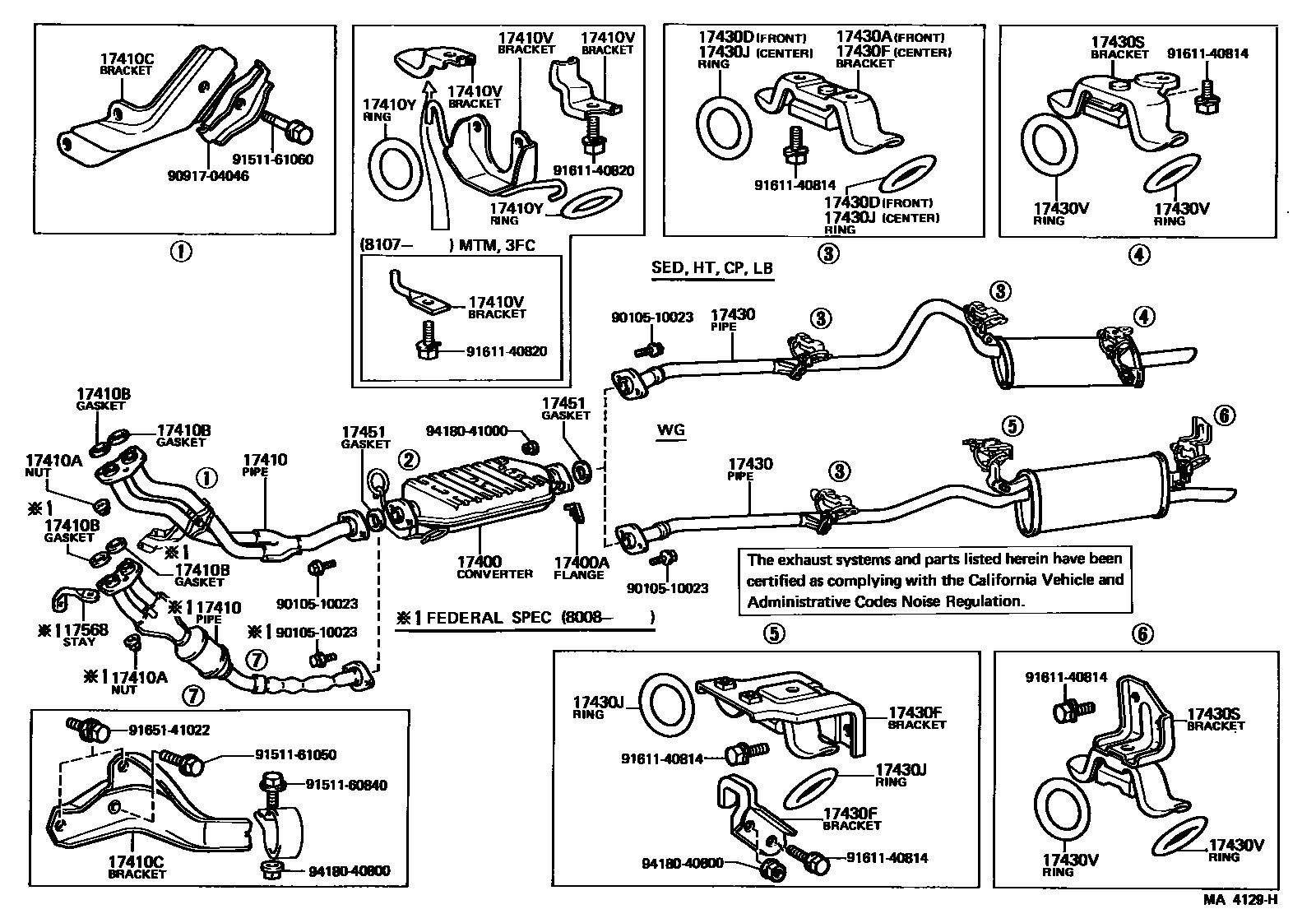

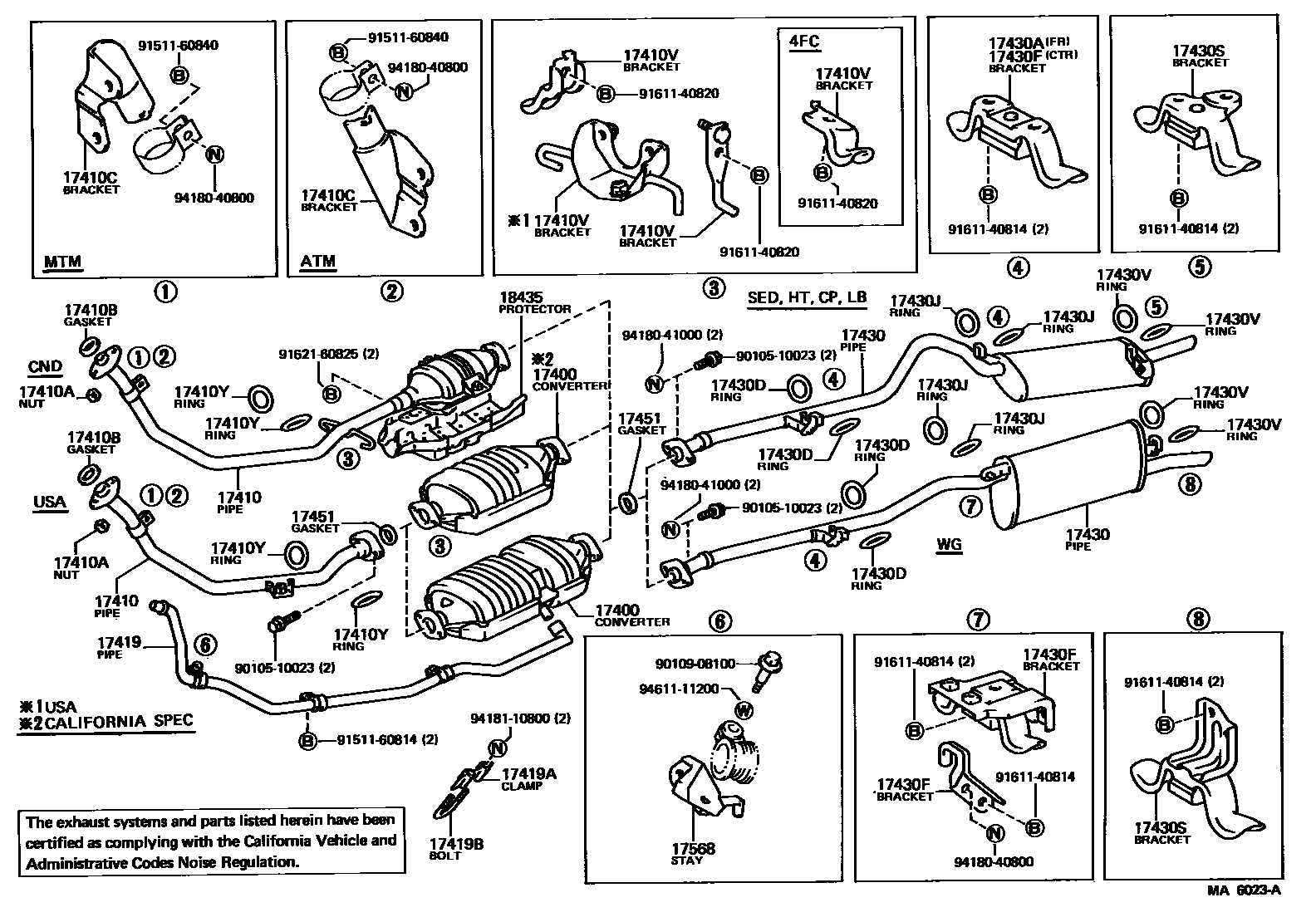

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 17040-28020 · 17040-28050 · 17040-28060 · 17040-28070 · 18450-15020 · 18450-15040 |
| 17400A | Thermal sensor air inlet flange | 18491-34010 |
| 17410 | Front exhaust pipe assembly | 17410-15140 · 17410-15150 · 17410-28050 · 17410-28060 · 17410-28110 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10010 |
| 17410B | Exhaust pipe gasket | 90917-06001 · 90917-06004 |
| 17410C | Front exhaust pipe bracket (for front) | 17051-28010 · 17571-15090 · 17571-15100 · 17571-26160 · 17571-28040 |
| 17410V | Front exhaust pipe bracket (for rear) | 17505-13020 · 17505-13030 · 17505-15040 · 17505-28030 · 17505-28040 · 17587-13020 · 17587-13030 · 17587-28010 · 17588-13020 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 90301-34207 · 90301-36001 |
| 17419 | Three-way catalytic converter intake pipe | 17409-15010 |
| 17419A | Clamp No. 1 (for three-way catalytic converter intake pipe) | 17578-15020 |
| 17419B | U-shaped bolt (for three-way catalytic converter intake pipe) | 90117-08022 |
| 17430 | Exhaust tailpipe assembly | 17430-15210 · 17430-15220 · 17430-28030 · 17430-28040 · 17430-28050 · 17430-28060 · 17430-28070 · 17430-28080 · 17430-28130 · 17430-28140 |
| 17430A | Exhaust tailpipe bracket (for front) | 17506-13020 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 90301-36001 |
| 17430F | Exhaust tailpipe bracket (for center) | 17506-13020 · 17507-24020 · 17562-13030 |
| 17430J | Exhaust tailpipe bolt or ring (for center) | 90301-34207 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17508-13010 · 17508-24040 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 90301-34207 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06008 · 90917-06018 · 90917-06023 |
| 17568 | Exhaust pipe bracket stay | 17568-15030 · 17568-15040 · 17568-28010 |
| 18435 | Three-way catalytic converter protection device | 18407-27010 |
