Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 3 images and 23 PNC and OE references.

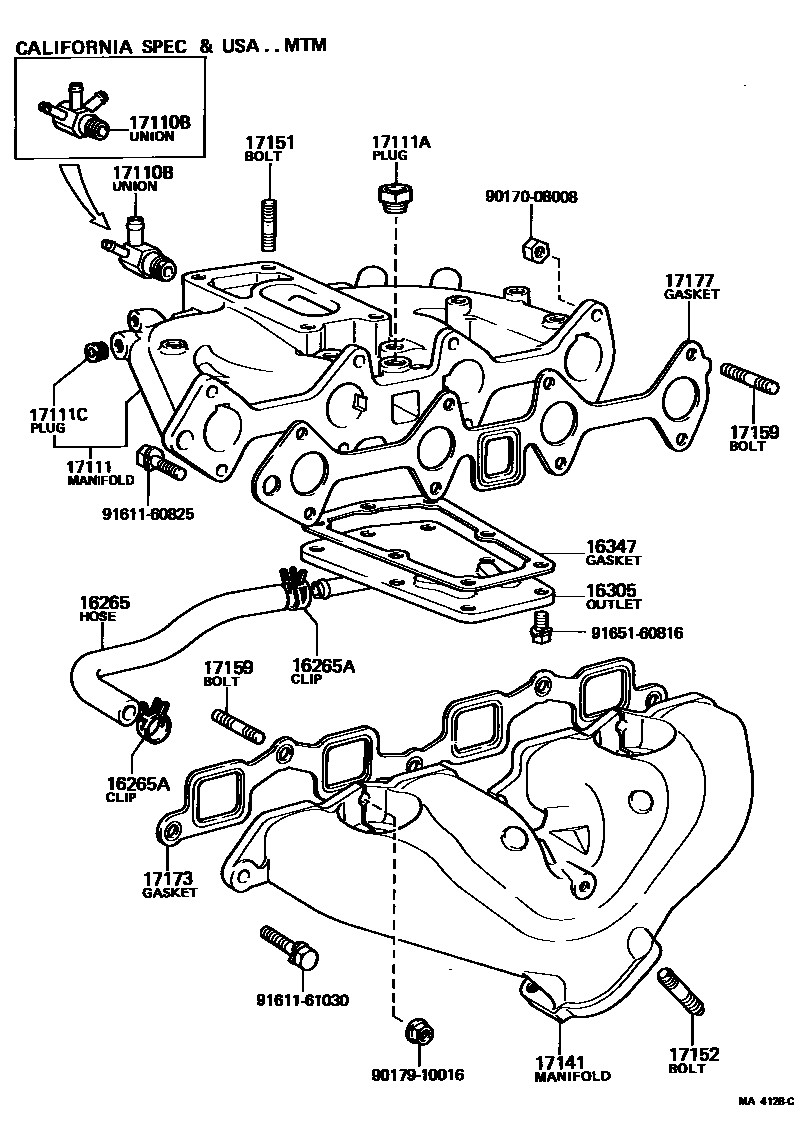

Toyota COROLLA Manifold EPC diagram — MA4128C
Manifold — MA4128C (197908 – 198208)

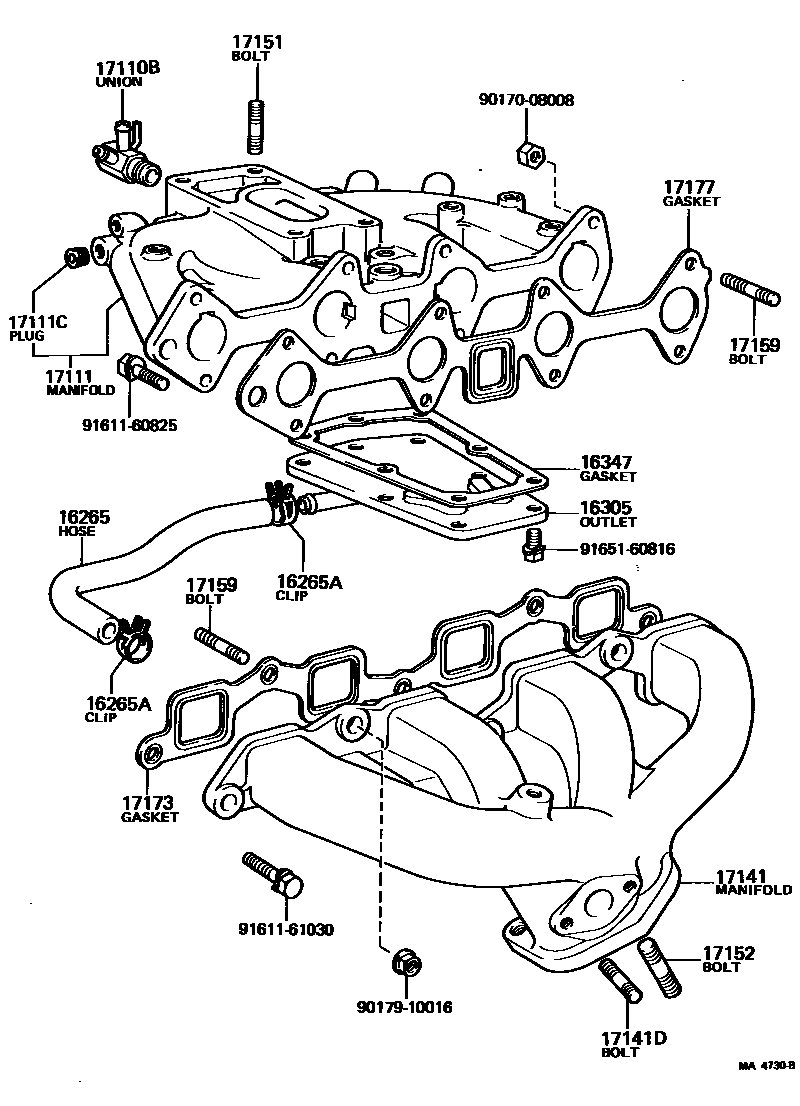

Toyota COROLLA Manifold EPC diagram — MA4730B
Manifold — MA4730B (198008 – 198208)
Toyota COROLLA Manifold EPC diagram — MA6022B
Manifold — MA6022B (198208 – 999999)

PNC and OE references

PNCPart nameOE numbers
16265Intake manifold water hose16261-26011 · 90445-21611
16265AHose clamp or clip (for intake manifold water hose)90467-20004 · 90467-20005
16305Water bypass outlet sub-assembly16305-25011
16347water bypass liner16347-25011 · 16347-25012
17110BFitting (for vent hose to manifold)90404-53018 · 90404-53023 · 90404-53039
17111Intake Manifold17111-16010 · 17111-26901
17111ANo. 1 screw plug90345-53007
17111CNo. 3 screw plug90344-53008
17118Manifold stays17118-16010
17141exhaust manifold17140-15070 · 17140-15080 · 17141-27011 · 17141-28020 · 17141-28030 · 17141-28040
17141DStuds (for oxygen sensor)90116-08045 · 90116-08128
17151Studs (for manifold to carburetor)90116-08023 · 92112-40832
17152Studs (for manifold to exhaust)90116-10017 · 90116-10056 · 90116-10058
17159Studs (for manifold to cylinder head)90116-08035 · 92112-61032 · 92122-61025
17172Gasket (manifold to cylinder head)17172-15010
17173Gasket (exhaust manifold to cylinder head)17173-25012
17177No. 1 gasket (intake manifold to cylinder head)17177-25030
17233Counterweight17233-15010
17233ANo. 1 coil spring (for counterweight)90510-06001
17233BNo. 2 coil spring (for counterweight)90501-08022
17233CBolt (for counterweight)90109-10045
17233DSpacers (for counterweight)90910-10005
17233EE-ring (for counterweight)96160-00800
