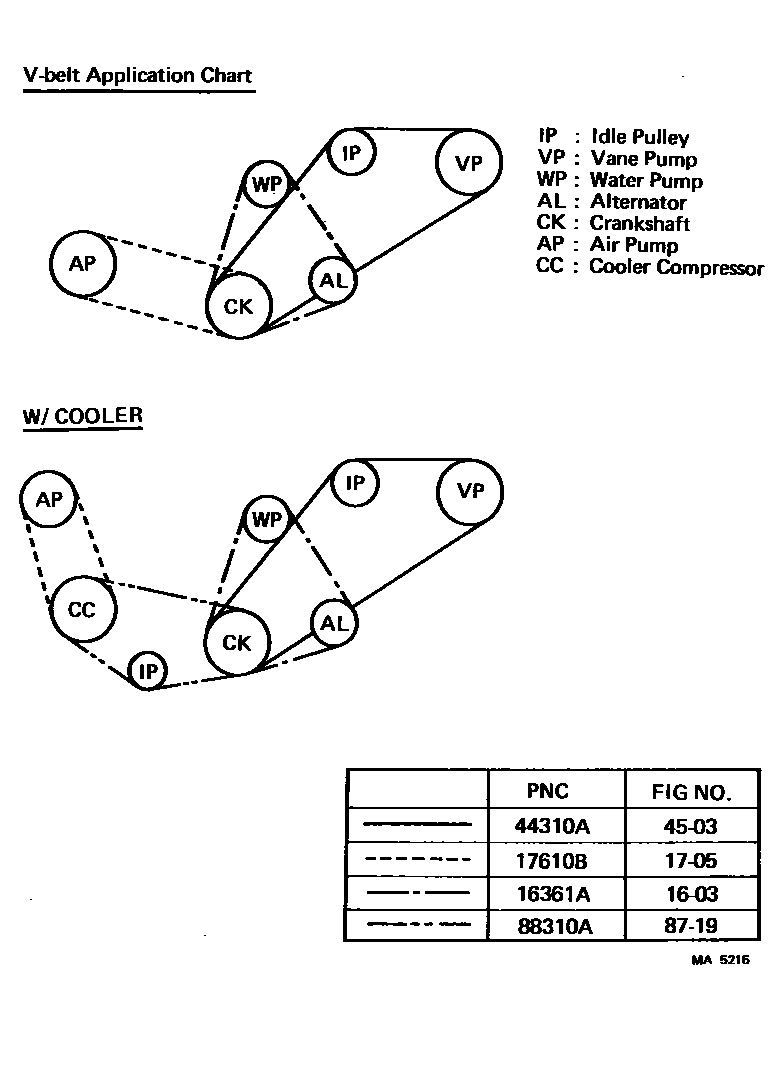

Toyota COROLLA V-Belt — Figure 1605
Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90916-02117 · 90916-02126 · 99331-10885 |
| 17610B | V-belt (for air pump) | 99332-10765 · 99332-10815 |
| 44310A | V-belt (for vane pump) | 99332-00805 · 99332-11080 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 99332-10860 · 99332-10965 |
