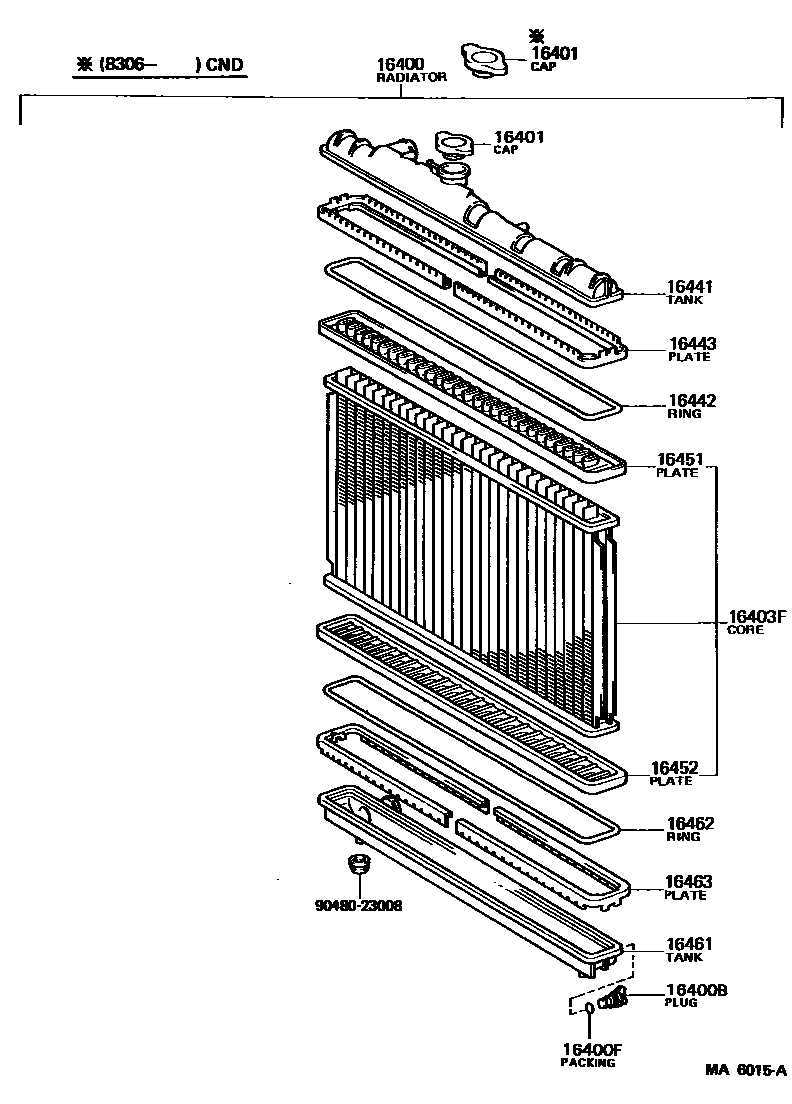

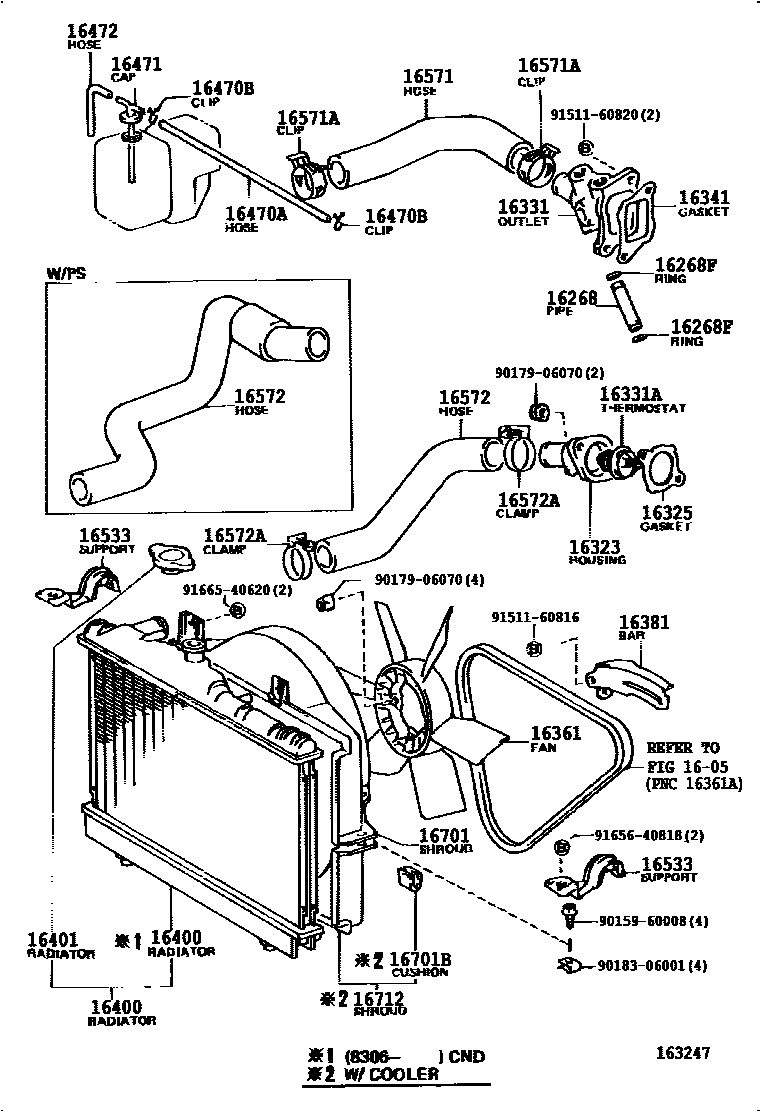

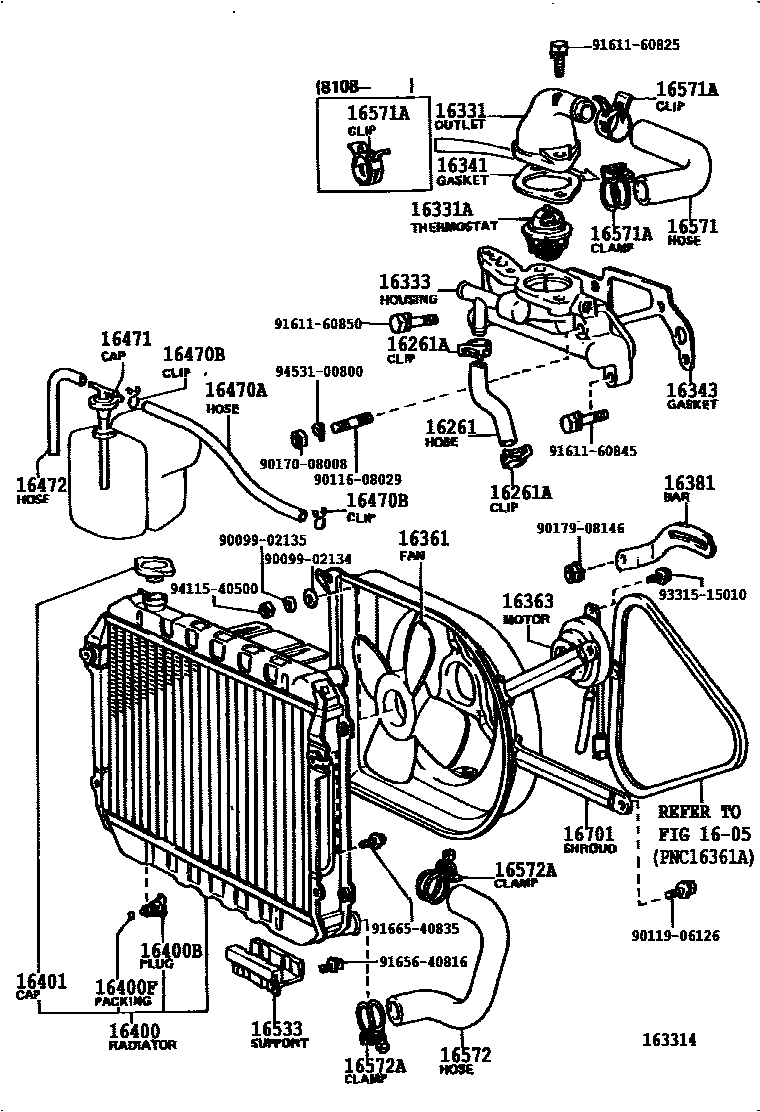

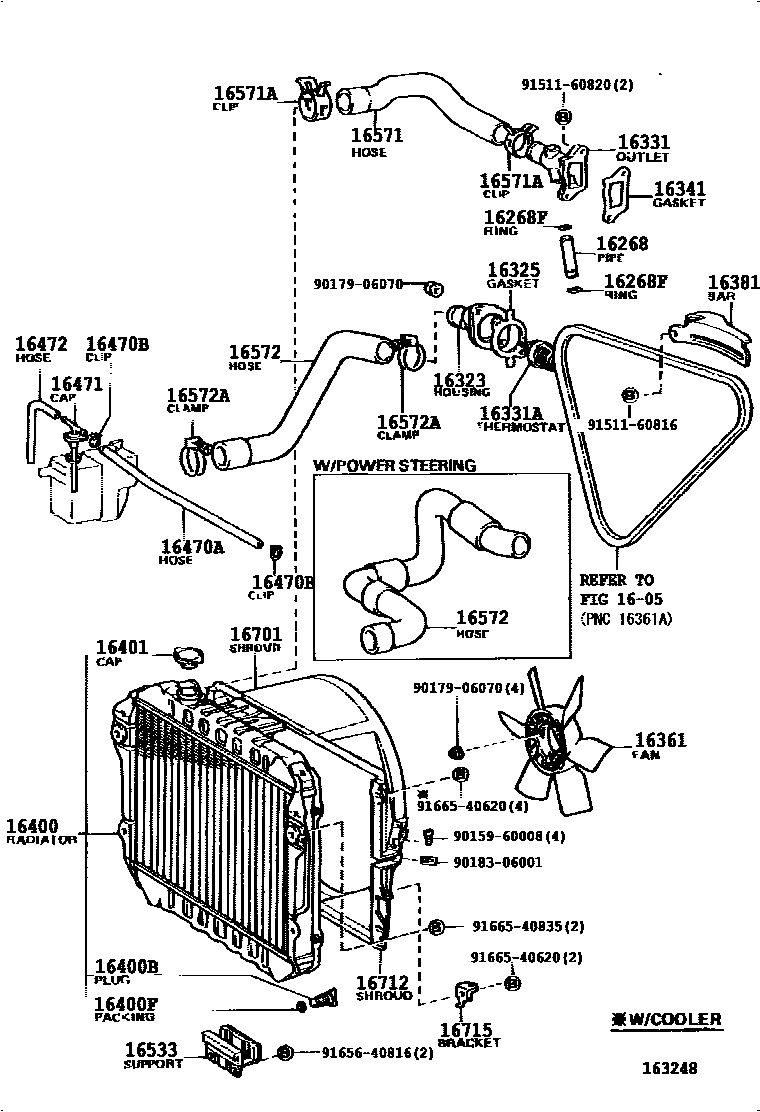

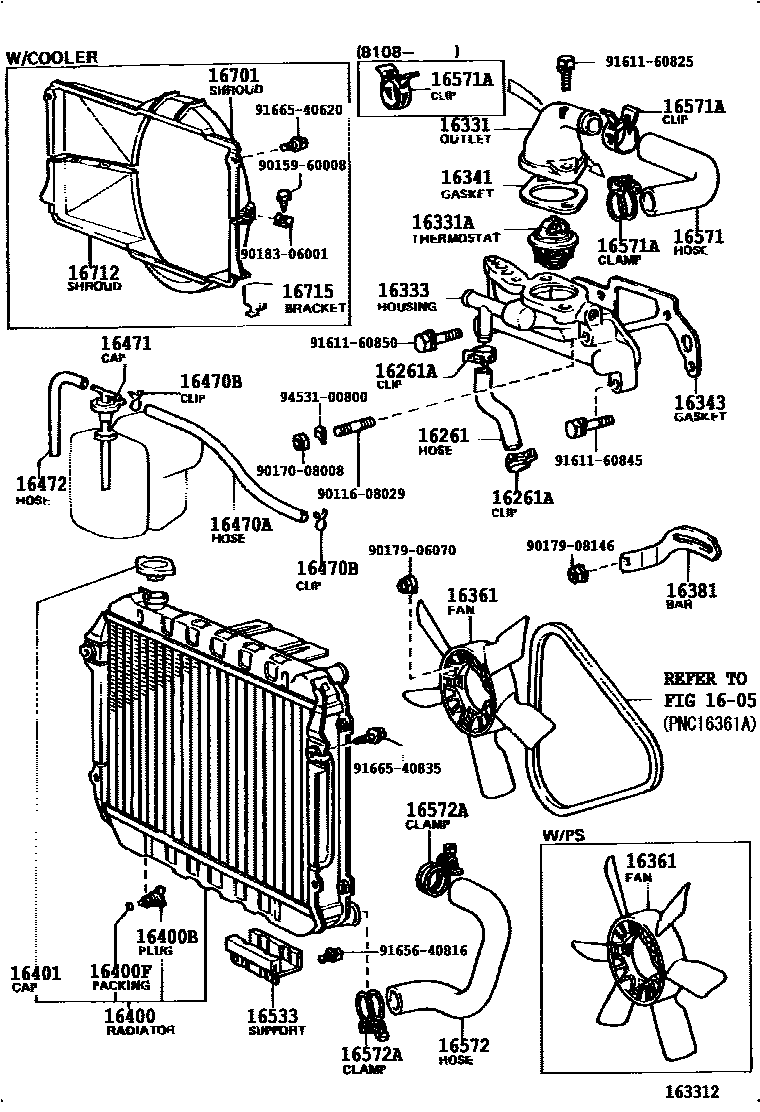

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 6 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-25020 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-20004 · 90467-20005 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-15010 |
| 16268F | O-ring (for water bypass pipe) | 96711-24013 |
| 16323 | HOUSING, WATER INLET | 16323-15020 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-70021 |
| 16331 | Water outlet | 16331-15040 · 16331-15050 · 16331-26060 · 16331-28010 |
| 16331A | thermostat | 90916-03036 · 90916-03040 · 90916-03046 |
| 16333 | Water outlet shell | 16303-26041 · 16303-26072 |
| 16341 | GASKET, WATER OUTLET | 16341-15011 · 16341-38010 · 16341-38011 |
| 16343 | Outlet shell gasket | 16343-26010 · 16343-26011 |
| 16361 | Fan | 16361-16010 · 16361-18010 · 16361-26040 · 16361-28010 |
| 16363 | cooling fan motor | 16363-28010 · 16363-28011 |
| 16381 | Fan belt adjustment lever | 16381-15030 · 16381-25010 |
| 16400 | Radiator assembly | 16400-15160 · 16400-15170 · 16400-15180 · 16400-26210 · 16400-26230 · 16400-26320 · 16410-15290 |
| 16400B | Radiator drain switch screw plug | 23322-54010 · 90910-09054 |
| 16400F | Seal (for radiator drain switch) | 96710-01007 · 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-36011 · 16401-63010 |
| 16403F | Radiator core sub-assembly | 16403-15160 |
| 16441 | Radiator water tank | 16441-15160 |
| 16442 | O-ring (for radiator tank) | 16442-31300 |
| 16443 | Radiator upper tank locking plate | 16443-15120 · 16443-15271 |
| 16451 | Radiator core upper plate | 16451-15120 |
| 16452 | Radiator core lower plate | 16452-15120 |
| 16461 | Radiator lower tank | 16461-15160 |
| 16462 | O-ring (for radiator lower tank) | 16462-15120 |
| 16463 | Radiator lower tank locking plate | 16463-15120 · 16463-15270 |
| 16470A | Hoses or tubes (for radiator reservoir) | 90445-12023 · 90445-12073 · 90445-12351 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 85339-12010 |
| 16472 | Breather hose | 85338-12010 · 85338-16010 |
| 16533 | Radiator upper bracket | 16505-15020 · 16506-15020 · 16533-26010 · 16533-26030 |
| 16571 | Radiator water inlet hose | 16571-15020 · 16571-15090 · 16571-26080 · 90916-01167 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34001 · 90467-37001 · 96111-10430 |
| 16572 | Radiator outlet hose | 16572-15080 · 16572-15090 · 16572-15130 · 16572-15140 · 16572-26040 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90460-47036 · 96111-10400 · 96111-10500 |
| 16701 | Fan cover sub-assembly | 16711-12040 · 16711-15100 · 16711-15110 · 16711-28050 · 16711-28060 · 16711-28070 |
| 16701B | fan cover cushion | 90541-11002 |
| 16712 | No. 2 fan cover | 16712-12020 · 16712-15020 · 16712-28030 · 16712-28040 |
| 16715 | fan cover bracket | 16715-28010 |
