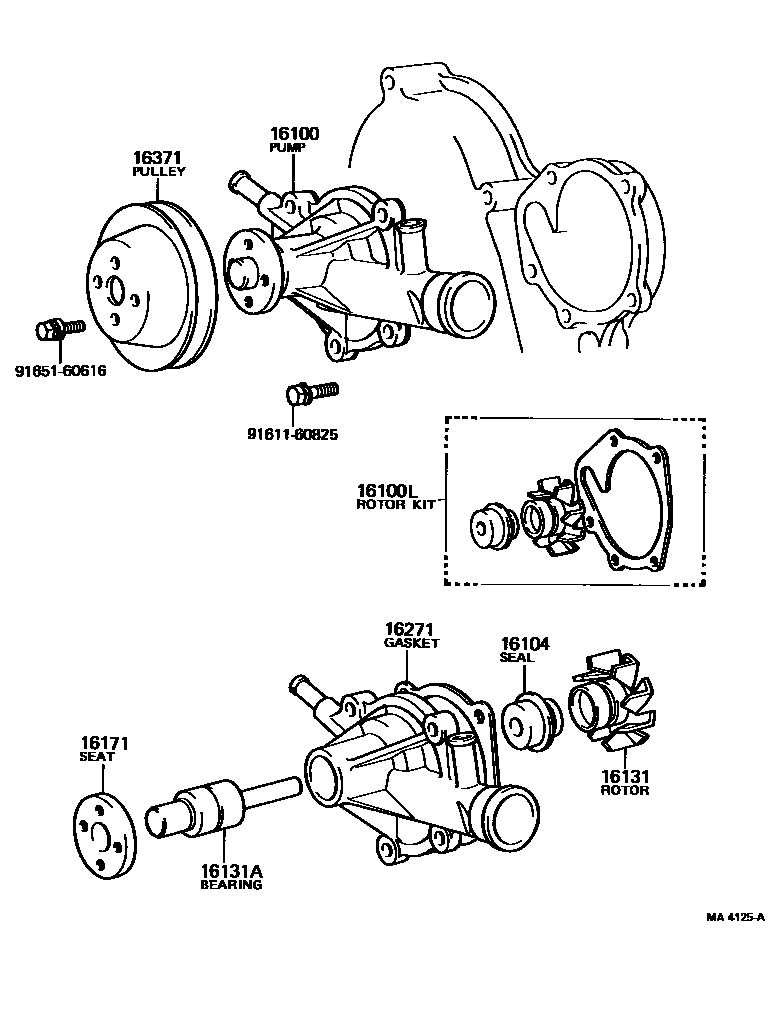

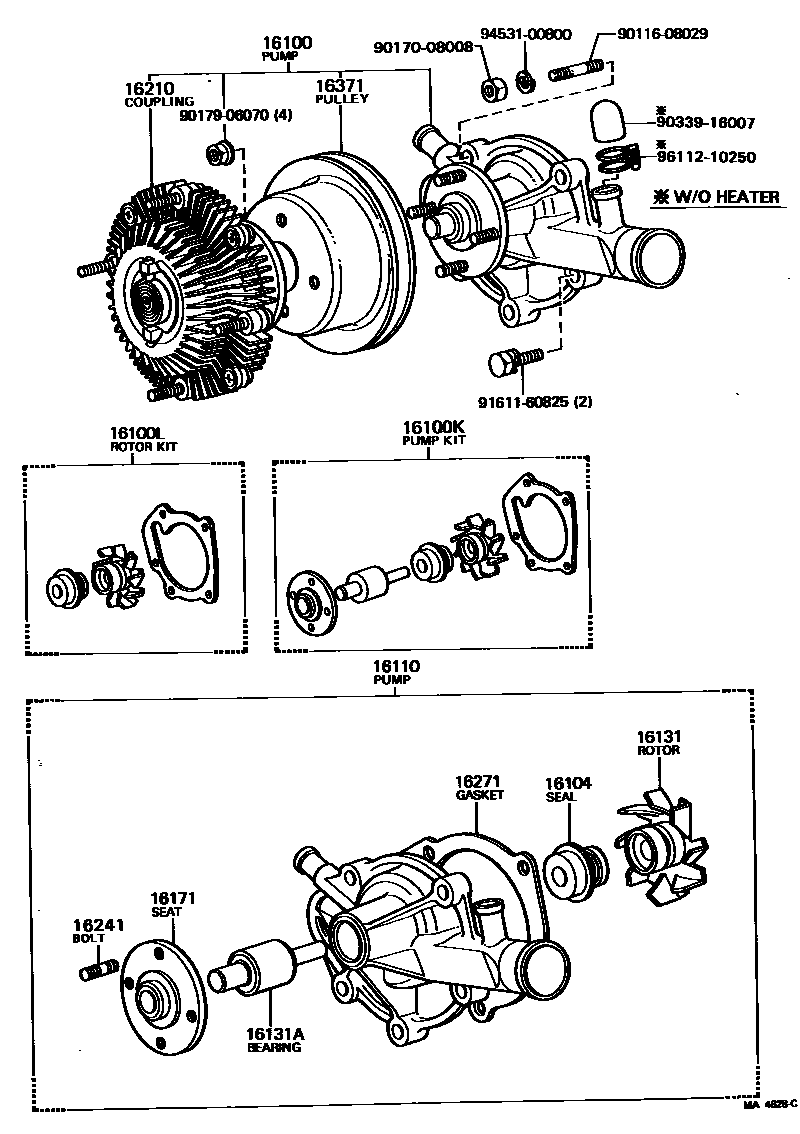

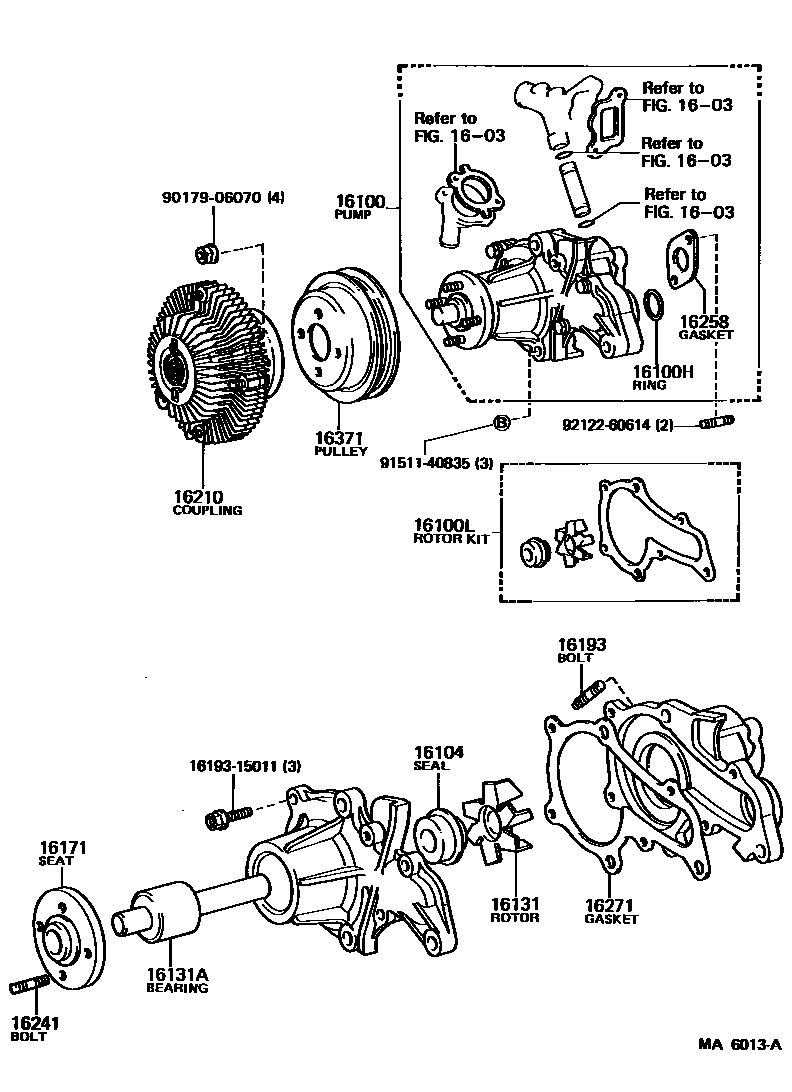

Toyota COROLLA Water Pump — Figure 1601
Toyota COROLLA EPC diagram 1601, Water Pump, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-19036 · 16100-28020 · 16100-28030 |
| 16100H | O-ring (for water pump) | 96711-24035 |
| 16100K | Water pump components | 04161-28010 · 04161-28011 · 04161-28012 |
| 16100L | Water pump rotor assembly | 04162-15010 · 04162-28010 · 04162-28020 · 04162-28021 |
| 16104 | Water pump seal components | 16104-41110 · 16104-41111 |
| 16110 | Water pump assembly without coupling | 16110-28010 |
| 16131 | water pump rotor | 16131-15010 · 16131-26010 |
| 16131A | water pump bearings | 16140-38011 · 90369-30014 · 90369-30063 |
| 16171 | water pump pulley seat | 16171-15020 · 16171-24030 · 16171-26021 |
| 16193 | Studs (for water pump cover) | 16193-15010 |
| 16210 | Hydraulic coupler assembly | 16210-18010 · 16210-28020 |
| 16241 | Stud bolts (for water pump coupling) | 16241-15020 · 90116-06008 |
| 16258 | Pad (for heater return) | 16258-15011 |
| 16271 | water pump gasket | 16124-15010 · 16129-25011 · 16129-25012 |
| 16371 | fan pulley | 16173-28010 · 16371-16010 · 16371-28010 |
