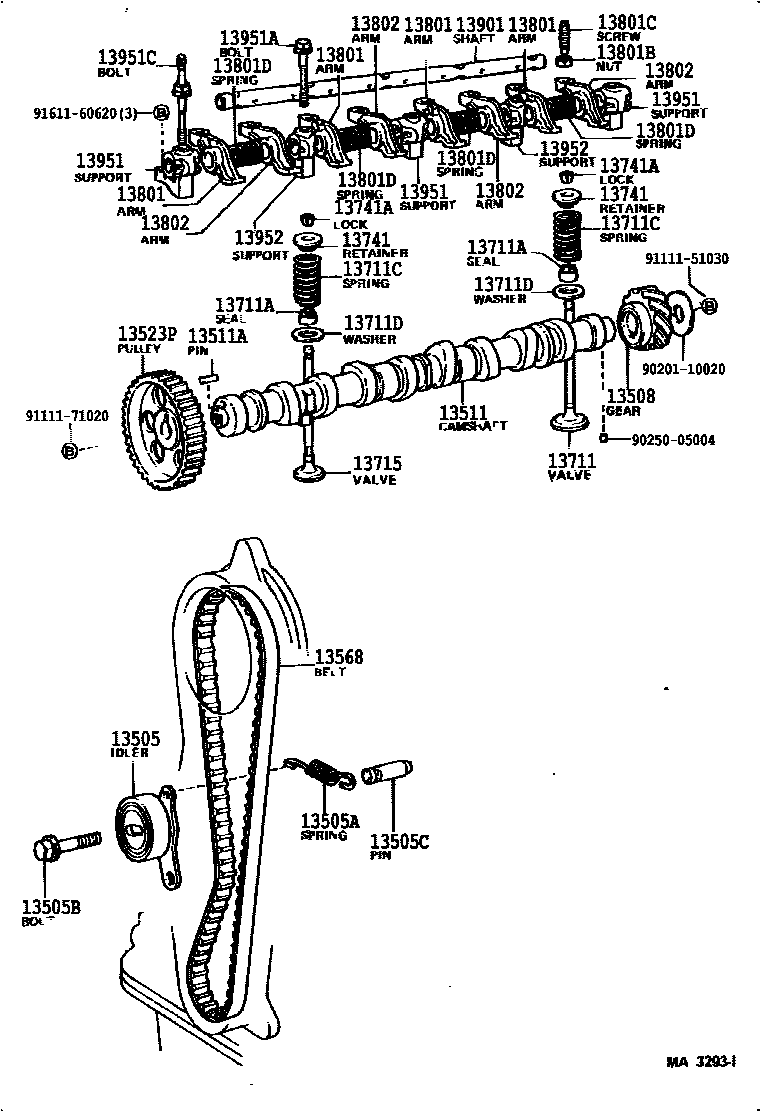

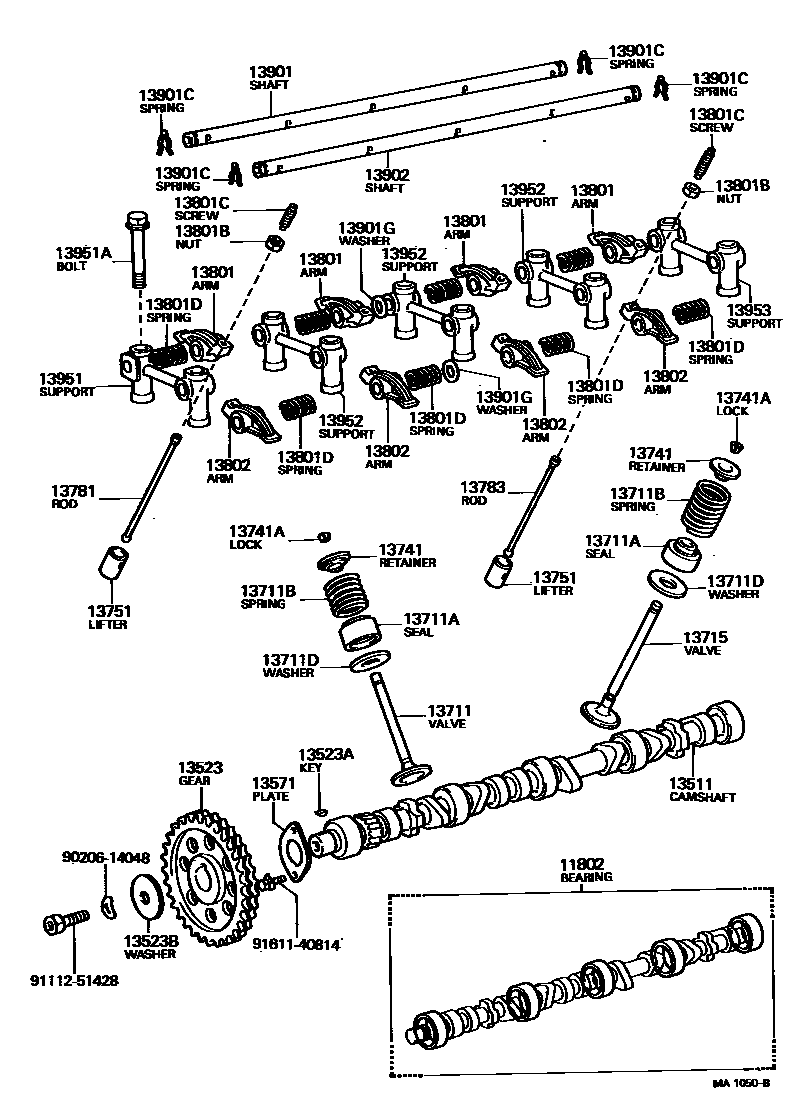

Toyota COROLLA Camshaft & Valve — Figure 1302
Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 2 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11802 | Camshaft bearing assembly | 11802-25010 · 11802-25011 · 11803-25010 · 11803-25011 · 11804-25010 · 11804-25011 |
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-15040 |
| 13505A | Tension spring (for idler pulley) | 90506-14016 |
| 13505B | Flange bolts (for idler gear) | 91511-61040 |
| 13505C | Pin (for idler tension spring) | 90249-06006 |
| 13506 | Chain sub-assembly | 13506-25010 |
| 13508 | Distributor driving gear sub-assembly | 13508-15010 |
| 13511 | camshaft | 13511-14010 · 13511-25010 · 13511-25030 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-05121 |
| 13523 | Camshaft timing gear or sprocket | 13522-33010 |
| 13523A | Half-moon pin (for timing gear) | 90280-05010 |
| 13523B | Flat washer (for timing gear) | 90201-14293 |
| 13523P | Camshaft timing pulley | 13523-14010 |
| 13540 | No. 1 chain tensioner assembly | 13540-25010 |
| 13540A | Compression spring (for chain tensioner) | 90501-10595 |
| 13545 | chain tensioner plunger | 13545-25010 |
| 13561 | No. 1 chain shock absorber | 13561-25010 |
| 13568 | timing belt | 13568-15010 |
| 13571 | Camshaft thrust plate | 13571-51010 |
| 13711 | intake valve | 13711-15010 · 13711-25011 |
| 13711A | Oil seal or O-ring (for valve stem) | 90913-02023 · 90913-02038 · 90913-02058 |
| 13711B | Compression spring (for inner side) | 90501-47540 |
| 13711C | Compression spring (for outside) | 90501-42004 |
| 13711D | Flat washer (for valve spring seat) | 90201-15387 · 90201-21002 |
| 13715 | exhaust valve | 13715-15010 · 13715-25011 |
| 13741 | Valve spring seat ring | 13741-15010 · 13741-25012 |
| 13741A | Valve spring seat lock plate | 90913-03005 · 90913-03017 |
| 13751 | valve lifter | 13751-31020 · 13755-31020 |
| 13781 | valve pushrod | 13781-25011 |
| 13783 | No. 2 valve pushrod | 13783-25011 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13811-15010 · 13811-25011 |
| 13801B | Hex nut (for valve adjustment) | 90170-07001 · 90170-08005 · 90170-08094 |
| 13801C | valve adjustment screw | 90913-05013 · 90913-05018 |
| 13801D | Compression spring (for rocker arm) | 90501-12008 · 90501-14025 |
| 13802 | No. 2 valve rocker arm sub-assembly | 13812-15010 · 13812-25010 |
| 13901 | No. 1 valve rocker arm shaft sub-assembly | 13901-15010 · 13901-25010 |
| 13901C | Stop spring (for valve rocker arm shaft) | 90524-13009 |
| 13901G | Rocker shaft washer | 90201-16172 |
| 13902 | No. 2 valve rocker arm shaft sub-assembly | 13902-25010 |
| 13951 | No. 1 valve rocker arm bracket | 13951-15010 · 13951-25010 |
| 13951A | Bolts (for rocker arm bracket assembly) | 90109-08029 · 90910-02040 |
| 13951C | Stud bolts (for rocker arm bracket) | 90109-08028 |
| 13952 | No. 2 valve rocker arm bracket | 13952-15010 · 13952-25010 |
| 13953 | No. 3 valve rocker arm bracket | 13953-25010 |
