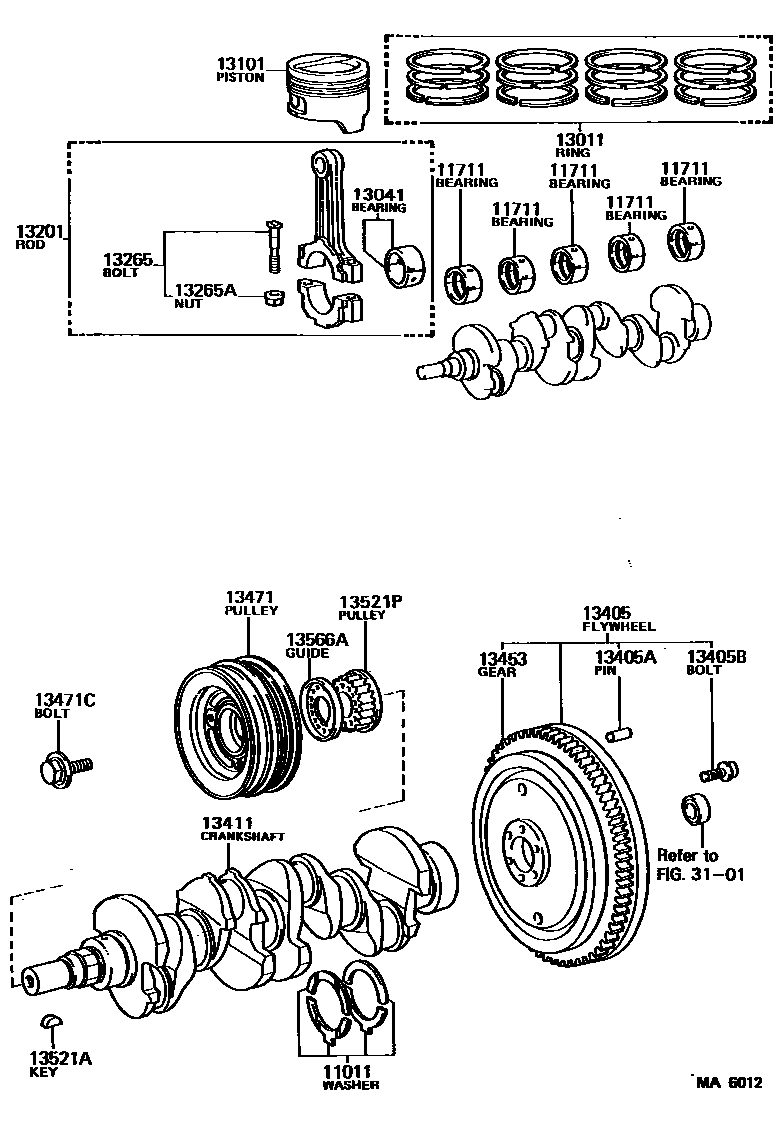

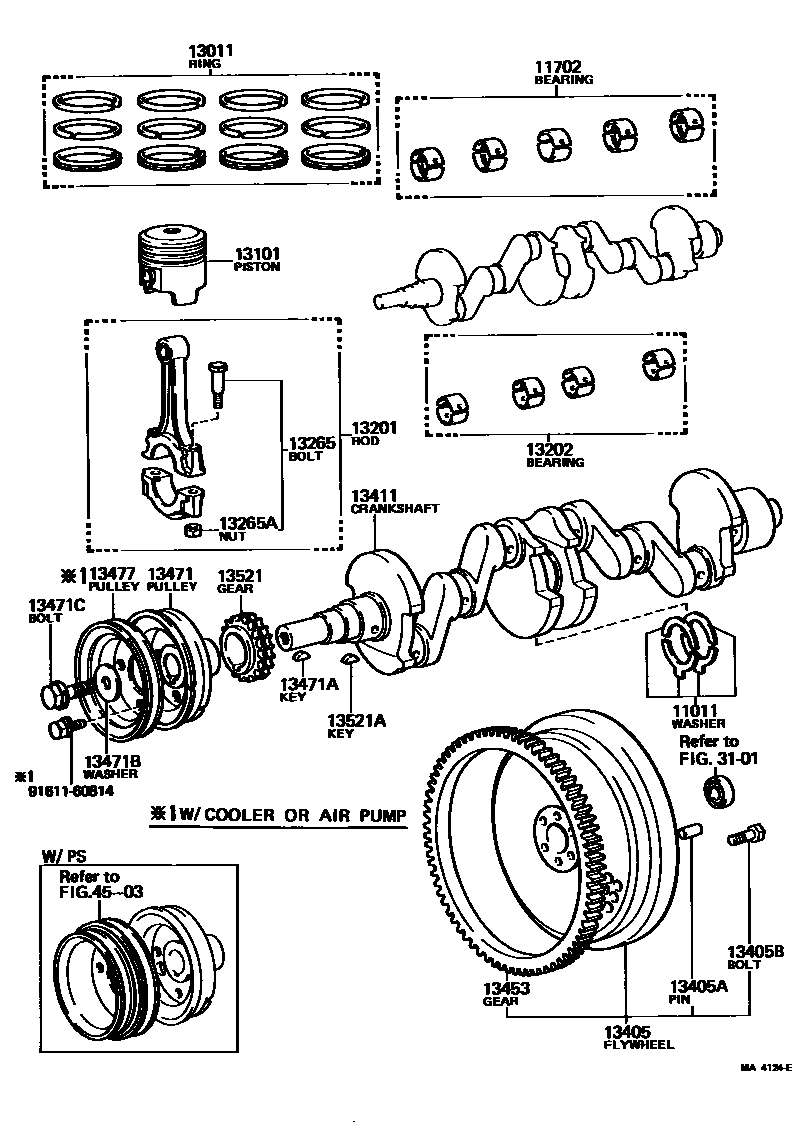

Toyota COROLLA Crankshaft & Piston — Figure 1301
Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-15010 · 11011-25010 · 11012-25010 · 11013-25010 |
| 11702 | crankshaft bearing assembly | 11702-25013 · 11703-25013 · 11704-25013 · 11705-25013 |
| 13011 | Piston ring assembly | 13011-16010 · 13011-16011 · 13011-28030 · 13013-28030 · 13014-28030 · 13015-28030 |
| 13101 | Piston sub-assembly with pin | 13101-16010 · 13101-28010 · 13103-28010 · 13104-28010 · 13105-28010 |
| 13201 | Connecting rod sub-assembly | 13201-19015 · 13201-19016 · 13201-19045 · 13201-19055 · 13201-25010 |
| 13202 | Connecting rod bearing assembly | 13202-25010 · 13203-25010 · 13204-25010 · 13205-25010 |
| 13265 | Connecting rod bolts | 13265-15020 · 13265-19015 · 13265-29025 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90170-09001 · 90170-09195 · 90179-08014 |
| 13405 | Flywheel sub-assembly | 13405-19125 · 13405-29037 · 13405-29115 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-10042 |
| 13411 | crankshaft | 13411-15021 · 13411-15030 · 13411-28010 |
| 13453 | flywheel ring gear | 13453-10010 · 13453-20010 |
| 13471 | crankshaft pulley | 13407-15030 · 13471-18010 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05010 |
| 13471B | Flat Washer (for crankshaft pulley assembly) | 90209-13003 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-12012 · 90105-12050 · 90105-12051 |
| 13477 | No. 2 crankshaft pulley | 13477-18010 · 13477-18011 |
| 13521 | Crankshaft timing gear or sprocket | 13521-33010 |
| 13521A | Key (for crankshaft timing gear) | 90280-05010 |
| 13521P | crankshaft timing pulley | 13521-15010 |
| 13566A | timing belt guide | 13566-15010 |
