Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 2 images and 7 PNC and OE references.

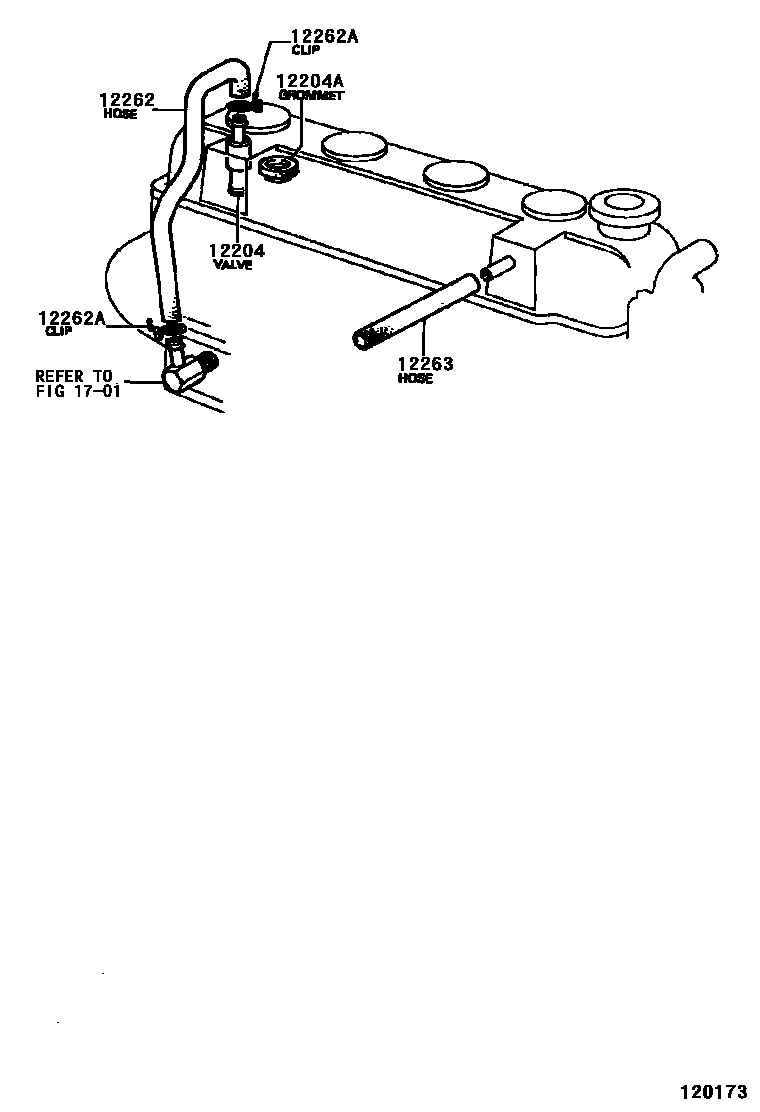

Toyota COROLLA Ventilation Hose EPC diagram — 120173
Ventilation Hose — 120173 (197908 – 999999)

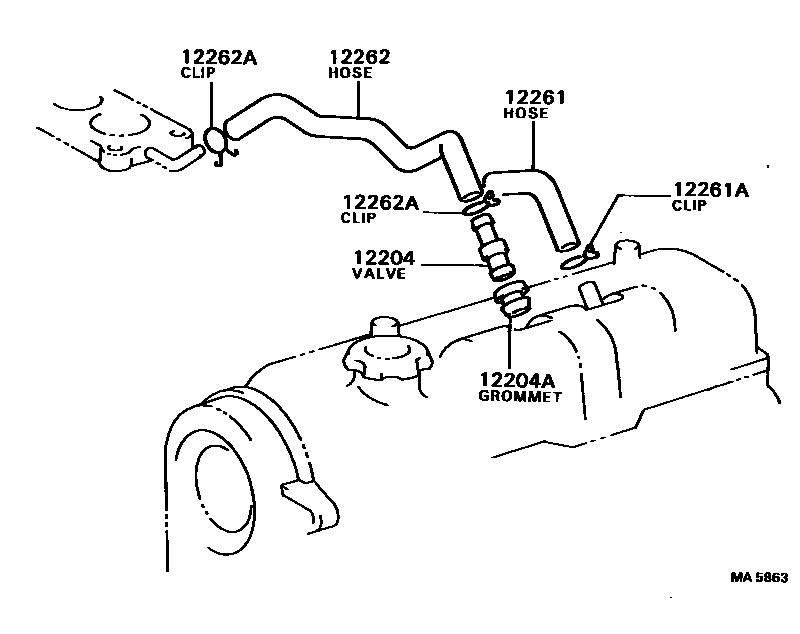

Toyota COROLLA Ventilation Hose EPC diagram — MA5863
Ventilation Hose — MA5863 (197908 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-15020 · 12204-15022 · 12204-28010
12204AGasket (for ventilation system)90480-18001 · 90480-18180
12261Ventilation Hose12261-15030
12261AClip or clip (for vent hose)90467-16010
12262Ventilation hose No. 212261-25012 · 12262-15030 · 12262-15050
12262AClamp (for vent hose No. 2)90467-13103 · 90467-16010
12263No. 3 ventilation hose12262-25010 · 90445-20012
