Toyota COROLLA Cylinder Block — Figure 1105

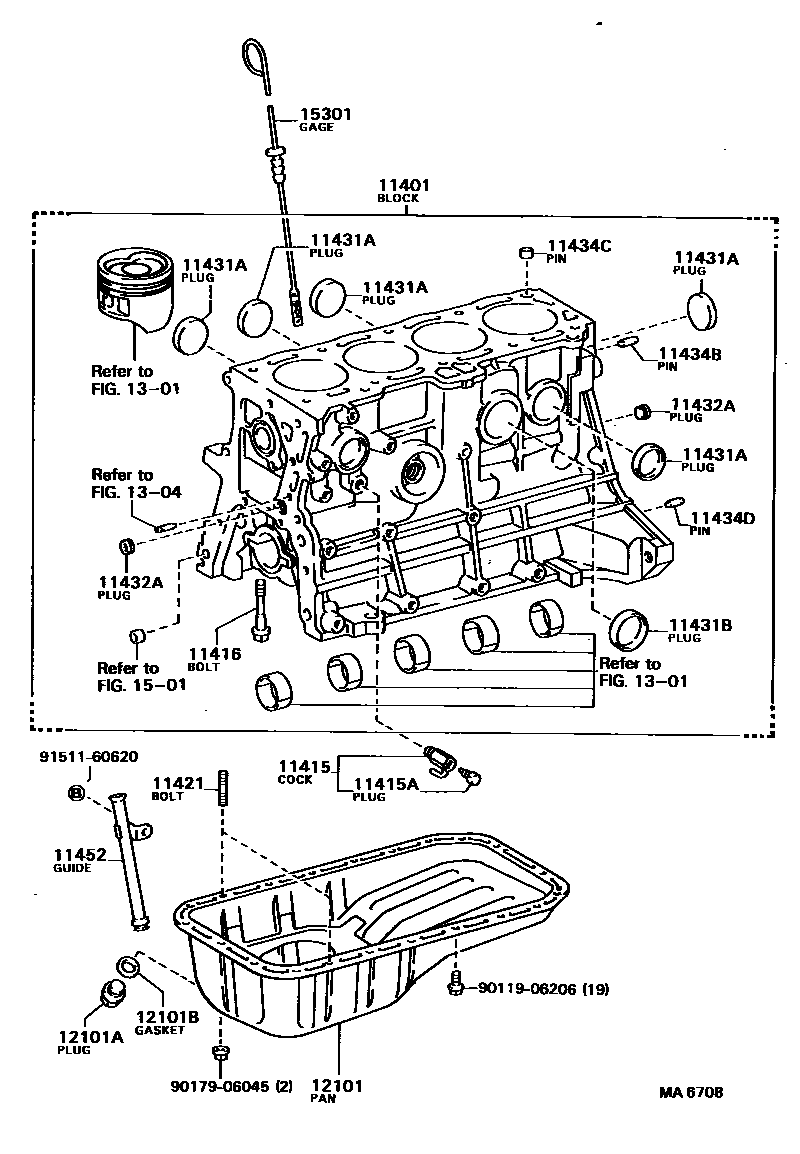

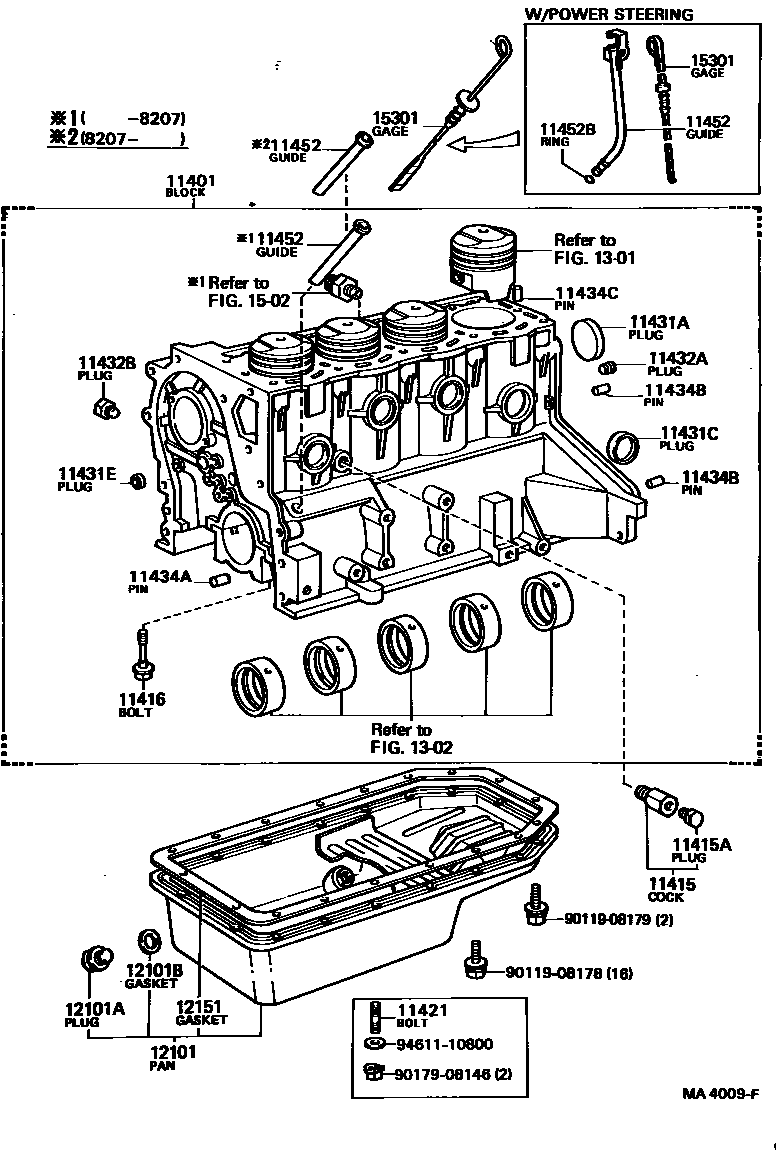

Toyota COROLLA EPC diagram 1105, Cylinder Block, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-19155 · 11401-19195 · 11401-29236 · 11401-29237 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09075 · 90910-09079 · 96431-03833 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90109-10023 · 96431-23814 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10007 · 90910-02032 |
| 11421 | Stud bolts (for oil pan) | 90116-06022 · 92122-40818 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-43500 · 96411-45000 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-44000 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-43500 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-01800 |
| 11432A | No. 1 headed tapered thread plug | 90344-53002 · 90344-53008 · 90344-53011 |
| 11432B | No. 2 headed tapered thread plug | 90345-51025 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-08003 · 90250-08120 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-08120 · 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 · 90253-13017 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 |
| 11452 | Engine oil level gauge guide | 11452-15010 · 11452-18010 · 12142-18010 |
| 11452B | O-ring (for oil level gauge guide) | 96710-01009 · 96711-19009 |
| 12101 | Oil pan sub-assembly | 12101-15040 · 12101-29075 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-18089 |
| 12101B | Gasket (for oil pan drain plug) | 90430-18244 |
| 12151 | oil pan gasket | 12151-25010 |
| 15301 | Engine oil level scoring assembly | 15301-15020 · 15301-18010 · 15301-18020 |
