Toyota COROLLA Standard Tools — Figure 0901

Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 6 PNC and OE references.

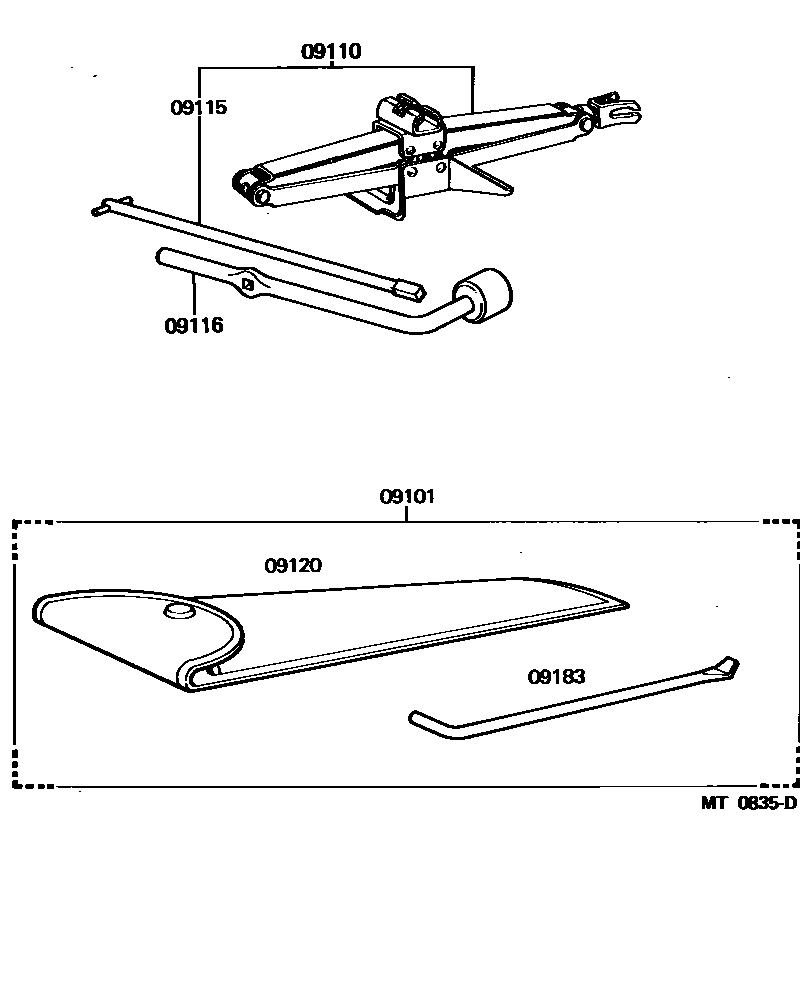

Toyota COROLLA Standard Tools EPC diagram — MT0835D
Standard Tools — MT0835D (197908 – 999999)

PNC and OE references

PNCPart nameOE numbers
09101Standard kit without jack09102-12040
09110Jack Assembly09118-10010 · 09118-13011
09115Jack Handle Rod Sub-Assembly09115-13010 · 09115-16010 · 09115-16020
09116Jack Handle Rod09116-16010
09120Tool Bag09120-12030
09183Wheel Cap Remover09183-00010
