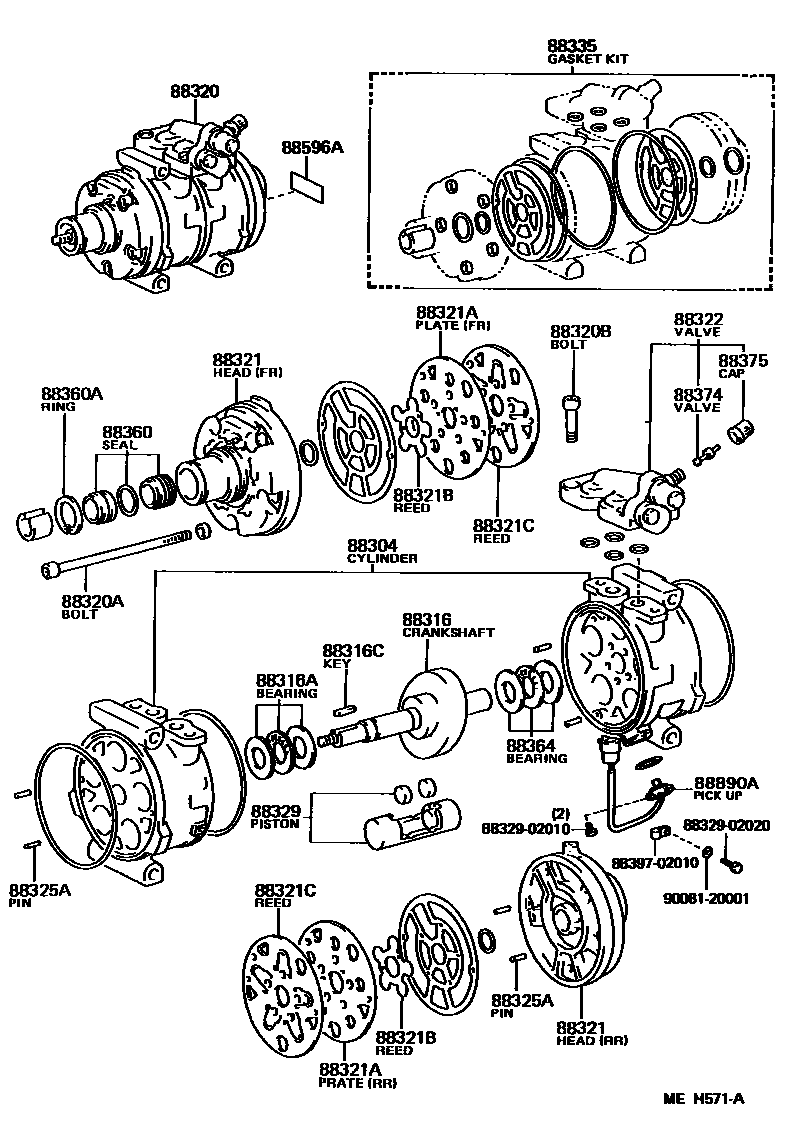

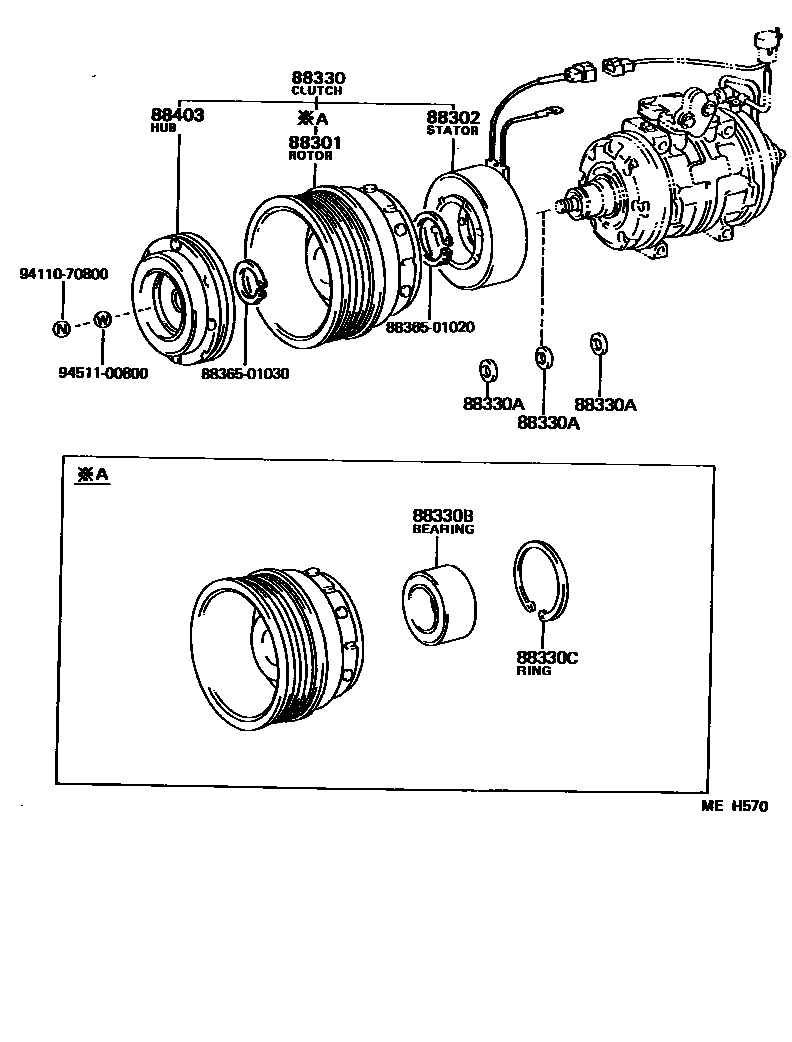

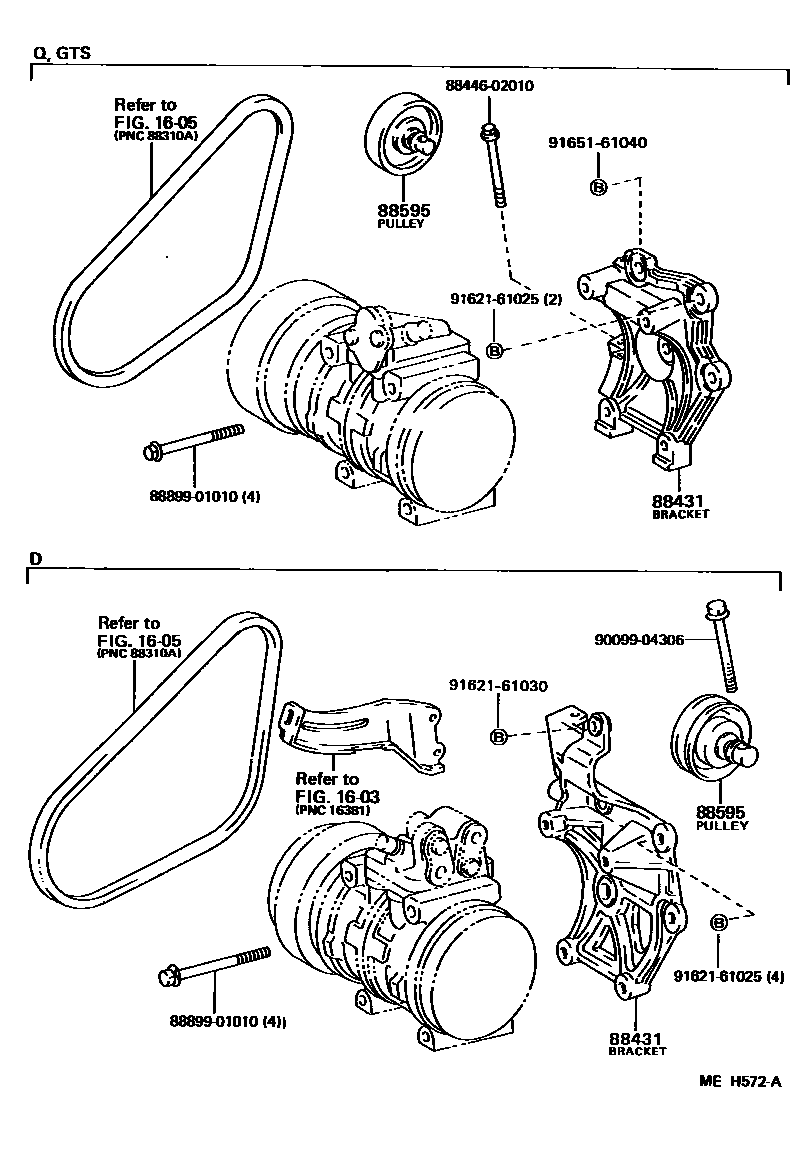

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-01011 · 88412-02010 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-01011 · 88411-02010 |
| 88304 | Cooler compressor cylinder sub-assembly | 88304-01011 · 88304-02010 |
| 88316 | Cooler compressor crankshaft | 88316-01011 · 88316-02010 |
| 88316A | Compressor crankshaft front bearing | 88366-01020 |
| 88316C | Compressor crankshaft key | 88327-01010 |
| 88320 | Cooler Compressor Assembly | 88320-01011 · 88320-02020 |
| 88320A | Through bolt | 88329-01011 |
| 88320B | Service valve bolts | 88329-01021 |
| 88321 | Cooler compressor cylinder head | 88321-01010 · 88322-01010 |
| 88321A | Valve sub-assembly | 88341-01010 · 88342-01010 |
| 88321B | Valve reed sub-assembly | 88344-01010 |
| 88321C | suction valve reed | 88343-01010 |
| 88322 | Cooler compressor suction service valve | 88371-01011 · 88371-02010 |
| 88325A | cylinder pin | 88328-01010 |
| 88329 | Cooler compressor piston sub-assembly | 88301-01011 |
| 88330 | Magnetic Clutch Assembly | 88410-01011 · 88410-02010 |
| 88330A | Washer (for electromagnetic clutch) | 90080-20003 · 90080-20004 · 90080-20005 |
| 88330B | Electromagnetic clutch bearing | 88366-01011 |
| 88330C | Snap ring (for electromagnetic clutch) | 88365-01010 · 88365-02010 |
| 88335 | Overhaul gasket assembly | 88335-01010 · 88335-02010 |
| 88360 | Cooler compressor shaft seal assembly | 88360-01010 |
| 88360A | Compressor seal ring | 88365-01040 |
| 88364 | Compressor crankshaft rear bearing | 88366-01020 |
| 88374 | Cooler compressor service valve | 88374-01010 |
| 88375 | Cooler compressor repair valve cover | 88375-01010 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-01011 · 88403-02010 |
| 88431 | Compressor No. 1 mounting bracket | 88431-02010 · 88431-20260 |
| 88595 | Cooler compressor idler pulley | 88440-02010 · 88440-12160 |
| 88596A | warning nameplate | 88356-02010 · 88596-01010 |
| 88890A | sensor assembly | 88336-02010 |
