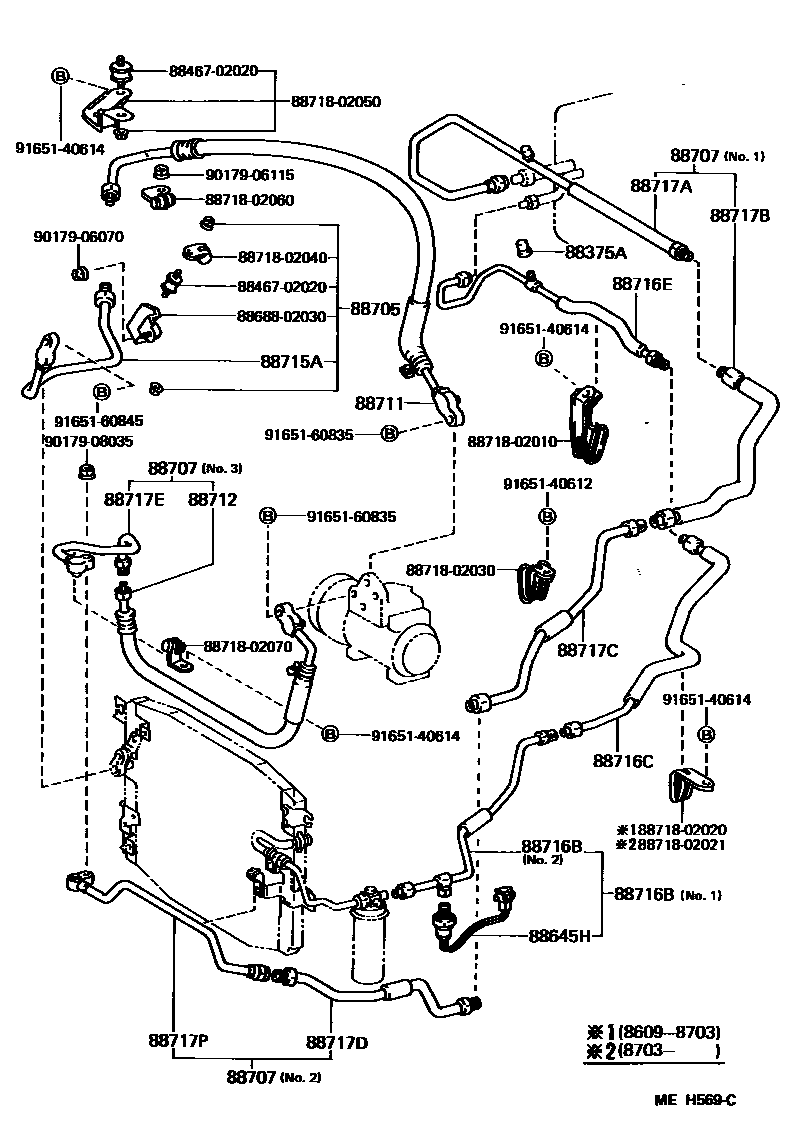

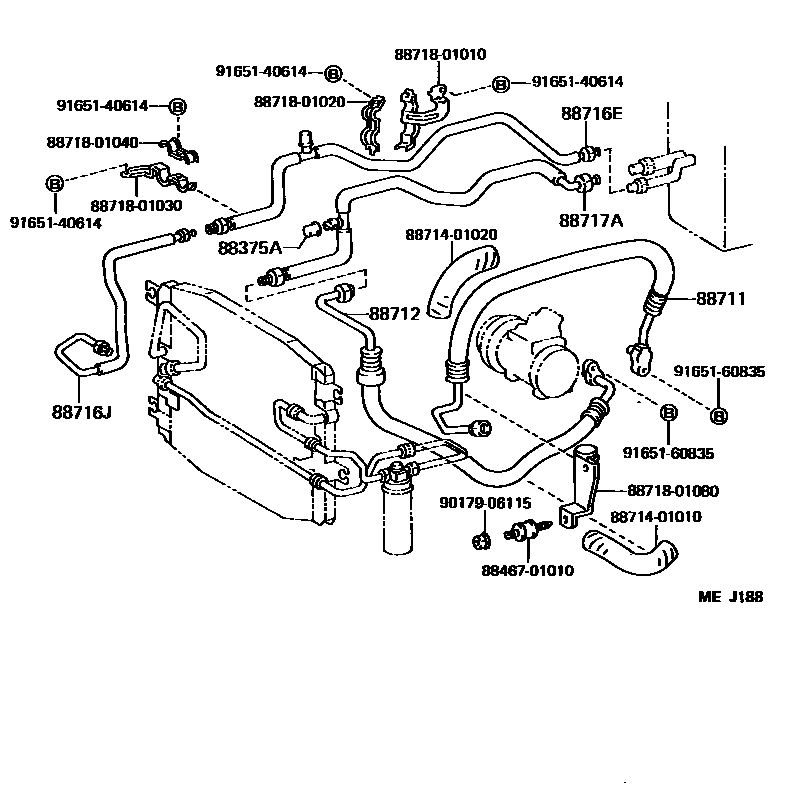

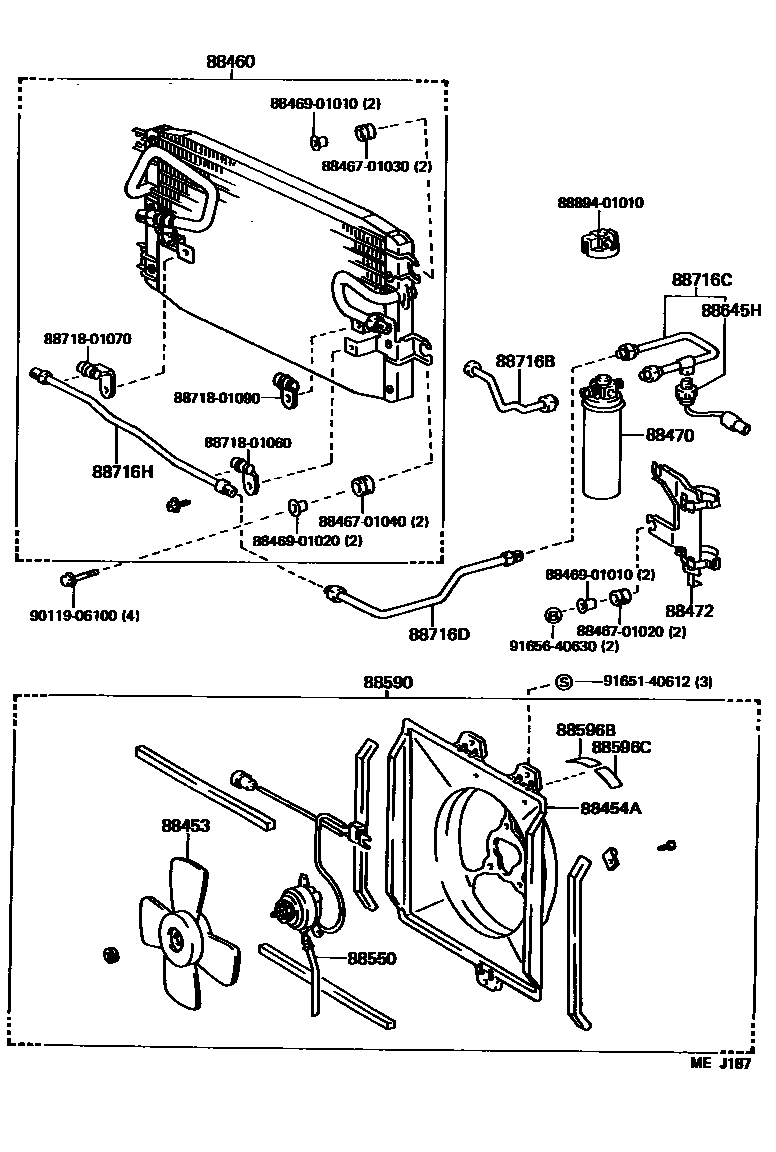

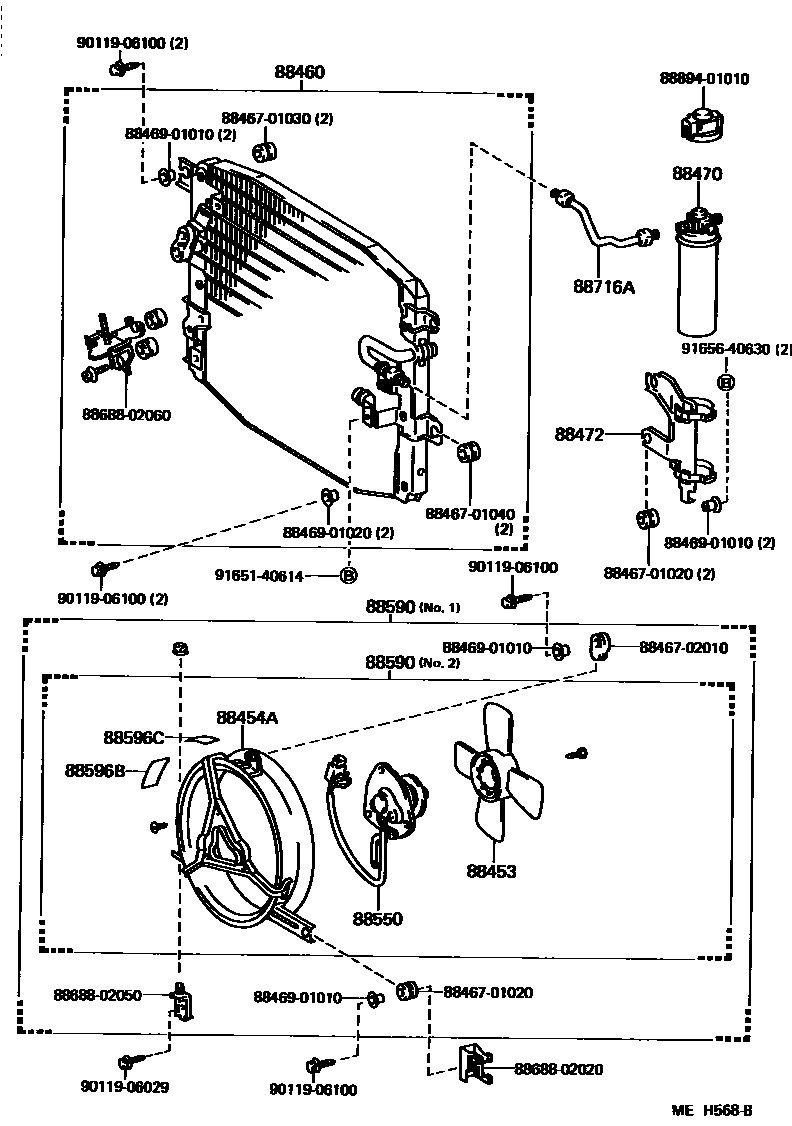

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88375A | Repair valve cover (for cooler tube) | 88375-01010 · 88375-01020 |
| 88453 | Cooling fan (for condenser) | 88453-01011 · 88453-02010 |
| 88454A | fan cover | 88454-01011 · 88454-02010 |
| 88460 | Air conditioning condenser assembly | 88460-01011 · 88460-02010 |
| 88470 | Cooler reservoir and dryer assembly | 88470-01010 |
| 88472 | No. 1 liquid storage tank bracket | 88473-01010 |
| 88550 | Blower motor assembly (for condenser) | 88550-01011 |
| 88590 | Blower assembly with hood | 88590-01011 · 88590-02010 · 88590-02020 |
| 88596B | No. 1 warning nameplate | 88596-02010 |
| 88596C | No. 2 warning nameplate | 88723-02010 |
| 88645H | No. 1 pressure switch | 88645-01021 |
| 88705 | Discharge pipe sub-assembly | 88705-02010 |
| 88707 | Suction pipe sub-assembly | 88704-02010 · 88707-02010 · 88707-02020 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-01011 · 88711-02010 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-01011 · 88712-02010 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-02010 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-01060 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-01060 · 88716-02020 · 88716-02030 |
| 88716C | Cooler refrigerant liquid pipe C | 88716-01051 · 88716-02040 |
| 88716D | Cooler refrigerant liquid pipe D | 88716-01010 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-01020 · 88716-01021 · 88716-02010 · 88716-02011 |
| 88716H | Cooler refrigerant liquid pipe H | 88716-01080 |
| 88716J | Cooler refrigerant liquid pipe J | 88716-01030 |
| 88717A | Cooler refrigerant suction pipe A | 88717-01010 · 88717-02010 |
| 88717B | Cooler refrigerant suction pipe B | 88717-02020 |
| 88717C | Cooler refrigerant suction pipe C | 88717-02060 |
| 88717D | Cooler refrigerant suction pipe D | 88717-02040 |
| 88717E | Cooler refrigerant suction pipe E | 88717-02050 |
| 88717P | Cooler refrigerant suction pipe P | 88717-02030 |
